1. Microcomputer controller used,set the data easily.
2. Stepper motor is used for wiring, which is driven by current control circuit with high speed and accuracy.
3. The position of starting and winding points can be input in a teachable way, and the current position of the spool can be displayed.
4.0-999 sets of files to set the capacity, which can store up to 999 kinds of products of different specifications. As long as the step sequence of the product is called out, the product can be directly produced.
5. The starting and winding points, width, line spacing, winding number and speed of the product can be segmented to achieve multi-segment and multi-speed targets.
6. Pedal switch device, quick and convenient production operation.
Application:

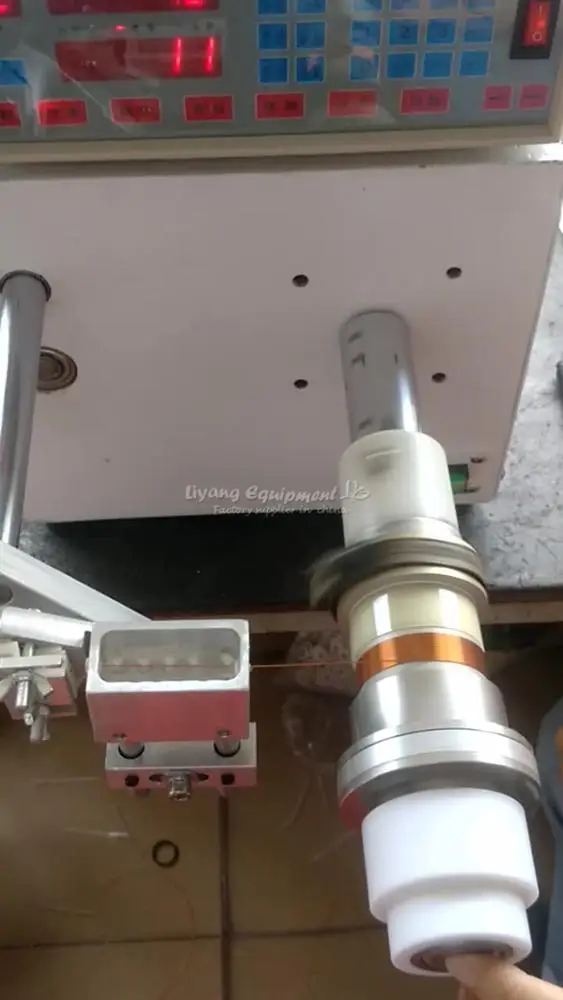

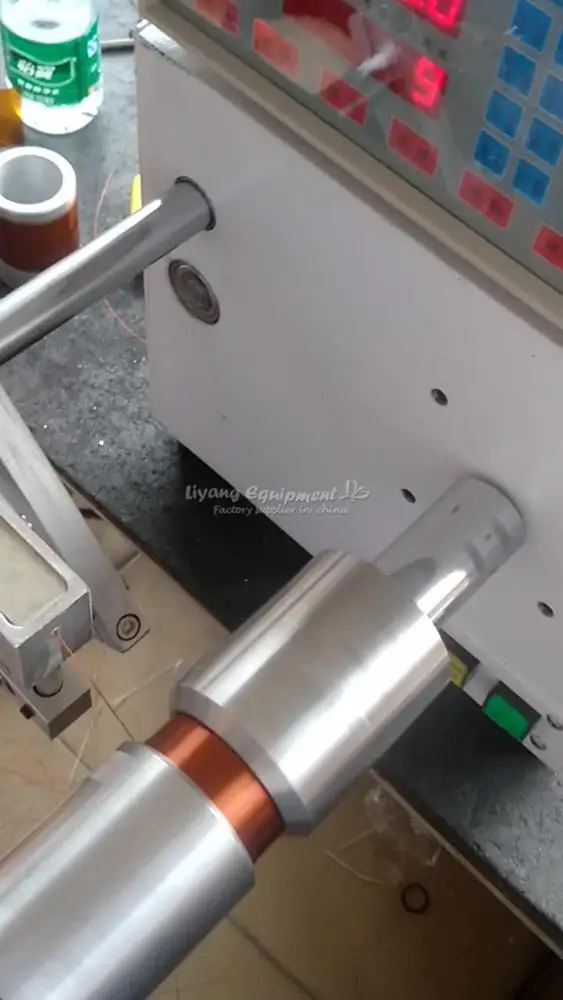

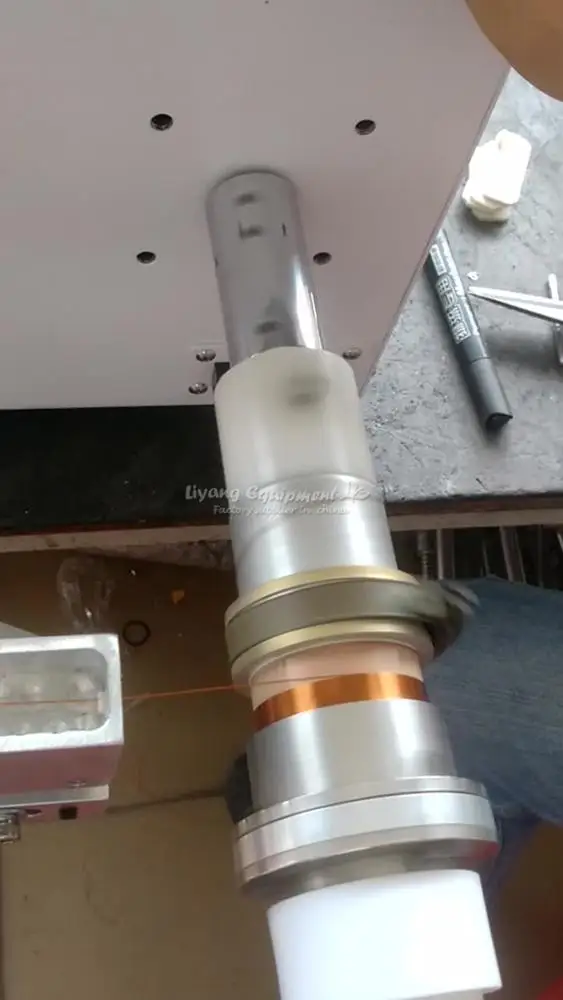

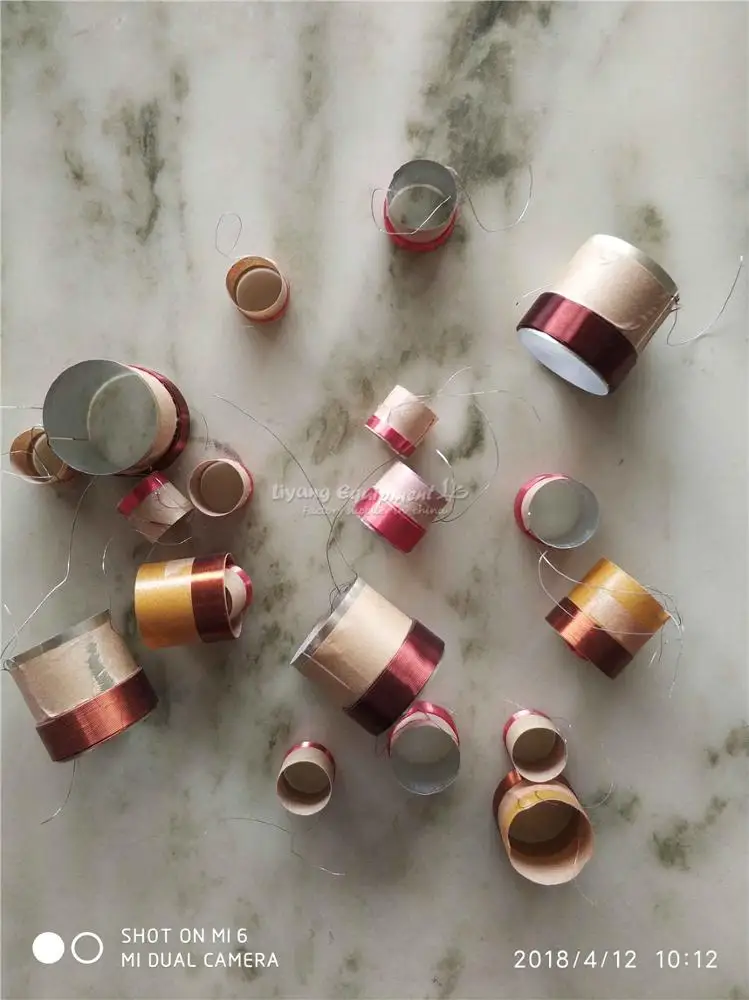

speaker coil, paper coil, hollow coil, communication coil, etc.
Product Specifics
Model

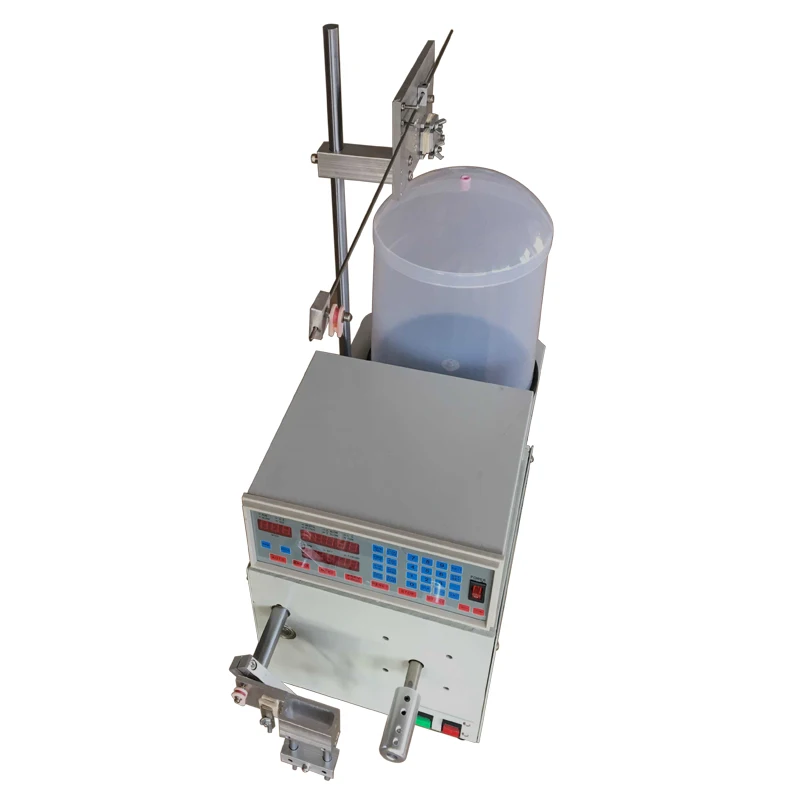

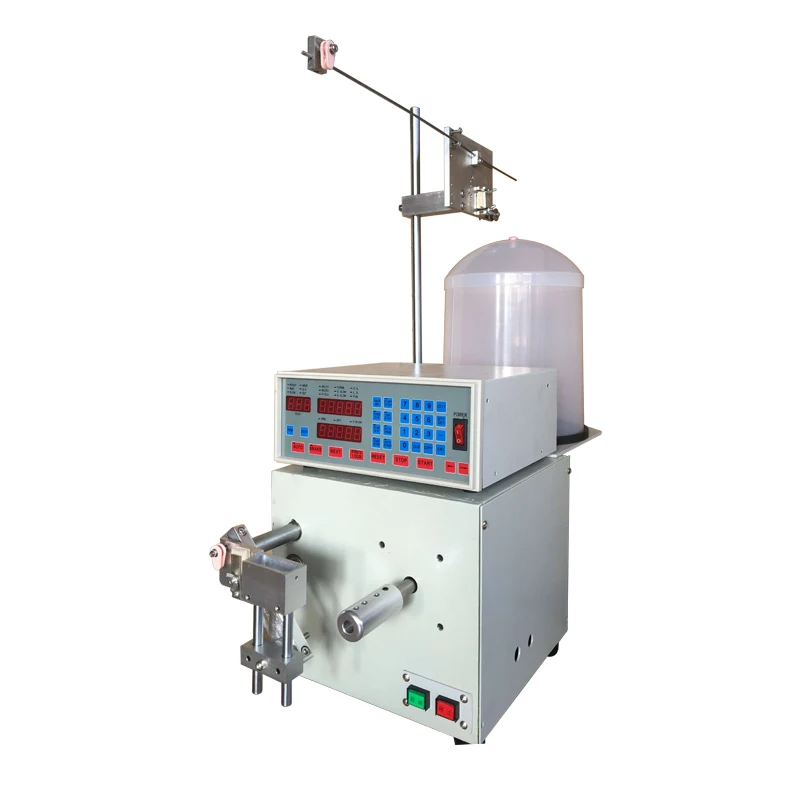

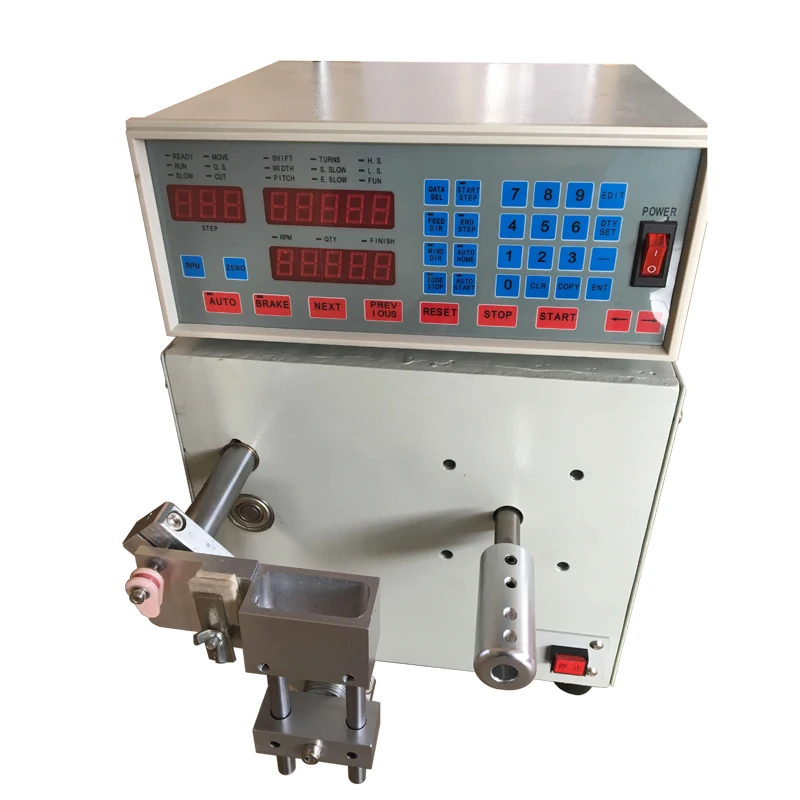

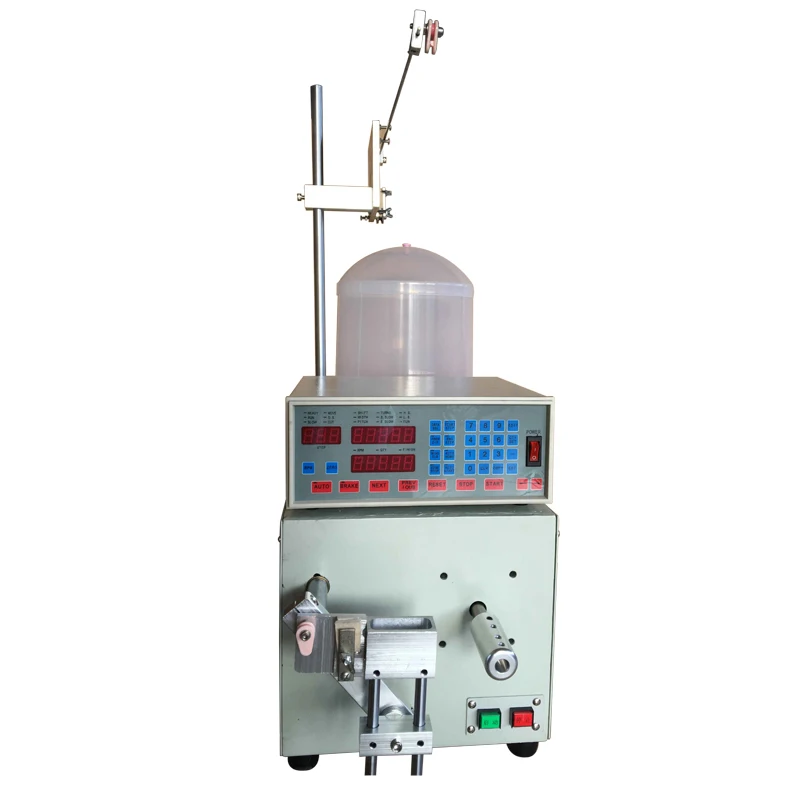

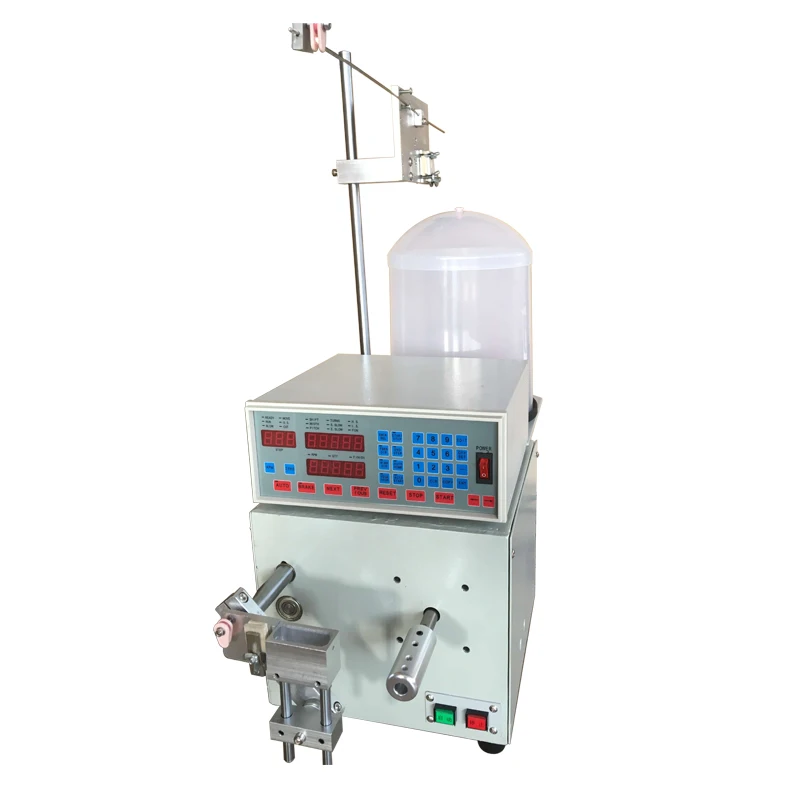

LY-860 voice coil winding machine
Axis
1
Wire diameter
0.03-1.0mm
Wire distance
0-9.999mm
Breadth
100mm(Max)
Screw diamater
120mm(Max)
Spindle motor
Brushless
Flex cable motor
Step motor
Max RPM
6000 rpm
Memory files
999
Power
220V/110V 50/60HZ
Size
55*33*100cm
Weight
55KG
Packaging & Shipping
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,TNT ,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
Our Services
1. We provide you the friendly English User manual or operating videos for free.
2. 24 hours technical support by email or calling.
3. Warranty: 1 year free, 2-3 years cost price and free technical support always.
4. Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
