10kW 72volt Motor Sem Escova EV Conversion Kit
- Category: AC Motor >>>
- Supplier: Foshan Uni Technology Co. Ltd.
Share on (60833084337):
Product Overview
Description
Recommend Products
About Us
We have successful experience and products for converting gas car to electric.
Our team members:
1. Managers with a comprehensive understanding of the market
2. Experienced engineers who have engaged in electric vehicle industry for more than 10 years with full proficiency in technology
3. Energetic and motivated colleagues
After years of development, the supply & sales chain was adjusted and improved constantly and now became a completed system. We can provide comprehensive service from pre-sales introduction to after-sales technical support.
Our products:
For car conversion:
1. Electric AC motor and controller (1-15kW 48-108V )
2. Permanent magnet synchronous motor (5kW, 15kW, 20kW, 30kW, 36kW, 50kW, 70kW)

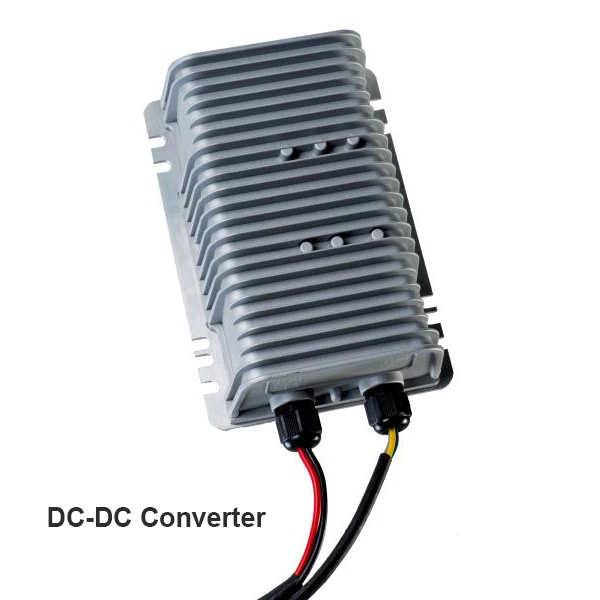

3. DC-DC converter

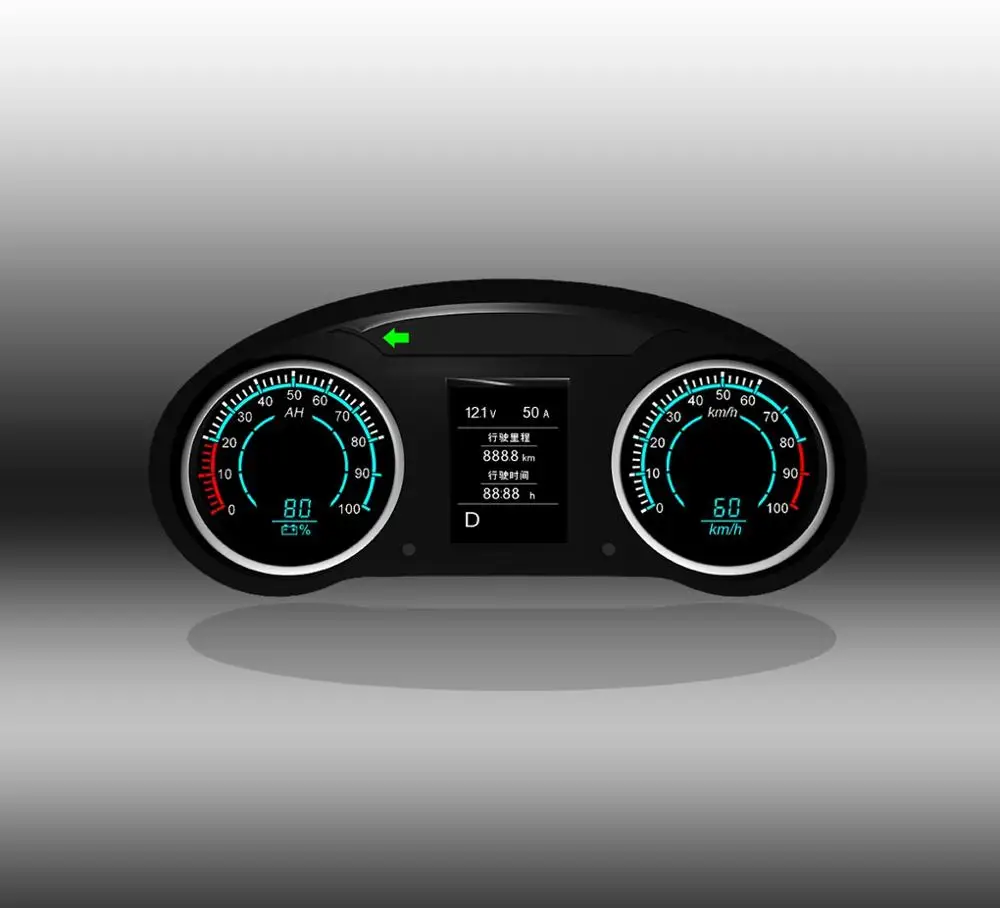

4. Battery, charger and dashboard
5. Rear axle, gearbox and shaft
For motorcycle conversion:
1. Motor with gearbox & controller: 1kW; 2kW; 3kW
For bicycle conversion:
1. Motor: 250W, 350W, 500W
2. Battery
Product Description

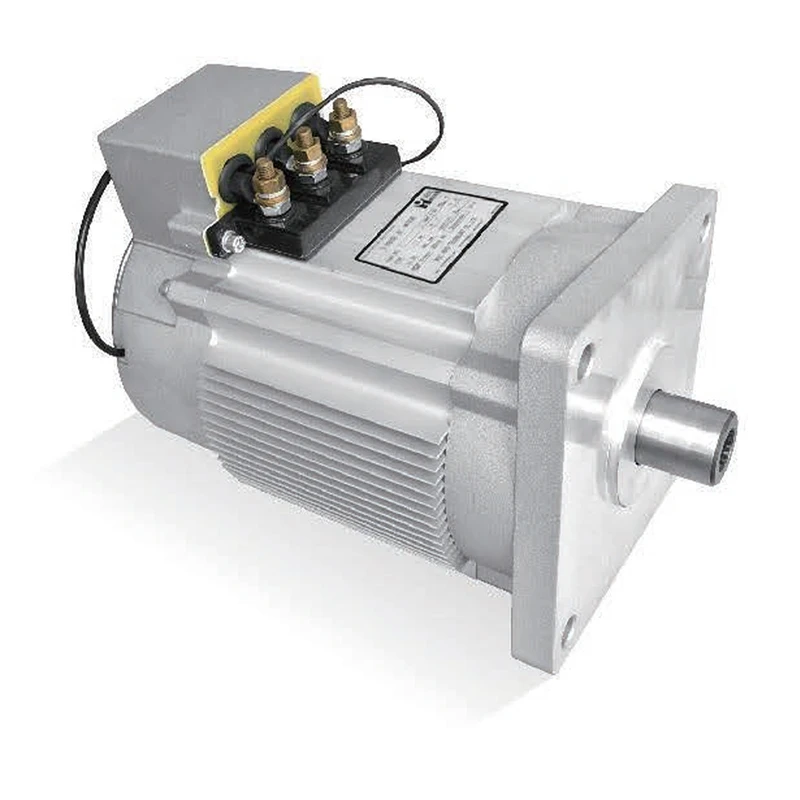

10kW AC Motor for Electric Car
Features:
1. Simple in structure
2. High reliability
3. Free maintenance
4. Big torque and high efficiency
5. Pure copper winding
1. Simple in structure
2. High reliability
3. Free maintenance
4. Big torque and high efficiency
5. Pure copper winding
10kW AC Motor Controller for Electric Car
Features:
1. DSP chip
2. High temperature adaptability
3. Programmable
4. Anti-rollback function
5. Regenerative braking effect
6. Multiple protections (under-voltage and over-voltage and high temperature)
1. DSP chip
2. High temperature adaptability
3. Programmable
4. Anti-rollback function
5. Regenerative braking effect
6. Multiple protections (under-voltage and over-voltage and high temperature)

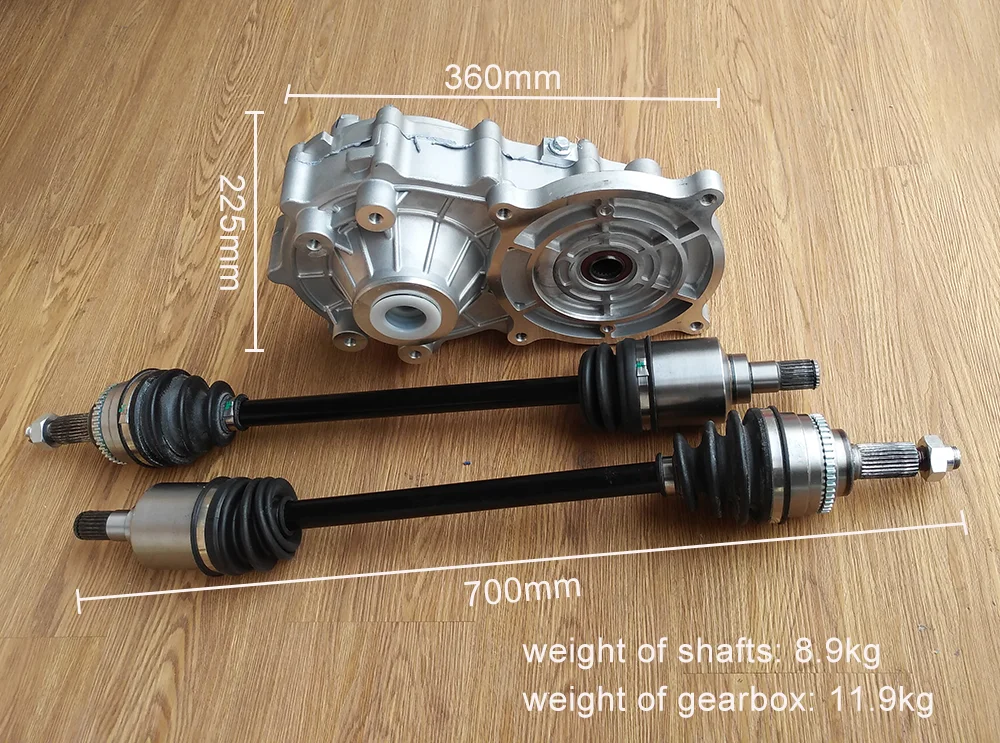

Gearbox for Electric Car
Features:
1. High torque
2. improvement in efficiency
3. Space-saving
4. Strong load bearing capacity
1. High torque
2. improvement in efficiency
3. Space-saving
4. Strong load bearing capacity
Rear Axle Assembly for Electric Car
Choose gearbox for front-wheel drive or rear axle for rear-wheel drive.
Specification | ||||||
AC Motor | Rated Power: 3kW-15kW | Rated Voltage: 48V-96V | Max. Torque: 60N.m-140N.m | |||
PMSM Motor | Rated Power: 3kW-50kW | Rated Voltage: 48V-420V | Max. Torque: 60N.m-235N.m | |||
AC Motor Controller | Rated Power: 3kW-15kW | Rated Voltage: 48V-96V | Max. Current: 250-500A | |||
PMSM Motor Controller | Rated Power: 3kW-50kW | Rated Voltage: 48V-420V | Max. Current: 300-500A | |||
Gearbox | Ratio:6:1/8:1/10:1/12:1 | Torque Capacity:180N.m | Net Weight:15~30kg | |||
Rear Axle | Ratio:6.5/8.6/10.5/12.31/14.5/16.9/18.6 | Standard Length: 850mm/950mm | Break Type: drum/disc hydraulic pressure | |||
Electric Vehicle Power System Training Platform
Cases
10kW AC Motor Driving System for Electric Car
After calculation, we use the following driving system.
Motor Power | 10/30 | Max. Torque (N.m) | 120 |
Speed (rpm) | 3000/6500 | Rated Voltage (V) | DC80 |
The max. speed is 80km/h.
Production & Service
R&D Department
We have a strong R&D team with many years of experience in areas such as electrical, electronics, software, machinery, automation, etc.
Production Center
A full set of processing equipment can guarantee the accuracy;
Advanced automatic wire embedding system is to ensure the consistency;
Semi-automatic production line will improve the productivity.
Motor Production
Semi-automatic production line: more than 80% automation
60 sets in a single shift; annual production: 15,000; max. annual production: 45,000 sets
Controller Production
Semi-automatic controller production line: more than 80% automation
100 units in a single shift
Quality Management
The quality assurance department will supervise the production process and the test equipment can insure the product quality.
Certifications
Packing & Delivery
Normal package is wooden box and it will be fumigated. Sometimes cartons will be chosen if by air. If there are any special requirements, please talk to our sales person.
