[JT-ML750]Die cutting and paper creasing machine
US $4500-$6500

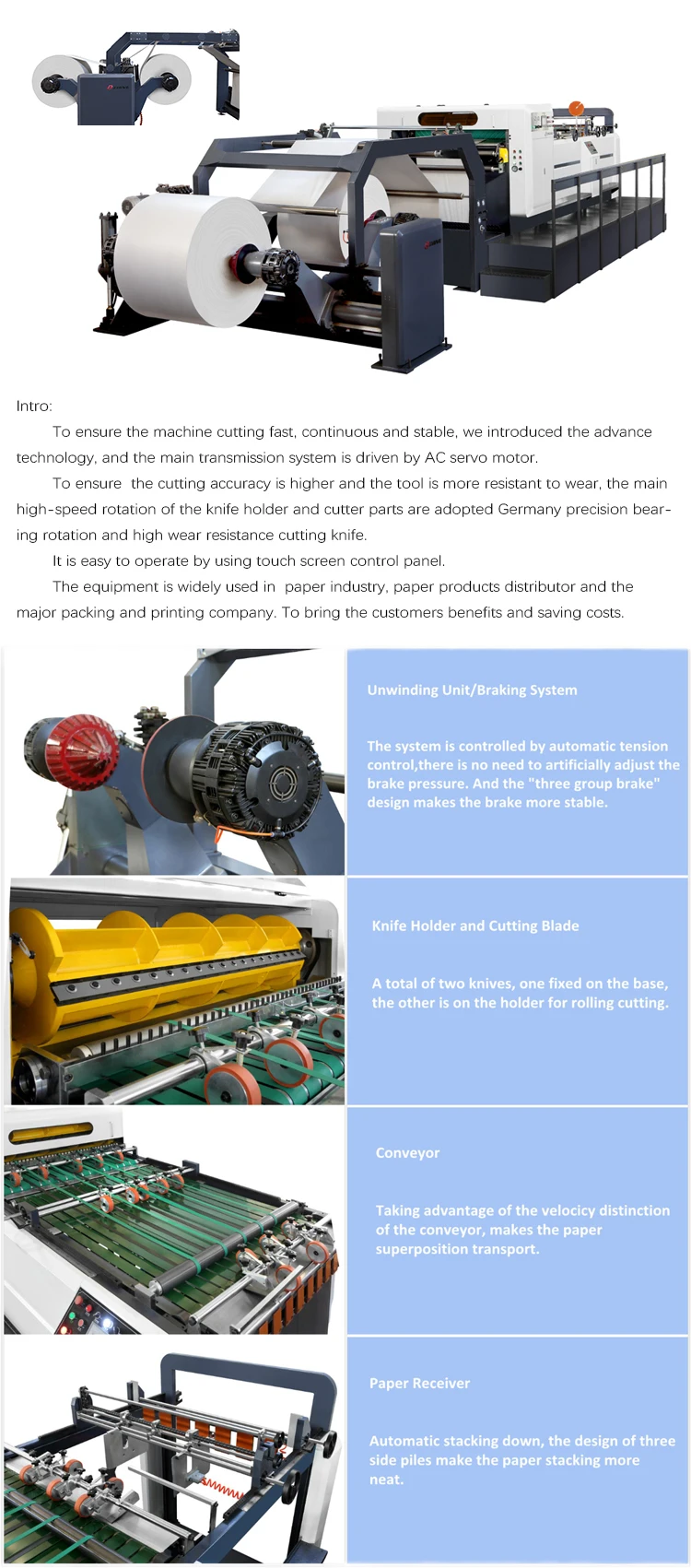

Fully Automatic New Technology Paper Roll Cutting Machine
- Category: Paper Production Machinery >>>
- Supplier: Zhejiang Leanon Machinery Co. Ltd.
Share on (60833098713):
Product Overview
Description
Product Description
Product Parameter
| Model | 1400-1 | 1700-1 | 1400-2 | 1700-2 | 1400-4 | 1700-4 | HQD-1300 |
| Reference weight of cutting paper (g/m2) | 50-500 | 50-500 | 50-500 | 50-500 | 50-500 | 50-500 | 40-550 |
| Applicable roll core diameter range (cm) | 7-30 | 7-30 | 7-30 | 7-30 | 7-30 | 7-30 | 7-30 |
| Max.Diameter of paper roll (mm) | 1650 | 1650 | 1650 | 1650 | 1650 | 1650 | 1650 |
| Max.Width of paper roll (mm) | 1400 | 1700 | 1400 | 1700 | 1400 | 1700 | 1300 |
| Total power (KW) | 23 | 25 | 25 | 30 | 30 | 32 | 7 |
| Cutting length (mm) | 400-1600 | 400-1600 | 400-1600 | 400-1600 | 400-1600 | 400-1600 | 200-1450 |
| Cutting accuracy (mm) | +/- 0.4 | +/-0.4 | +/-0.4 | +/-0.4 | +/-0.4 | +/-0.4 | +/-0.2 |
| Maximum cutting speed (cuts/min) | 300 | 300 | 300 | 300 | 300 | 300 | 120 |
| Maximun cutting meter speed (m/min) | 300 | 300 | 300 | 300 | 300 | 300 | ---- |
| Atmospheric pressure (MPa) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | ---- |
| Power supply (V) | 380/220 | 380/220 | 380/220 | 380/220 | 380/220 | 380/220 | 380/220 |
| Total weight (KG) | 10,000 | 11,000 | 11,000 | 13,000 | 15,000 | 16,000 | 5000 |
| Size (m) | 9*3.9*2.35 | 9*4.2*2.35 | 12*3.9*2.35 | 12*4.2*2.35 | 16*3.9*2.35 | 16*4.2*2.35 | 9.5*1.9*1.2 |
| Machine Video | https://www.youtube.com/watch?v=OSbmstI2PTo | ||||||
Note: more model please CONTACT.
