2 Channel Way PWM Signal Generator Digital Duty Cycle Pulse Frequency Module DC 5 30V Micro USB 5V Power Independent

Product Overview

Description

2 Channel Way PWM Signal Generator Digital Duty Cycle Pulse Frequency Module DC 5-30V Micro USB 5V Power Independent





1.Description:



Frequency is divided into three ranges:

XXX (no decimal point): the smallest unit is 1Hz, the range 1Hz ~ 999Hz;
XX.X (decimal point in ten): The minimum unit is 0.1Khz; the range of 0.1KHz ~ 99.9KHz
X.X.X. (there are three decimal point): the smallest unit is 1Khz; the range 1KHz ~ 150KHz



Frequency display example:
"100" indicates that the PWM output pulse of 100Hz;
"54.1" indicates that the PWM output pulse of 54.1KHz;
"1.2.4." Indicates that the PWM pulse output 124KHz
Duty Cycle in the range: 0 to 100;
Three frequencies duty cycle is the same, all the parameters non-volatile.



2. parameters:



Working voltage: 5--30V, support micro USB 5.0V power supply;
Frequency range: 1Hz ~ 150KHz;
The frequency accuracy: ± 2%;
Output Current: <30mA;

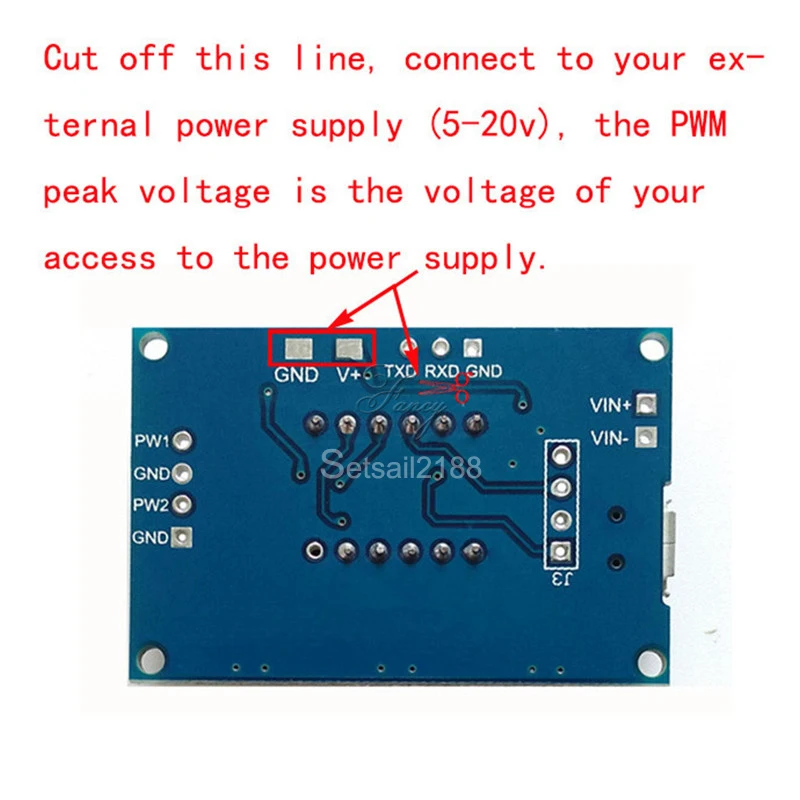

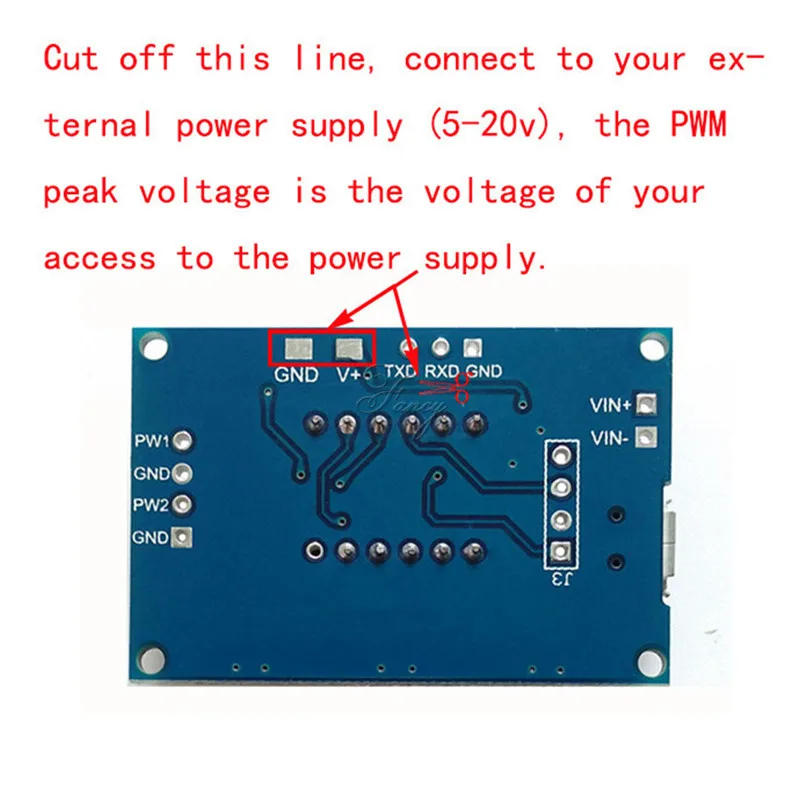

Output amplitude: Default 5Vp-p (settable);
Operating temperature range: -30 ~ + 70 °.



3. parameter settings:

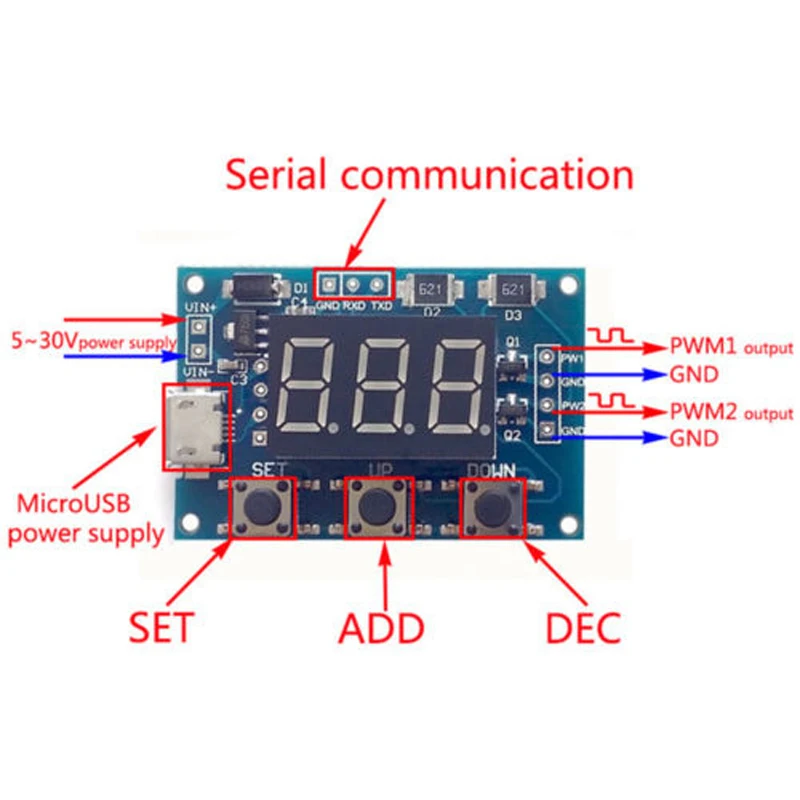

Module has three buttons [Set], [Up], [Down];
Press [Set] key to switch the display four parameters (FR1: PWM1 frequency; dU1: PWM1 duty cycle; FR2: frequency of PWM2; dU2: PWM2 duty cycle), before the handover parameters, there will be corresponding parameter name flash.
Press [Up], [Down] keys to modify the current parameter value (long press can quickly add or subtract fast).
Two PWM each have three preset frequency, the frequency display interface, long press [SET] key to switch between three types of frequencies, three kinds of frequency duty cycle is the same value. (XXX: range 1Hz ~ 999Hz; XX.X: range 0.1Khz ~ 99.9Khz; X.X.X .: range 1Khz ~ 150Khz,).



4. scope:



As square wave signal generator which generates a square wave signal;
to provide a signal to the stepping motor driver;
Adjustable pulse generation for chip use;
produce variable pulse signal, the control-related circuit (PWM dimming, speed).

5.the serial control
Baud rate: 9600 bps
Data bits: 8
Stop bits: 1
Parity bit: none
Flow control: none

Set the PWM frequency
"S1FXXXT": setting PWM1 frequency of XXX HZ (001 ~ 999)
"S1FXX.XT": set the frequency of PWM1 XX.X KHZ (00.1 ~ 99.9)
"S1F: X.X.X.T": setting PWM1 frequency of XXX KHZ (0.0.1 ~ 1.5.0..)
'S1': PWM1
'S2': PWM2
'F': Frequency
'D': Duty Cycle
'T' is the end flag

Set the PWM duty cycle
"S1DXXXT": setting PWM1 duty cycle XXX; (001 ~ 100)
"S2DXXXT": set PWM2 duty cycle XXX; (001 ~ 100)
Setting successful return: DOWN;
Setting failback: FALL.

Package Included:

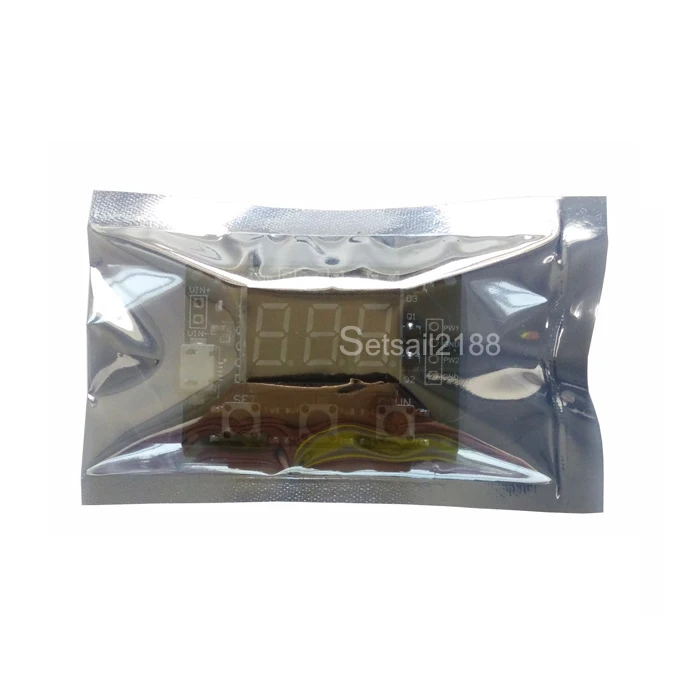

1 x 2 way Independent PWM Generator
