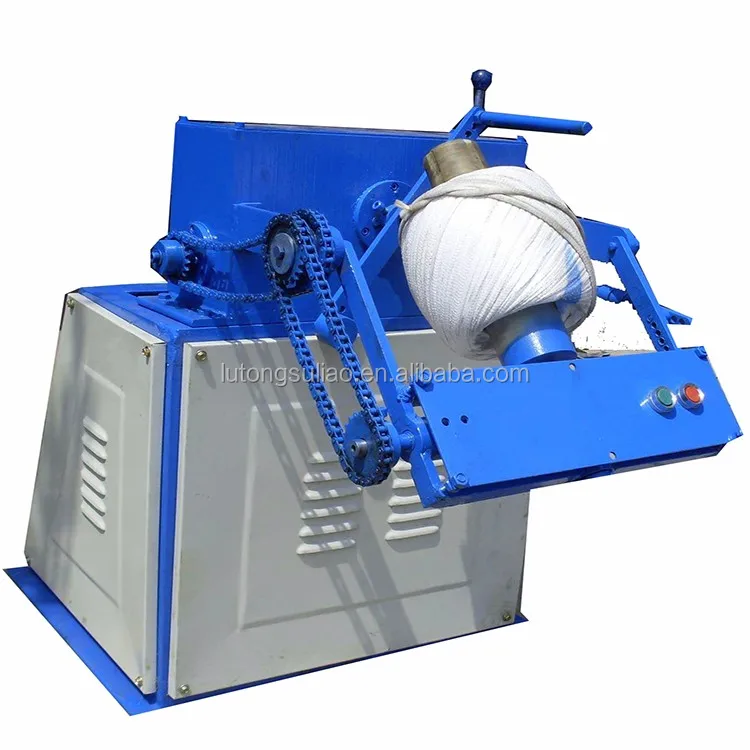

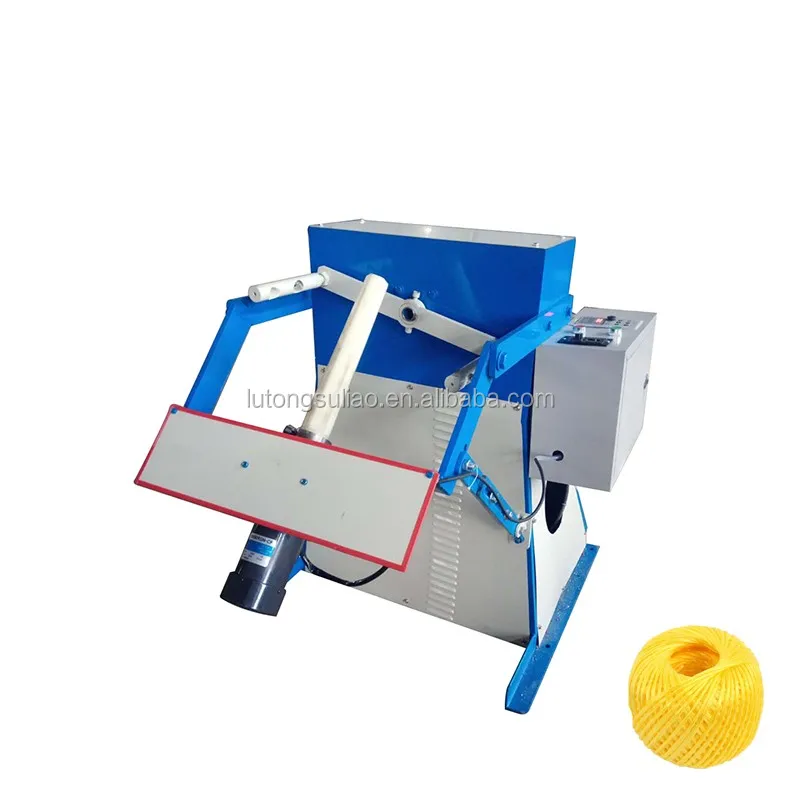

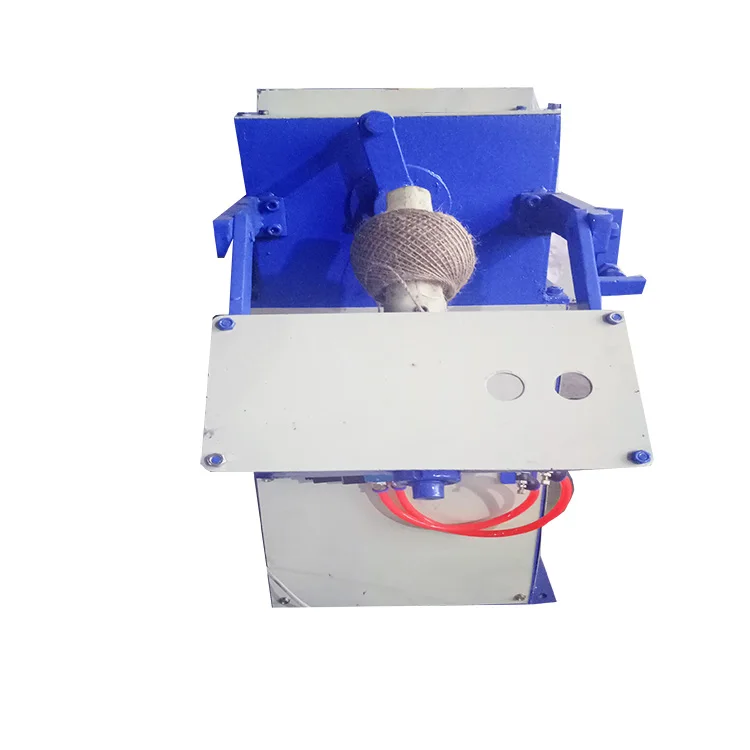

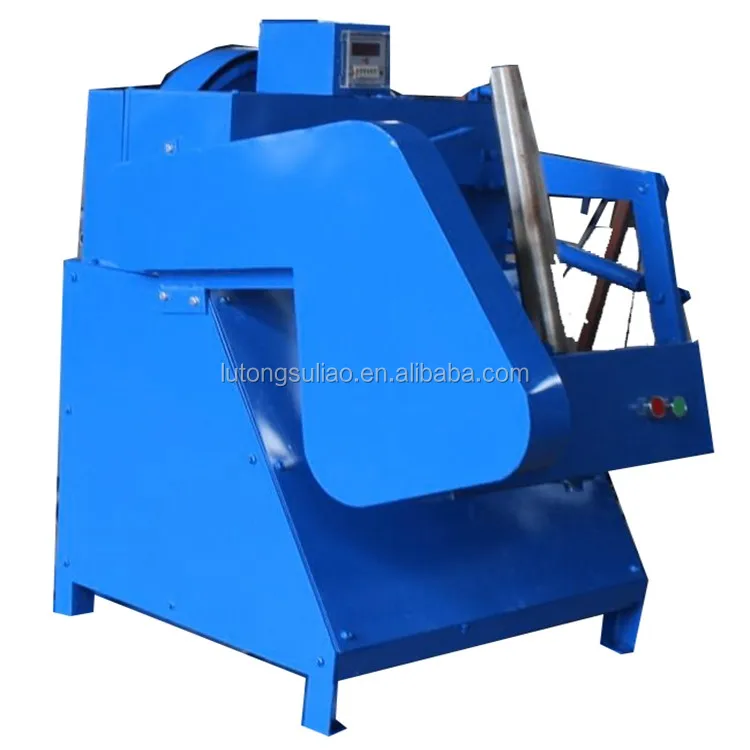

Cotton and hemp balls yarn ball winder

Category: Other Plastic Product Making Machinery >>>
Supplier: Laizhou Lutong Plastics Co. Ltd.

Price:RUB 68,236.20

Quantity:

Product Overview

Description

Product Description

usage:This machine is suitable for processing PP, PE split film yarn/ just twine, cotton twine, weaved twine to ball. This machine has the advantages of low noise, easy operation, etc...

specification

Model	DQ-200	DQ-500	DQ-1000	DQ-2000
Motor power	0.55kw	0.75kw	1.1kw	1.5kw
Speed	600-800r/min	600-800r/min	600-800r/min	600-800r/min
Ball weight	20-250g	250-500g	500-1000g	1000-2000g
Capacity	10-15kgs/h	10-15kgs	15-20kgs/h	20-25kgs
Package	wooden case	Wooden case	wooden case	Wooden case
Packing size	7007001000mm	8008001000mm	9009001000mm	100010001100mm
N.W.\G.W.	83/ 95kgs	120/140kgs	135/ 150kgs	150/180kgs

Detailed Images

Our company was established in 2003. Founded before we already have a wealth of rope production experience, on the basis of long time rope productions, we setup new factory in 2006, which manufactures plastic machines relevant with rope production. Therefore, we can provide you with high-quality machines, meanwhile, we can help to supply solution suggestions for some problems appeared during your rope production according to our years of production experience. Discuss and study together for further progress.

details

1. Matched with meter counter. When machine reach to setup digit, machine will stop automatically.
2. Circuit protection: general control switch for motor, buttons for start and stop.

Machine operation :

1. Adjust twist via changing shafting fork direction.
2. Adjust finished ball pattern via changing gear.
3. Adjust finished ball size via adjust axle angle.

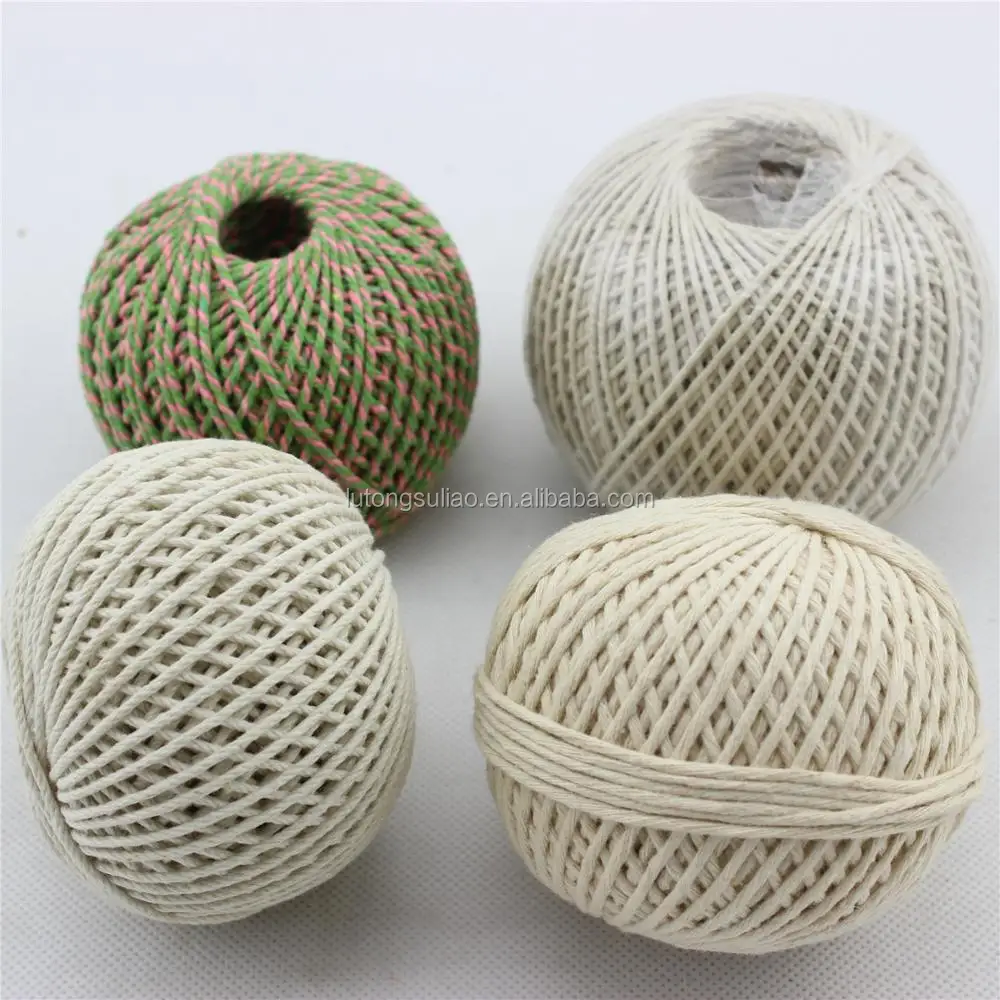

Ball making machine inished products :

1. PP split film, twine with jute, sisal, cotton, plastic material and thin rope are available.
2. Finished ball weight: 50-4000g according to different machine models.
3. Ball diameter: 10-25cm.
