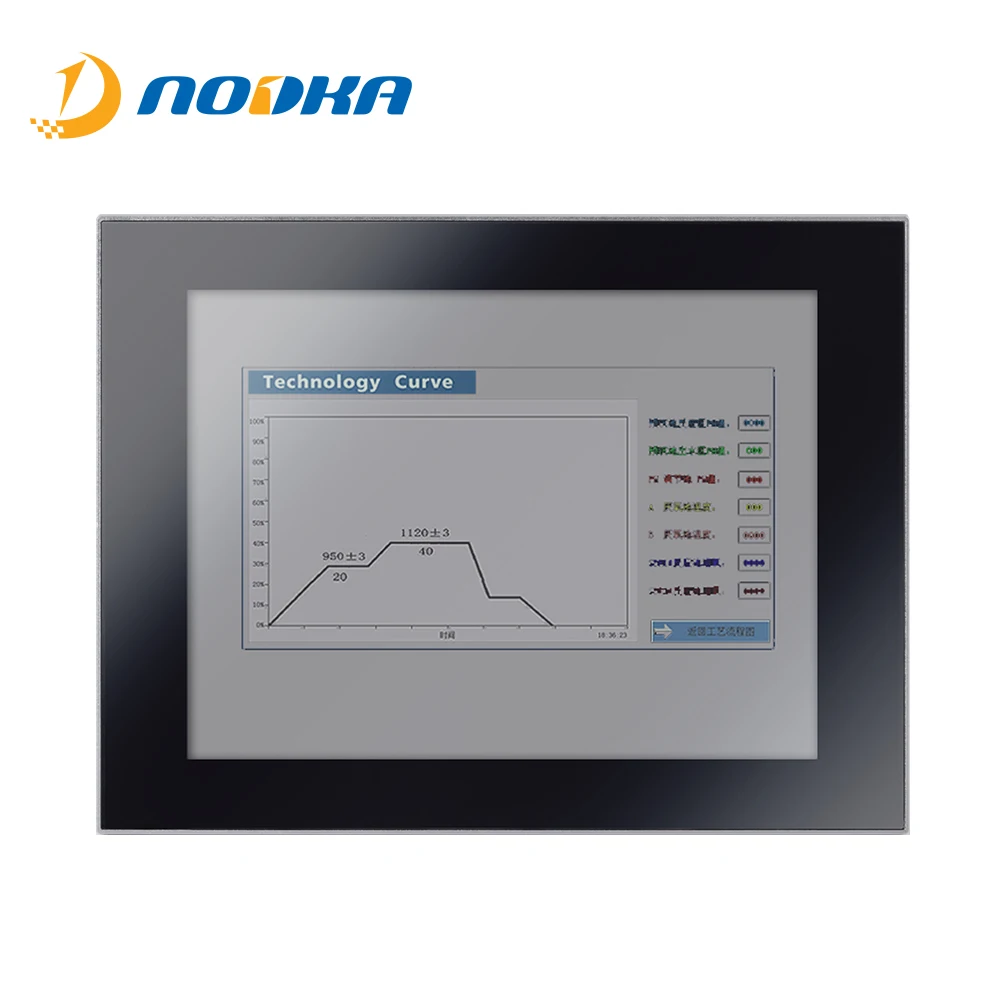

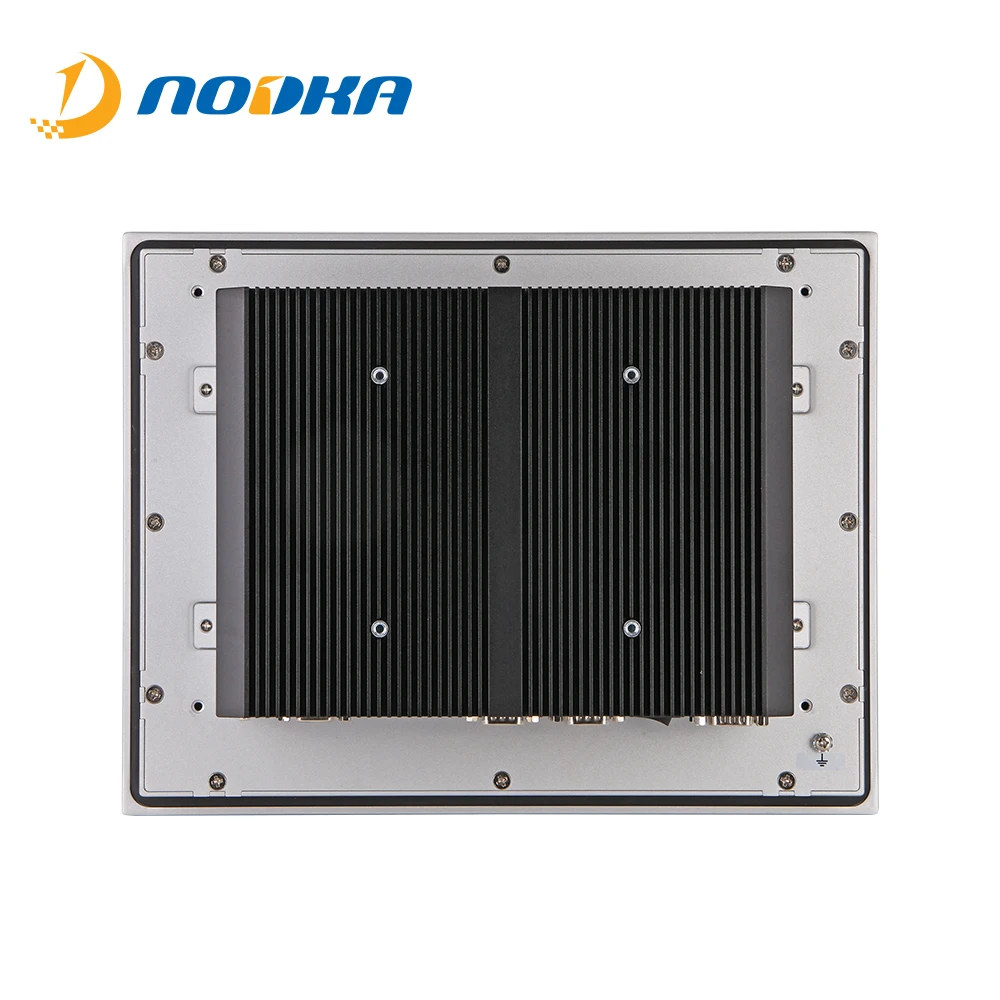

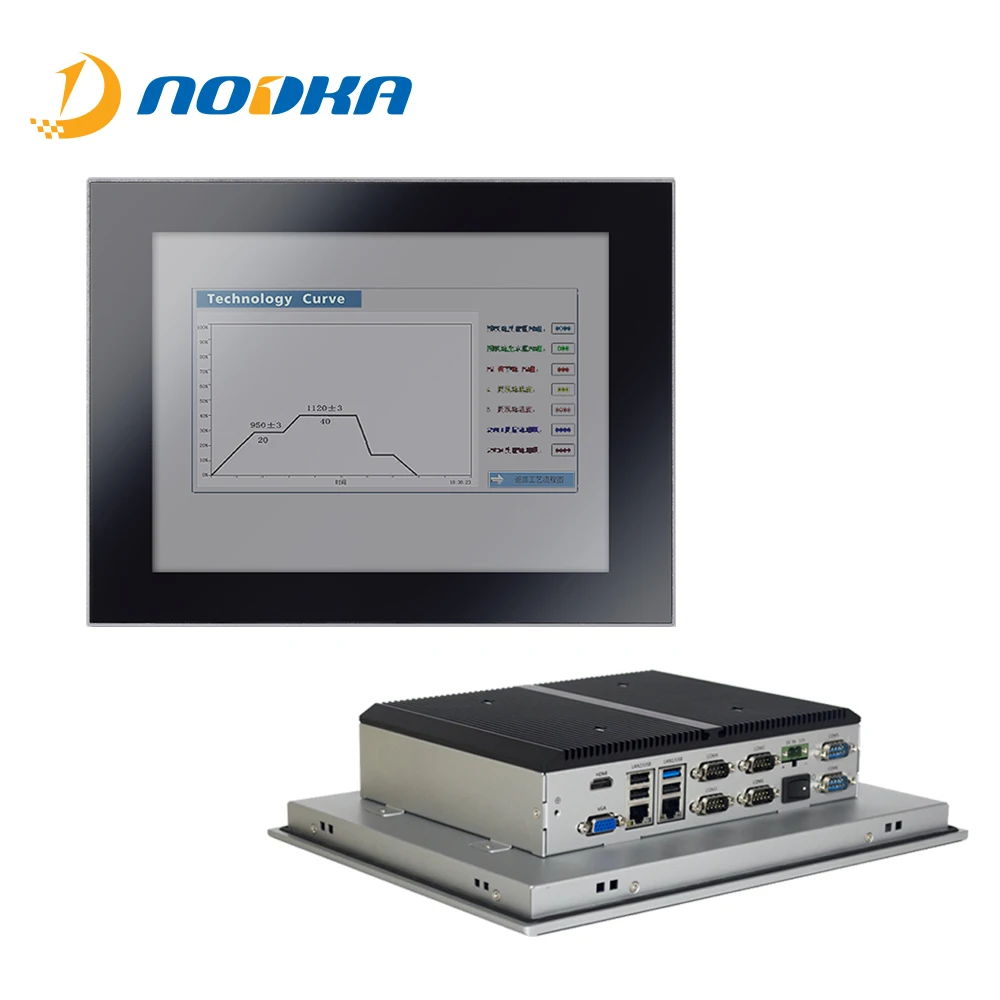

12 inch capacitive touch screen embedded panel pc industrial
- Category: Industrial Computer & Accessories >>>
- Supplier: Shanghai NODKA Automation Technology Co. Ltd.
Share on (60833927474):
Product Overview
Description
System | ||||||
CPU | Bay Trial J1900 | |||||
Frequency | Quad core 2GHz | |||||
L2 Cache | 2MB | |||||
Chipset | Bay Trail SOC | |||||
Memory | 1 x 204 - pin SODIMM DDR3L - 1333MHz support up to 8GB | |||||
Storage Medium | 1 x 2.5"SATA bay + 1x mSATA | |||||
LAN | 2 x Realteck RTL8111F 1000Mbps RJ - 45 with surge protection , lightning protection design and 15KV ESD protection | |||||
Audio | Realtek ACL662 Audio controller,built - in mono speaker(optional) | |||||
USB | 1 x USB3.0 / 2.0 / 1.1 , 3 x USB2.0 / 1.1 | |||||
COM | 1 x RS - 232 / 485 (COM1) , 5 x RS - 232 (Optional 2 x RS48 , RS485 support automatic flow control) | |||||
Texpansion slot | 1 x Mini - PCle slot , extensible 3G , WIFI wireless card | |||||

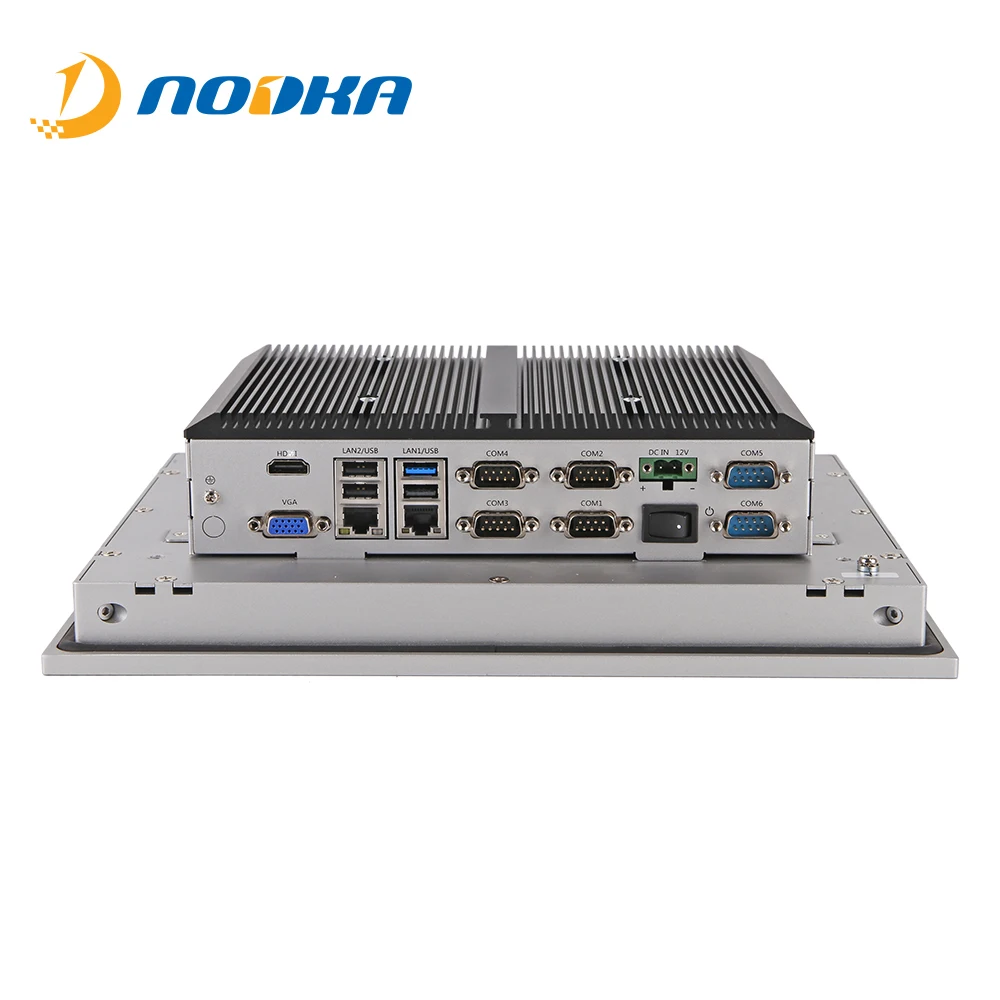

RearI/O | VGA/HDI/2xGLAN/4xUSB/6xCOM | |||||
Institutional | ||||||

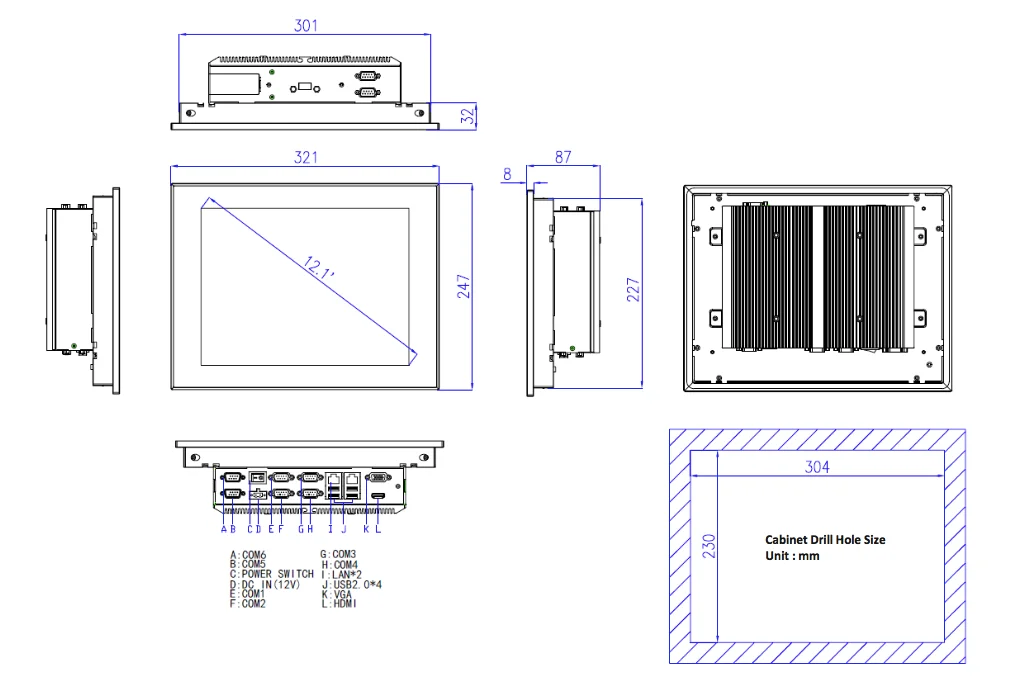

Dimensions(WxHxD) | 321mm x 247mm x 87mm (12.64" x 9.72" x 3.43") | |||||
Drill Hole Size(WxH) | 304mm x 230mm (11.97" x 9.06") | |||||
Input voltage | DC12V , support reverse polarity protection , +9~+30V (Option) | |||||
Maximum Power Dissipation | 36.6Watt | |||||
Environmental | ||||||
Work Temperature | -20~60°C(-4~140°F)(Wide temperature SSD) / 0~45°C(32~113°F)(General temperature HDD/SSD) | |||||
Storage Temperature | -30~80°C(-22~176°F) | |||||
Relative humidity | 5~95%(Non condensation) | |||||
Shake | SSD applied:1.5 Grms,IEC 60068-2-64,random,5~500 Hz,1hr/axis | |||||
Shock | SSD applied:10 G,IEC60068-2-64,Half-sine wave,11ms duration | |||||
EMC | CE/FCC ClassA | |||||
Water-proof | Front panel IP65 | |||||
LCD | Touch screen | |||||
LCD Size | 12.1" SVGA TFT | Type | Multi-point capacitive touch screen | |||
Resolution | 1024×768 | Transmittance | >75% | |||
Colors | 16.7MB | Controller interface | USB | |||
Active Area(WxH) | 246mm x 184.5mm (9.68" x 7.26") | Driver Support | Win 7, Win 8, Win 10, Linux | |||
Backlight | LED | Multi-touch | 10 points(win system) | |||
MTBF | 50000hrs | Surface Hardness | Mohs'Number7 | |||
Pixel Pitch(HxV) | 0.3075×0.3075 | |||||
Luminance | 450cd/m2 | |||||
Contrast Ratio | 800:1 | |||||
Viewing Angle | (L)80/(R)80/(T)60/(B)80 | |||||
Related Products
Our Company
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but not for free charge.
Q: What is your terms of payment ?
A: Payment<=100000USD, 100% in advance.
If you have another question, pls feel free to contact us with email:
Contact US
We Recommend

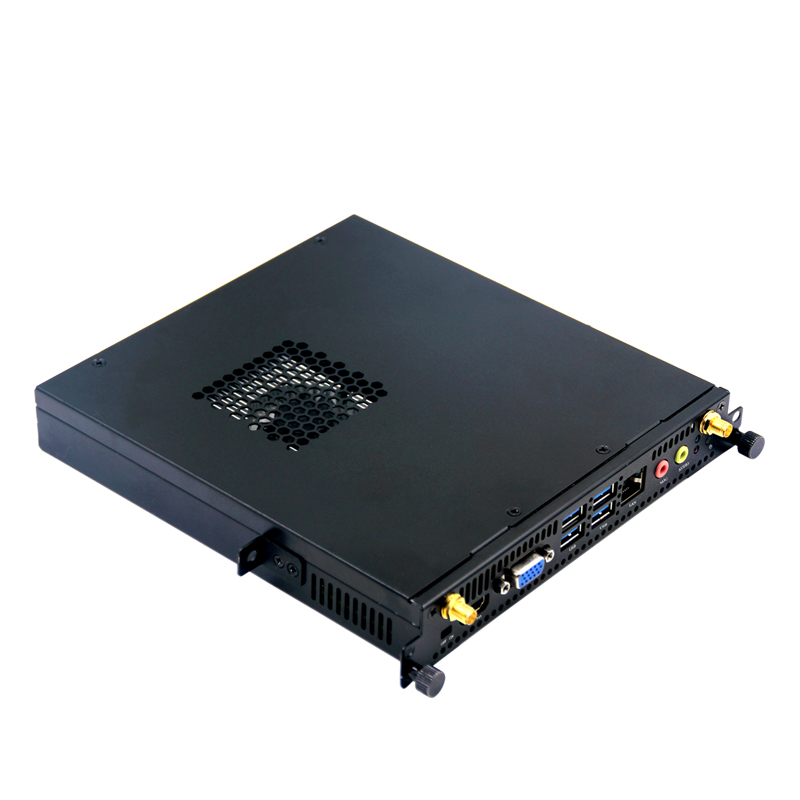

H310 8-9th Gen Desktop CPU Win10 Embedded Industrial OPS Computer Mini PC
