Product Description

Semi automatic tire recycling plant

It is designed to process waste tire into rubber powder and granule

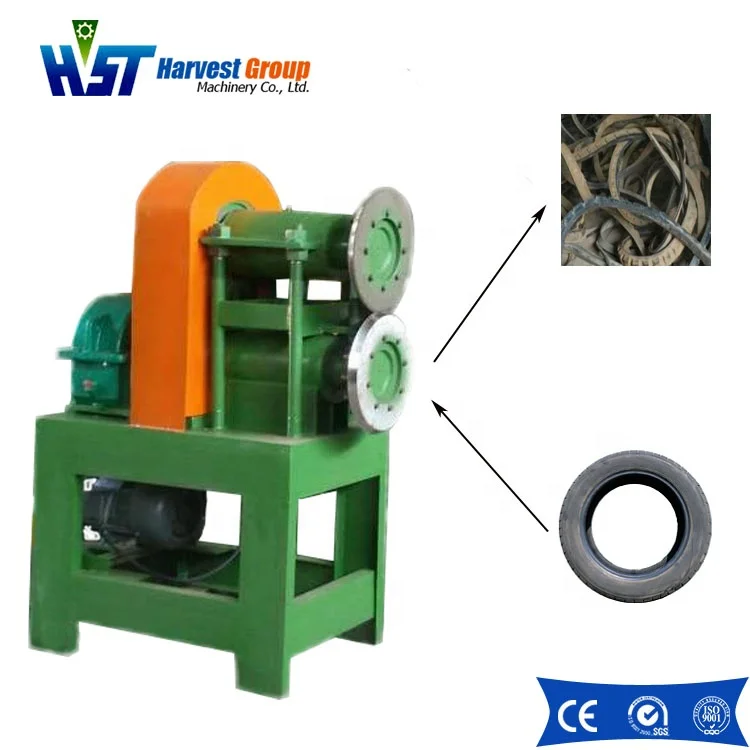

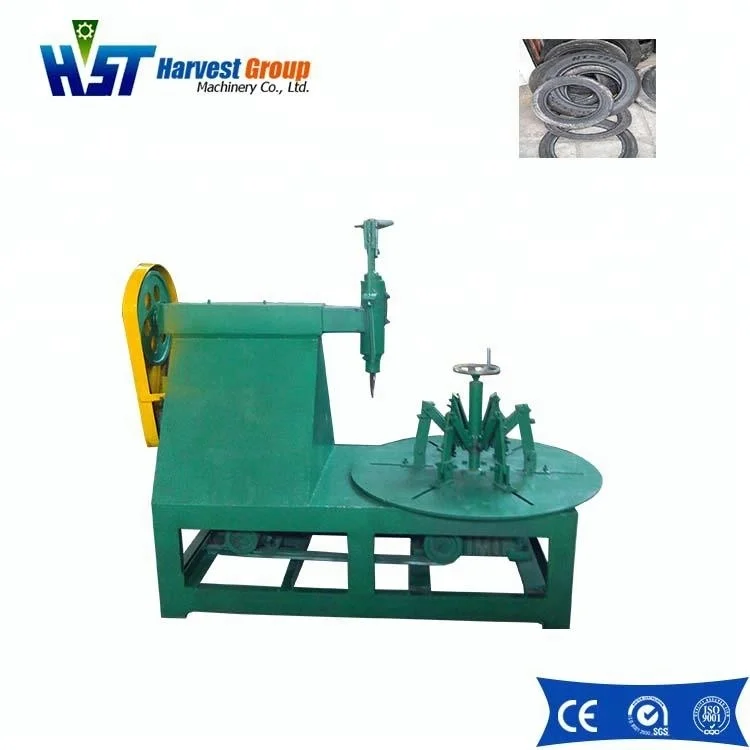

1. Tire circle cutter: to cut open the joint of tire bead and side

2. Tire strip cutter: to cut tire into 3*5*8cm tire strip

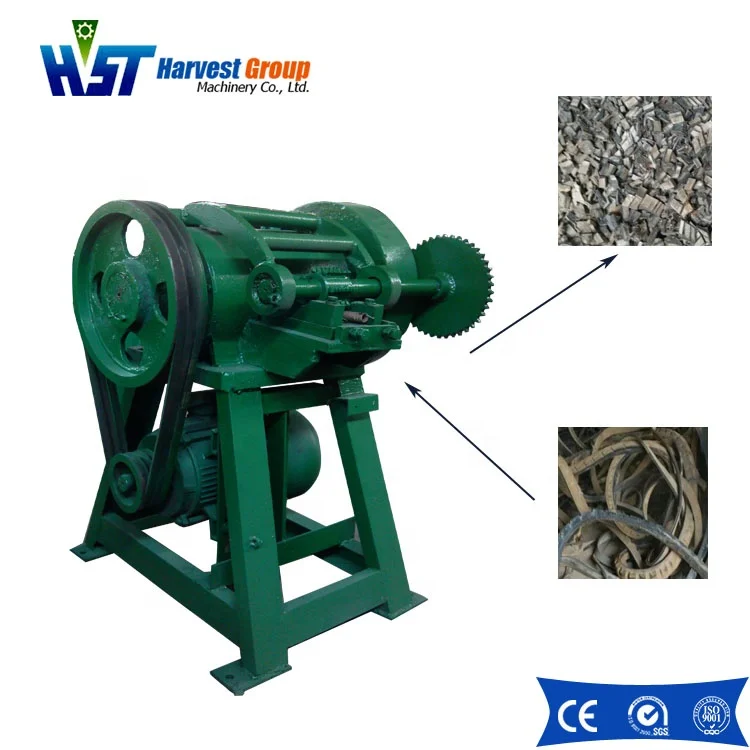

3. Tire circle cutter: to cut tire strip into rubber chips

4. Rim separator: to make the rim steel and rubber mouth of the bead separated, also can separate the steel from whole tire

\t
Name
\t
Tire circle cutter
\t
Motor
\t
4.75kw
\t
Weight
\t
650kg
\t
Capacity
\t
40pcs/h
\t
Tire
\t
≤1200mm
\t
Name
\t
Tire strip cutter
\t
Motor
\t
4kw
\t
Weight
\t
850kg
\t
Capacity
\t
1t/h
\t
Cutting size
\t
5*8cm
\t
Dimension
\t
1.3*0.9*1.8m
\t
Name
\t
Tire slice cutter
\t
Motor
\t
5.5kw
\t
Weight
\t
800kg
\t
Capacity
\t
1t/h
\t
Cutting size
\t
3*5*8cm
\t
Dimension
\t
1.2*0.89*1.3m
\t
Name
\t
Rim separator
\t
Motor
\t
18.5kw
\t
Weight
\t
1400kg
\t
Capacity
\t
100pcs/h
\t
Dimension
\t
1.6*1.42*1.2m

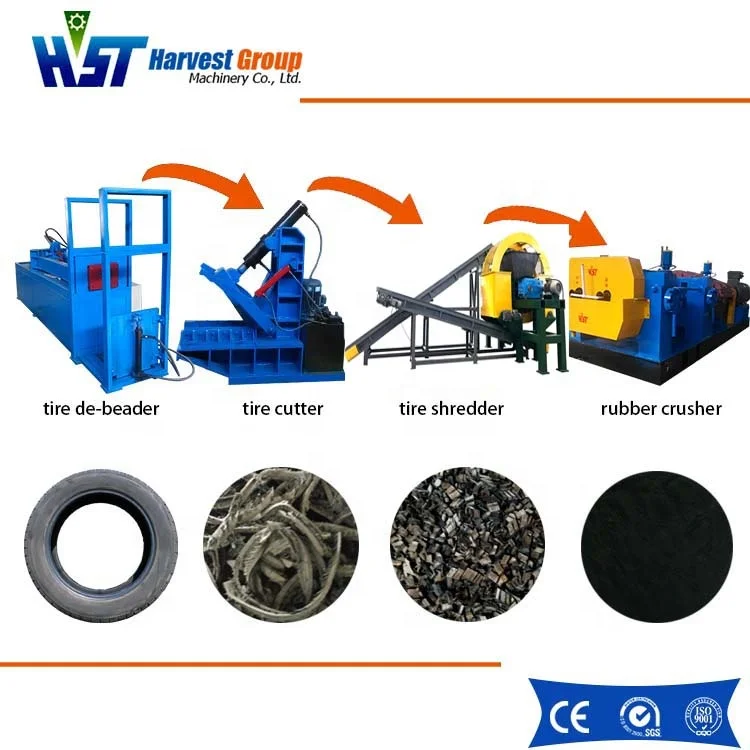

Fully automtic tire recycling line:

tire debeader--(tire cutter)--tire shredder--rubber crusher system--rubber powder and granule

\t
Model
\t
Single-TD1200
\t
Double-TD1200
\t
Feed size of tire
\t
≤1200mm
\t
≤1200mm
\t
Capacity
\t
40 tires/h
\t
80 tires/h
\t
Power
\t
7.5kw
\t
18..5kw
\t
Dimension
\t
4.1*1.3*1.75m
\t
4.5*1.5*1.8m
\t
Weight
\t
2.8t
\t
3.5t
\t

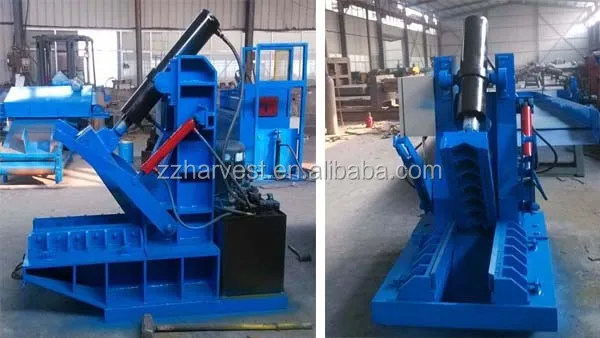

Model
\t
TC-1200
\t
Feed size of tire
\t
≤1200mm
\t
Capacity
\t
30-40 tires/h
\t
Powder
\t
7.5kw
\t
Dimension
\t
1.85*0.7*1.76m
\t
Weight
\t
2.5t
\t

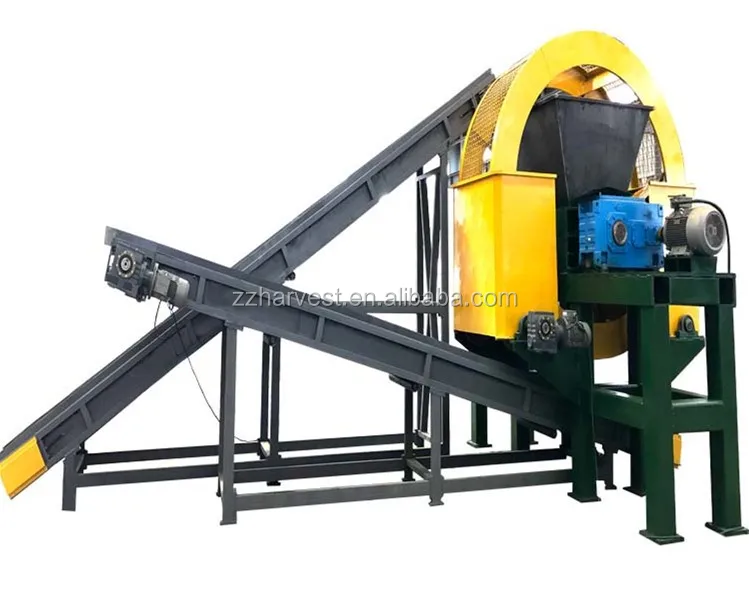

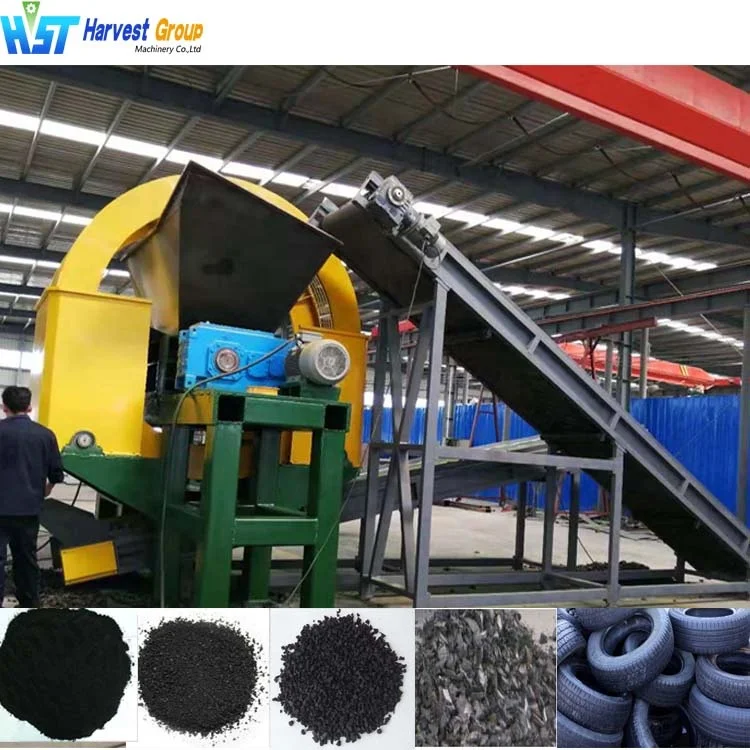

Model
\t
Capacity
\t
TS-900
\t
1-2t/h
\t
TS-1200
\t
3-5t/h
\t
TS-1600
\t
6-8t/h
\t
TS-1800
\t
7-10t/h
\t
TS-2400
\t
20-30t/h

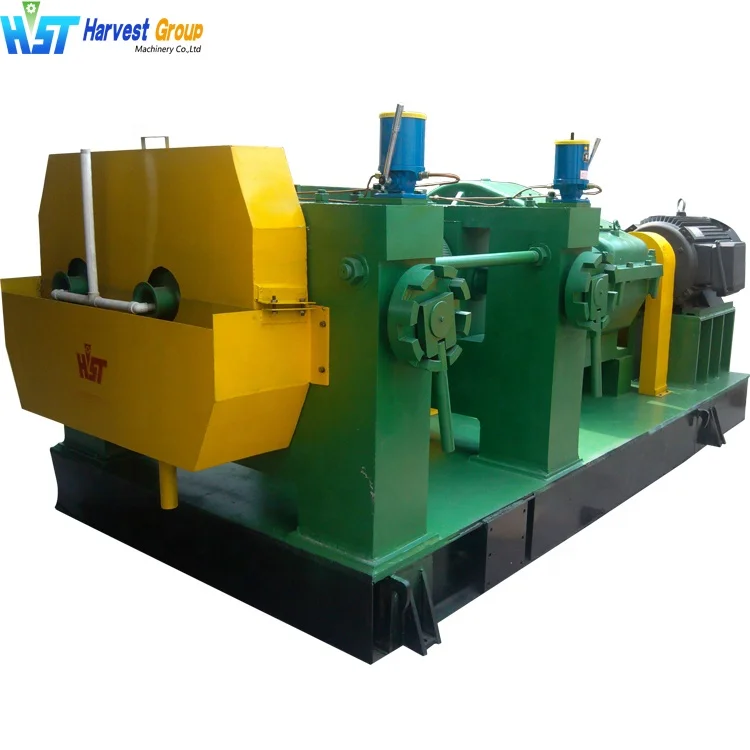

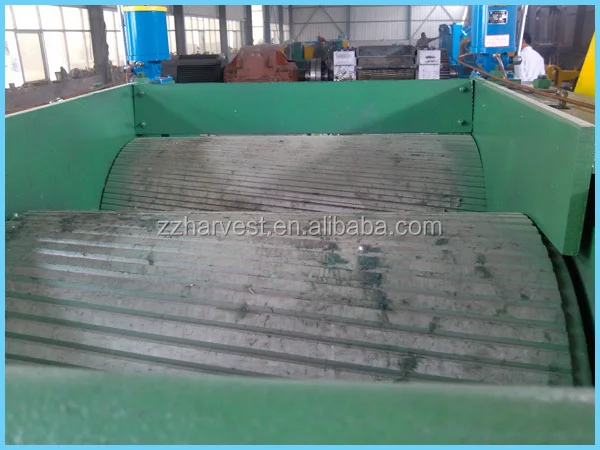

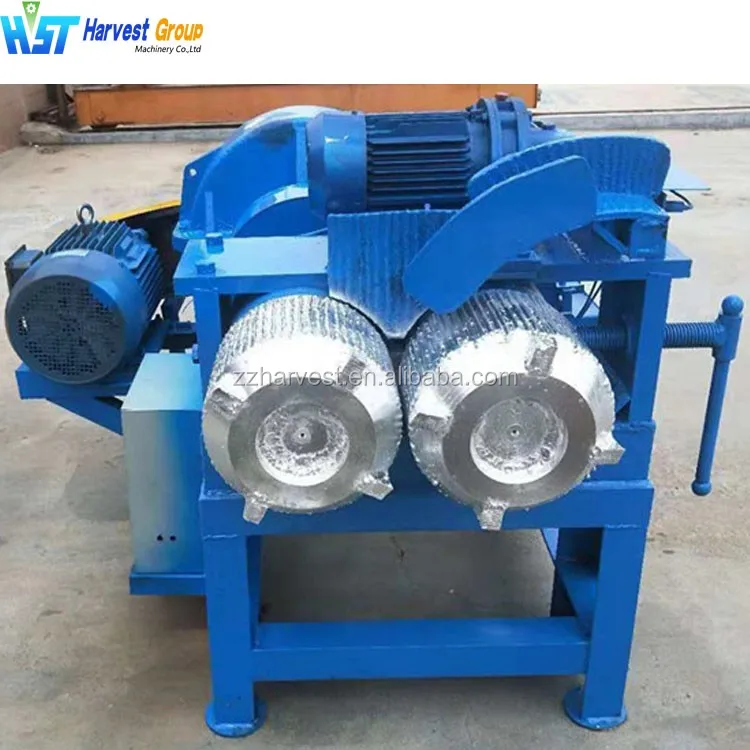

Rubber crusher (host equipment)

to process rubber chips into rubber powder and granule

\t
Model
\t
Drum diameter
\t
Drum length
\t
Front roll linear
\t
Motor powder
\t
Roll speed ratio
\t
XKP350
\t
300mm
\t
500mm
\t
26.2m/min
\t
30kw
\t
1:2.5
\t
XKP400
\t
400mm
\t
600mm
\t
34.5m/min
\t
45kw
\t
1:2.5
\t
XKP450
\t
450mm
\t
760mm
\t
38.0m/min
\t
55kw
\t
1:2.5
\t
XKP560
\t
560mm
\t
800mm
\t
38.6m/min
\t
75kw
\t
1:2.5
\t
XKP560D
\t
560mm
\t
1000mm
\t
42.5m/min
\t
132kw
\t
1:2.5
