2 Axles 30 Tons Heavy Duty Machinery Transport low bed chasis low flatbed semi trailer

Product Overview

Description

2 Axles 30 Tons Heavy Duty Machinery Transport low bed chasis low flatbed semi trailer

Product Introduction:

1-It has flat type, concave beams type and tyre appear type.The front longitudinal adopts flat type or goose neck type. Its chassis is ladder type,longitudinal beam section is H-shaped. It has good rigidity and high strength.



2-Low platform is chassis makes a stable transportation. It is suitable for transport different kinds of engineering equipment,large equipment and steel structures.



3-Using three axle balanced type, two axles balanced type or rigid axle suspension.Putting the balanced between the front and rear plate spring and make the same change of the front and rear spring comber and the same load condition



Items	Low bed semi trailer QUEST	Low bed semi trailer QUEST
Loading Capacity	30tons	60 tons
Axle	2 pieces, 13T FUWA/BPW axle	3 pieces, 13T FUWA/BPW axle
Tyre	8 pieces, 8.25R20	12 pieces, 11.00R20
Dimensions(LxWxH)	13000 -17000mm x 3000 x 1750mm
Tare weight	10 tons to 12 tons
Rims	8.5-20, 9.0-20
Suspension System	Leaf spring suspension / air suspension
Brake System	Dual line pneumatic brake system with WABCO emergency relay valve
Main Beam	Height 500mm Q345 carbon steel
Chassis	upper 20mm, lower 20mm. Mid web 12mm
Rear Loading Ramps	2 nos, 720 mm width, spring loaded & manually operated with safety chain
Kingpin	2’ or 3.5’ interchangeable,JOST brand
Landing Gear	28 Tons , Two speed manual operation
Electrical System	1.Voltage: 24v  2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting	Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
Tool Box	One tool box with a set of standard trailer tools
Spare Tyre Carrier	One piece or two pieces

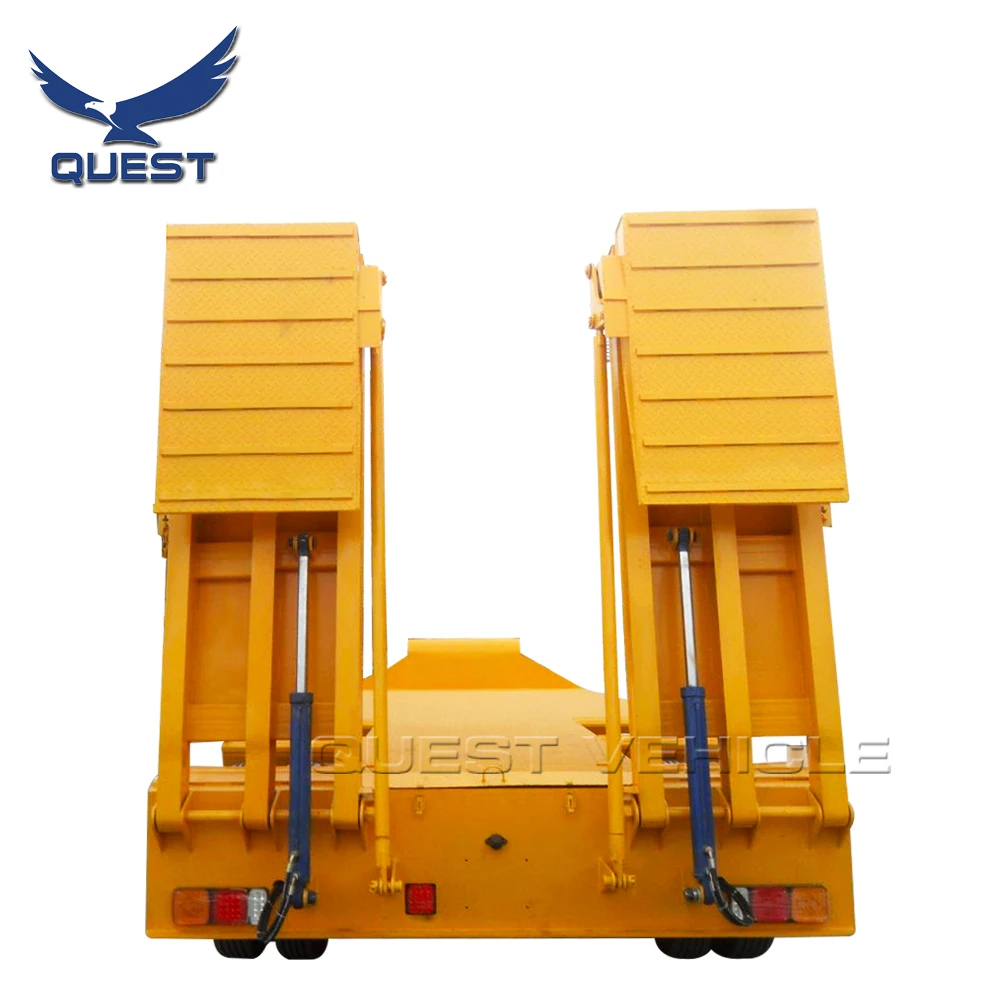

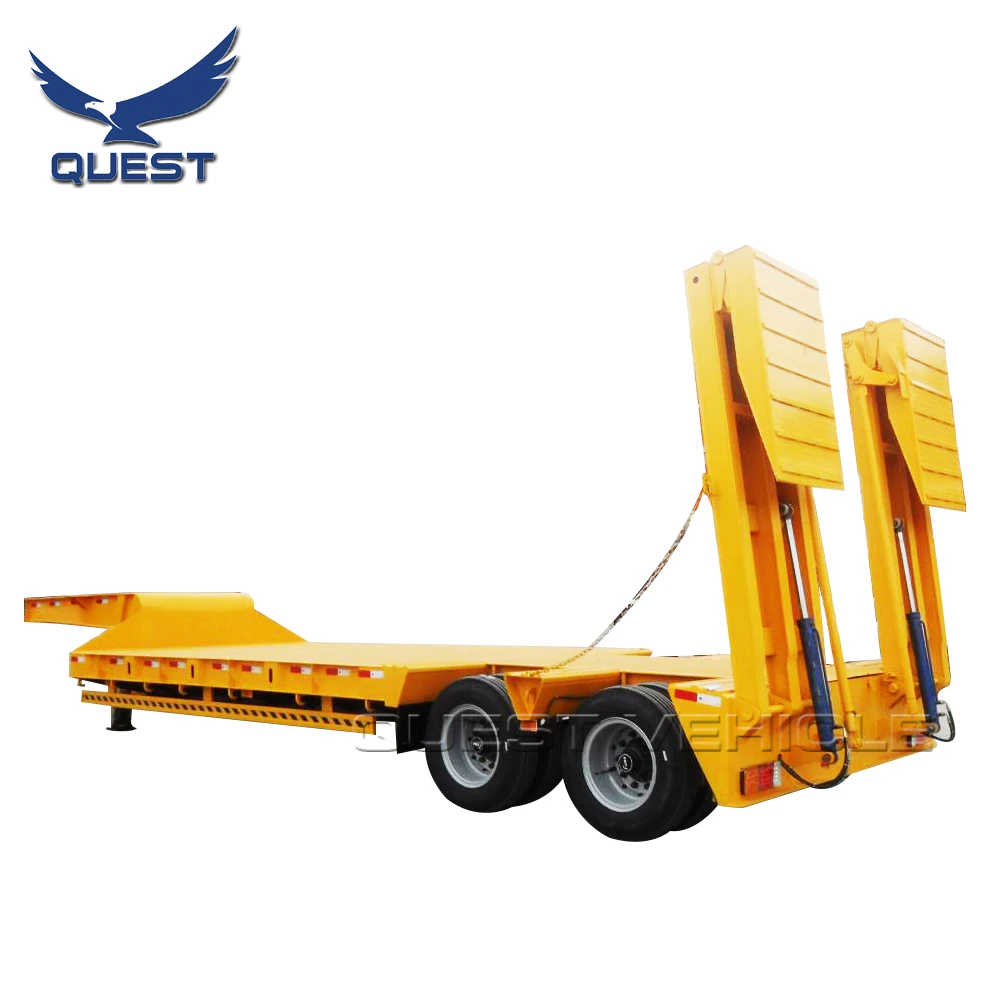

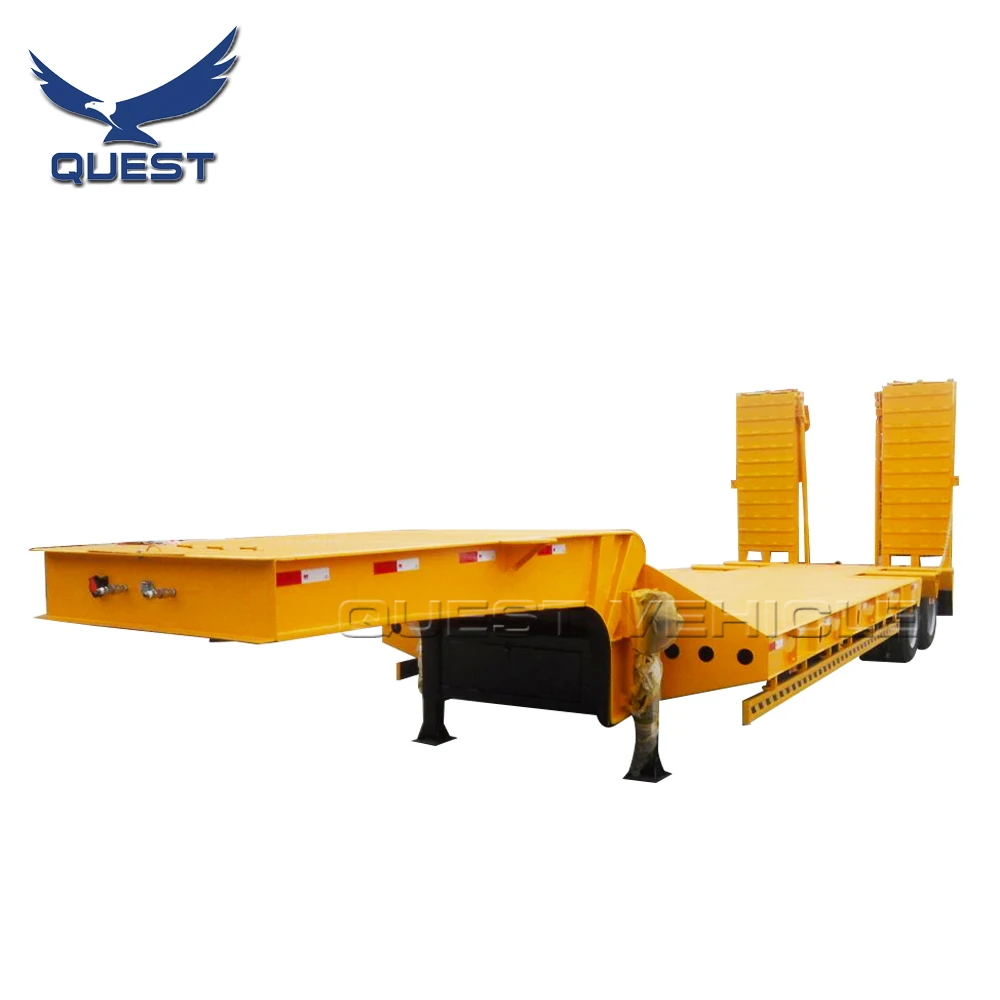

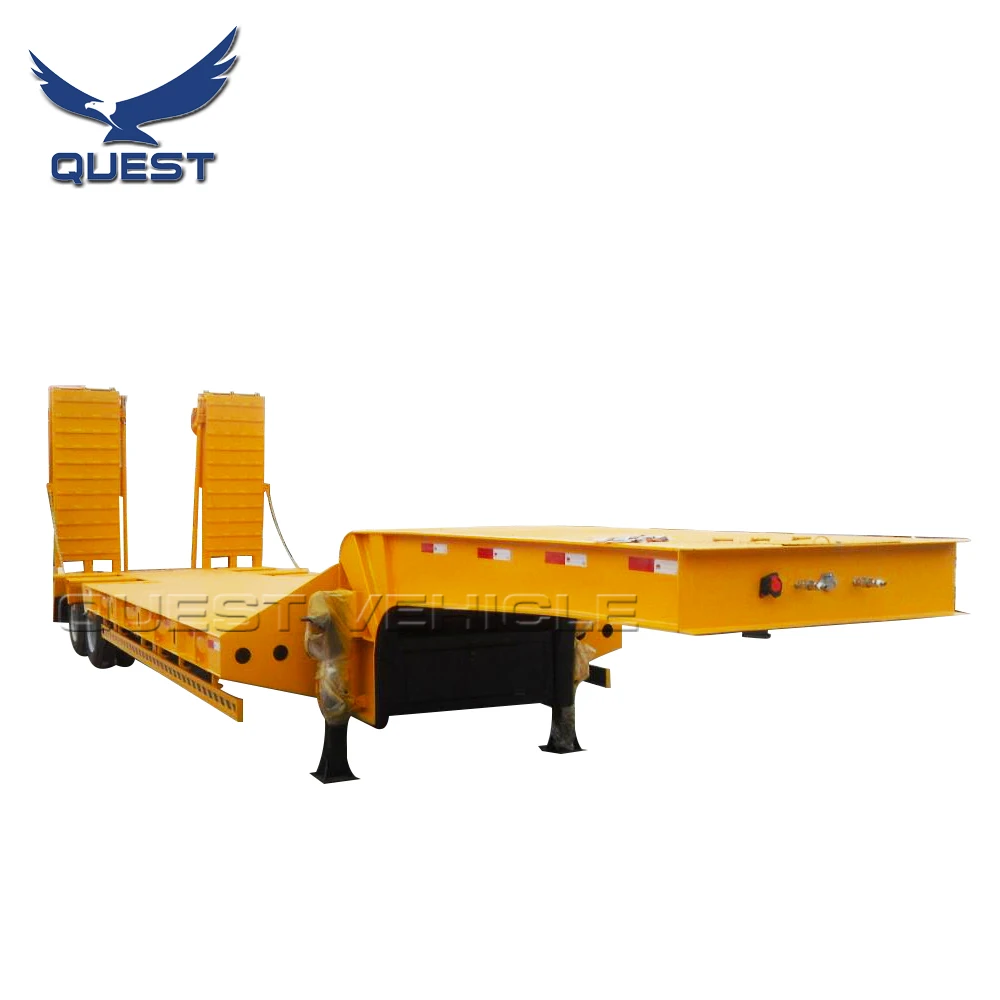

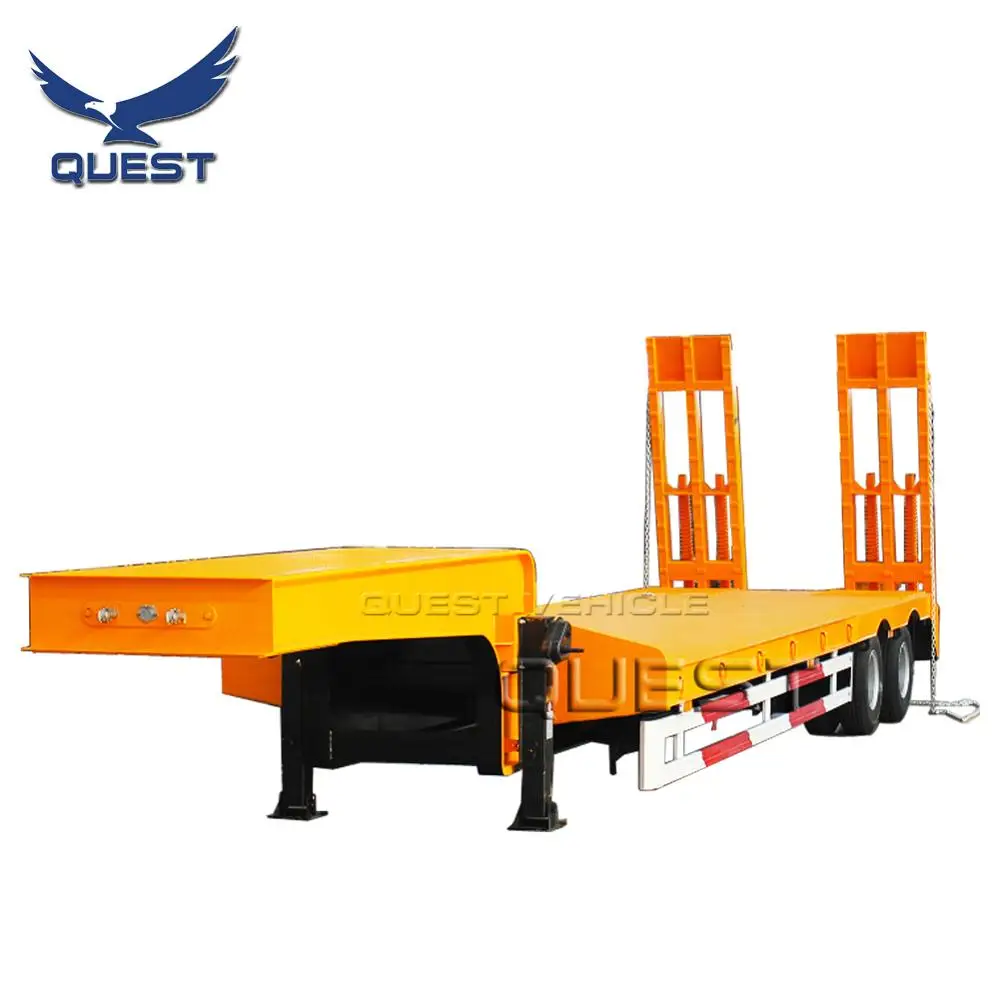

Picture Show:

Main Features

& Torsion – resistan of side beam and Main Beam are with “I” high strengh steel. more durable than normal trailer steel , ensure low bed trailer driving stability and handle bed roads.

& Steel Plate reinforcement on low bed trailer gooseneck, the width of gooseneck is 360mm. This design can improve the loading capacity to 120 tons .

& Heavy duty type ramp: manganese plate butt welding, This design that ensure the ramp support the heavy duty marchine safely.

& Stability when loading heavy duty marchine. The QUEST low bed trailer can equipped with extra legs on the rear of trailer. This ensures loading machines more safety.
