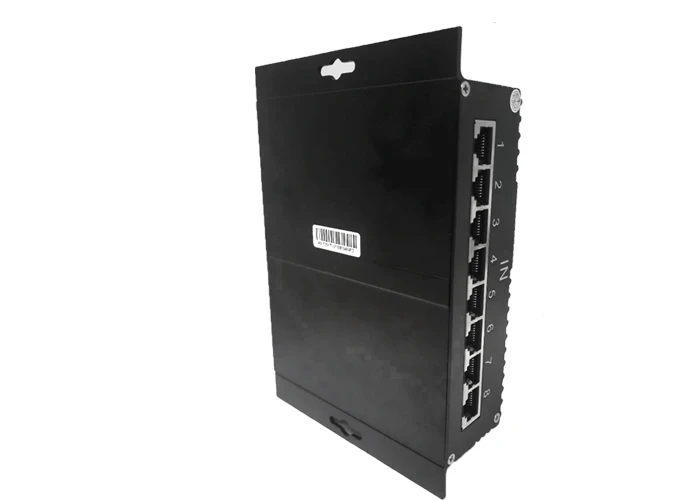

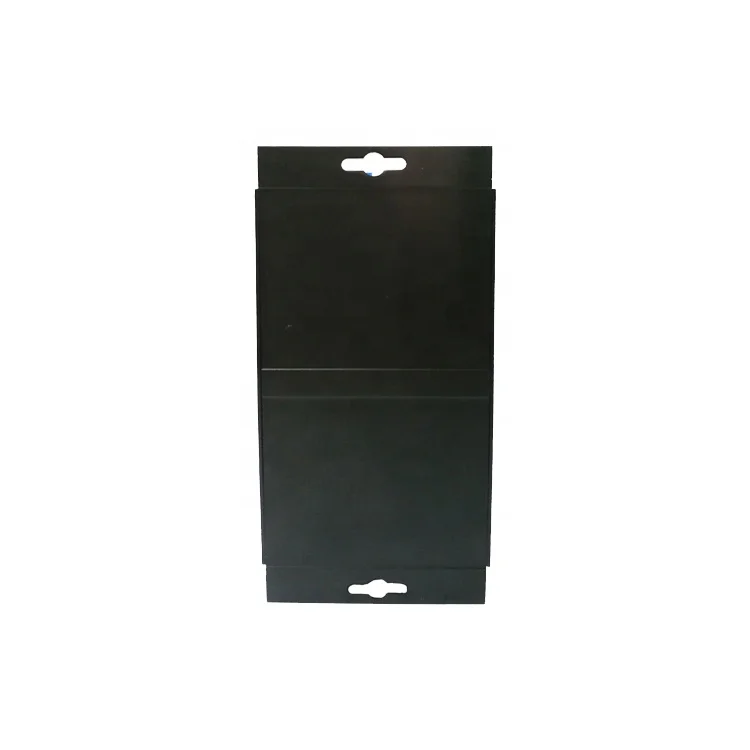

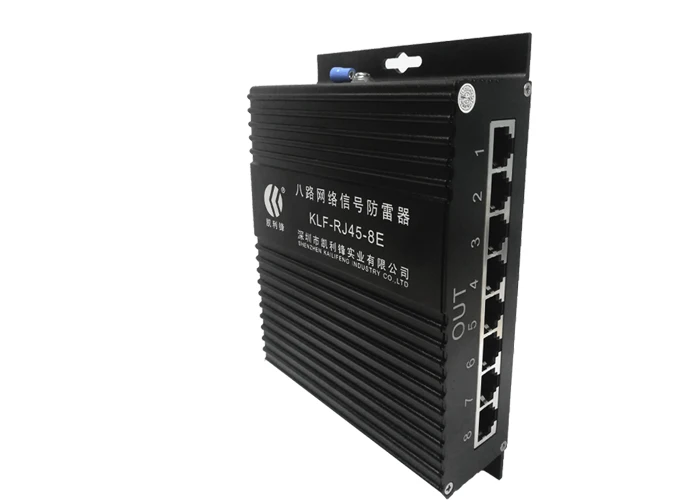

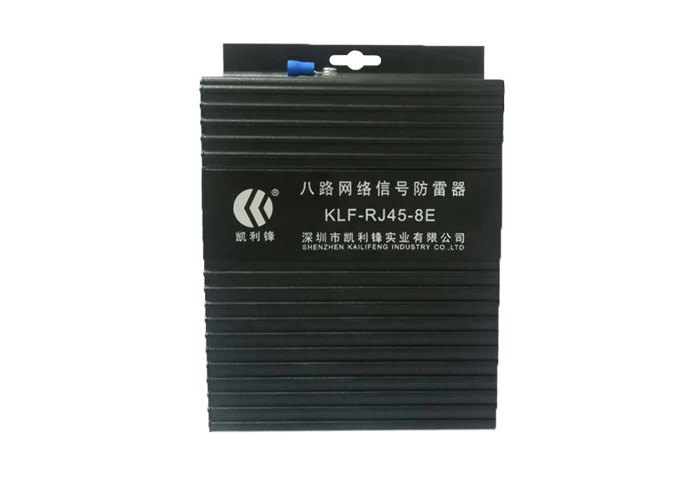

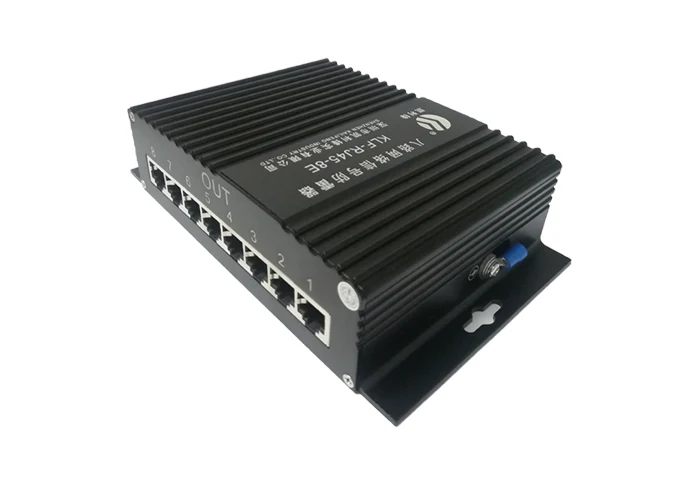

8 ports RJ45 SPD 10/100/1000m speed surge arrester enthernet surge protection device
- Category: >>>
- Supplier: Shenzhen Kailifeng Industry Co. Limited.
Share on (60835270281):
Product Overview
Description
Product Description
8 ports RJ45 SPD 10/100/1000m speed surge arrester enthernet surge protection device
The product adopt imported high-quality components to design advanced circuit, with design layout reasonable and performance stable,from top to bottom, from over current to over-voltage all have made comprehensive protection. Its internal structure including two kinds of surge protection solutions of network data cable and AC power cable,which will ensure it can prevent your systems and equipment from surge damage caused by electrostatic discharge or lightning strike.
Model | KLF- RJ45- 8E | ||
Working Voltage (Un) | 5V | ||
Rated Current | 300mA | ||
Transmission Rate(bps) | 100/1000M | ||
Insertion Loss | ≤0. 2dB | ||
Nominal Discharge Current (8/20μs)(In) | 5KA | ||
Max. Discharge Current (8/20μs) (Imax.) | 10KA | ||
Voltage Protection Level (Up) | ≤15V | ||
Interface Model | RJ45 | ||
Protected Core Wire | 1～8line | ||
Protect The Port Quantity | 8 | ||
Working Environment | Temperature -40°C~ +80°C;Relative humidity<95% | ||
Material Of Outer Shell | Aluminum alloy | ||
Dimension(L×W×H) | 114×42×168mm | ||
Weight | 0. 42kg | ||
