Точный текстильный спиннинг вязальная пряжа конусная обмоточная машина

Product Overview

Description

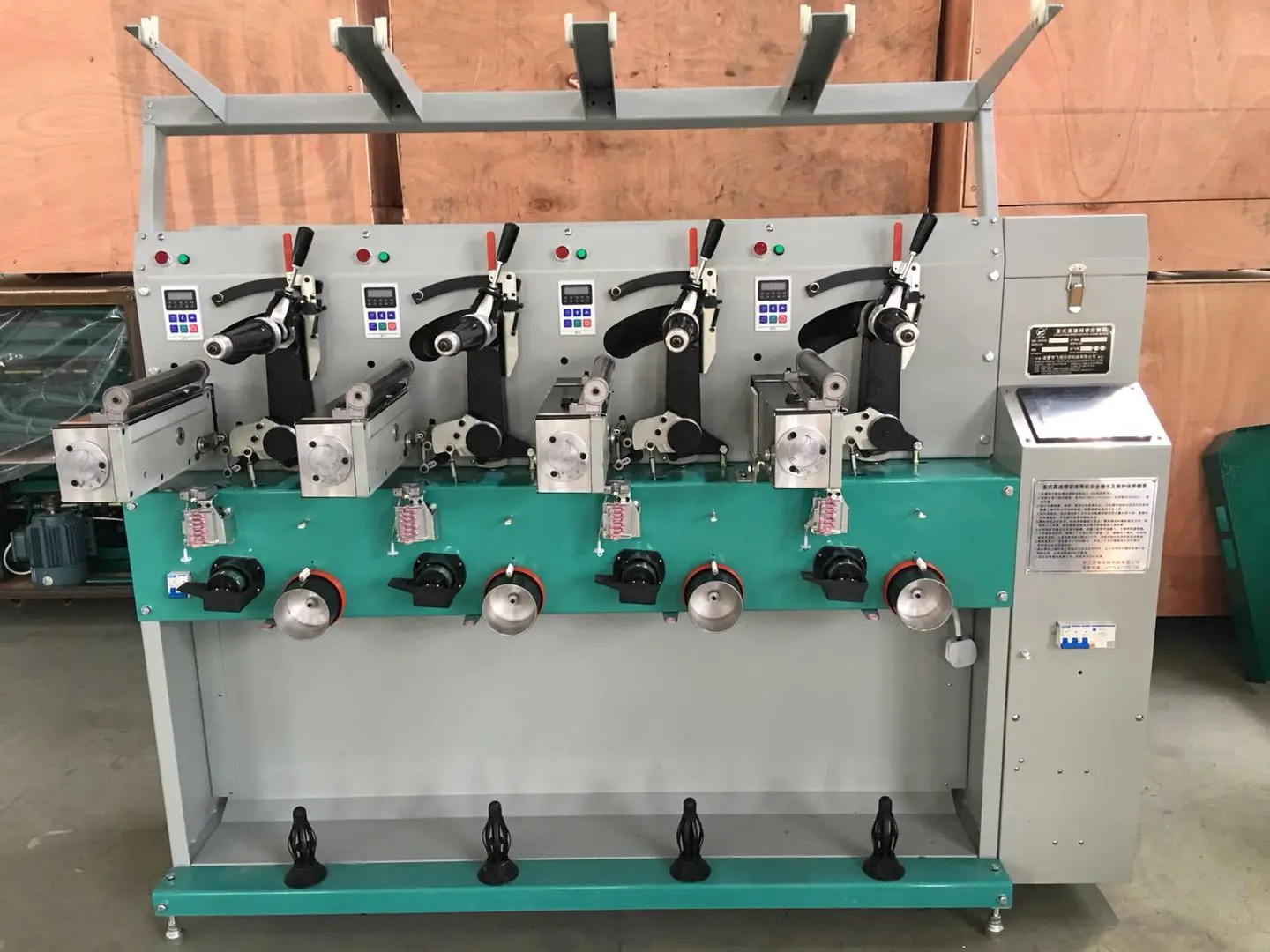

FHJM-A straight precision cone to cone and hank to cone winding machine is a series of winder series produced by FEIHU textile machinery company. It is suitable for all kinds of raw materials such as silk, hemp, yarn, etc. cylinder. this machine has high characteristics productivity, low loss, low noise, long life, stable performance.



1) The model has a single spindle single control of the basic functions of the external use of a positive winding yarn winding bobbin clamp;

2) Winding constant line speed;

3) Oil-immersed shuttle box;

4) Oil stick refueling speed 5 - 20 rev / min adjustable;

5) With a soft edge device and edge function;

6) Yarn tension dynamic adjustment;

7) Drum yarn and friction stick constant pressure contact;

8) Main motor speed and roller motor speed step less adjustable;

9) Controlled color screen control and other characteristics and technologies, the appearance of the package is beautiful and the texture is delicate.

This model is an ideal choice for high-quality manufacturer of packaged yarn.



Features:

Using centralized control, Individual management

Using DC brush motor, more power saving

Using computer control, Broken yarn stopped , Metering function

Using Soft start,Less loss,easy to use.

Using mechanical anti-stack,Soft edge,Make bobbin more uniform

Using Lubricating oil, The noise is lower, Accessories long service life

Adjustable forming length, Shoulder angle and tension control



Model:	Single-side, single spindle, centralized control hank to cone or cone to cone, can custom
Spindle:	4 spindles/group, the standard 24 spindles / set, min 4 spindles/set.
Spindle distance:	370mm
Oil way:	Automatic oiling, speed adjustable
Winding method:	Single spindle active precision winding
Winding shape:	Straight edge, bevel edge adjustable
Winding tube:	Parallel bobbin, pagoda bobbin
Winding travel:	120-230mm
Winding speed:	≤500m/min
Winding diameter:	≤280mm
Skein diameter:	≤550mm
Cartridge diameter:	≤320mm
Actual power:	120 W/spindle
Dimensions:	L1620 X W710 X H1560 mm/4 spindles Master control box L440 X W260 X H1320mm
Applicable yarns:	Textured or flat filaments, elastic yarns, silk, staple yarns, fine technical yarns etc.

We could make special type according to the customer’s request.
