2000kg High Lift Electric Hydraulic Scissor Cargo Lift Table
- Category: Lift Tables >>>
- Supplier: Foshan Zhuoxing Machinery Co. Ltd.
Share on (60835304102):
Product Overview
Description
Custom Size and Specifications available, Pls contact for Lift Table Survey Sheet!
Product Description

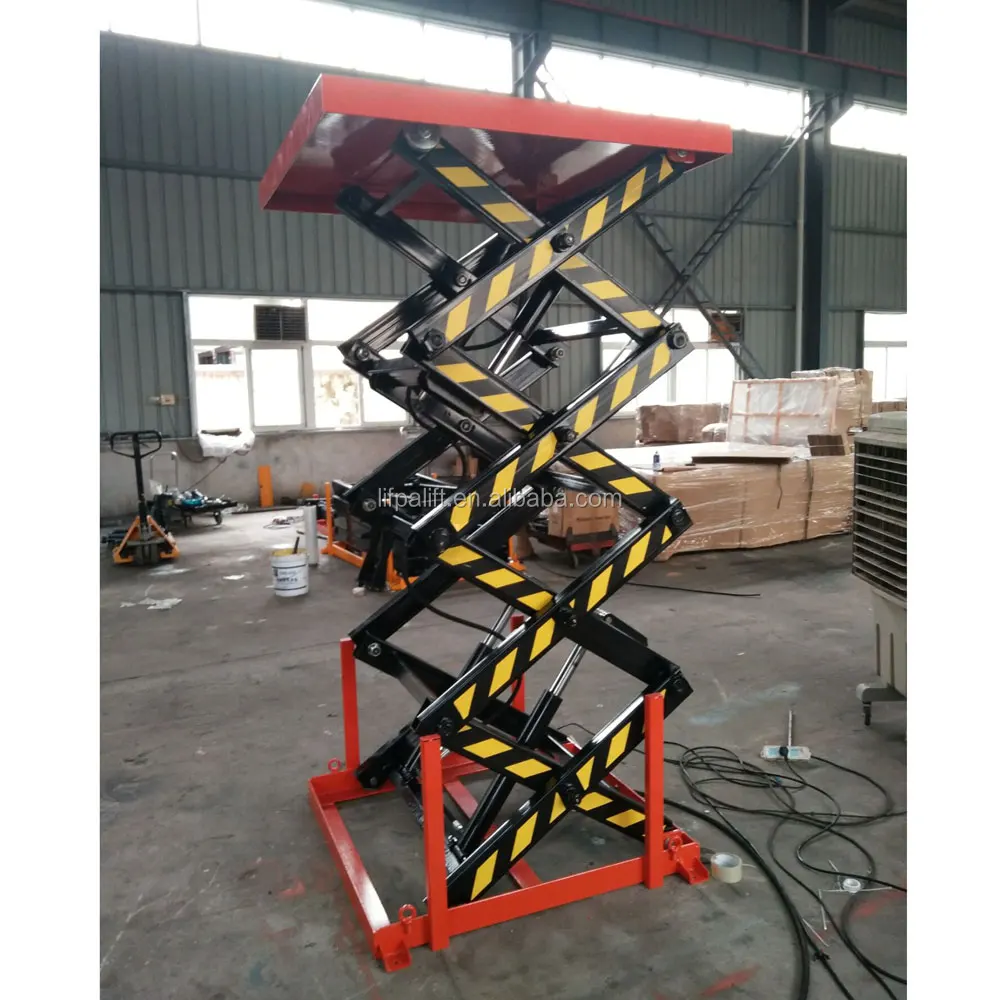

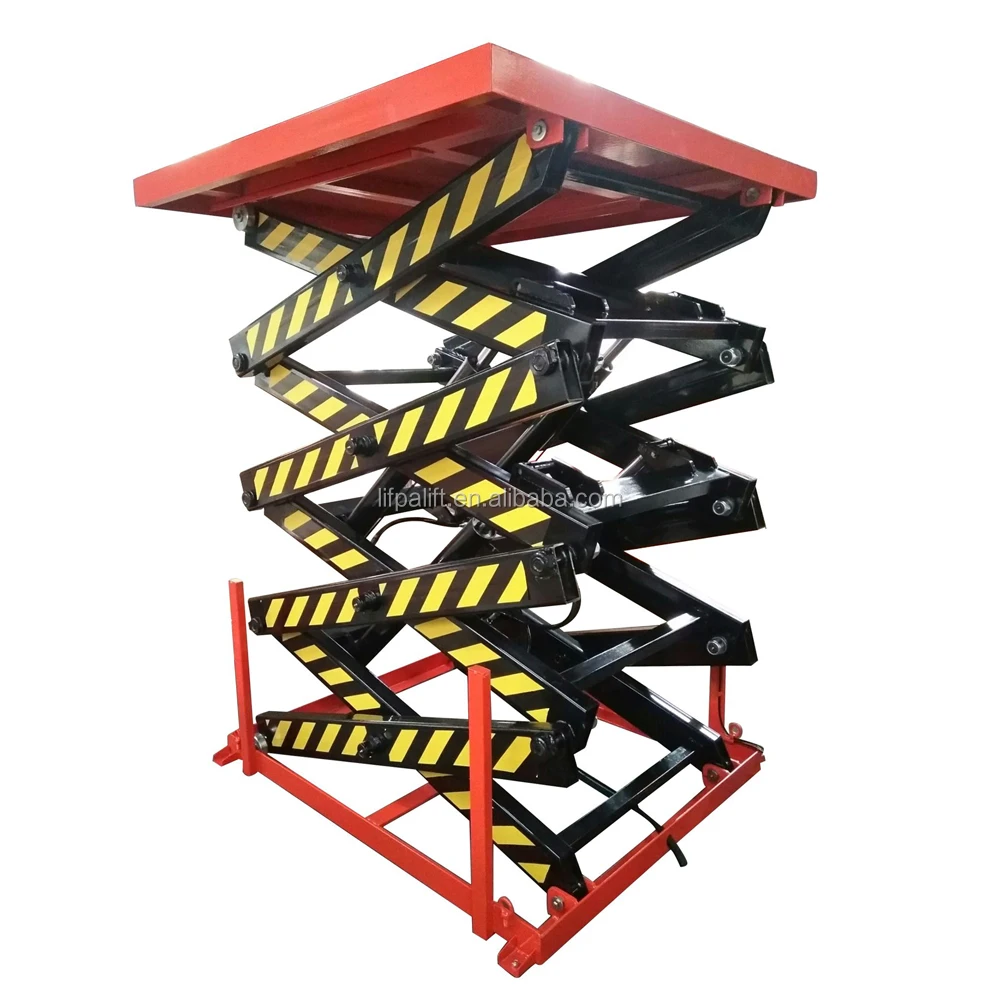

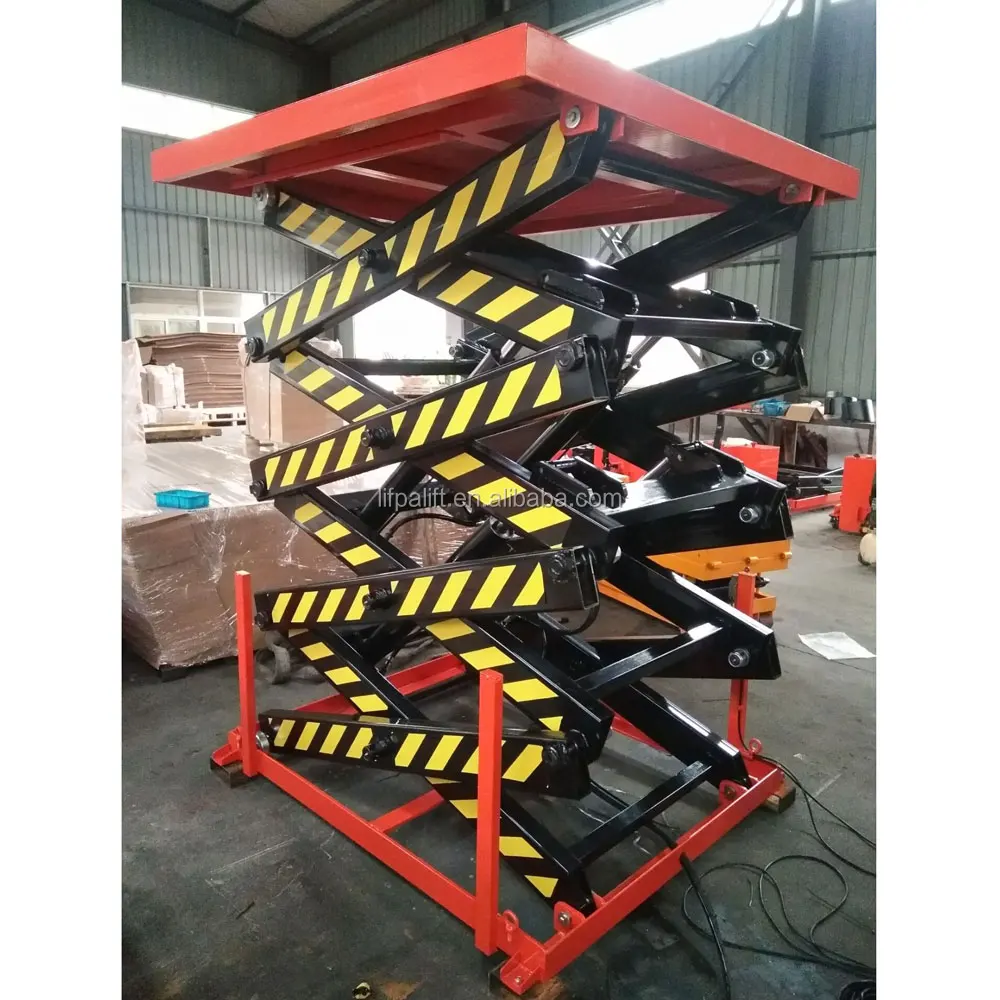

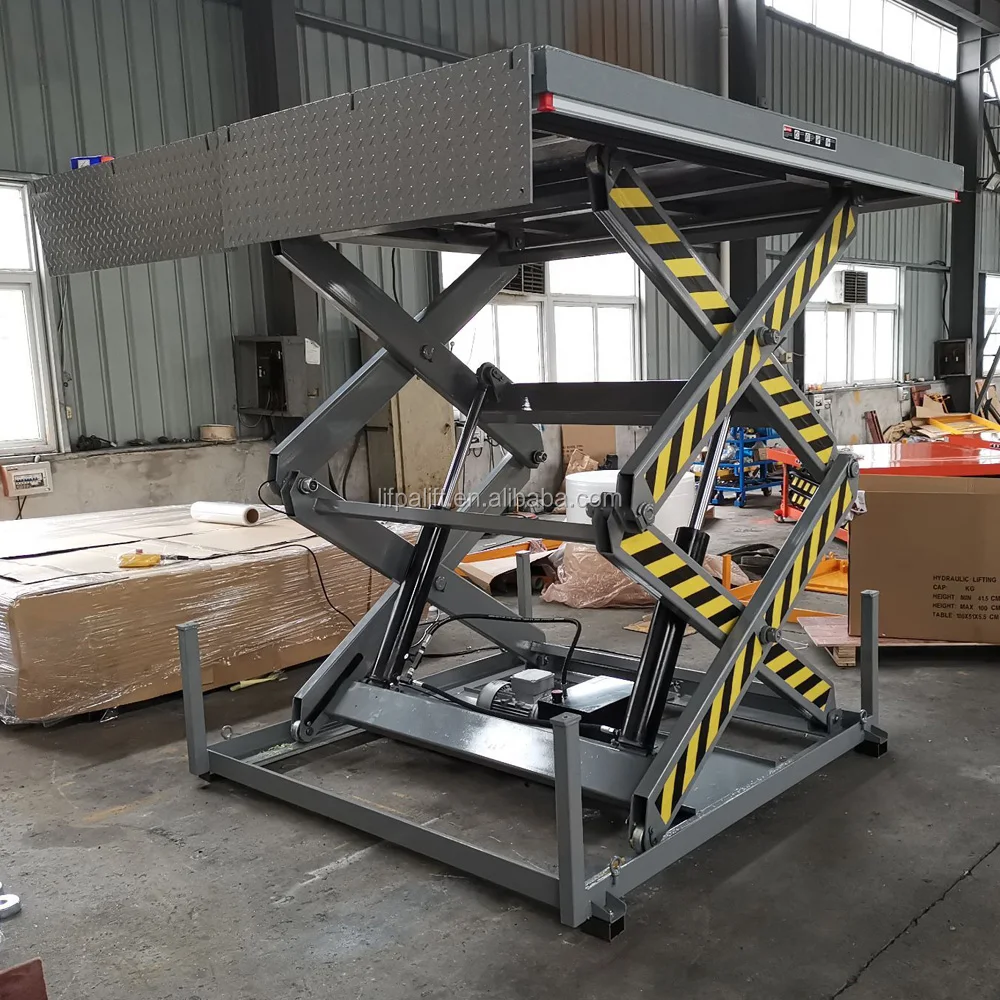

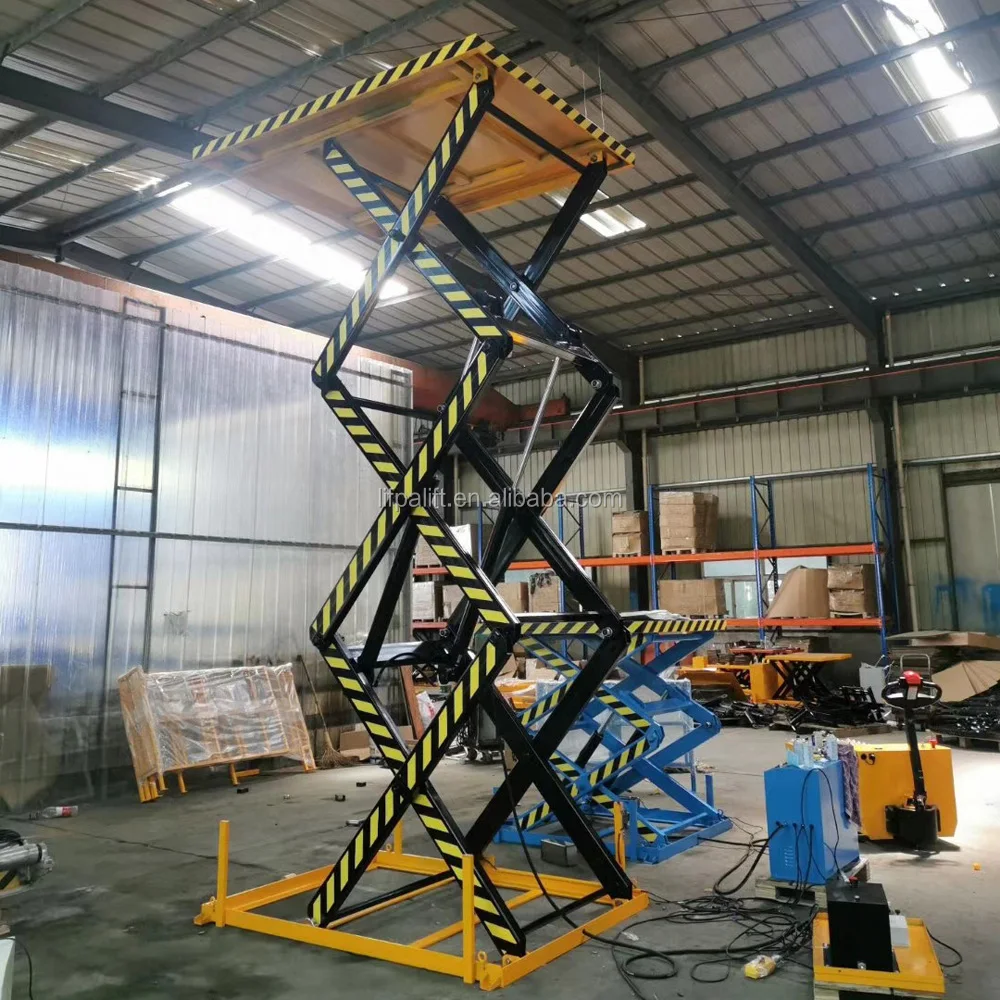

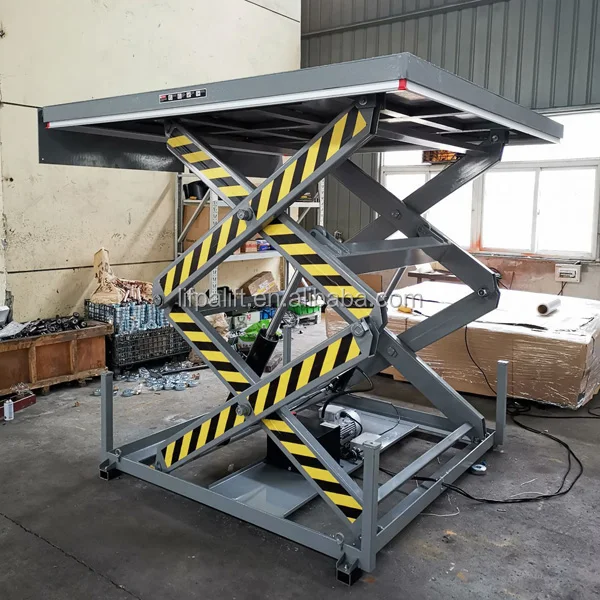

2000kg High Lift Electric Hydraulic Scissor Cargo Lift Table
These 2000kg high lift electric hydraulic scissor cargo lift tables are used by all types of manufacturing
and warehouse facilities.
This high lift scissor cargo lift table is designed and constructed for heavy-duty applications that require
extended vertical travel.
Real Pictures
Product Highlights
• Electric toe guard protects pinch points during lowering of the table
• Upper travel limit switch to stop table at maximum height
• AC 110/220/380/460V, 50-60Hz motor available
Features
• Portable ergonomic elevating table minimizes workers bending and lifting
• Electric toe guard protects pinch points during lowering of the table
• AC 110/220/380/460V, 50/60Hz power supply
• Brass velocity fuse maintains platform height regardless of hydraulic pressure
• All steel frame with powder coated finish
• Pushbutton power control for effortless operation
• Custom size and specs available
Main Parameters
| Model | PG-1030-B | PG-2030-B | |
| capacity | kg | 1000 | 2000 |
| table size | mm | 1700 x 1000 | 1700 x 1000 |
| raised height | mm | 3000 | 3000 |
| lowered height | mm | 470 | 560 |
| power supply | V | AC 220 / 380 | AC 220 / 380 |
| lift motor | kW | 1.50 | 3.00 |
| lift speed | mm/s | 55 | 50 |
| weight | kg | 500 | 830 |
Optional Equipment
Related Products
We offer a full line of hydraulic scissor lift tables and other material handling equipment.
SEND INQUIRY to get Full Videos of Operation now!
