Product Overview
Description
Product Description

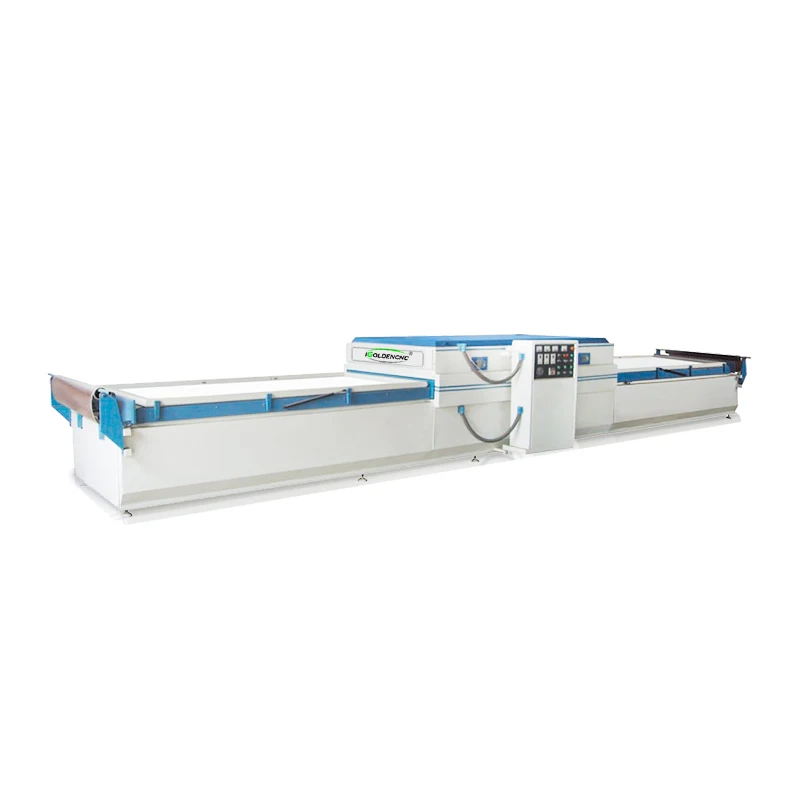

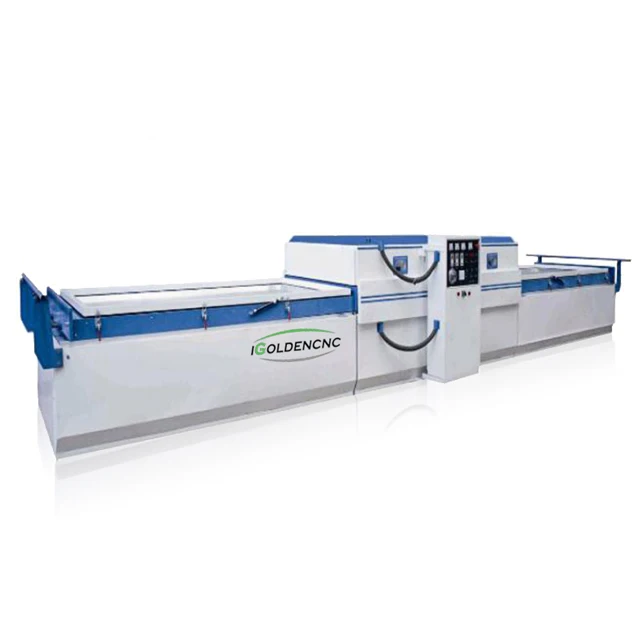

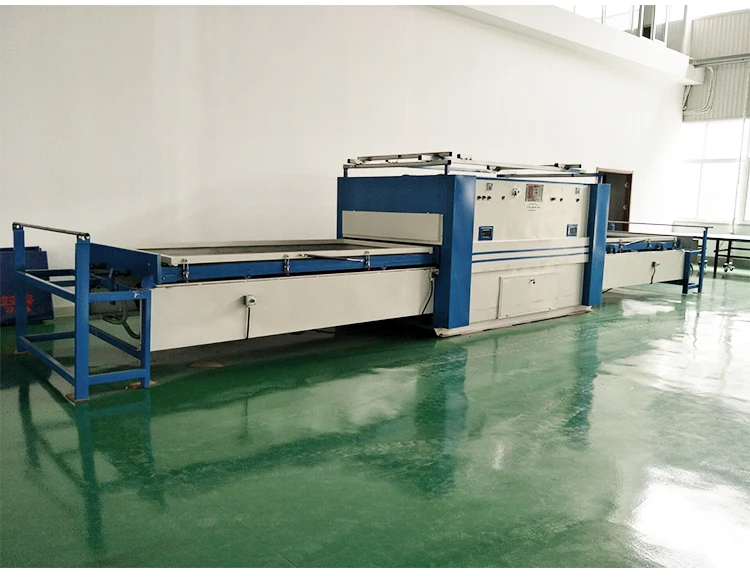

Woodworking Machinery Automatic PVC Vacuum Membrane Press Machine
Introduction:
This machine is fully automatic vacuum coating equipment, can be a variety of high-grade PVC , transfer film, leather furniture surface coating of paste.The high degree of automation and simple operation, processing time, working temperature, vacuum value , all automatic control, to ensure product quality, improve production efficiency.
Advantages:

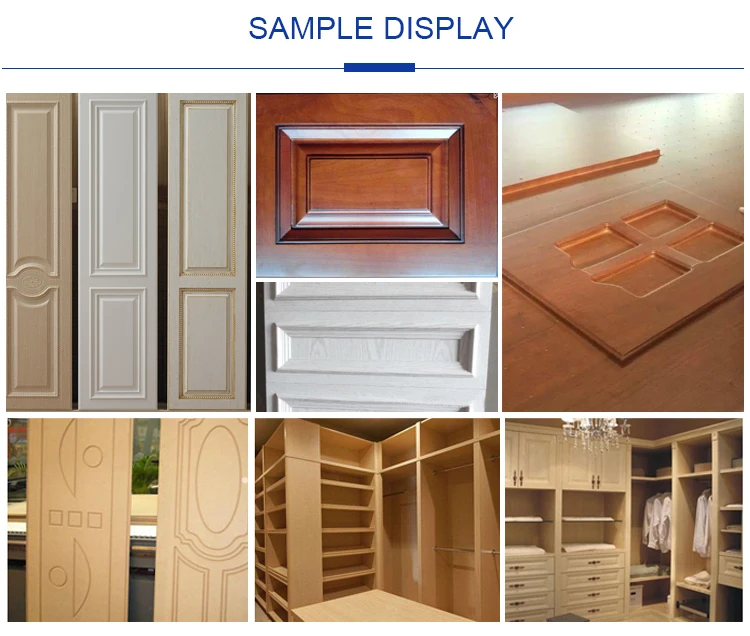

The device is in the old veneer positive and negative pressure device, based on the researchmade according to customer demand, the device host using patent structure, low failure rate. Heating by elelctric heating, oil soaking, good heating effect. The device is the first choice for high-end paint doors, cabinets and other high-gloss PVC products.
Function and characteristics:
1. Stable performance
The whole electrical parts are all imported original,low-voltage electrical parts are Schneider brand, and its low-voltage miniature circuit breakers are Schneider original products. AC contactor’s cost is fifteen times higher than domestic parts but its life is three million times.
The controller’s PLC is DELTA brand, few wiring and easy controlling, so fault rate is much lower.
Vacuum pump supplier is the OEM of European partners, its main technical parameter are already beyond Germany products. Easy maintenance and high vacuum, air flues connecting working table are chrome-plated seamless steel tube, stable running and noiseless.
The working table is connected by bolts, easy dismounting and cleaning. PVC pressing frame adopts 6061T6 aluminum alloy extrusions and it is not hot after long time working. Table running adopts chain of transmission and Frequency control, with low fault rate, smoothly running keep work-piece no shifting.
2.High production efficiency
Aluminum alloy heating fast, and three meters long working table, 150 square meters PVC paint-free door of cabinet could be finished daily.
3.Saving energy
Thicker heating and thermal insulation structure for main heating oven, it will save electricity 30% than before.
The whole electrical parts are all imported original,low-voltage electrical parts are Schneider brand, and its low-voltage miniature circuit breakers are Schneider original products. AC contactor’s cost is fifteen times higher than domestic parts but its life is three million times.
The controller’s PLC is DELTA brand, few wiring and easy controlling, so fault rate is much lower.
Vacuum pump supplier is the OEM of European partners, its main technical parameter are already beyond Germany products. Easy maintenance and high vacuum, air flues connecting working table are chrome-plated seamless steel tube, stable running and noiseless.
The working table is connected by bolts, easy dismounting and cleaning. PVC pressing frame adopts 6061T6 aluminum alloy extrusions and it is not hot after long time working. Table running adopts chain of transmission and Frequency control, with low fault rate, smoothly running keep work-piece no shifting.
2.High production efficiency
Aluminum alloy heating fast, and three meters long working table, 150 square meters PVC paint-free door of cabinet could be finished daily.
3.Saving energy
Thicker heating and thermal insulation structure for main heating oven, it will save electricity 30% than before.
Technical Specification:
Model | 2513 Double working tables wood door MDF vacuum laminating machine |
Dimensions | |
Work table dimension | 2500*1110*1250mm(the inside diameter) |
60mm,include buttom plate | |
Total power | 25KW |
Actual power consumption | 12KW |
NW/GW | 2500kg/2800kg |
Power supply | 3ph,380V,50HZ |
Heating system | Iron air dry electric heating tube+Aluminum heat sinks |
Temperature control system | Microcomputer time proportional control, accurate temperature without harmonic pollution |
Transmission | Aluminum housing efficient motor + rack drive |
Vacuum pump | Domestic well - known brand straight rotary vane vacuum pump |
Adsorption | Large flow filter + pure copper solenoid valve, with multiple adsorption function |
heat preservation | Using high quality rock wool |
Electrical control | Domestic well-known brands of industrial electrical parts, traditional button control |
Package | Reinforced wooden case |
Warranty: | One year, free technical support service for all life |

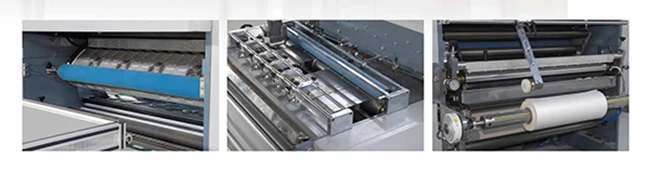

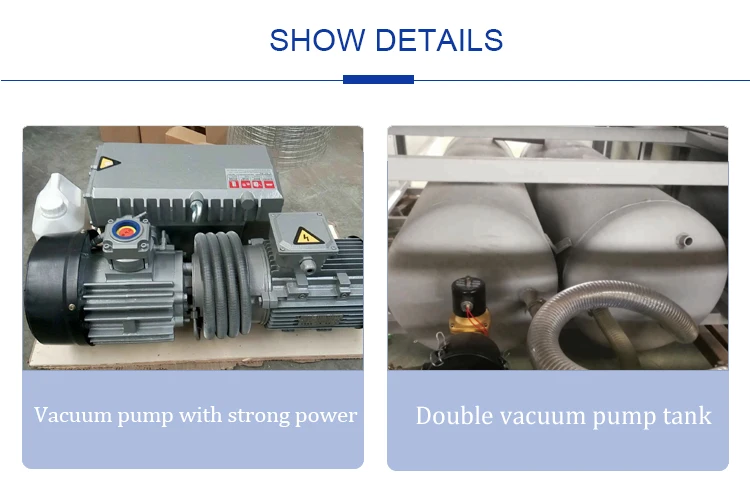

Detailed Images
Certifications

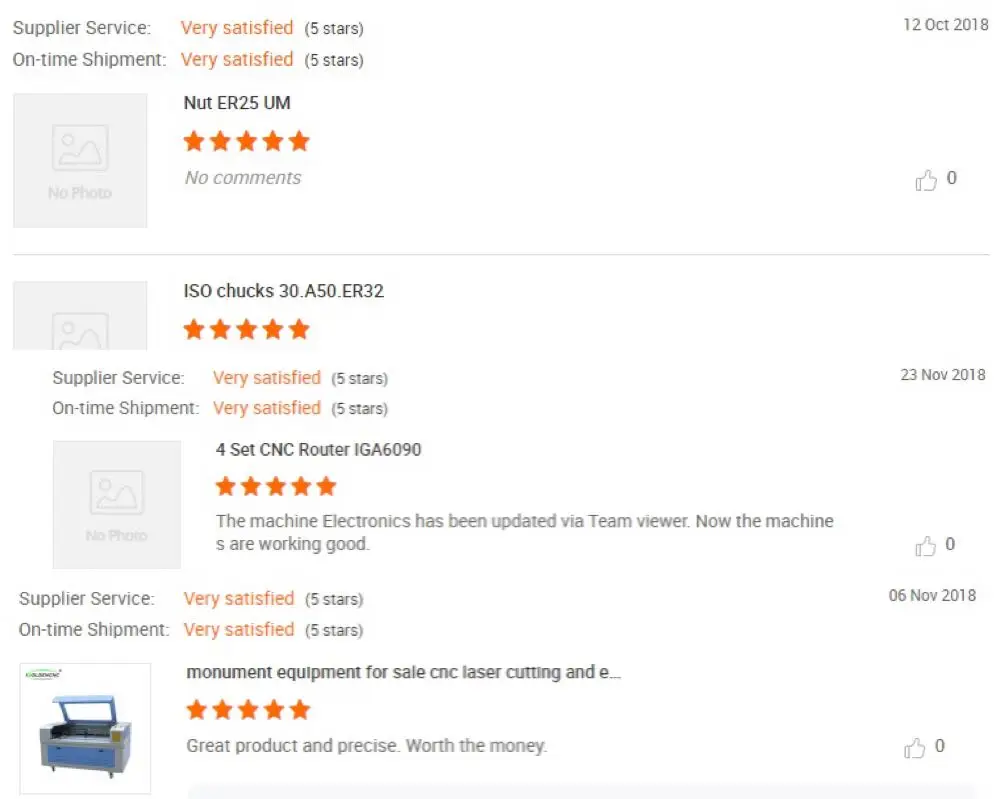

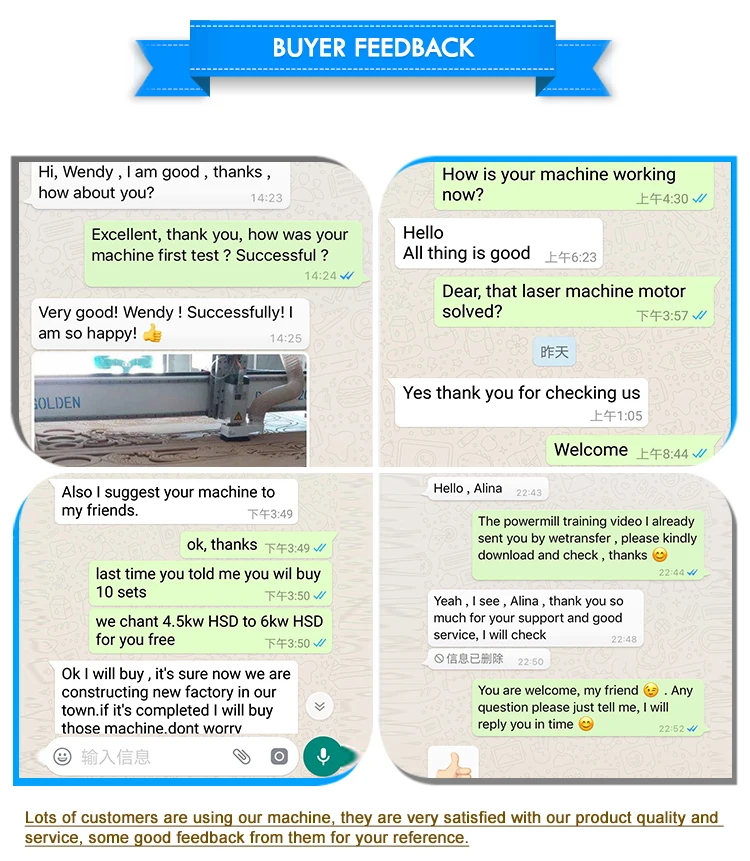

Buyer Feedback
At the same time, it's our pleasure to win nice comments and trust from our everywhere old&new clients. Your feedback will guide us improving and making progress step by step!
Company Information
Jinan iGolden CNC Equipment Co., Ltd. is a R&D, manufacturing, sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter and etc. The main configuration all adopt top parts which imported from Italy, Japan, Germany and etc. We adopt international advanced producing technologies to improve our products. Our products are widely used in advertising, woodworking, artworks, model, electric, CAD/CAM Industry Model, clothing, package printing, marking, laser sealing and so on.
Looking forward to your nice cooperation!
