heavy duty four side moulder wood planer
US $22300-$23300
HOLYISO New Arrivals Four Side Wood Thickness Planer 5 Spindles 4 Head Moulder For Sale
- Category: Wood Planer >>>
- Supplier: Foshan Holyiso Machinery Co. Ltd.
Share on (60835595418):
Product Overview
Description
Products Description

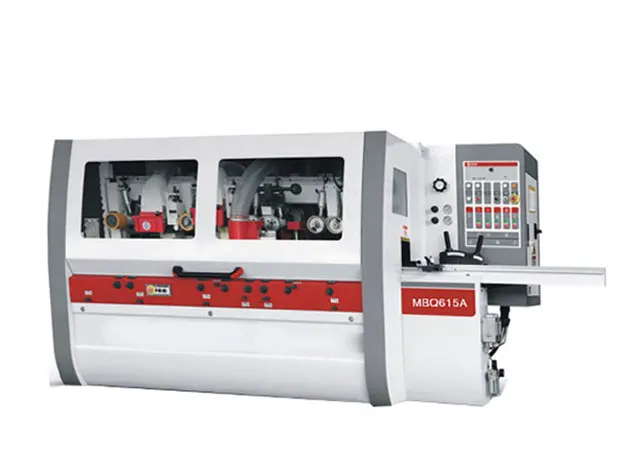

Wood working surface Four-side planer machine MBQ615A
Model | MBQ615A |
Working width | 25-150mm |
Working thickness | 8-100mm |
Spindle amounts | 6pcs |
Spindle speed | 6000rpn |
Feed speed | 6-35m/min |
Spindle diameter | φ40mm |
Cutter diameter First bottom cutter | φ125 |
Right vertical cutter | φ125-φ160 |
Left vertical cutter | φ125-φ160 |
First top cutter | φ125-φ160 |
Second top cutter | φ125-φ160 |
Second bottom spindle | φ125-φ160 |
Motor power First bottom cutter | 4kw/5.5hp |
Feed motor | 3kw/4hp |
Beam elevation | 0.75kw/1hp |
Total power | 29.25kw/40hp |
Feeding wheel Dia. | Φ120mm |
Suction hood Dia. | φ125mm |
Overall dimensions | 3500*1410*1650mm |
Packing dimensions | 3700x1610x1835mm |
Weight | 2720kg |

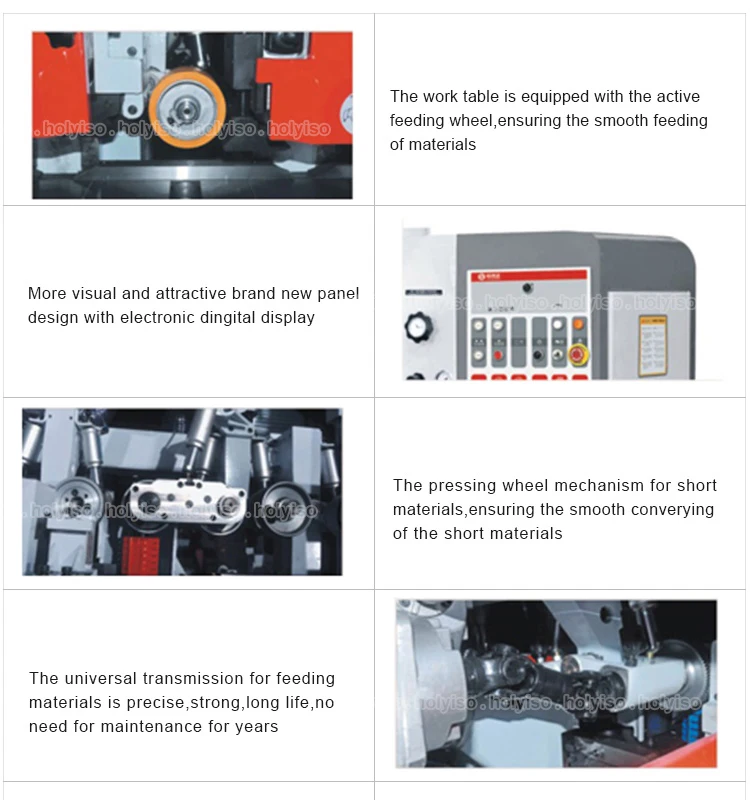

Details Images
Outstanding Characteristic:
* This adopts frequency conversion material feeding,material feeding speed ranges from 6-35m/min.
* Each main shaft is driven by independent electric motor,cutting force is powerful.
* Main shaft is adjustable to focus on the front,operation is convenient.
* Hard chrome plating worktable is durable.
* Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material.

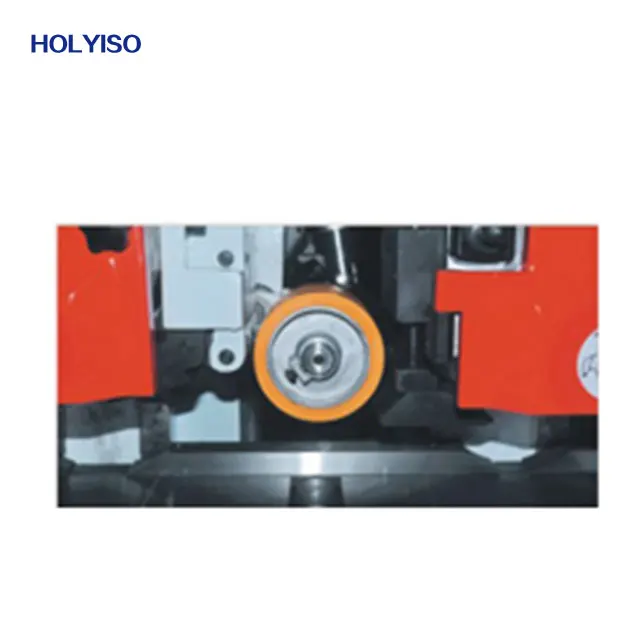

* Multi-group drive rollers improve feeding efficiency.
* Adopts central charging system ,features convenience and promptness.
* International brands electrical parts are applied for good stability.
* On the horizontal axis with the front support means to improve the rigidity of the spindle.
* Spare parts are thick and solid to maintain high precision,high stability and high reliability.
* Pneumatic compressed feeding roller is applied ,the pressing force can be adjusted by stages which is favorable for smooth
feeding of timbers with different thickness.
* Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
* This adopts frequency conversion material feeding,material feeding speed ranges from 6-35m/min.
* Each main shaft is driven by independent electric motor,cutting force is powerful.
* Main shaft is adjustable to focus on the front,operation is convenient.
* Hard chrome plating worktable is durable.
* Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material.
* Multi-group drive rollers improve feeding efficiency.
* Adopts central charging system ,features convenience and promptness.
* International brands electrical parts are applied for good stability.
* On the horizontal axis with the front support means to improve the rigidity of the spindle.
* Spare parts are thick and solid to maintain high precision,high stability and high reliability.
* Pneumatic compressed feeding roller is applied ,the pressing force can be adjusted by stages which is favorable for smooth
feeding of timbers with different thickness.
* Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
Finish Product:
