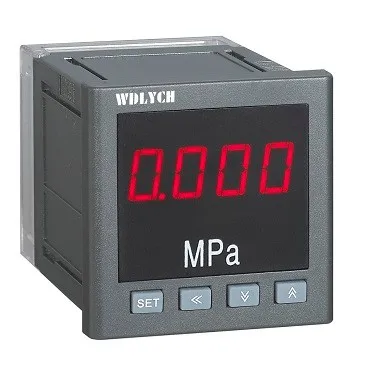

Цифровой МПа метр 80*80 мм
Цифровой МПа-метр 80*80 мм
Цифровой МПа-метр 80*80 мм

Цифровой МПа метр 80*80 мм

Share on (60835721609):


Price:

Quantity:


Product Overview

Description


Product Description


WD-BL Single-phase rpm meters are used for measuring and monitoring the power distribution system. This series of meter can measure rmp in power distribution or other applications.

It combines the measurement, the analysis and the operation together, makes the information become clearer, and the operation become easier.

Technical Parameters
\t
Performance
\t
Technical Parameters
\t








 Measuring Input       Display
\t



     Voltage
\t
Ratad Value
\t
AC100V/450V/690V
\t
Overload
\t
Continue: 1.2 times; Instant: 10 times
\t
Power Consumption
\t
﹤1VA
\t
Impedance
\t
≥500kΩ
\t
Accuracy Class
\t
0.5
\t


     Current
\t
Rated Value
\t
DC4-20mA/0-20mA  AC1A/5A
\t
Overload
\t
Continue: 1.2 times; Instant: 10 times
\t
Power Consumption
\t
﹤0.4VA
\t
Impedance
\t
﹤2mΩ
\t
Power
\t
0.5
\t
Power Factor
\t
0.5
\t
Frequency
\t
0.5
\t

            Power
\t
Voltage
\t
AC/DC85-265V, DC24V, AC380V,440V,690V
\t
Power Consumption
\t
≤ 5VA
\t


            Output
\t
Communication
\t
RS485 MODBUS-RTU Protocol
\t
Relay Output
\t
Rows Alarm Output
\t
Transmitting Output
\t
1-3 rows transmitting output, 4-20mA/0-20mA
\t

        Environment
\t
Working Enviroment
\t
-25-55℃
\t
Storage Enviroment
\t
-20-75℃
Model Selection
\t
Model
\t
Dimension(mm)
\t
WD-9L
\t
96*96-93
\t
WD-3L
\t
80*80-93
\t
WD-AL
\t
72*72-93
\t
WD-BL
\t
96*48-93
\t
WD-DL
\t
48*48-81

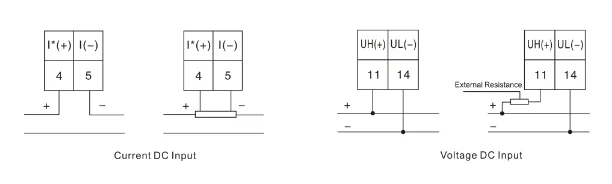

Wiring Diagram
