FHD+AV+USB+Type C interface lcd controller board support phone sync display



Product Description



Specifications of the Portable Type-C interface Controller Board:




1.General description



The product is positioned in the high-end EDP HD MONITOR solution, using Realtek single-chip TV processing IC, with good picture quality, multi-function, rich interface, mature system, etc. Support TYOE-C, EDP, 2256T up to 2K EDP Screen, mainly for 32" and below size monitoring / portable product design.

Analog audio amplifier: The maximum output power is 2X1W (8 ohms).

Input signal: HDMI (1.3).

Support screen resolution 1808P, 2560x1440, EDP signal output.

Multinational OSD menu language

2. Main technical parameters



HDMI1

480i,480p,576i,576p,720p,1080i,

1080p,2K

HDMI





HDMI2

480i,480p,576i,576p,720p,1080i,

1080p,2K





Audio frequency response

±3dB



Sound

Left and right channel separation

70dB





distortion(THD)

1.5~2%





Signal to noise ratio(S/N)

80 dB



Amplifier

2 *1W(8Ω)





Power

Input voltage

5V



stand-by current

10MA





OSDLanguage

Chinese English German French Russian Italian Spanish Arabic Persian and other optional languages

Low power consumption,

standby power consumption<1W



Key Function

POWER/MENU/SOURCE/ LEFT/RIGHT



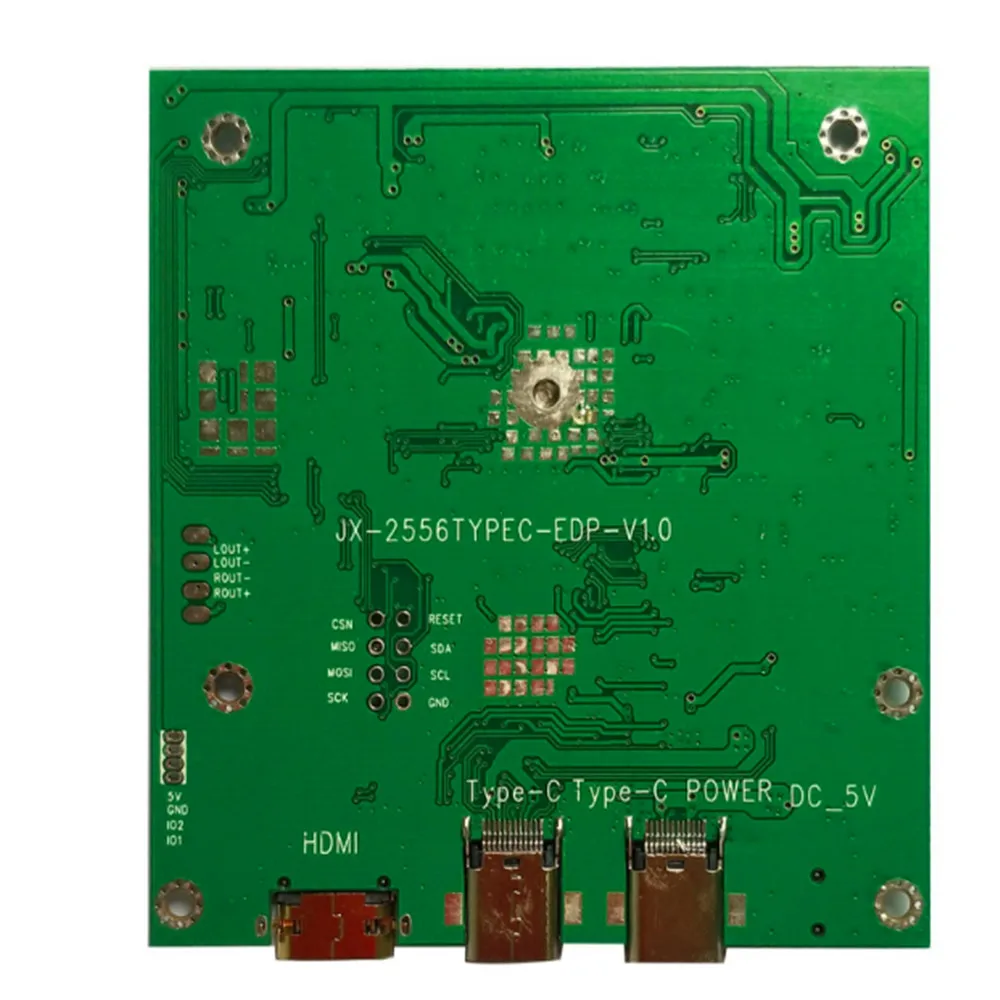

3.Appearance

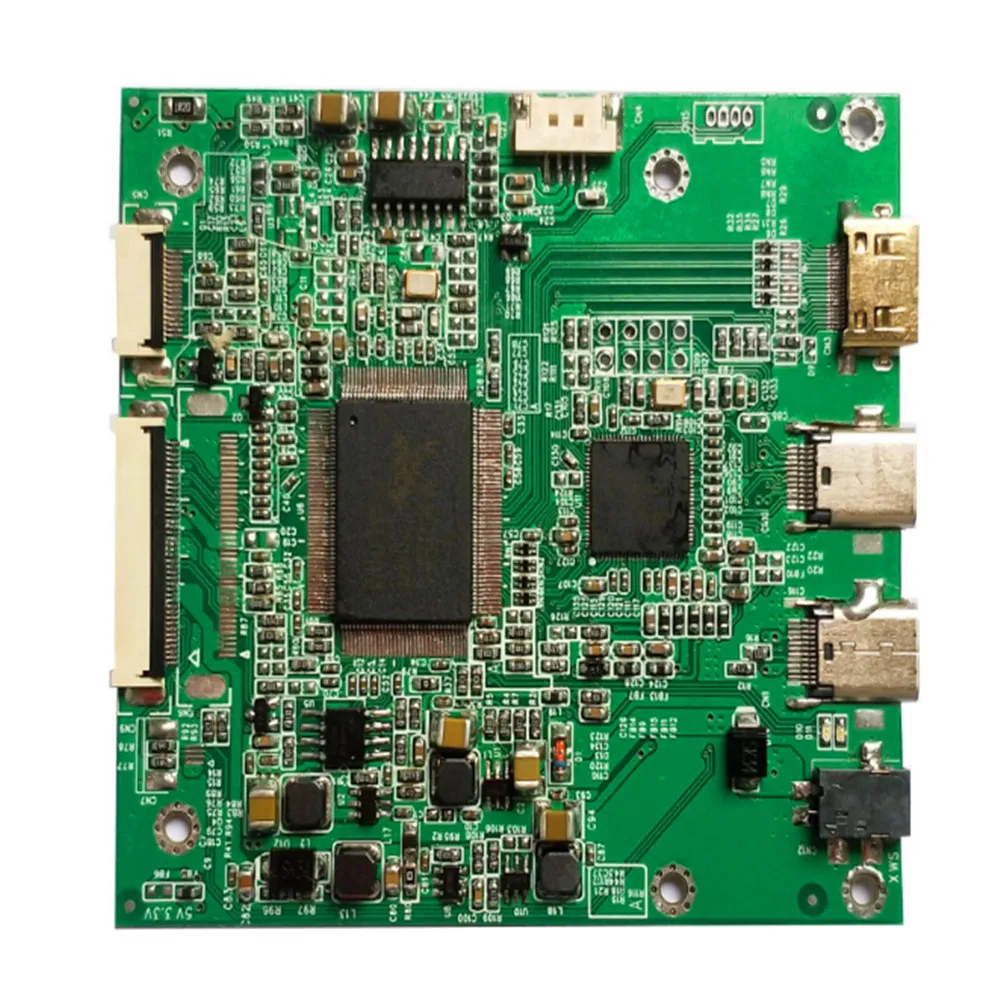

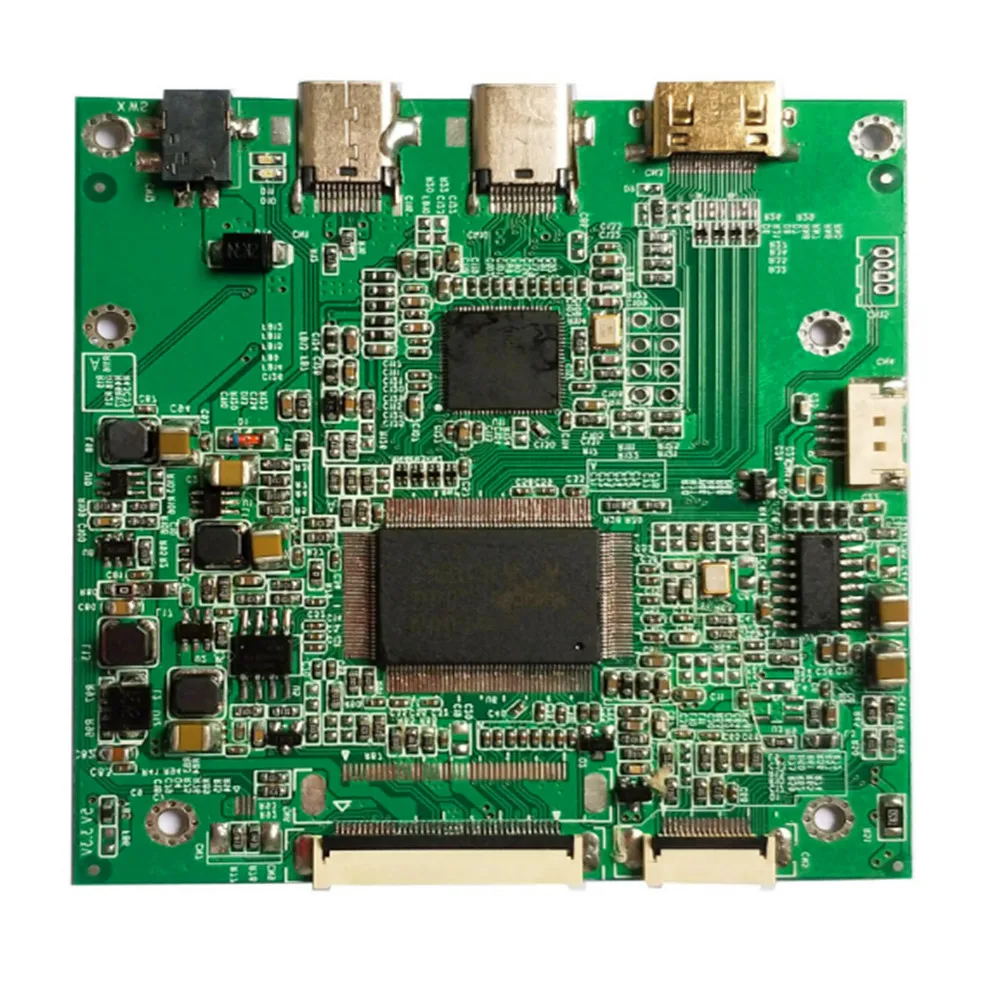

JX-tyeC 002.jpg



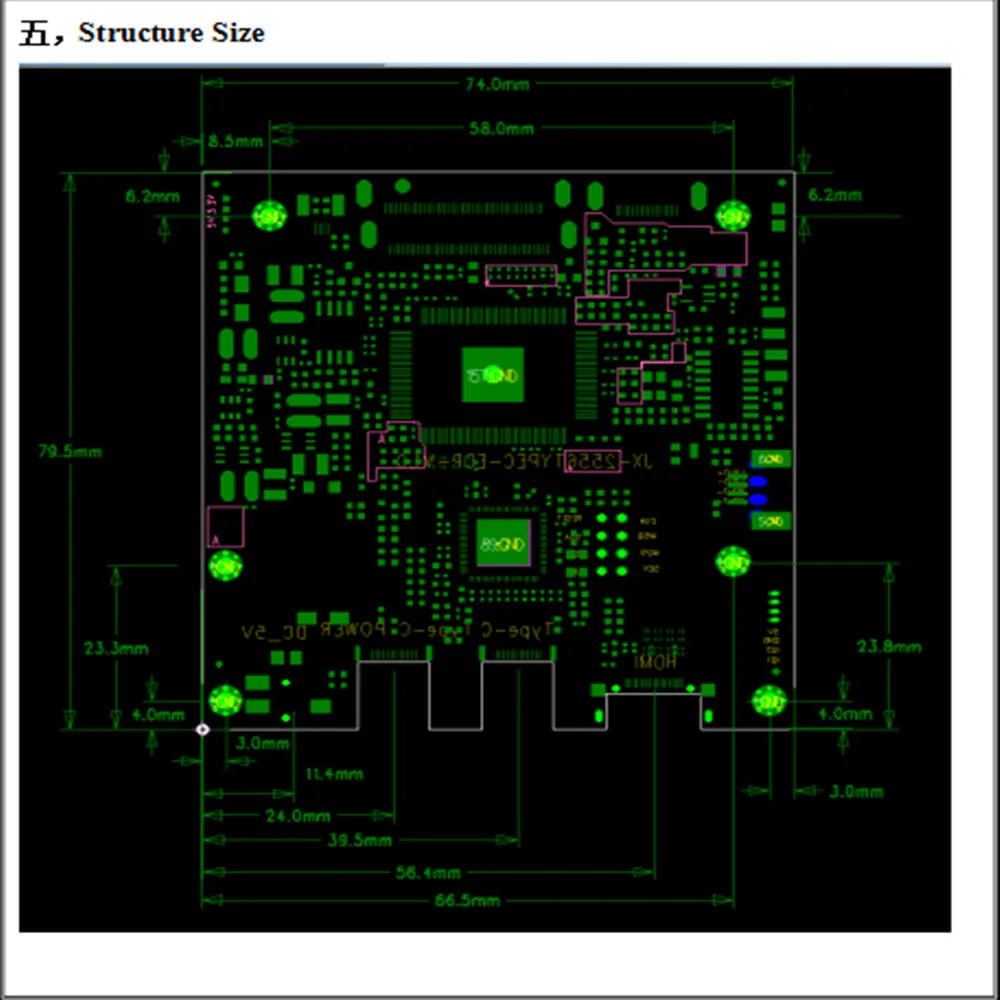

4.Main connector  defined description

No.

Describe

No.

Describe

1

DC Interface

2

TYPE-C/USB Interface

3

TYPE-C Interface

4

HDMI input interface

5

IO Interface

6

Speaker Interface

7

Key Interface

8

EDP Interface



JX-tyeC 01.jpg



*Speaker sound output interface   Number:CN4( SMD PH1.25/*4PIN)

Pin definition:

Foot number

Name

Description



1

ROUT+

Right channel output +

2

ROUT-

Right channel output -

3

LOUT-

Left channel output -

4

LOUT+

Left channel output +
