Product Overview

Description







                                             2. DATA SHEET

Ø  Top hung system without floor track;

Ø  Sound insulation confficient :STC 26 to 55db based on the material choose;

Ø  Thickness panel:65mm,85mm,100mm,110mm,125mm, height from 2meters to 18meters;

Ø  More Choices for Panel surface to meet different Design Effection.

Ø  Such asWood Veneer, Melamine ,Leather, Fabric, Glass, Tile, Soft Box, Hard Box, Magnisium board , Acoustic Board , Steel ……

Series	Thickness (mm)	Applied height (mm)	Width of panel (mm)	Acoustical reduction coefficient (db)	Hanging weight	Retractable Range of Top/bottom(mm
65	65	2000~4500	600~1228	26~36	22~30kg/m2	22.5
85	85	2000~6000	600~1228	35~50	30~40kg/m2	22.5
100	100	2000~10000	600~1228	43~53	36~45kg/m2	30
110	110	2000~180000	600~1228	45~53	38~50kg/m2	30
125	125	2000~180000	600~1228	50~55	70kg/m2	3

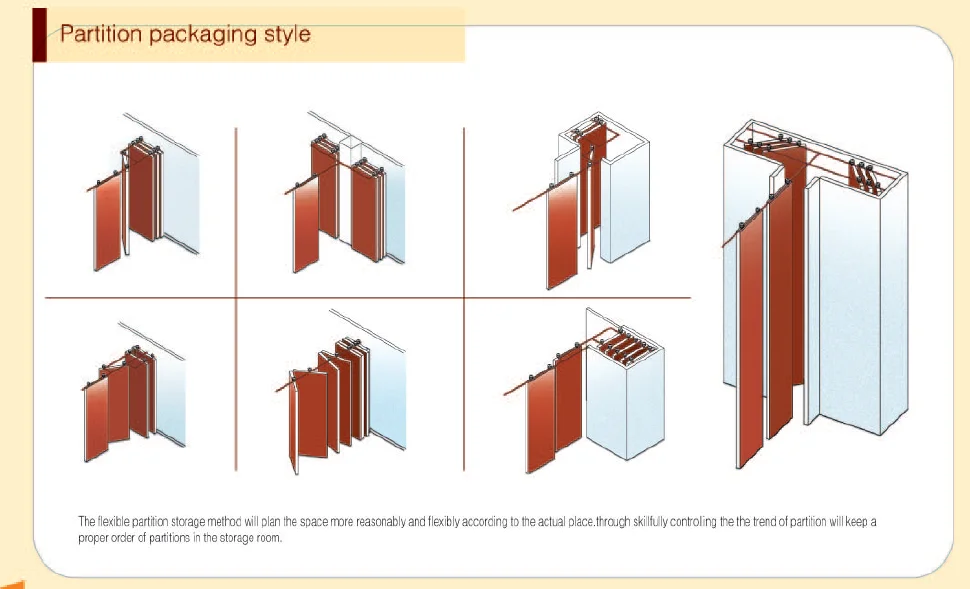

                                                           4. STACKING ROOM STYLE

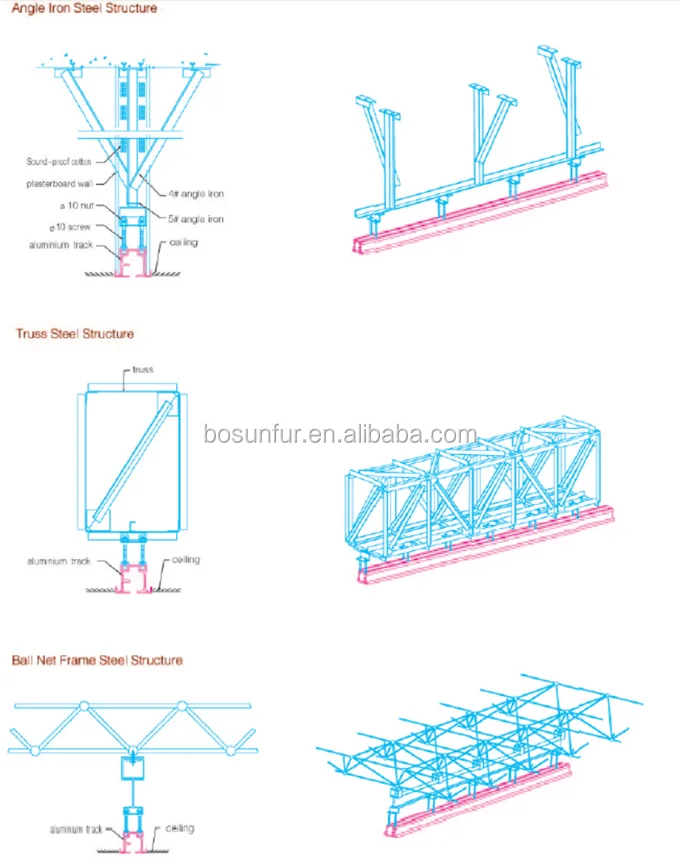

                                                                            5. INSTALLING INSTRUCTION

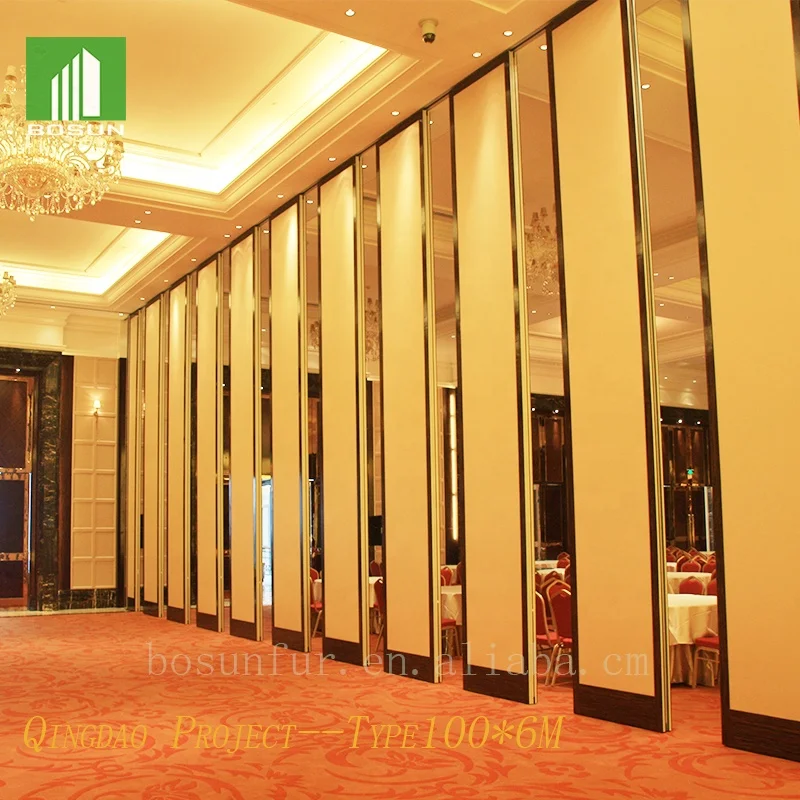

6. COOPERATED STAR HOTEL

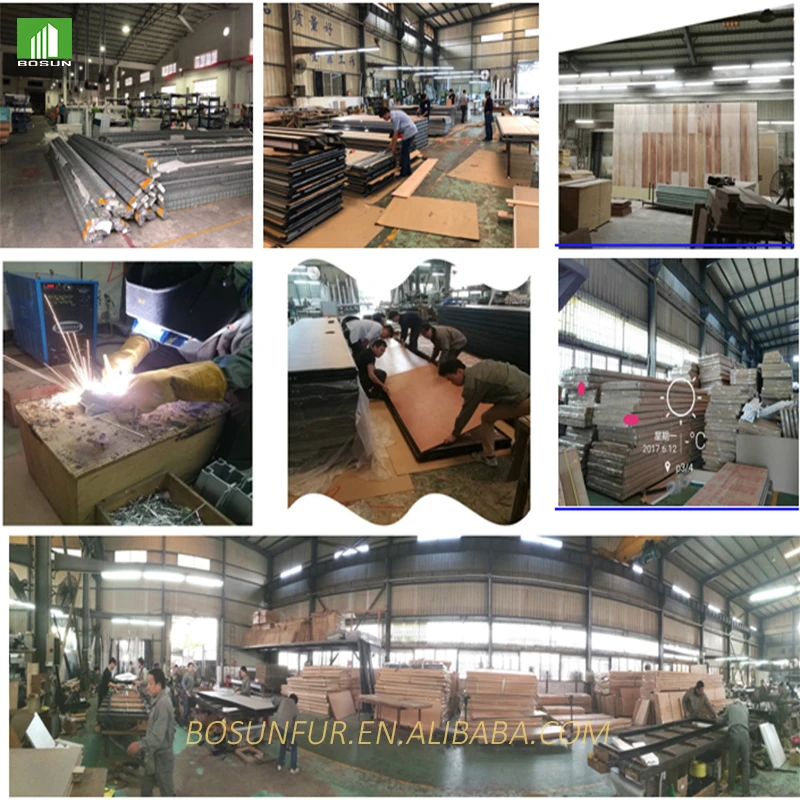

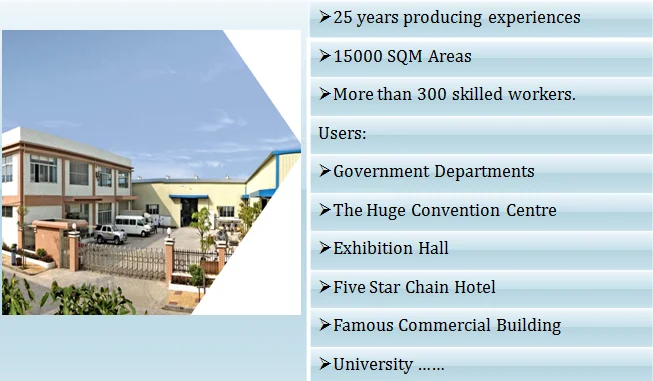

                         7. WORK SHOP SHOWING

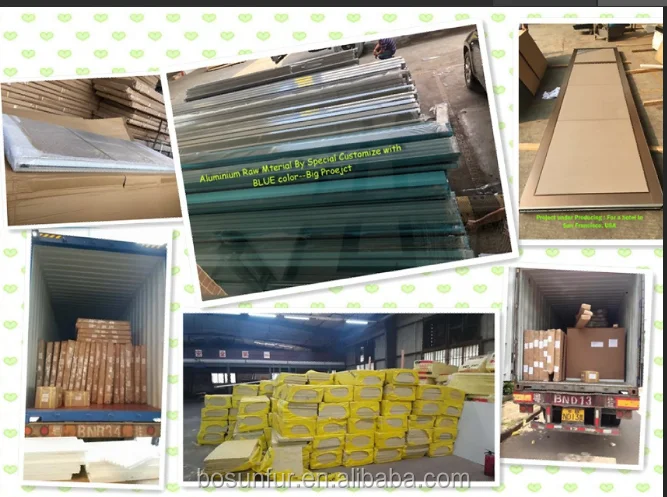

  8. PACKAGES AND LOADING

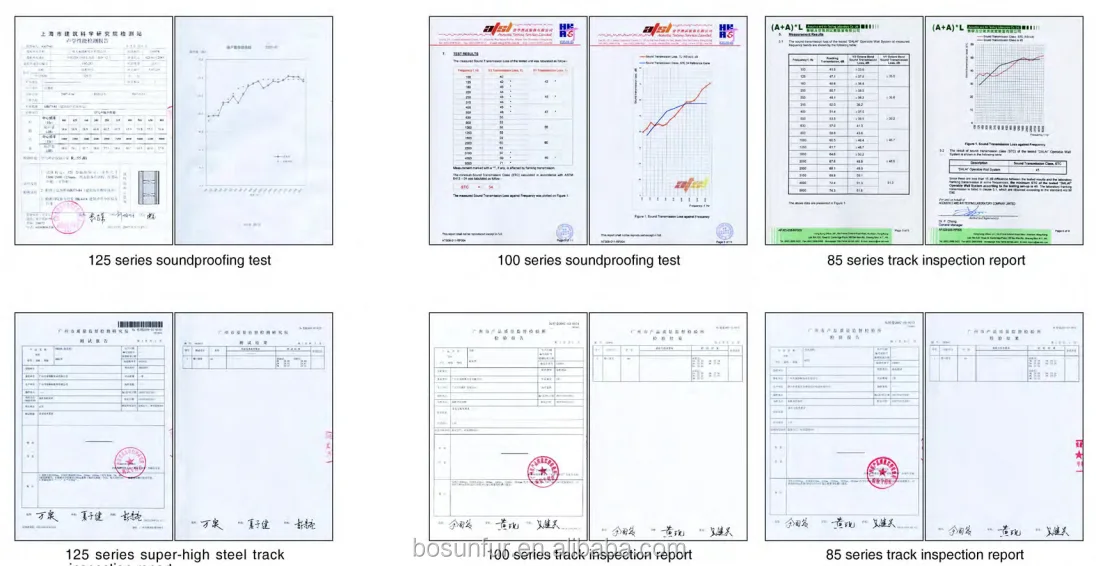

9. CERTIFICATES
