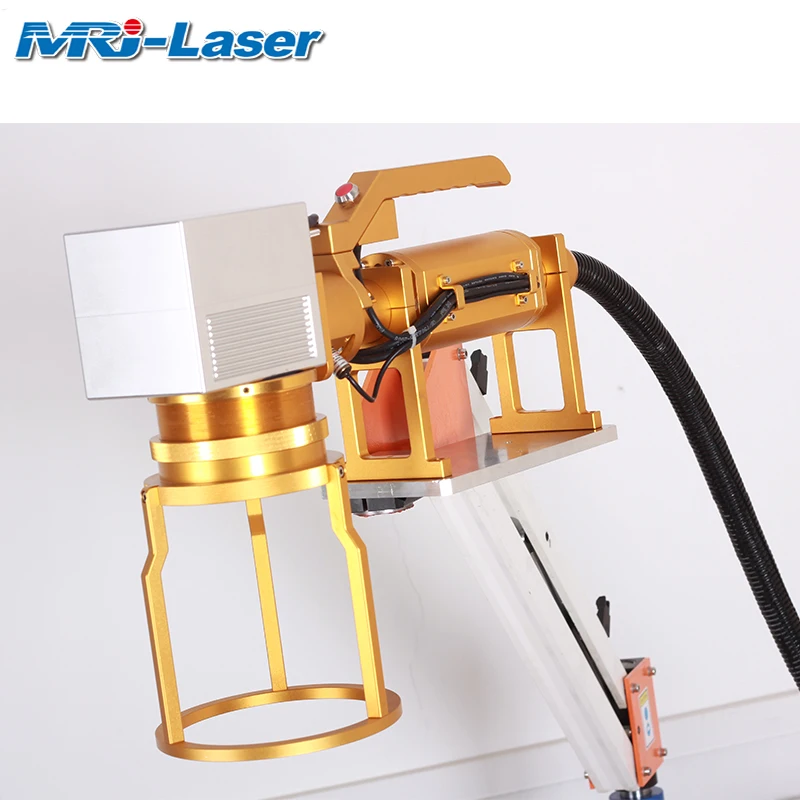

hand held fiber laser marking machine 10w/20w/30w/50w/100w labelling and engraving
- Category: Laser Marking Machines >>>
- Supplier: Chengdu Mrj-Laser Technology Co. Ltd.
Share on (60835852491):
Product Overview
Description
hand held fiber laser marking machine 10w/20w/30w/50w/100w labelling and engraving
Product Description
Model | MRJ-FL-20RB | MRJ-FL-30RB | MRJ-FL-50RB |
Laser Power | 20W | 30W | 50W |
Laser Wavelength | 1064nm | 1064nm | 1064nm |
Beam Quality | M2<1.6 | M2<1.6 | M2<2.0 |
Repetition Frequency | 20-80KHz | 30-80KHz | 50-120KHz |
Marking Field | 110mmx110mm | 110mmx110mm | 110mmx110mm |
Marking Depth | ≤1.2mm | ≤1.5mm | ≤2.0mm |
Marking Line Speed | ≤14000mm/s | ≤14000mm/s | ≤14000mm/s |
Minimum Line Width | 10um | 10um | 10um |
Minimum Character | 0.15mm | 0.15mm | 0.15mm |
Repetition Precision | ±0.005mm | ±0.005mm | ±0.005mm |
Power Consumption | ≤600w | ≤800w | ≤1000w |
Maintenance-free Time | 100000hours | 100000hours | 100000hours |
Input Power | Single Phase110VAC/220VAC/50-60Hz | ||
Cooling Method | Air Cooling | Air Cooling | Air Cooling |
Equipment Introduction:

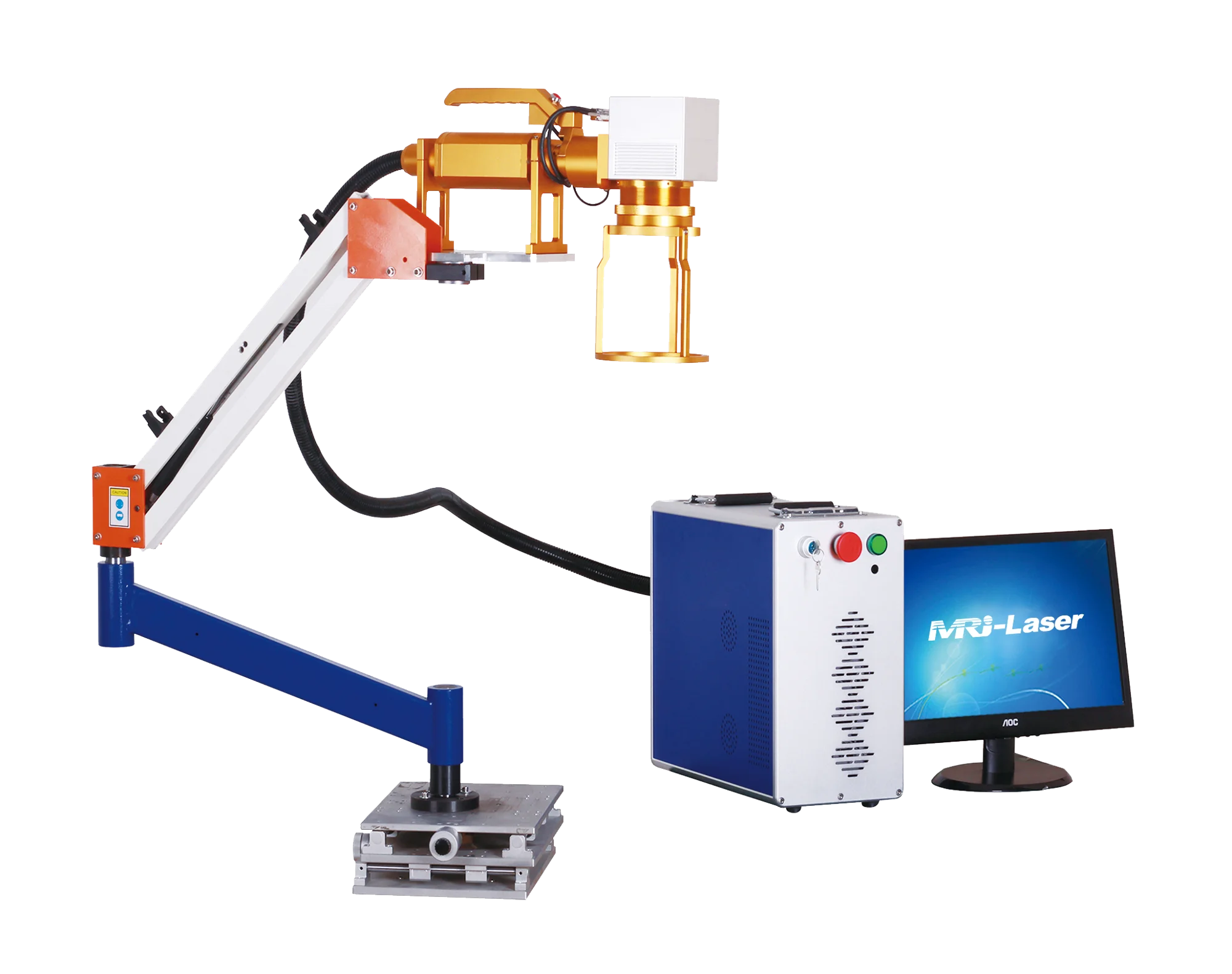

MRJ-FL-20RB series Robotic arm fiber laser marking machine is developed by the world’s most advanced laser technology;
Integrated structure and professional engineering design, equipped with industrial robotic arm, easy and convenient to operate;
Unique design structure to meet kinds of marking requirements for workpiece which is complex and hard to put on workbenches.
System Characteristic:
Fiber laser has excellent beam quality and high precise marking effect;
Adjustable marking field for hand-held, the max field is up to 300x300mm;
The whole machine is small size, light weight, hand-held scan head can also work with lifting platform for laser marking;
Compact structure design, stable performance, high-speed marking, high repeat positioning accuracy;
Core components are optimally designed with electromagnetic compatibility, with high signal-to-noise ratio and strong anti-interference ability;
No need any maintenance for laser, and working lifetime is up to 100000 hours.

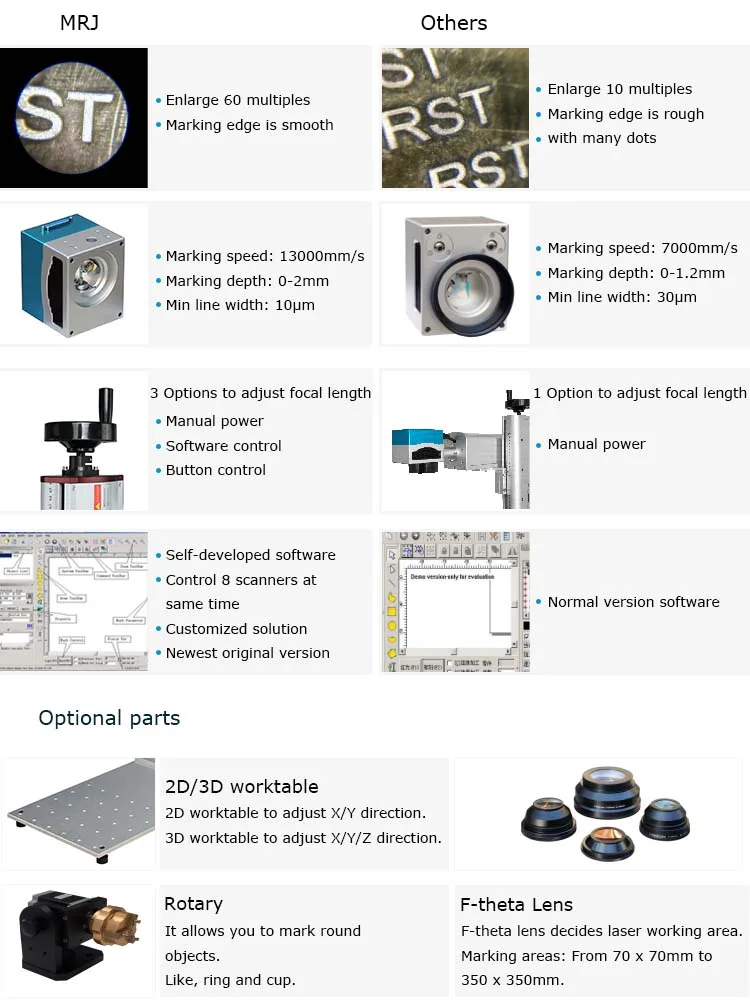

Compares:

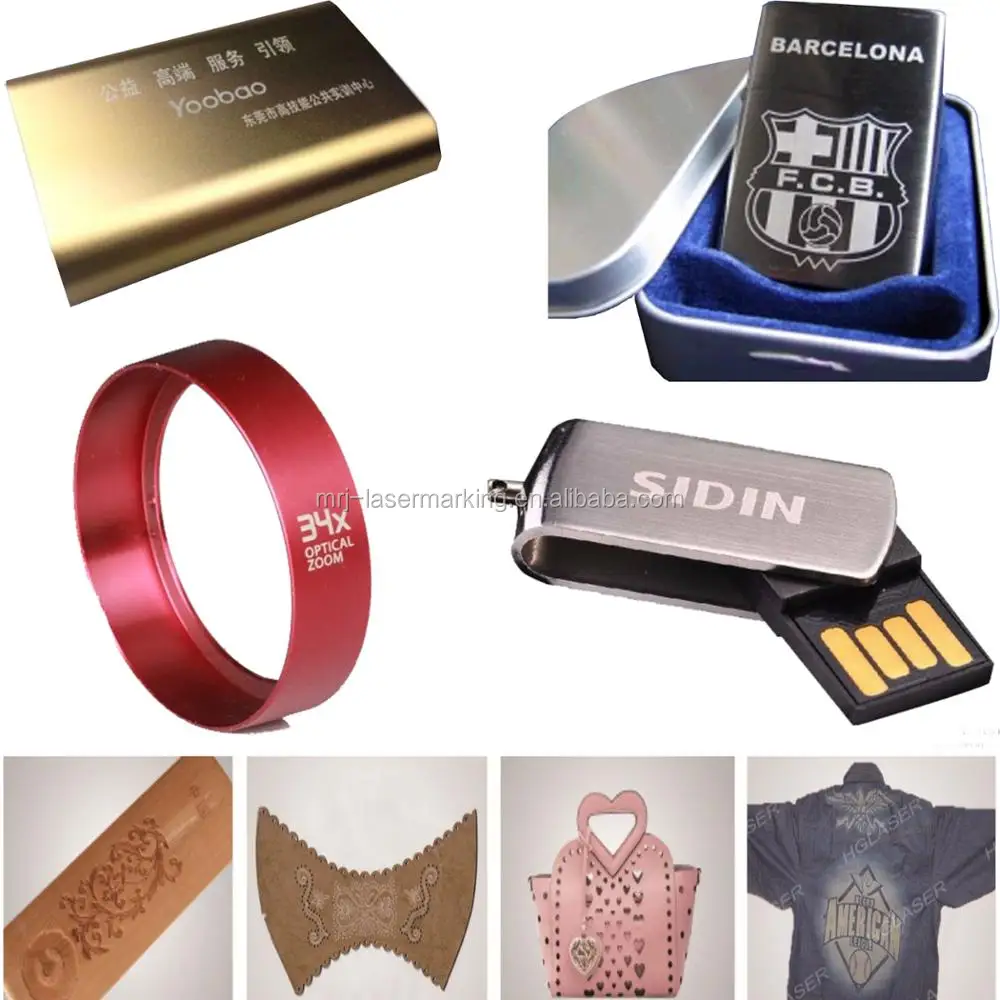

Application
Applied Industries:
Electronic Components: Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter: Panel signs, precision equipment, etc.
Instrument: Panel signs nameplates, precision equipment, etc.
Hardware Tools: Knives, tools, measuring tool, cutting tool, etc.
Automobile Parts: Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.
Mechanical Parts: Bearings, gears, standard parts, motors, etc.
Daily Necessities: Handicrafts, zipper, key holder, sanitary ware, etc.
Jewelry: Rings Jewelry, gold, silver, etc.
Food package: Plastic packages, etc.

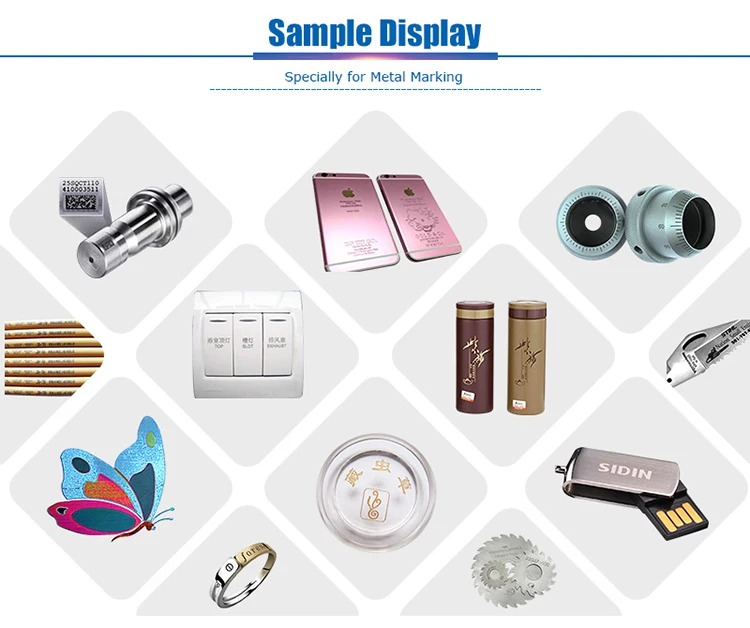

Marking Material:
Metals: Carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc,rare metal and alloy steel, gold, silver, titanium, etc.
Non-metals: Plastics, rubber, resin, carton box, etc.
Main Parts:
Fiber Laser Source: IPG, SPI, Raycus, Max, JPT (optional)
Scan Head: SINO-GALVO
Marking Software: EZCAD/Self-developed
Others: F-theta Lens: Computer
Superiority:
R & D: Professional engineering design and the smallest size;
Warranty and service: 100,000 hours life time with 2 years warranty and oversea after-sales.
Certificates: Customized products with CE/EN60825 and test certificates.
Hot Sales
Hot Sales Laser Marking Machine
Fiber Laser Marking Machine Fiber Laser Marking Machine 355nm Laser Marking Machine
Why MRJ Laser Marking Machine?
Versatile: | MRJ laser engraving machines can be customized for your specific industrial or educational applications and our machines can easily be adjusted for a wide range of materials. One-off prototypes, small or larger production runs are all easily catered for with a laser machine. |
Precise: | MRJ’s laser engraving machines can engrave a wide range of materials to a high degree of accuracy, ensuring top results every time - even intricate or complex detail can be produced effectively. |
Fast: | Because laser engraving is faster than traditional techniques, you can achieve greater output and increased productivity, giving you a better return on your investment and ultimately leading to more profitability! |
Safe and Clean: | Laser engraving is a contact-free engraving process - materials do not need to be clamped down or adjusted and the laser machines never expose the operator to moving parts. All MRJ machines are fully tested, CE approved and comply with industry safety standards. This is a clean and efficient process, especially when used in conjunction with a MRJ filtration/ventilation system. |
Ease of use: | Whether you are new to laser engraving or an expert, MRJ laser engraving machines are easy to operate. Once the design software file has been imported and the laser settings adjusted, it is as simple as operating a microwave, laser printer or CD player! |
Value: | MRJ laser engraving machines represent excellent value for money. The compact machine footprint compared to the working bed size makes MRJ laser machines an extremely attractive option. |
Our Services
MRJ-laser makes the following commitments for products that you purchase from us:
1. MRJ-laser guarantees that every set of machine are under rigorous testing before they are delivered to you, to ensure the excellent performance.
2. After purchasing our products, if you have any questions, please call our service hot-line: +86-28-87546345. Or email: info(at)mrj-lasermark.com
3. Before or after purchasing our machine, if you have any technical issues, please send e-mail to our service mailbox, we will give you professional reply in time.
4. We will provide 2 year equipment warranty and maintenance for lifetime what you have purchased.
5. We commit the maintenance service within 48 hours after receiving the products.
6. We would appreciate any of your suggestions for helping us to keep improving our service and products.
Certificates
Company Information
Chengdu MRJ-Laser Technology Co., Ltd is a professional high-tech enterprise which is located in Hi-tech South Zone in Chengdu of Sichuan province, specialized in laser marking, welding, visual inspection and related application control system’s development, production and sales. With an outstanding talent team, strong technical force and the first-class products R&D center, we are dedicated to provide all-around laser application solutions to meet the demands of laser equipment customization in different fields for worldwide customers.
Our products have obtained a number of patents of invention and complete independent intellectual property rights, all products have passed EU CE certificates. Quality control strictly enforce the ISO9001 quality management system.
Core Advantages of MRJ-Laser: 1. Focus on customized & personalized & intelligent laser equipment; 2. The world's smallest 30W desktop laser marking machine; 3. With 8 invention patents and a number of intellectual property certificates; 4. Meet the development needs of different optical, mechanical, hardware and software systems.
FAQ
FAQ
Q1: How can I get the most suitale laser marking machine for me?
You can tell us both your marking material and ideal marking effect by picture or vedio, a suitable laser marking machine will be recommend based on our professional technician.
Q2: I never use laser marking machine before, is it easy to operate?
Yes, it's extremelt easy! We will send you manual and guide video in English, which can help you to know how to operate the machine. If it cannot figure it out, by using "Teamviewer" online software would be very helpful. Or we can talk by phone, email or other contact ways.
Yes, it's extremelt easy! We will send you manual and guide video in English, which can help you to know how to operate the machine. If it cannot figure it out, by using "Teamviewer" online software would be very helpful. Or we can talk by phone, email or other contact ways.
Q3: If the laser marking machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: This model is not suitable for me, do you have more models available?
Yes, we have many models, such as Fiber laser, CO2 laser, Dynamic focus laser machine, UV laser machine, Large Scan Field Laser marking machine, Fiber/CO2 Laser jet marking machine and so on. What’s more, we have the ability to make customization according your requirement!
Yes, we have many models, such as Fiber laser, CO2 laser, Dynamic focus laser machine, UV laser machine, Large Scan Field Laser marking machine, Fiber/CO2 Laser jet marking machine and so on. What’s more, we have the ability to make customization according your requirement!
Q5: What's the guarantee, in case the machine breaks down?
The machine has two years guarantee.
The machine has two years guarantee.
Q6: How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q7: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client’s specific requirements, it would be 15 to 30 days.
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client’s specific requirements, it would be 15 to 30 days.
Q8: How's the payment?
Telegraphic Transfer (T/T).
Telegraphic Transfer (T/T).
Q9: Do You Arrange Shipment For The Machines?
Yes, we will arrange shipment for you for FOB or CIF price. For EXW price, clients need to arrange shipment by themselves or their agents.
Yes, we will arrange shipment for you for FOB or CIF price. For EXW price, clients need to arrange shipment by themselves or their agents.
Q10:How is the packing?
Durable wooden case or as per required.
3 layers package: The outside, we adopt plywood case, which is fumigation free. In the middle is covered with thick sponge to protect the machine from shaking. Inside this is covered by thickening plastic bag for waterproof.
Durable wooden case or as per required.
3 layers package: The outside, we adopt plywood case, which is fumigation free. In the middle is covered with thick sponge to protect the machine from shaking. Inside this is covered by thickening plastic bag for waterproof.
Q11: Our Service:
1. Free traning and free technical support
2. 3 years warranty,10 years lifespan, and lifetime maintenance
3. Provide parts with agency prices
4. Free parts to replace within 36 months
5. Free sample test
6. Customized products,ODM&OEM
