top quality and CE certification precast concrete villas wall panel elements machine battery mold

Product Overview

Description

precast concrete villas wall panel elements machine battery mold/precast concrete villas wall panel elements machine battery mold

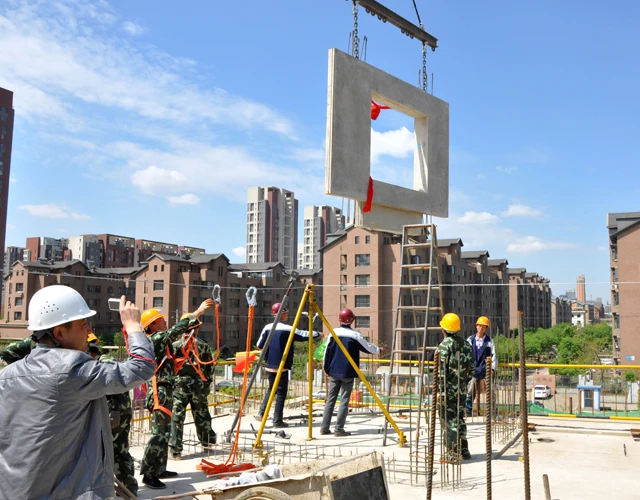

Prefabricated building means that part or all of the building's elements are produced in the precast element factory , and then transported to the construction site through corresponding transportation methods. The components are assembled by reliable installation and installation machinery, and become a building with functional functions. The construction method of the object. Compared with on-site construction, prefabricated construction has the advantages of convenient construction, fast engineering progress, small impact on the surrounding environment and easy assurance of the quality of building elements. In the past, China has mainly applied in industrial buildings, and has begun to Used in civil buildings, especially in residential buildings

Prefabricated buildings have been gradually promoted by developed countries such as Europe and the United States since the late 1940s. The areas where advanced prefabricated buildings are currently developed are Western Europe and Northern Europe, as well as North America, Japan, Singapore and Hong Kong.

Compared with traditional cast-in-place reinforced concrete and masonry buildings, prefabricated buildings are manufactured by prefabricating building components including beams, slabs, columns and external walls. After curing and acceptance, they are transported to the site for installation. Construction method completed by construction.

Prefabricated buildings are divided from prefabricated steel structures and prefabricated reinforced concrete buildings; prefabricated buildings are divided into prefabricated industrial buildings and prefabricated civil buildings, and prefabricated civil buildings. Divided into prefabricated public buildings and prefabricated residential buildings.

the complete precast concrete villas wall panel elements machine battery mold includes many working stations as following : steel pallet cleaning machine , release agent spray machine , automatic protter machine , concrete spreader machine , automatic vibration machine , concrete levelling machine , panels curing chamber , tilting machine and so on .

♦  the precast concrete villas wall panel elements machine battery mold working area need :  length 190 m , width 30 m

♦ the workers quantity for the precast concrete villas wall panel elements machine battery mold :   35 workers

♦ total power for the precast concrete villas wall panel elements machine battery mold : 190KW

♦ the assistant equipments for the  precast concrete villas wall panel elements machine battery mold : concrete batching plant and stam boiler and steel rebar processing plant

♦ production capacity of  precast concrete villas wall panel elements machine battery mold :   around 200000 square meters of wall panels

♦ containers quantity needed for the complete production line : around 14 sets of containers

♦ delivery time for the  precast concrete villas wall panel elements machine battery mold :  90 days

♦ Payment terms for the  precast concrete villas wall panel elements machine battery mold cooperation :  T/T or  LC

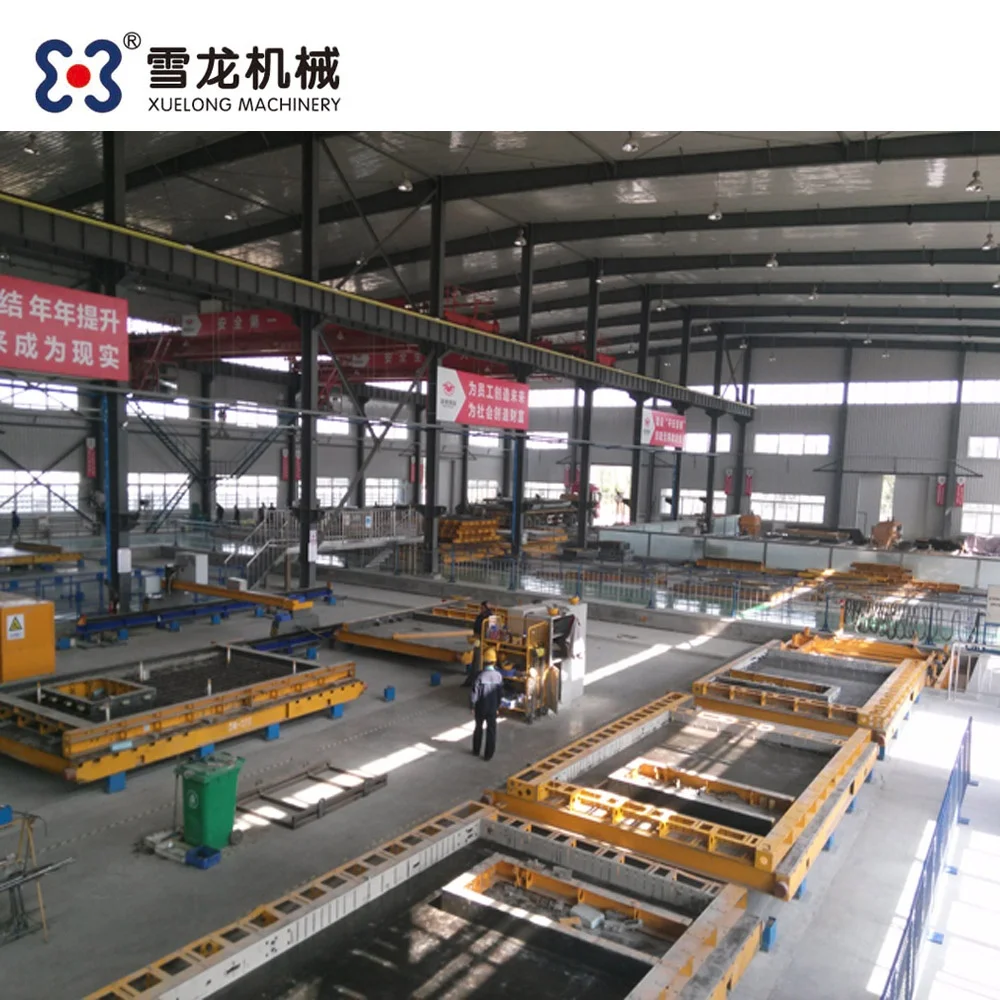

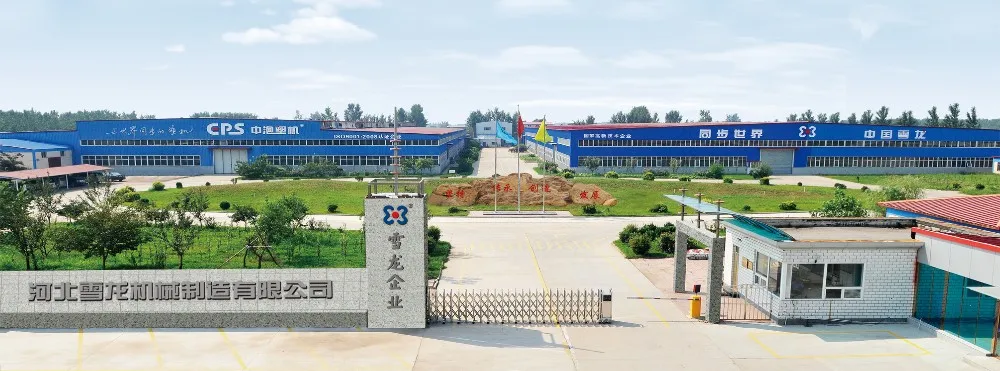

♦ our factory picture overview

♦ patent technologies certificates of precast concrete villas wall panel elements machine battery mold

♦ the each station description of  precast concrete villas wall panel elements machine battery mold  :

(1)  concrete flying bucket

the concrete flying bucket is used to deliver ready concrete from batching plant to the concrete spreader station .and bucket volume 2 or 2.5 cube meters . the motors of flying bucket is from Simens company of Germany .

(2) steel pallet cleaning machine

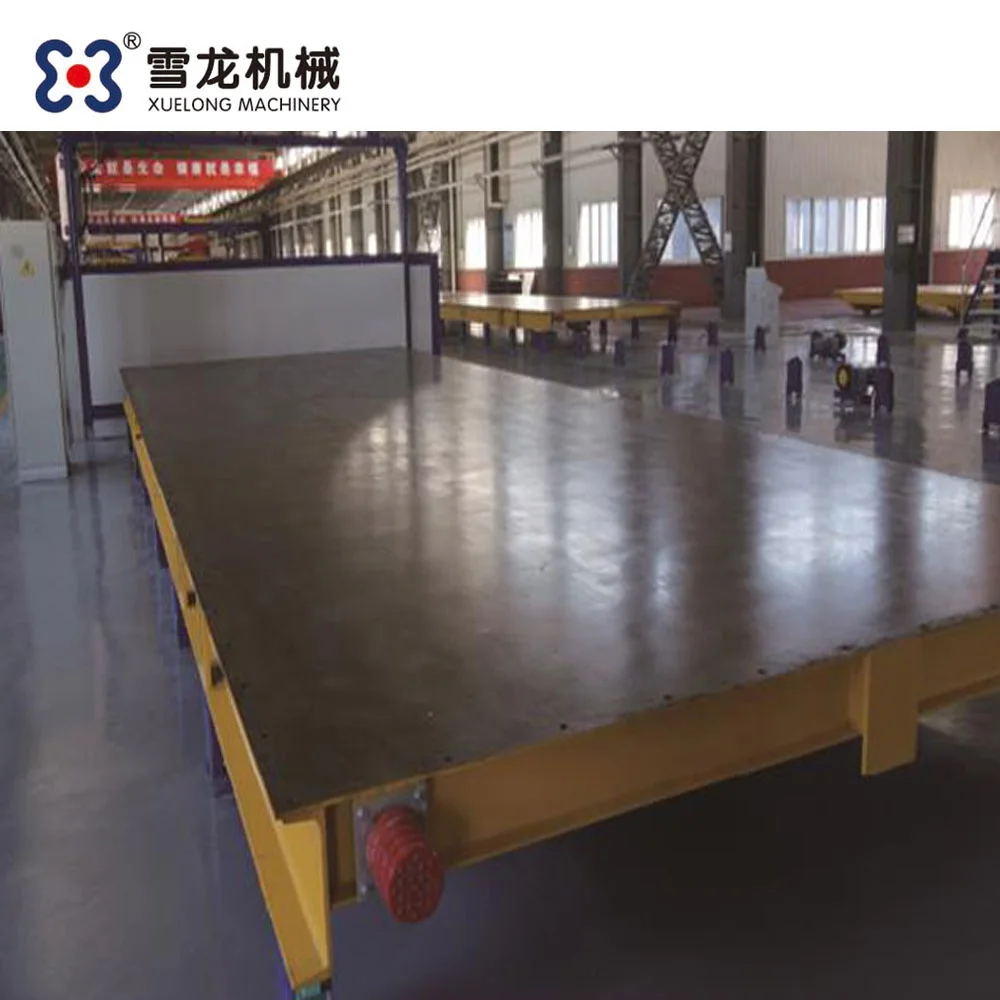

The pallet cleaning machine is used for the pre-treatment station of the PC component production line. It is the pretreatment equipment of the steel pallet. It can clean the concrete residue attached and scattered on the pallet and collect it into the receiving hopper.

(3) release agent spray machine

The mold release agent spraying machine is used for the pretreatment station of the PC line pallet. It is a pretreatment equipment for the pallet. It can automatically spray the release agent on the cleaned pallet , and has an oil droplet collection device for collecting excess oil droplets and reuse .

(4) automatic plotter machine

The automatic plotter machine is used for the PC element production line plotter station, which is an auxiliary equipment of the PC line, which can draw the line on the pre-prepared mold table before installing the side mold.

(5)  concrete spreader machine

The concrete spreader machine is used in the precast concrete elements production line , and is the key equipment of the production line, and used for uniformly and quantitatively spreading concrete into the concrete elements molds.

(6) automatic vibration machine

The vibrating table is used for the PC component production  line and is the main equipment of the production line, used for the concrete vibrating in the mold after the concrete spreading ..

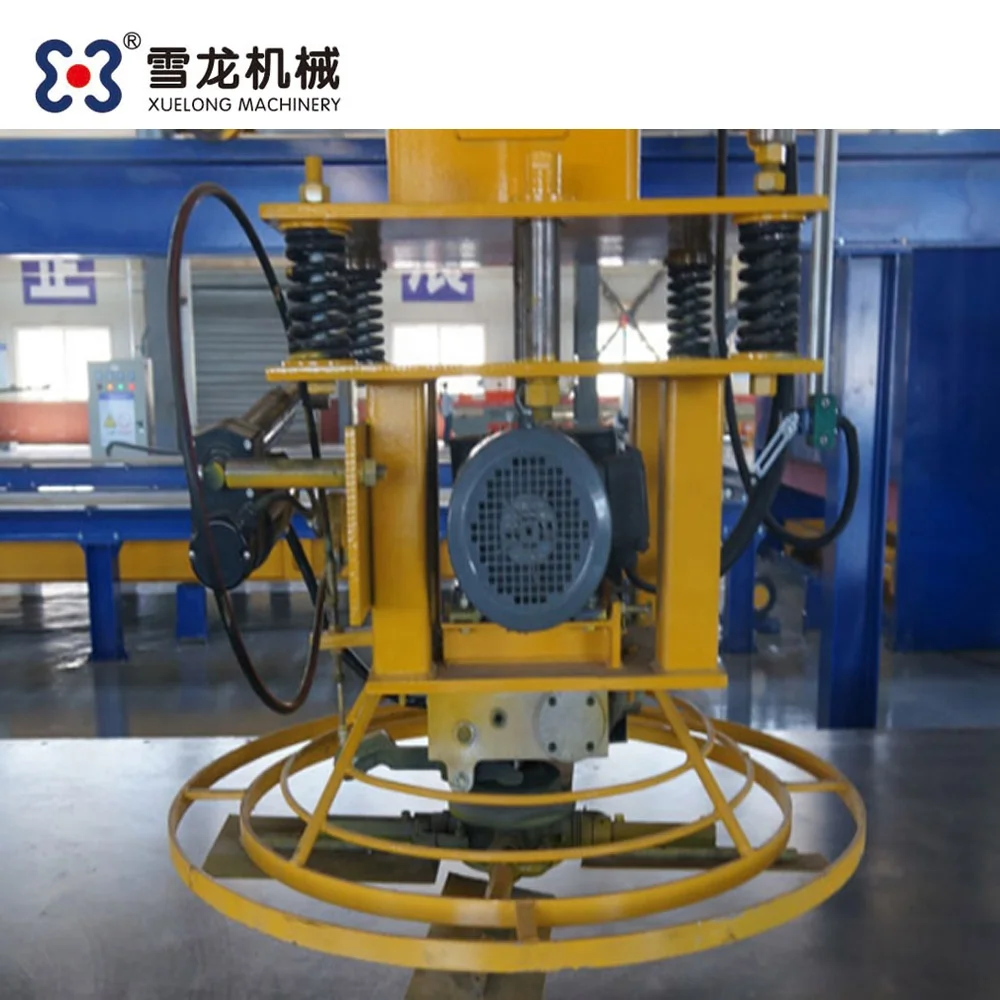

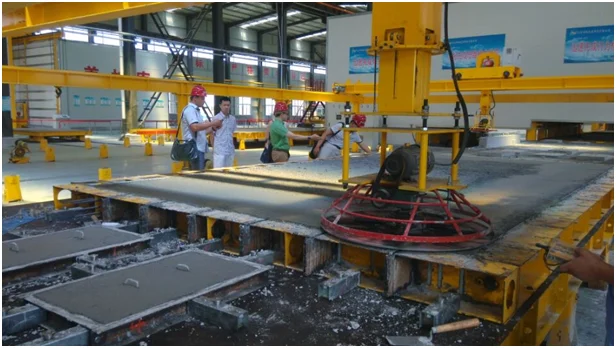

(7) concrete panels trowelling helicopter

The trowelling helicopter is used for the production line of PC components. It is an auxiliary device for the PC line. The trowel helicopter is used for trowelling the concrete surface of the wall panel elements , which can make the surface of the component smooth and flat.

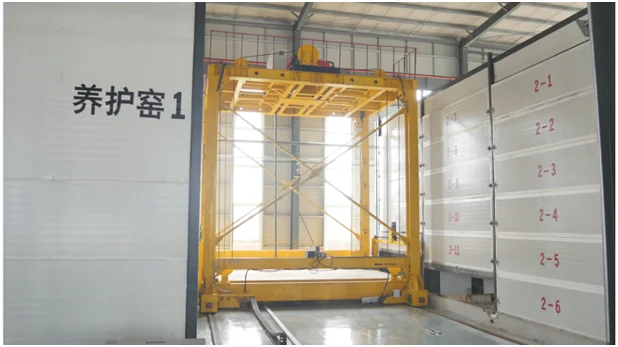

(8) curing chamber

Curing chamber is used to curing the wall panels inside the chamber , and the temperature in the chamber is around 40 degree . and humidity and temperature inside are indicated and controlled automatically . Generally , the wall panels curing in chamber for around 8 hours , the concrete strength can be enough for tilting and transportation .

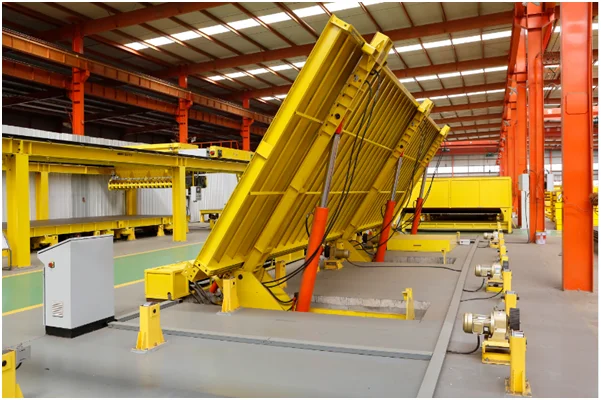

(9)  tilting machine

The tilting machine is used for the PC component production line demoulding station. It is an auxiliary demoulding device for wall panels elements. It can tilt the pallet with the element to meet the requirements of concrete element lifting.

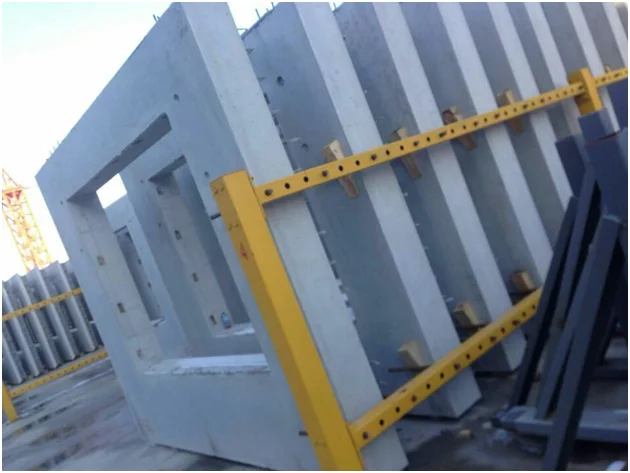

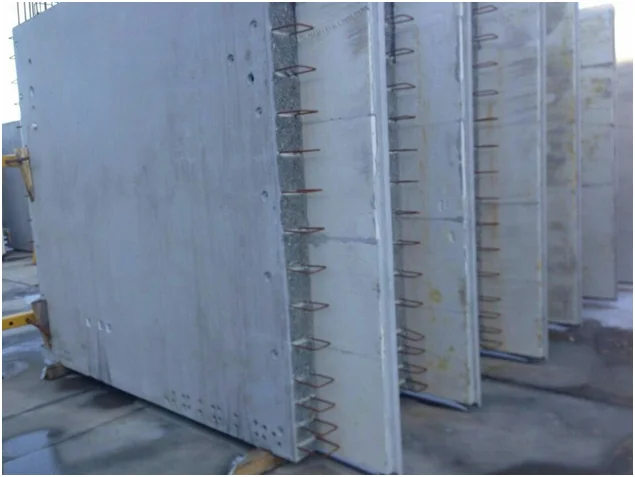

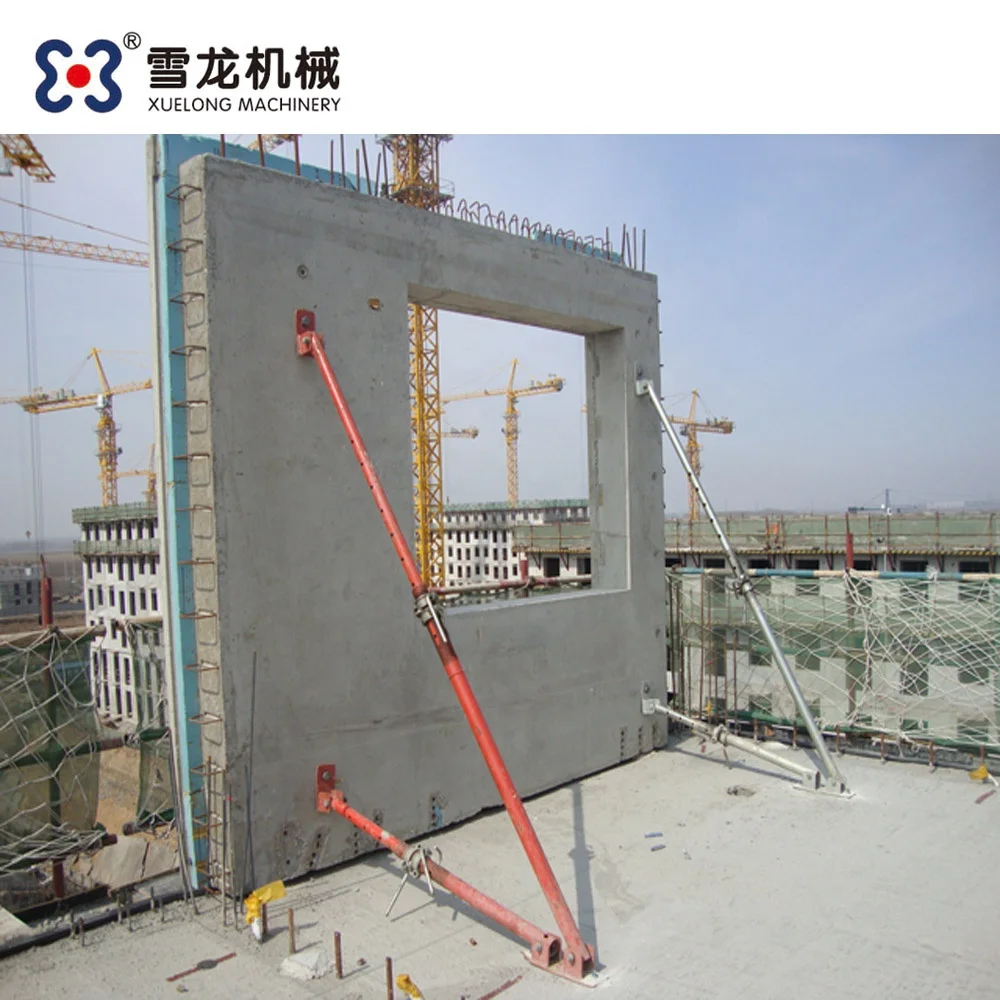

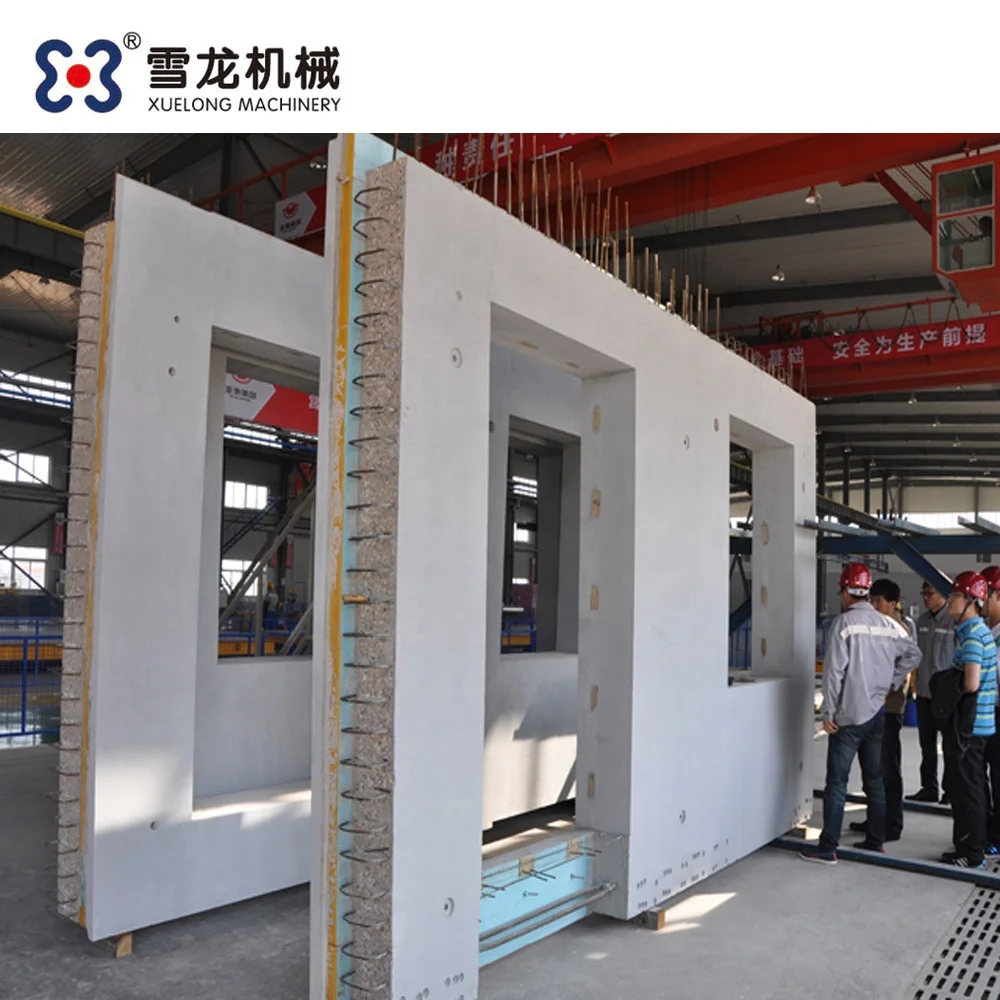

♦  ready wall panels produced by precast concrete villas wall panel elements machine battery mold/production line :
