4mm/6mm/10mm flexible electrical cable high temperature fire resistant cable resistance wire
- Category: Electrical Wires >>>
- Supplier: Shanghai Silver Tin Temperature Measuring Equipment Co. Ltd.
Share on (60836099003):
Product Overview
Description
Product Description

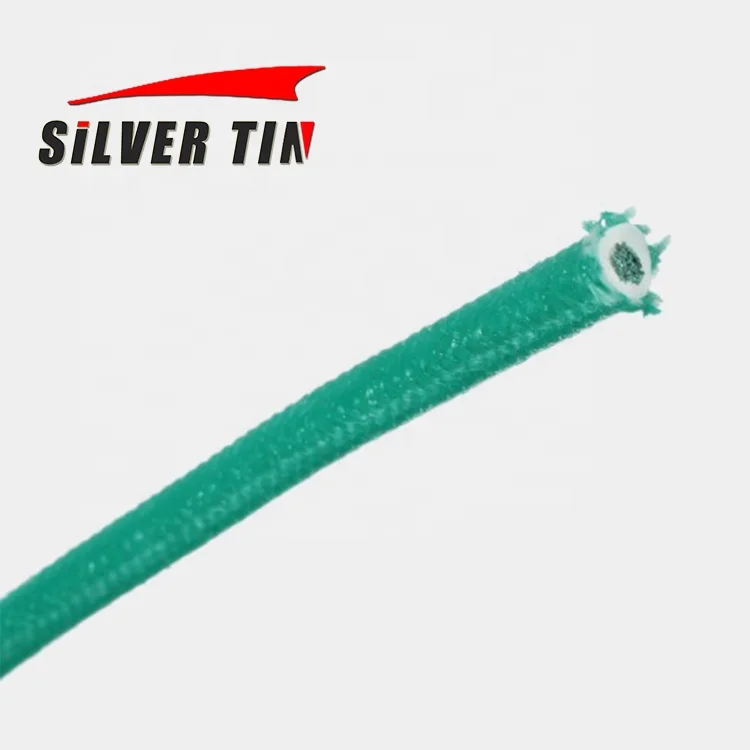

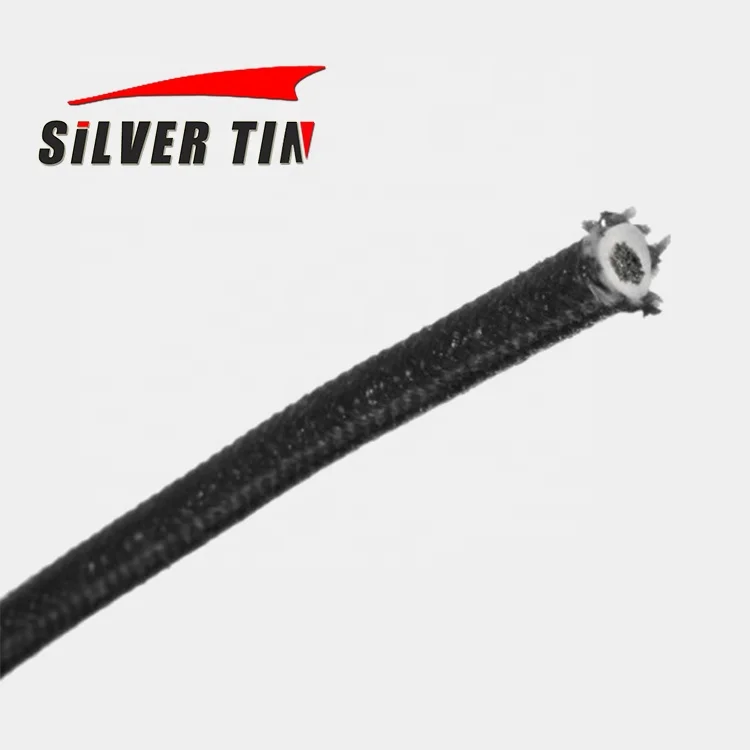

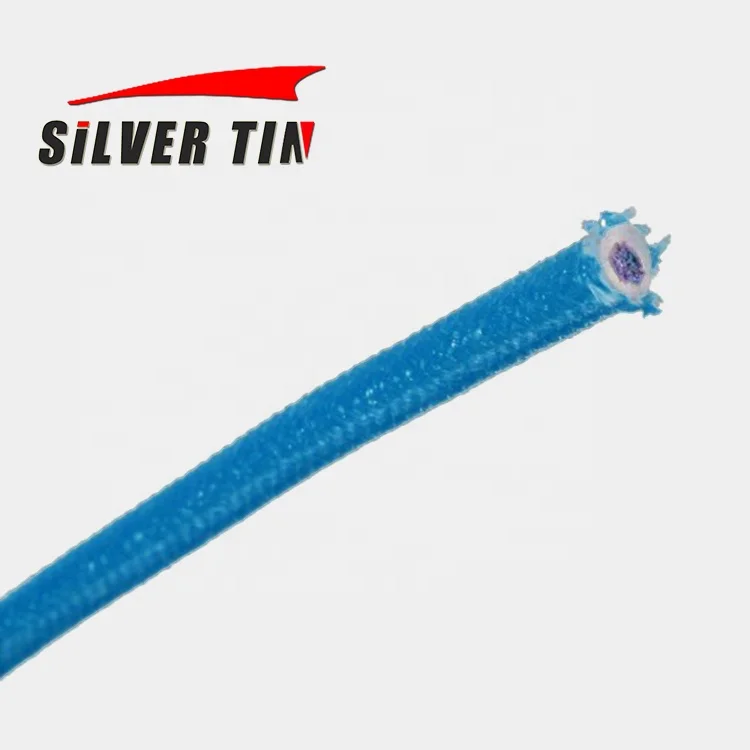

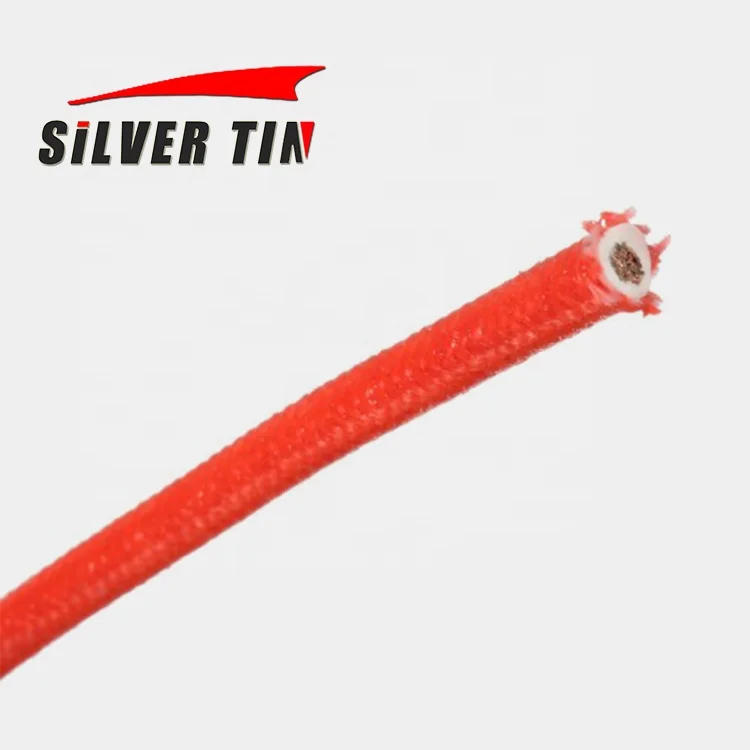

6mm high temperature cable fiberglass braid silicone rubber insulation wire
SRML stands for Silicone Rubber Motor Lead Wire, it also called SFF-2.
For something with a similar make but higher temperature rating, SF-2 uses a coarse strand construction to withstand temperatures up to 200 degrees Celsius. These products are used for lead wires on electrical equipment in various high temperature environments.
Application
Fiberglass Silicone Wire is widely apply in home appliance, headlamp, mechanical and electrical machine etc.
It has extremely temperature resistance, super-soft , anti-acid, anti-oil, antisepsis and easy to install with small size and slippery surface.
Specification
Size : 6mm²
Conductors material : Tinned copper
Conductor type : 84 Strands * 0.3mm
Jacket type : FIBERGLASS BRAID
Color : White
Insulation : SILICONE RUBBER
Voltage rating : 600V
Temperature : 200C
Overall Diameter : 5.2±0.1mm
Conductors material : Tinned copper
Conductor type : 84 Strands * 0.3mm
Jacket type : FIBERGLASS BRAID
Color : White
Insulation : SILICONE RUBBER
Voltage rating : 600V
Temperature : 200C
Overall Diameter : 5.2±0.1mm
Feature

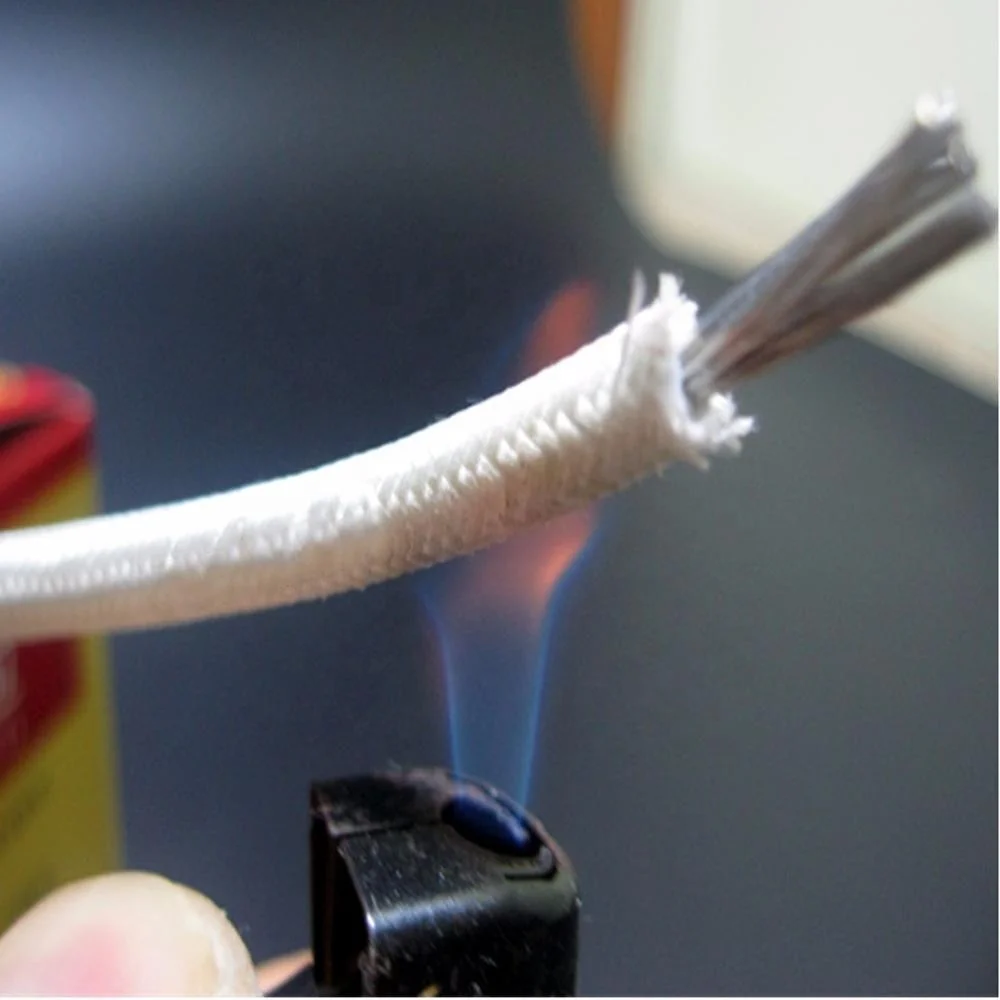

1. High temperature resistance , insulation
2. Fire retardant, corrosion resistance, aging resistance High temperature resistance
3. High strength, high modulus
4. Anti-static, smooth appearance
2. Fire retardant, corrosion resistance, aging resistance High temperature resistance
3. High strength, high modulus
4. Anti-static, smooth appearance
Product Parameter
Spec | Conductor | Insulation Thinkness | fiberglass Thinkness | Wire Diameter | Max Resistance 200C | ||||
Structure | Diameter | Nominal | Diameter | ||||||
mm | mm | mm | mm | mm | mm | mm | Ω/KM | ||
0.3 | 17/0.15 | 0.7 | 0.5 | 1.7 | 0.15 | 2.0 | 71.2 | ||
0.4 | 23/0.15 | 0.8 | 0.5 | 1.8 | 0.15 | 2.1 | 49.6 | ||
0.5 | 28/0.15 | 0.95 | 0.5 | 1.95 | 0.15 | 2.25 | 40.1 | ||
0.75 | 24/0.20 | 1.15 | 0.5 | 2.15 | 0.20 | 2.55 | 26.7 | ||
1.0 | 32/0.20 | 1.34 | 0.5 | 2.35 | 0.20 | 2.75 | 20.0 | ||
1.25 | 40/0.20 | 1.5 | 0.6 | 2.7 | 0.20 | 3.1 | 15.9 | ||
1.5 | 30/0.25 | 1.6 | 0.6 | 2.8 | 0.20 | 3.3 | 13.7 | ||
2.0 | 41/0.25 | 1.9 | 0.6 | 3.1 | 0.20 | 3.5 | 9.9 | ||
2.5 | 49/0.25 | 2.0 | 0.6 | 3.2 | 0.20 | 3.6 | 8.2 | ||
4.0 | 56/0.30 | 2.7 | 0.65 | 4.0 | 0.25 | 4.5 | 5.09 | ||
6.0 | 84/0.30 | 3.3 | 0.7 | 4.7 | 0.25 | 5.2 | 3.39 | ||
10.0 | 84/0.40 | 4.6 | 0.8 | 6.2 | 0.25 | 6.9 | 1.95 | ||
16.0 | 126/0.40 | 5.8 | 0.9 | 7.6 | 0.25 | 8.1 | 1.24 | ||
25.0 | 196/0.40 | 7.3 | 1.0 | 9.3 | 0.30 | 9.9 | 0.795 | ||
35.0 | 276/0.40 | 8.6 | 1.1 | 10.8 | 0.30 | 11.4 | 0.565 | ||
50.0 | 396/0.40 | 10.7 | 1.2 | 13.1 | 0.30 | 13.7 | 0.393 | ||
70.0 | 360/0.50 | 12.4 | 1.2 | 14.8 | 0.30 | 15.4 | 0.277 | ||
95.0 | 475/0.50 | 14.5 | 1.4 | 17.3 | 0.35 | 18.0 | 0.21 | ||
120.0 | 608/0.50 | 16.0 | 1.6 | 19.2 | 0.35 | 19.9 | 0.164 | ||
150.0 | 756/0.50 | 18.0 | 1.8 | 21.6 | 0.35 | 22.3 | 0.132 | ||
185.0 | 925/0.50 | 20.0 | 2.0 | 24.0 | 0.40 | 24.8 | 0.108 | ||
240.0 | 1221/0.50 | 23.0 | 2.2 | 27.4 | 0.40 | 28.2 | 0.0817 | ||
300.0 | 1517/0.50 | 26.0 | 2.4 | 30.8 | 0.40 | 31.8 | 0.0654 | ||
Detailed Images
Recommend Products
Silicone Rubber Cable/Wire
FEP PTFE Insulation Cable/Wire
PFA PTFE FEP Insulation Cable/Wire
Packing Details
Packing & Delivery
Package : Carton box or wooden case for packing. We can make the package as your requirements.
Shipping : By sea, by air or by express.If you need a faster transportation, please contact us without hesitation.
Our Company
Shanghai Silver tin Temperature Measuring Equipment Co., Ltd. is a high-tech enterprise specializing in the R&D and manufacture of electric heating technology. It has introduced European advanced production technology and equipment, also research and develop heating cables and related accessory products for building comfort heating, pipe insulation and antifreeze, outdoor snow melting and ice melting.The company owns a production base company and a sales company with strong strength, complete production equipment and perfect testing methods.
''Quality first and user uppermost" is our principle. We always strive for best quality and after-sales services to satisfy customers' demands.
