5 axsis brush making machine
US $1.00

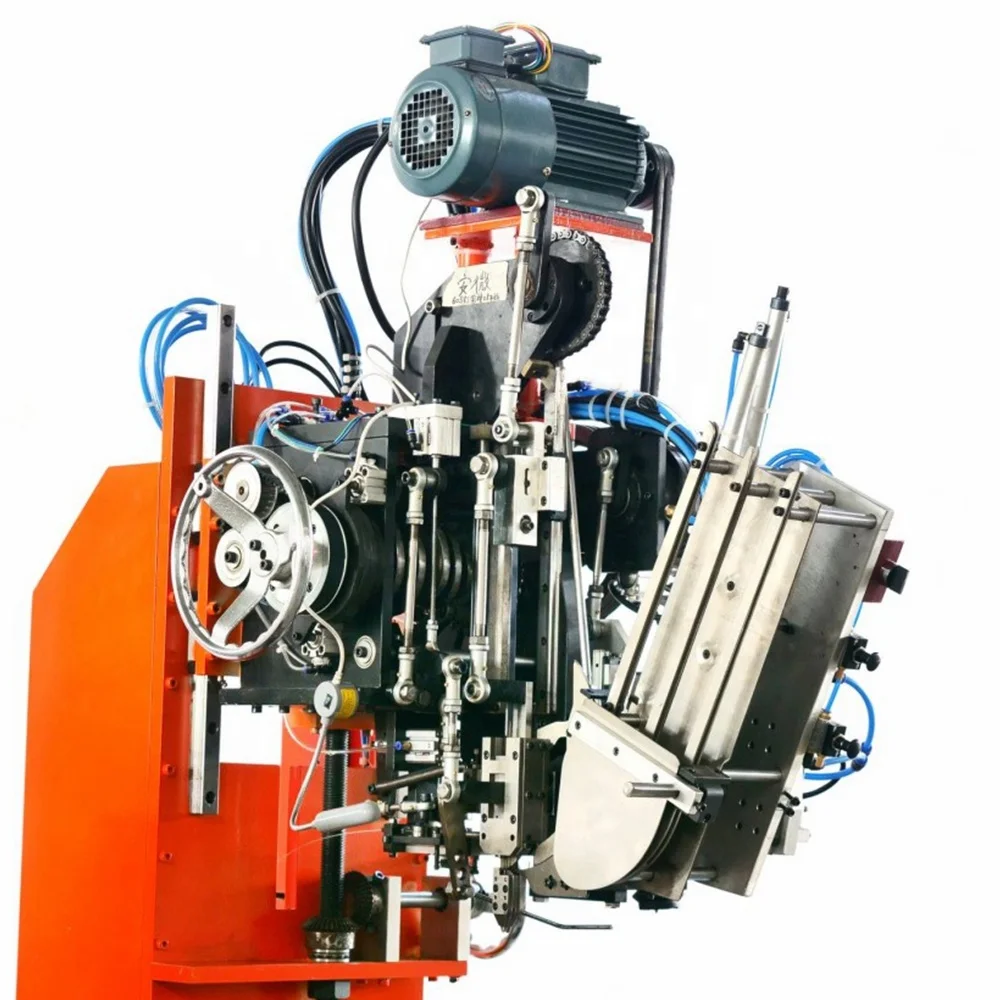

Snow sweeper road roller brush making machine/stainless steel wire wheel brush machine/steel brush disc making machine
- Category: Brush Making Machines >>>
- Supplier: Jiangmen Meixin Comb Brush Machinery Co. Ltd.
Share on (60836238902):
Product Overview
Description
| Description: | |
| Model | MX-3ADT002 |
| NO. of axis | 2 axis |
| Qty of heads | 2drilling and 1 tufting |
| Application | Fat and regular angle , roller and disc brush. |
| brush types | Customized |
| Brush base materials | Plastic, wood |
| Filament materials | PP,PET, Nylon,animal hair plant fiber etc. |
| The mold fixture size | 300*50mm |
| Diameter of hole | 4~6mm |
| The length of filament(outside the hole) | 15~400mm |
| Colors of Brush Filaments | 2 colors |
| Parameter: | |
| Drilling and tufting Speed | 4~6 holes/sec. |
| Power voltage, frequence | 220/380v , 50/60HZ (customer choose) |
| Main motor power | 1.5kw |
| Air Source Input | 0.4~0.5Mpa |
| Equipment size | 1500*1200*1800mm |
| Weight | 1000kg |
| Electrical parts: | |
| Control System(PLC) | MEIXIN Chinese and English version |
| Touch screen | MEIXIN Chinese and English version |
| Main motor | SNMA |
| Servo motor | Maxsine |
| Relay | IDEC (Janpan) |
| Variable-Frequency | DELTA (Taiwan) |
| Safety Protection: | Schneider (France brand) |
