ctb A2-4 cnc turning spindle motor
US $1500-$3100

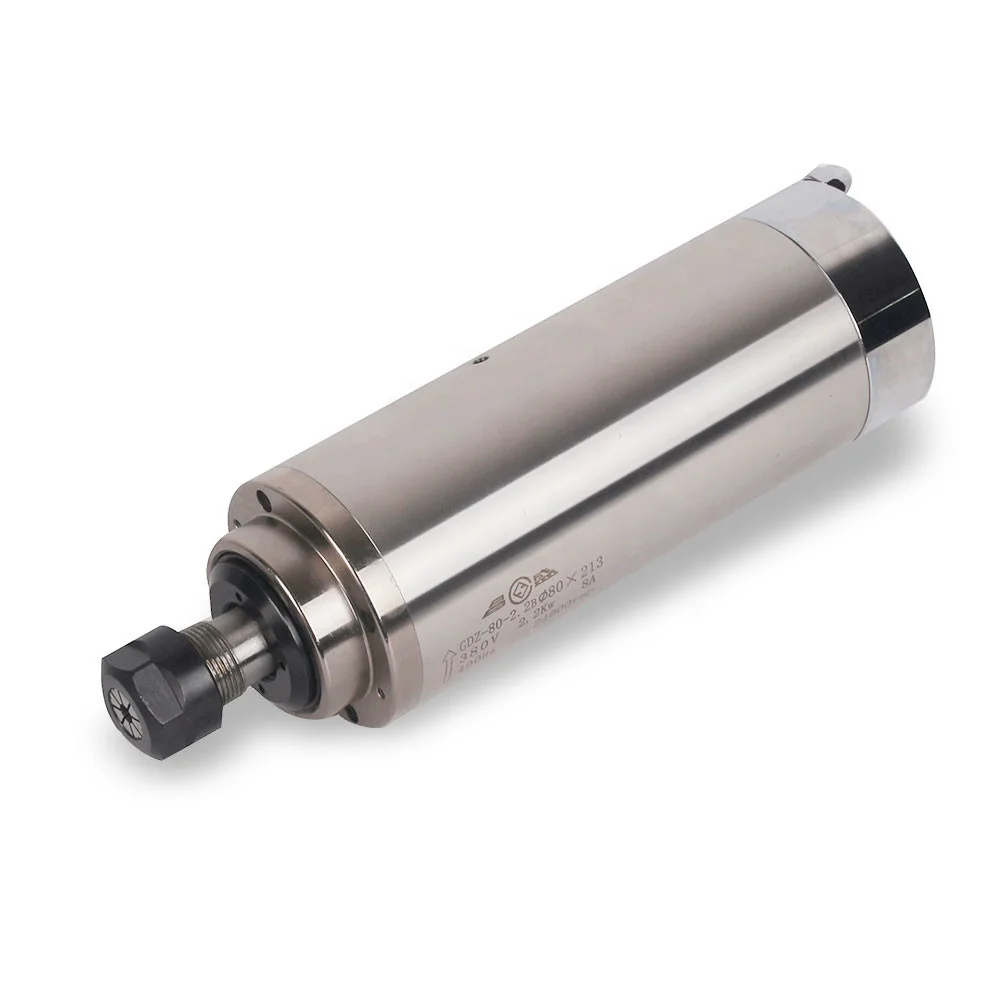

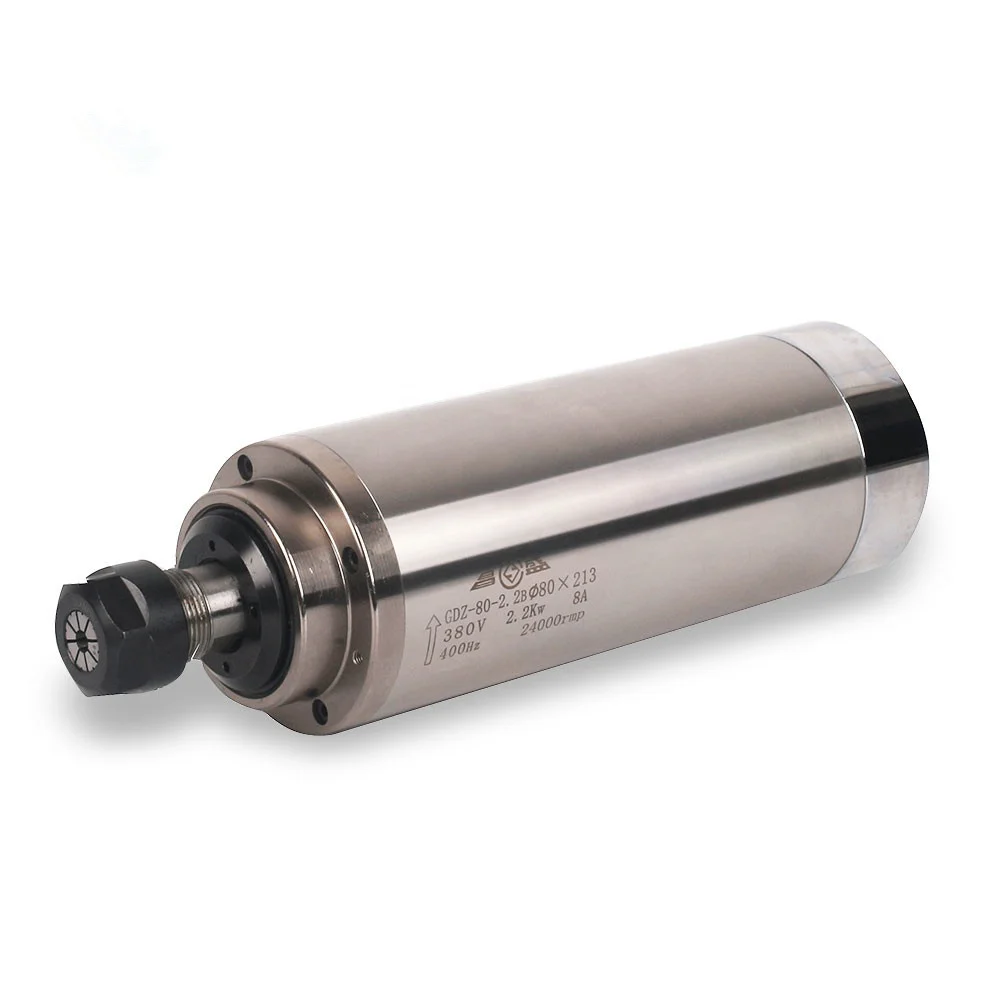

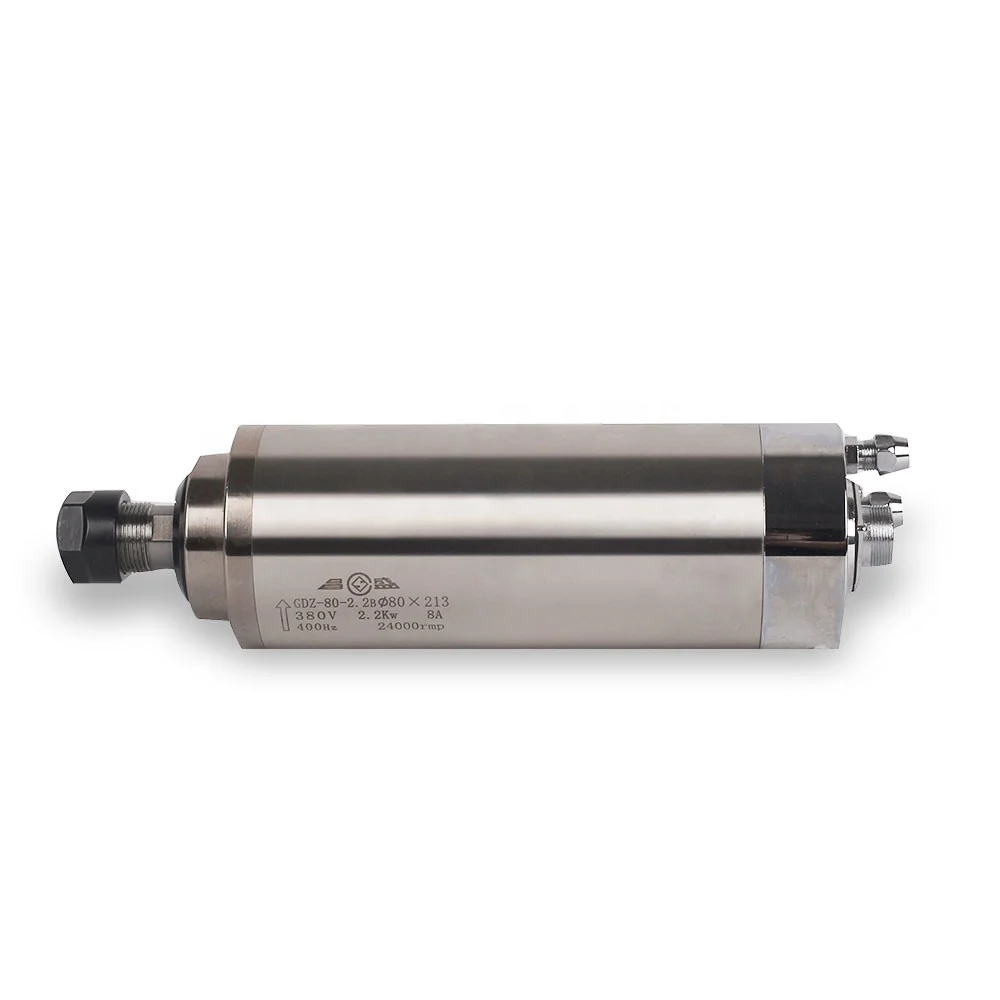

cheap price Collect 25,5.5kw water cooled spindle motor
- Category: Machine Tool Spindle >>>
- Supplier: Changzhou Dewo Motor Co. Ltd.
Share on (60836299782):
Product Overview
Description

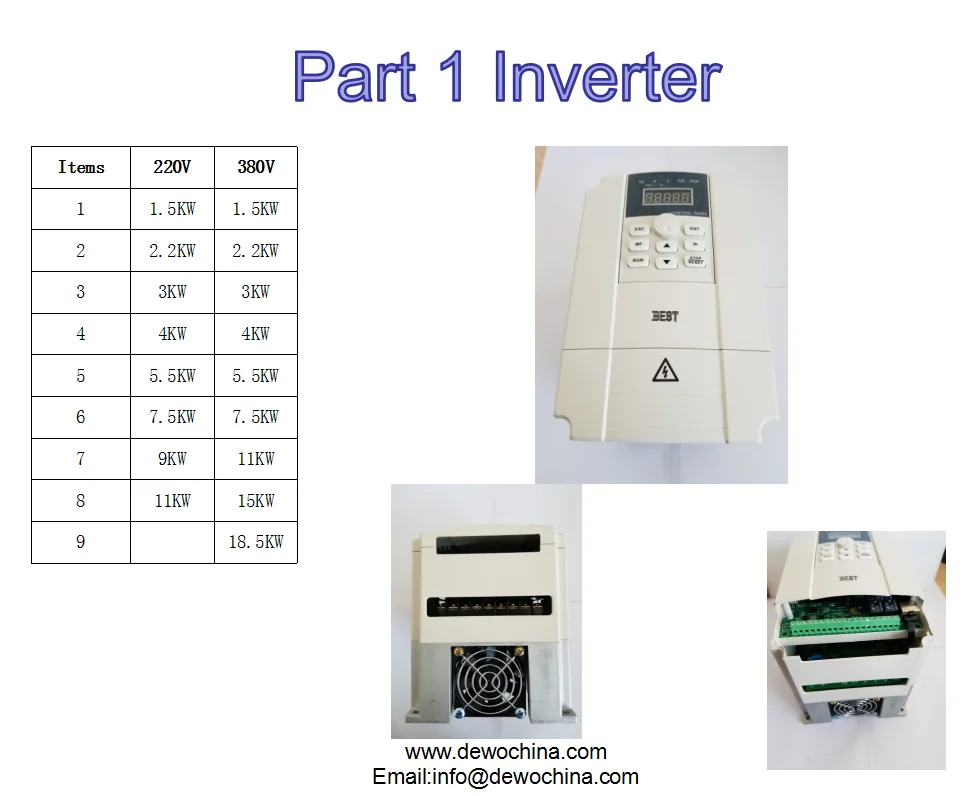

milling application 5.5kw spindle motor VFD Motor Speed Controller for KL-4500 Spindle
Product Description
| TYPE | speed(rpm) | motor | Collect | Product size | Weight(kg) | ||||||
| power(kw) | voltage(V) | current(A) | frequency(HZ) | diameter(mm) | L1 | L2 | L3 | ||||
| GDZ48-300 | 60000 | 0.3 | 75 | 4.5 | 1000 | Φ48 | ER8 | 125 | 5 | 16.5 | 1.5 |
| GDZ62-1.2 | 24000 | 1.2 | 178 | 5 | 400 | Φ62 | ER11 | 202 | 5 | 30.5 | 4.4 |
| GDZ62-1.2 | 36000 | 1.2 | 220 | 4.5 | 600 | Φ62 | ER11 | 202 | 5 | 30.5 | 4.4 |
| GDZ62-1.2 | 60000 | 1.2 | 220 | 4.5 | 1000 | Φ62 | ER11 | 202 | 5 | 30.5 | 4.4 |
| GDZ65-800 | 24000 | 0.8 | 220 | 1.9 | 400 | Φ65 | ER11 | 161.5 | 5 | 28.5 | 2.6 |
| GDZ65-800A | 24000 | 0.8 | 220 | 1.9 | 400 | Φ65 | ER11 | 197 | 5 | 28.5 | 3 |
| GDZ65-1.5 | 24000 | 1.5 | 220 | 5.5 | 400 | Φ65 | ER11 | 208 | 4.5 | 28.5 | 3.6 |
| GDZ80-1.5C | 24000 | 1.5 | 220 | 5 | 400 | Φ80 | ER11 | 181.5 | 12 | 27 | 4.4 |
| GDZ80-1.5E | 24000 | 1.5 | 220 | 5 | 400 | Φ80 | ER11 | 208 | 12 | 30 | 4.4 |
| GDZ80-1.5,ER16 | 24000 | 1.5 | 220 | 5 | 400 | Φ80 | ER16 | 210 | 18 | 32 | 5 |
| GDZ80-2.2B,ER20 | 24000 | 2.2 | 220 380 | 8 5 | 400 | Φ80 | ER20 | 210 | 40 | 20.5 | 5 |
| GDZ85-1.5 | 24000 | 1.5 | 380 | 5 | 400 | Φ85 | ER20 | 251 | 5.5 | 40.5 | 13 |
| GDZ85-2.2 | 24000 | 2.2 | 380 | 7.5 | 400 | Φ85 | ER20 | 251 | 5.5 | 40.5 | 13 |
| GDZ100-3 | 24000 | 3 | 220 380 | 10 5.8 | 400 | Φ100 | ER20 | 221 | 31.5 | 44 | 9 |
| GDZ100-3B | 24000 | 3 | 220 380 | 12 7 | 400 | Φ100 | ER20 | 246 | 31.5 | 44 | 9.6 |
| GDZ100-4 | 24000 | 4 | 220 380 | 13.8 8 | 400 | Φ100 | ER20 | 261 | 31.5 | 44 | 11.6 |
| GDZ105-3.0N | 24000 | 4 | 220 380 | 11.3 6.5 | 400 | Φ105 | ER20 | 235 | 30.5 | 40 | 13 |
| GDZ105-3.2S | 24000 | 3.2 | 380 | 6.5 | 400 | Φ105 | ER20 | 235 | 30.5 | 40 | 13 |
| GDZ125-4.5 | 24000 | 4.5 | 380 | 8 | 400 | Φ125 | ER25 | 267 | 53 | 48 | 22 |
| GDZ125-5.5 | 24000 | 5.5 | 380 | 9 | 400 | Φ125 | ER25 | 267 | 53 | 48 | 22 |
| GDZ125-4.5S | 24000 | 4.5 | 380 | 8 | 400 | Φ125 | ER25 | 267 | 53 | 48 | 28 |
| GDZ125-5.5S | 24000 | 5.5 | 380 | 9 | 400 | Φ125 | ER25 | 267 | 53 | 48 | 28 |
Our Services
customization and OEM is available.
Warranty: 18 months
Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.
