2019 Double rotor Rubber Extruder Machine With CE

Product Overview

Description

High Quality Large Capacity Reclaimed Rubber Strainer Extruder Machine With Two Rotor

Application
It is widely used in rubber products such as cable industry, renewable rubber industry, inner tire industry and rubber pipe industry!
Usage

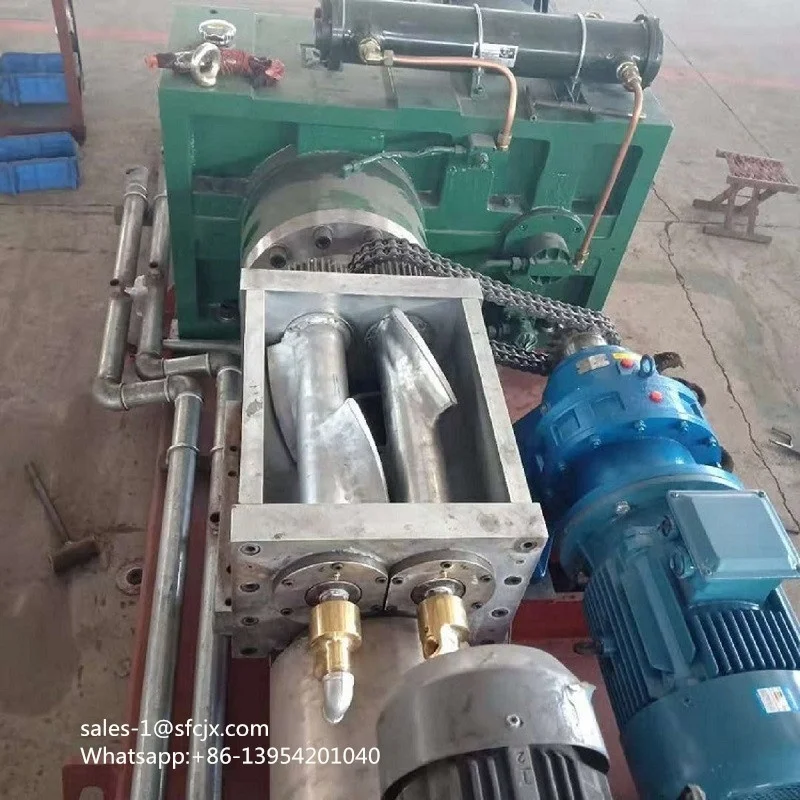

About rubber materials after mixing by rubber kneader, without the old process through mixing mill output strip and feeding old strainer, this new type strainer can directly feed clumps of block to double-pull feeding mechanism, using screw pushing, conveying, the mixed gum or removing the impurity in the mixed rubber and reclaimed rubber.Rubber products with different shapes can be extruded according to customer requirements.





Below is the brief introduction of our rubber strainers(Rubber Strainer, Strainer, Rubber Straining Machine, Reclaimed Rubber Strainer):

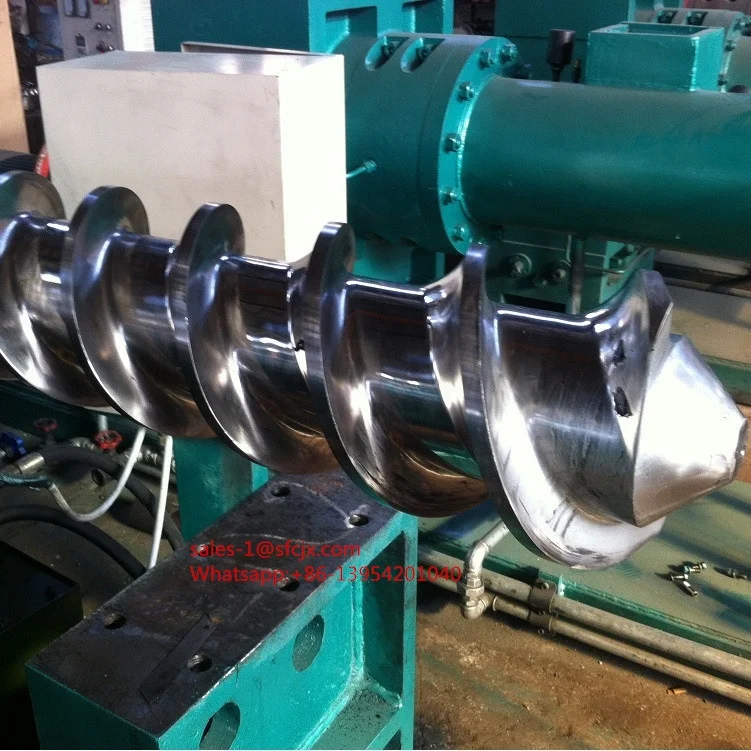

1. Screw
A. Material: 38CrMoALA Nitrogen treated, hardness ≥ HRC62, nitrogen depth ≥ 0.55mm
B. Structure
a. The whole long screw is hollow structure to control the temperature.
b. The direction of the screw in rotating joint is the same with the rotating direction of screw.
d. Usually, we do the water pressure test within the screw inside: for whole one hour -10kg/cm2

2. Machine barrel and bushing:
A. Machine Barrel: welded structure: after welding, then tempering. Also pass 10kg/cm2, 1 hour water press test.
B. Machine bushing:
Material: 38CrMoALA Nitrogen treated, hardness ≥ HRC62, nitrogen depth ≥ 0.55mm

double filter press and hydraulic push to replace the filter screen, and operate fast, without leakage, saving time and energy



Model	XJL-150	XJL-200	XJL-250
Diameter of Screw	150	200	250
L:D	6.3	6	5.4
Screw Ratational Speed	60	50	40
Motot Power	45	75	110
Steam pressure	0.6-0.8	0.6-0.8	0.6-0.8
Cooling water pressure	0.2-0.4	0.2-0.4	0.2-0.4
Capacity	500-800	900-1500	1500-2000
Overall dimensions	3600-1650*1520	3700*1850*1750	4800*2150*1850
About weight	~4.5	~8	~9





1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.

5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.
