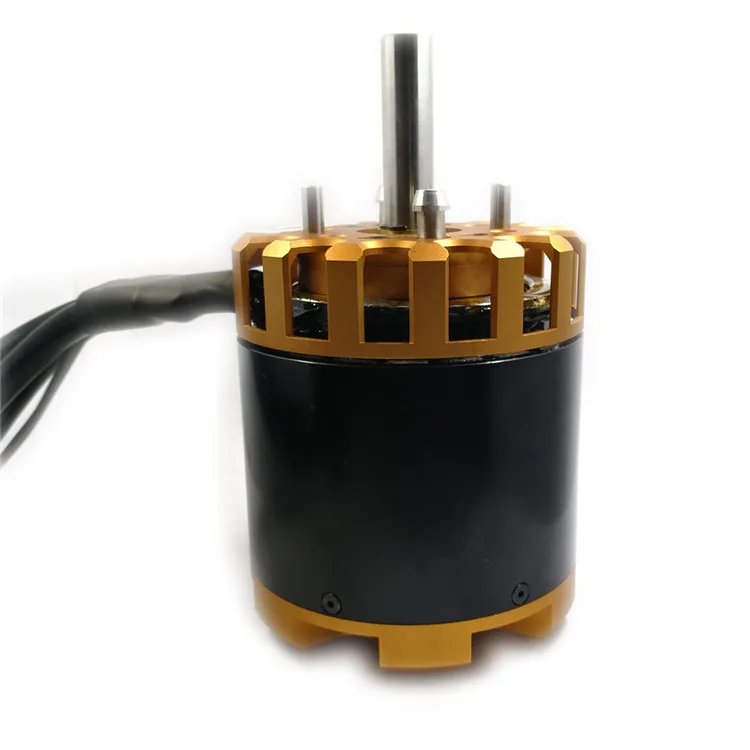

Reacher Tech RTD83 320 48V Золотой бесщеточный двигатель постоянного тока 10 кВт

Product Overview

Description

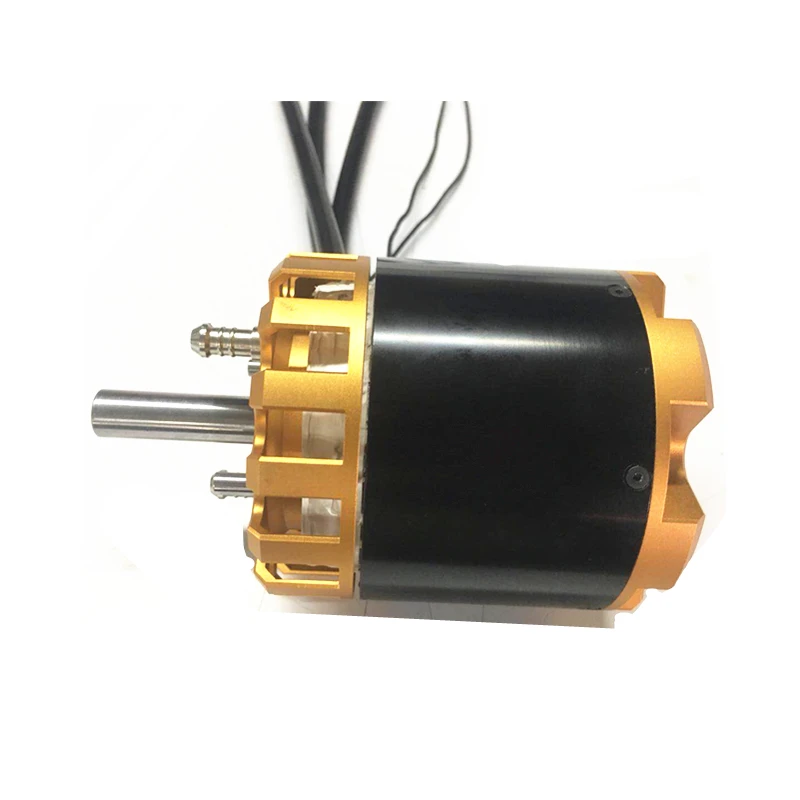

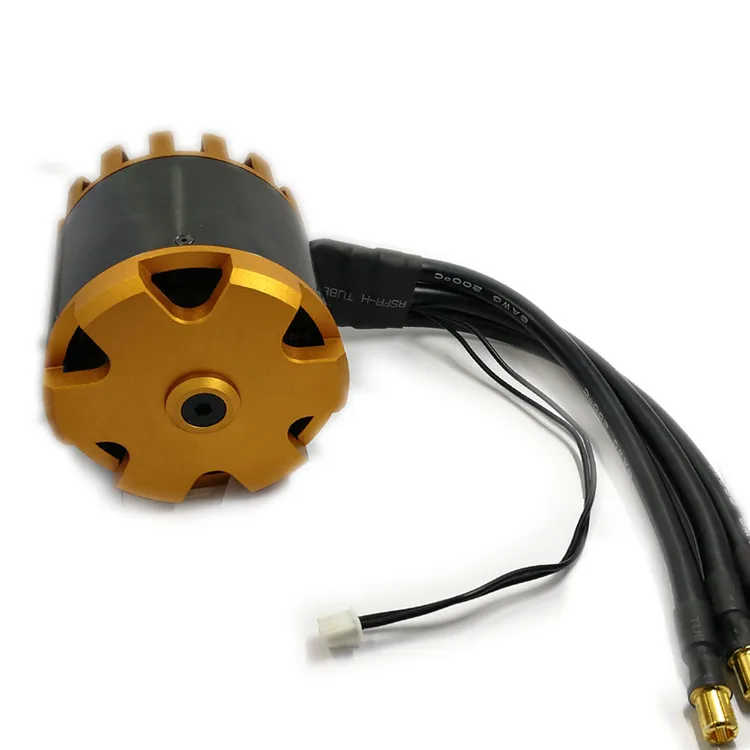

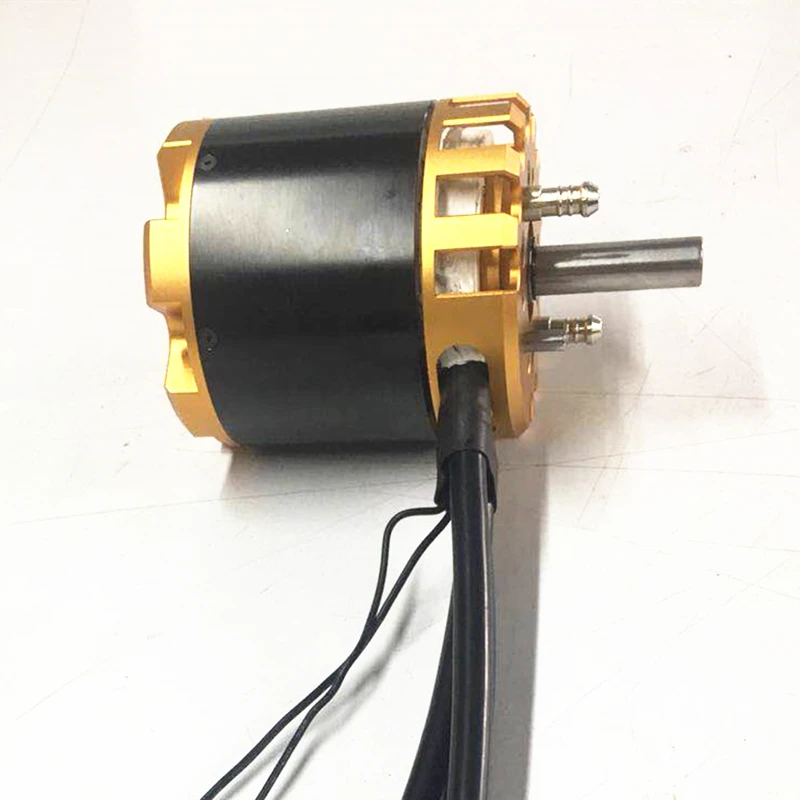

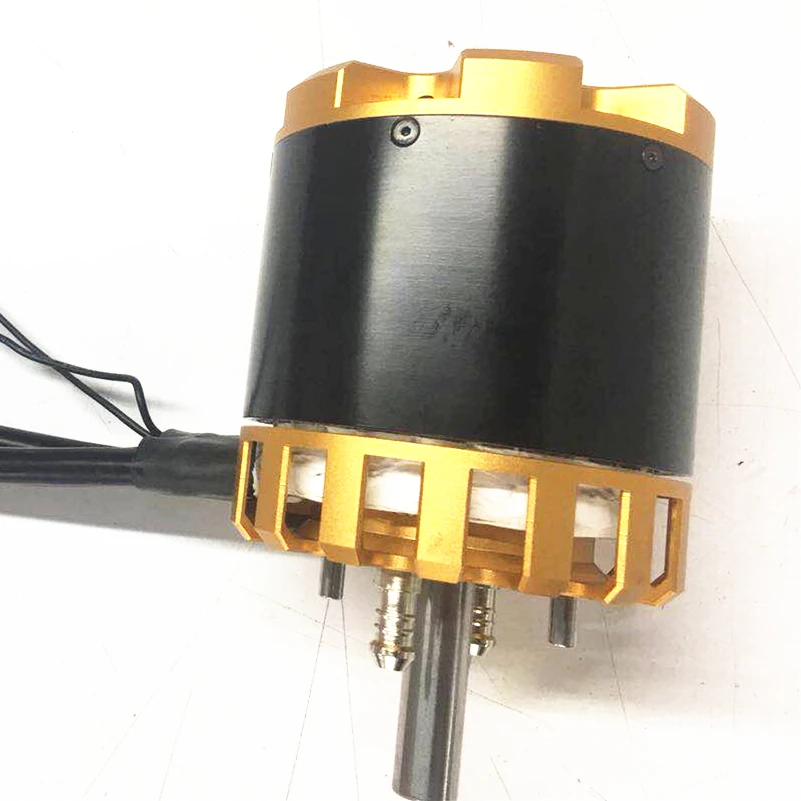

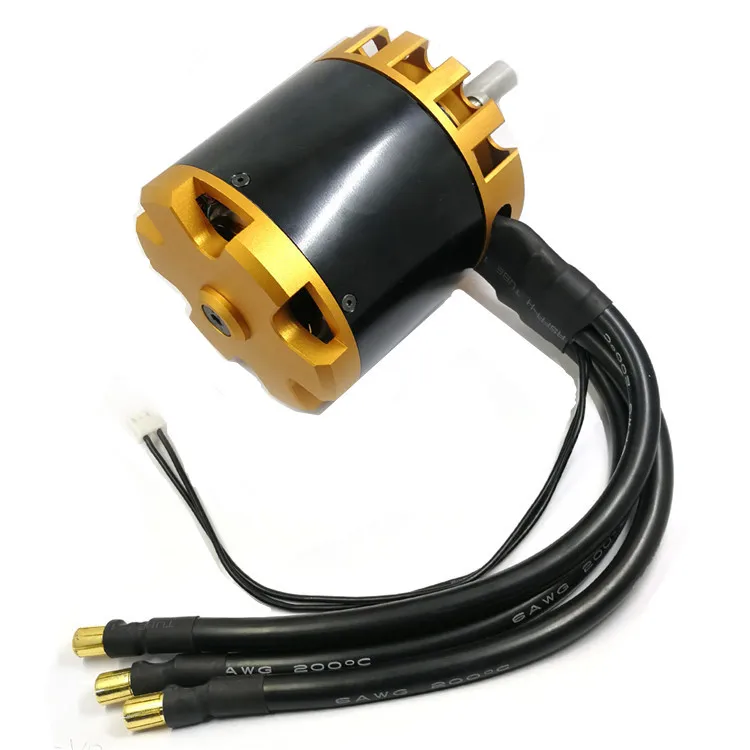

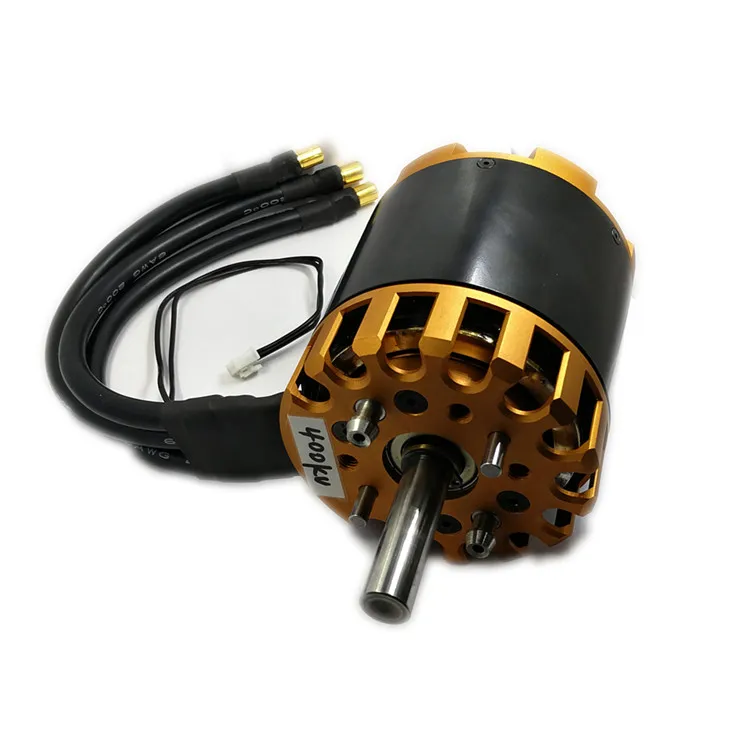

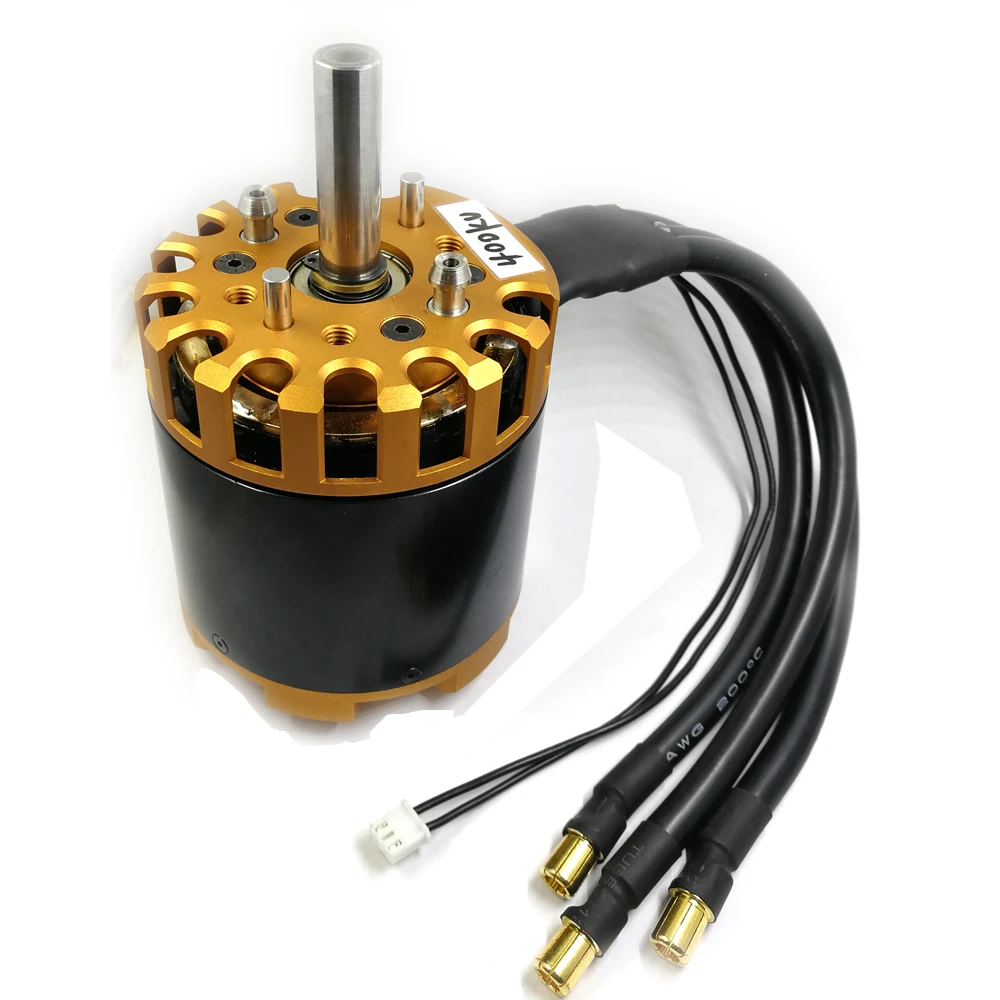

Reacher Tech RTD83-320 48V golden brushless dc motor 10kw

Note: All our products are designed for RC Area, if you are not in this area and don't have the knowledge of brushless dc motor, please Do Not Directly pay before inquiry from us. All of our brushless dc motor need to work together with speed controller, speed controller need to buy by separately.



Product Description





The Reacher Tech RTD83 Brushless DC Motor is designed for surfboard, Jet Board,electric foil,surfboard hydrofoil, small boat and so on.

Smaller Size,Space Saving. Lighter Weight, Quick Response. Low Price, High Performance-Price Ratio.



Model No D83-320
Construction 24N20P
Turns 4T
Working Voltage Range 4-12S (14.4V-48V)
Max RPM 19200
KV 320
Max Power 10 KW
Peak Current (A) 335A
Max Efficiency >88%
New Weight (kg) 1.85kg
Shaft Diameter 12mm
Motor Diameter 82.8mm
Motor Length  95mm
Stator Dimension 70*50mm
No Load Current 4.3A at 8.4V
Max Torque 105kg.cm
Wire Length 6 AWG*300mm
Connector 10mm
Working Life 10000 Hours
Recommended ESC 250A-300A





Product Parameters





Reacher Tech RTD83 Brushless DC Motor Specification with different KV, with±10kv tolerance.
RT Motor	D83-390	D83-320	D83-270	D83-240	D83-210	D83-190
Construction	24N/20P	24N/20P	24N/20P	24N/20P	24N/20P	24N/20P
Turns	4T	5T	6T	7T	8T	9T
Working Voltage	14.8-36V            (4-10S)	22.2-48V          (6-12S)	29.6-58.8V          (8-14S)	29.6-67.2V          (8-16S)	37-75.6V              (10-18S)	37-84V                (10-20S)
Max RPM	16380	16380	15876	16128	15876	15960
KV	390	320	270	240	210	190
No Load Current  @8.4V	5.5A	4.3A	3.8A	2.7A	2.4A	2.2A
Max Output Power	9KW	10KW	9.6KW	10.5KW	11.5KW	12KW
Peak Current (A)	350A	335A	320A	300A	280A	260A
Max Efficiency	>88%	>88%	>89%	>89%	>89%	>90%
Net Weight (kg)	1.90KG	1.91KG	1.90KG	1.91KG	1.92KG	1.91KG
Stator Size(mm)	70*50mm	70*50mm	70*50mm	70*50mm	70*50mm	70*50mm
Dimension (mm)	D82.8*L95	D82.8*L95	D82.8*L95	D82.8*L95	D82.8*L95	D82.8*L95
Shaft Diameter (mm)	12mm	12mm	12mm	12mm	12mm	12mm
Max Torque (kg*cm)	95kg*cm	105kg*cm	115kg*cm	123kg*cm	135kg*cm	145kg*cm
Wire Length(mm)	6AWGx300mm	6AWGx300mm	6AWGx300mm	6AWGx300mm	6AWGx300mm	6AWGx300mm
Connector	10mm plug	10mm plug	10mm plug	10mm plug	10mm plug	10mm plug
Working Life	10000H	10000H	10000H	10000H	10000H	10000H



Note: Due to the materials increased 30%-50%, labor cost increased 30%, but the USD/RMB exchange rate down from 7.1 to 6.4 during the whole 2020 year, So the new cost from 2021 should be compeletely different, please kindly understand. All motor prices are subject to the final offer based on your order.





OEM/ODM Order question



We can custom made whatever brushless dc motor and servo you want. Before you give us inquirey, please supply below requirements to us, the more details you can offer, the better suggestion we can give.



For the motors please let us know your requirements:

1. Please choose inrunner motor or outrunner motor you need.

2. Do you have motor diameter and length limited?

3. What working voltage you will use for this motor?

4. What's your expected rated power?

5. What's your expected RPM?

6. You battery pack can bear how high peak current?

7. You estimated yearly sales qtys?

8. Do you need the speed controller together or if you have your own speed controller, please let us know the specifications.

9. Other requirements if you need, for example, wire length, connector types and so on.

Contact Us directly via Trade Manager or send us email both ok, we will reply ASAP in 24 hours.

Below our custom made motors for other clients for your information.

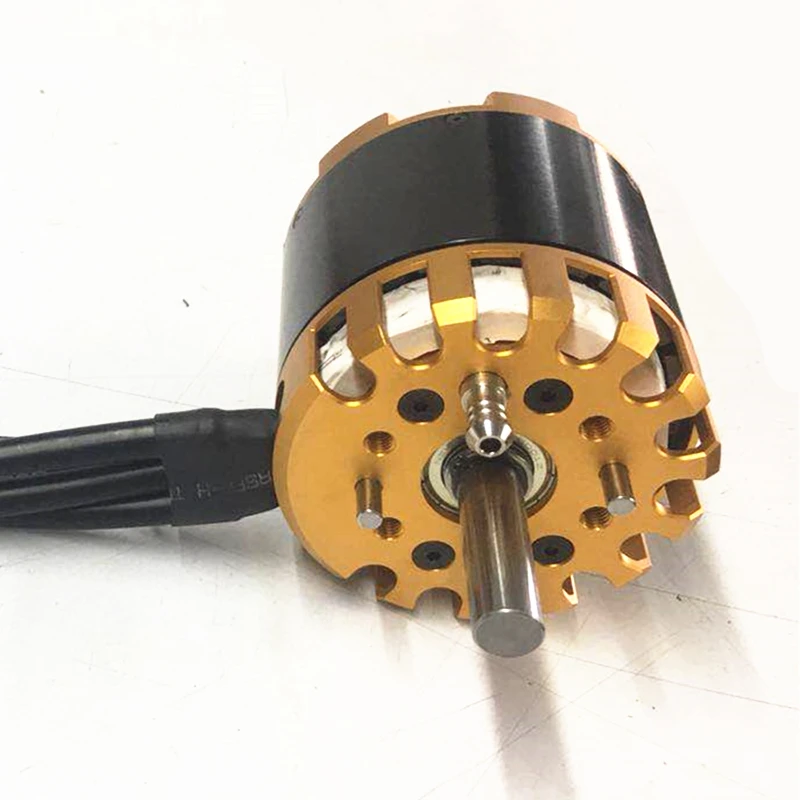

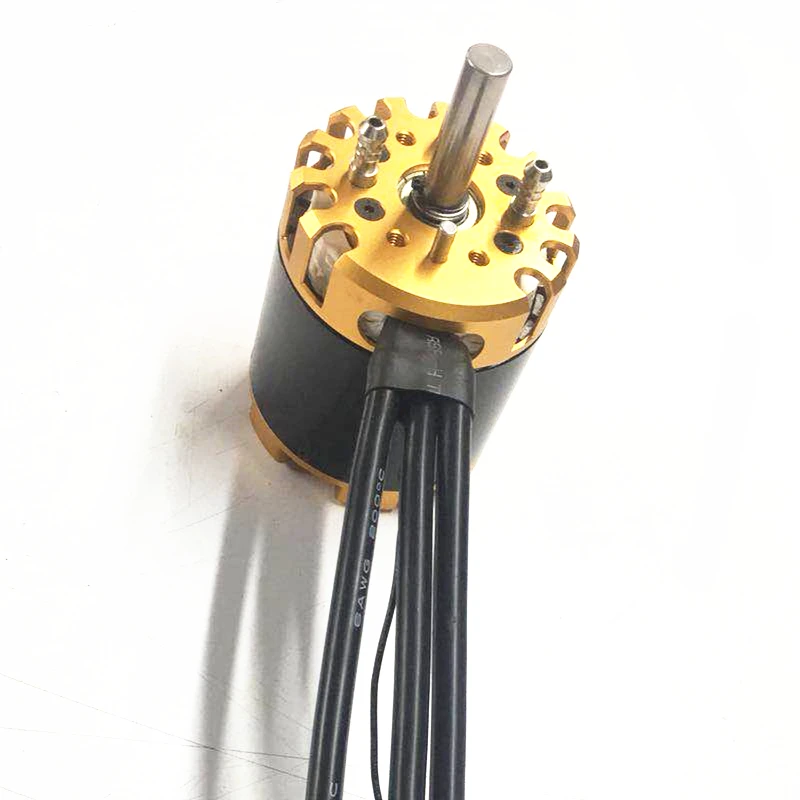

Product Pictures

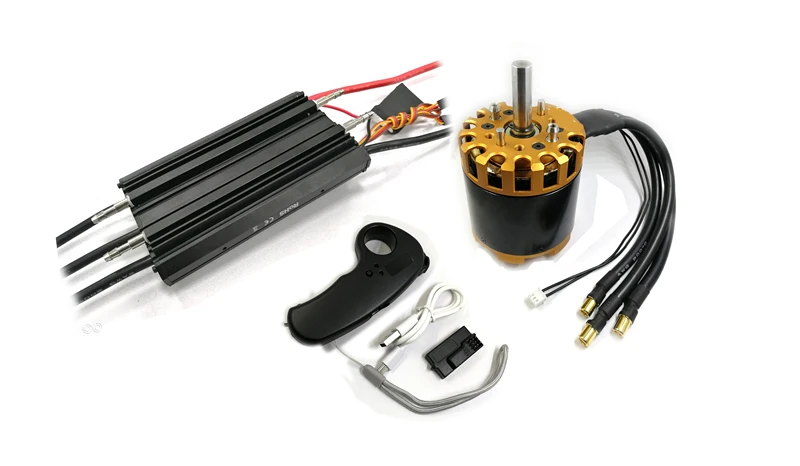

We also have the whole combo set for brushless dc motor, 14S 300A speed controller, 2.4G wireless remote controller. If you need the whole sets, please email us directly.

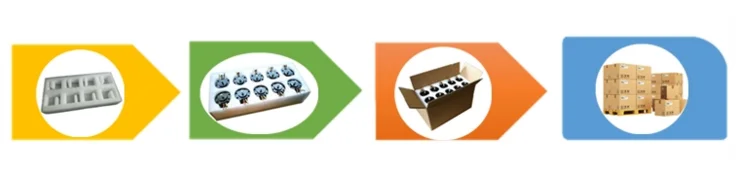

Product Packing
