CE SS 250LPH distilled ultra pure water purification treatment plant commercial reverse osmosis edi system for hospital and lab
- Category: Environmental Machinery >>>
- Supplier: Guangzhou Kaiyuan Water Treatment Equipment Co. Ltd.
Share on (60837083959):
Product Overview
Description
CE SS 250LPH distilled ultra pure water purification treatment plant commercial reverse osmosis edi system for hospital and lab
Product Description
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99%bacterials in the feed water.
Specificationfor 250L/H RO system | ||||||
Item | Material/Model | Brand | Function | |||
Raw water pump | SS304 | Lingxiao | Provide pressure for raw water | |||
Quartz sand filter | SS304 | China | Remove large particule | |||
Activated carbon filter | SS304 | China | Removesmell,color,bacterial and organic matter | |||
Security filter | SS304 | China | Block impurities greater than 5micron(1micron) | |||
One stage and two stage High pressure pump | SS304 | CNP | Provide pressure for water into RO membrane | |||
RO membrane | LCLE-4040 | DUPONT(DOW) | Remove heavy mental ion,bacterial,virus. Desalination rate is more | |||
EDI | EDI-500 | China | Electric desalination. Produce ultrapure water.Function is the same as ion exchange.But EDI is more Environmentally friendly(No need acid and alkali to regenerate. | |||
UV Sterilzier(Optional) | 14W | China | Kill 99% bacterial (For drinking directly) | |||
Ozone Genernator(Optional) | 3g/l | China | Kill 99%bacterial and keep 2hours.(For making bottled water) | |||

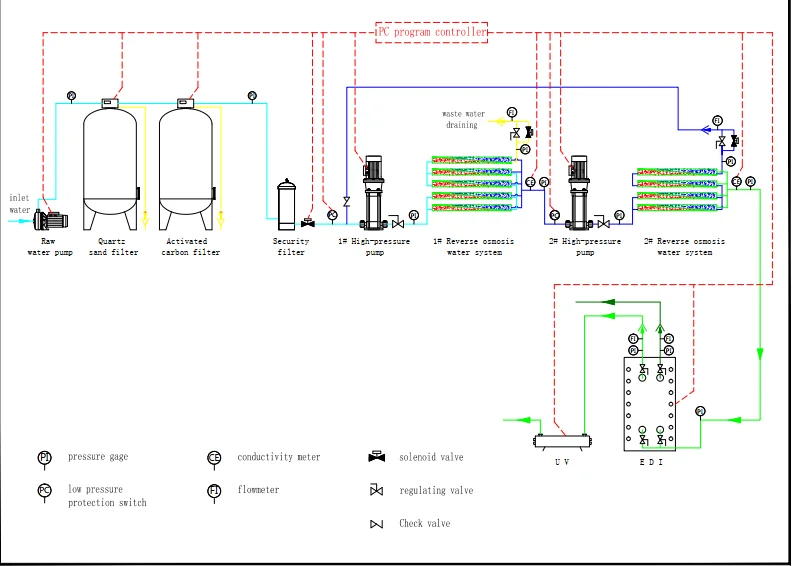

raw water+ raw water tank+ raw water pump+Quartz sand filter+ Activated carbon filtersecurity filter+ One stage high pressure pump+ One stage ro system+two stage high pressure pump+two stage ro system+EDI+ pure water tank+ UV sterilizer (ozone generator) + water supply points
Main Features
1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration,easy operation and maintainance\t
3.RO system uses imported USA DOW membrane\t
4.Automatic switch on when lack of water,and switch off when no water or full of water\t
5.RO membrane auto wash and reduce the pollution speed.\t
6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.\t

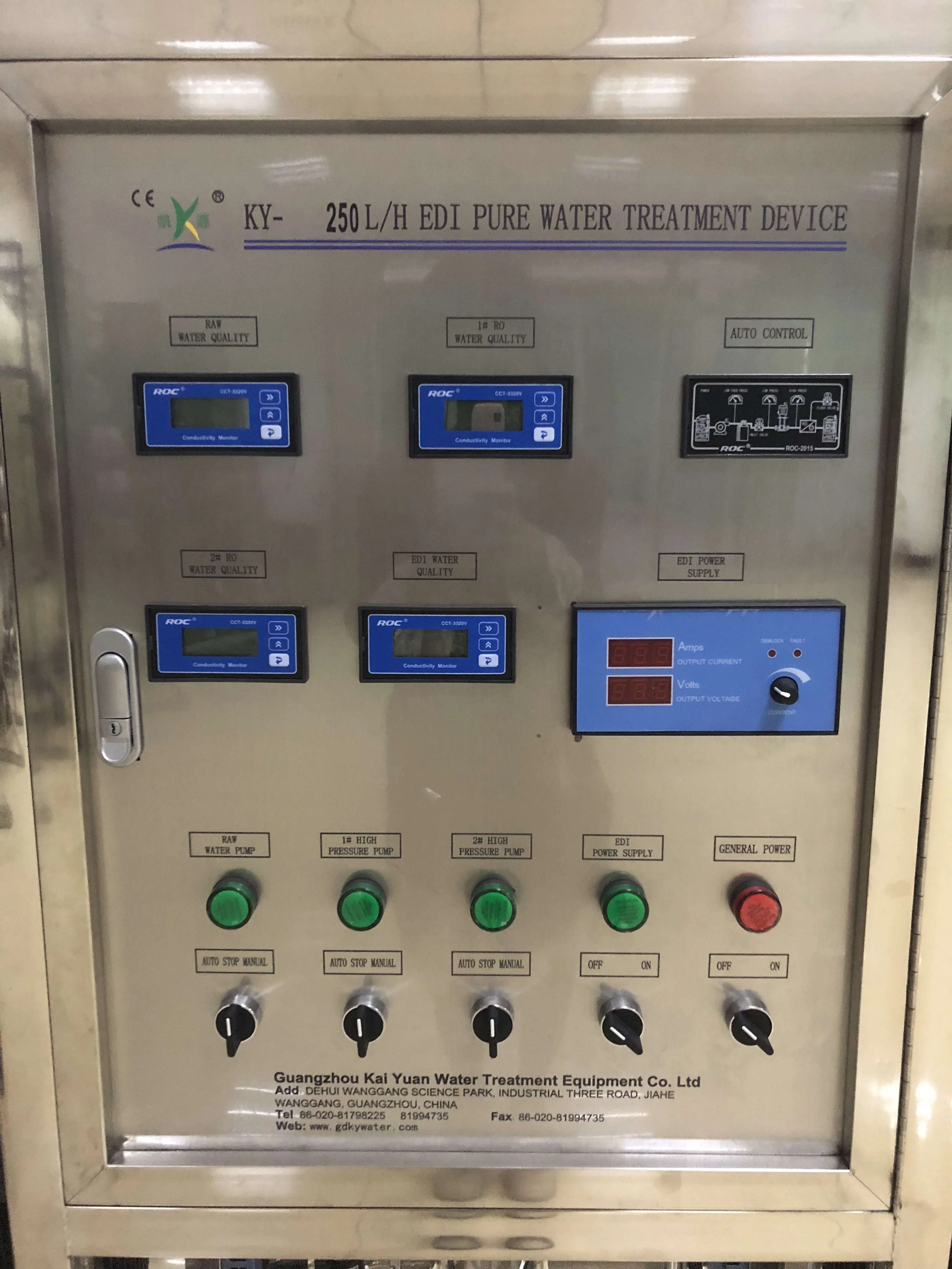

7.Production water condutivity meter monitors water quality online contionuosly.
8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.
Spare parts of this system
Spare part | Replacement time | Quantity in this system | ||
Quartz sand | Every 15-18months | 150kgs | ||
Activacted carbon | Every 15-18months | 50kgs | ||
PP filter cartridge | Every 1month | 3pcs | ||
RO membrane(LCLE-4040) | Every 2years | 3pcs | ||
All the spare parts replace period will be depend on the feed water quality. | ||||

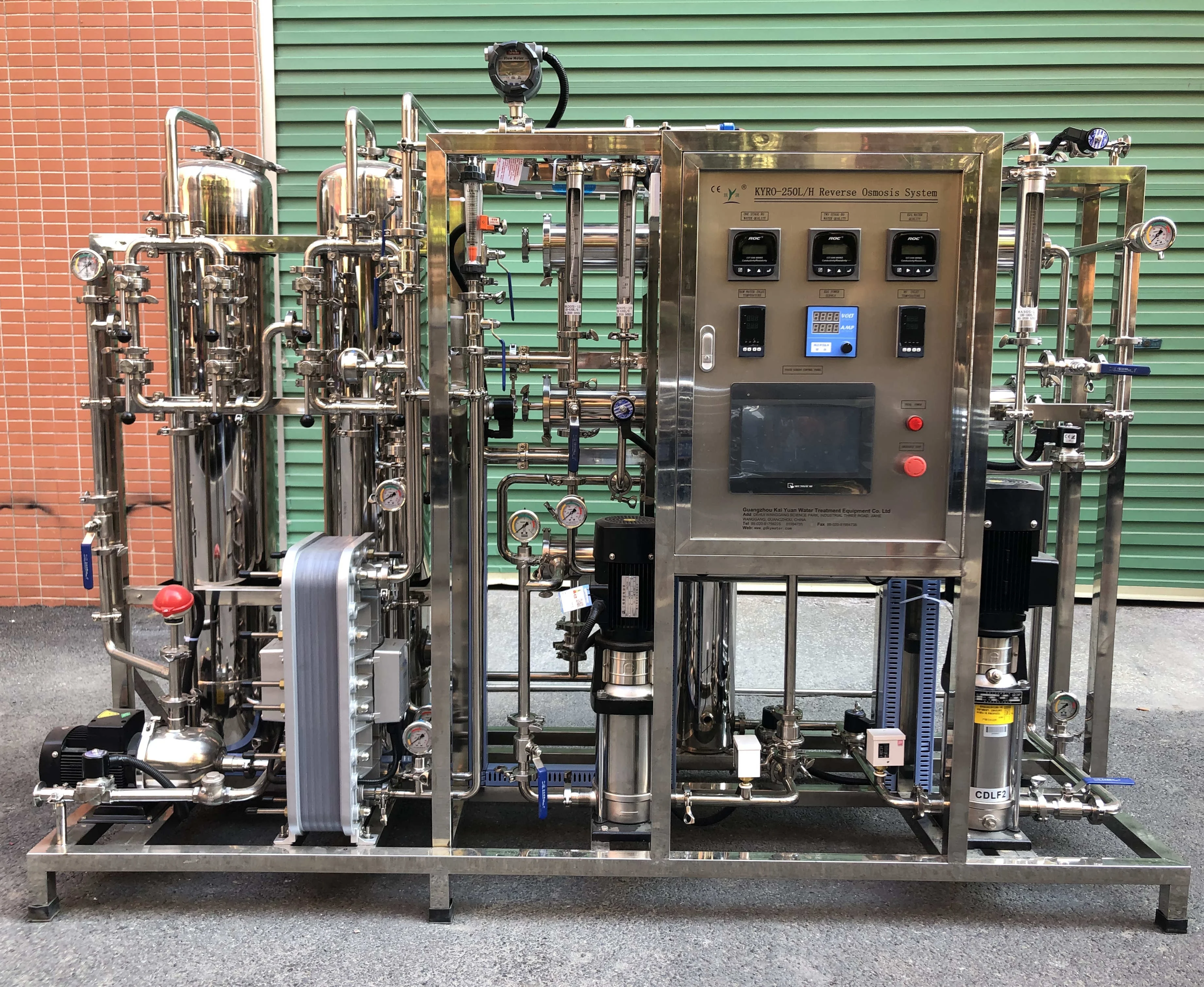

Pictures of Machine
Capacity | 250liters per hour |
Control type | Automatic |
Inlet water | Tap, underground, city water |
Output water application | For Dialysis Machine,laboratory,pharmacy use water |
Output water quality | less than 0.1μs/cm |
Pump brand | CNP |
RO membrane | Dupont/VONTRON 4040 |
Includes: booster pump, sand filter, carbon filter, pp filter, two high pressure pump,
RO membrane, EDI and UV sterilizer

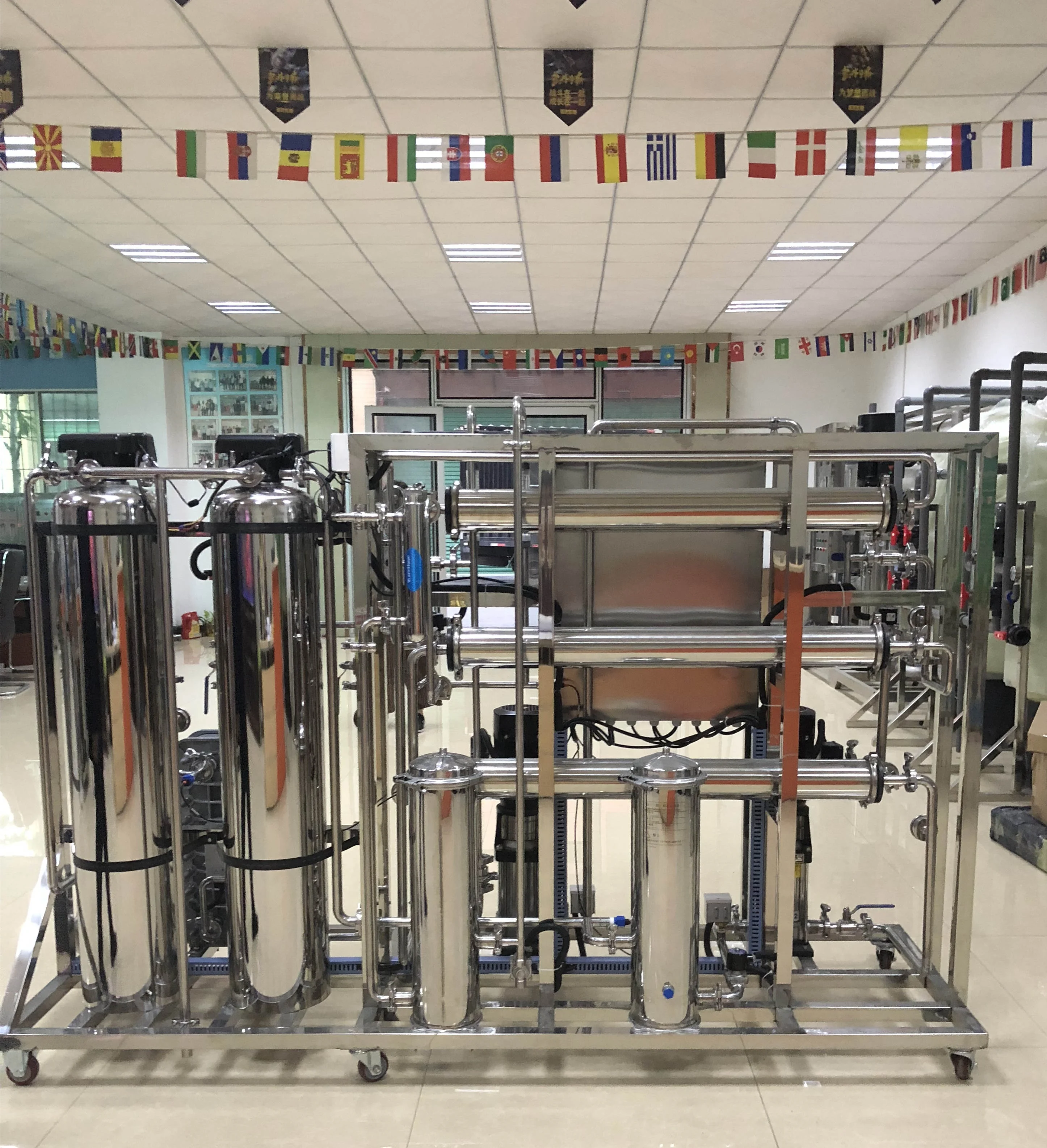

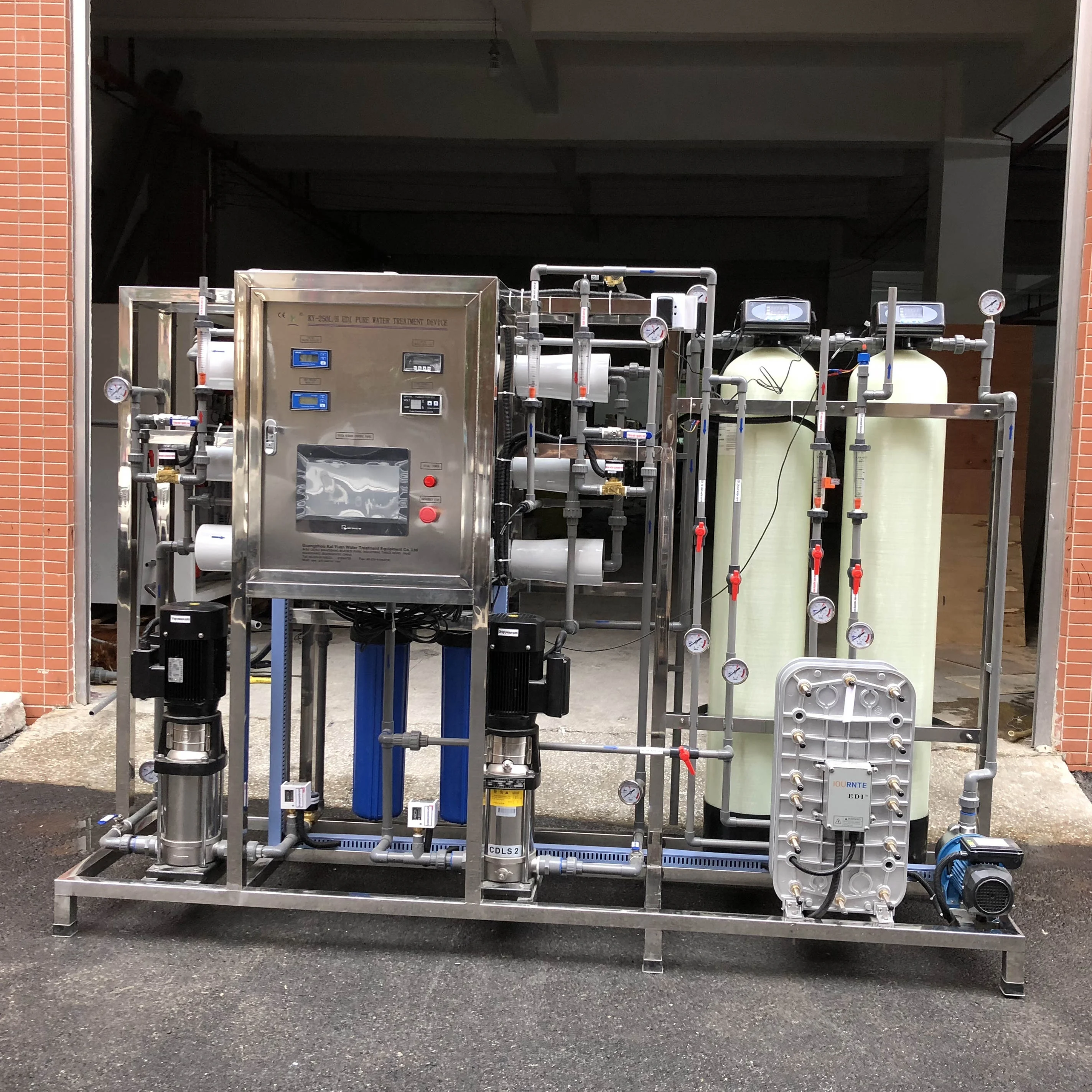

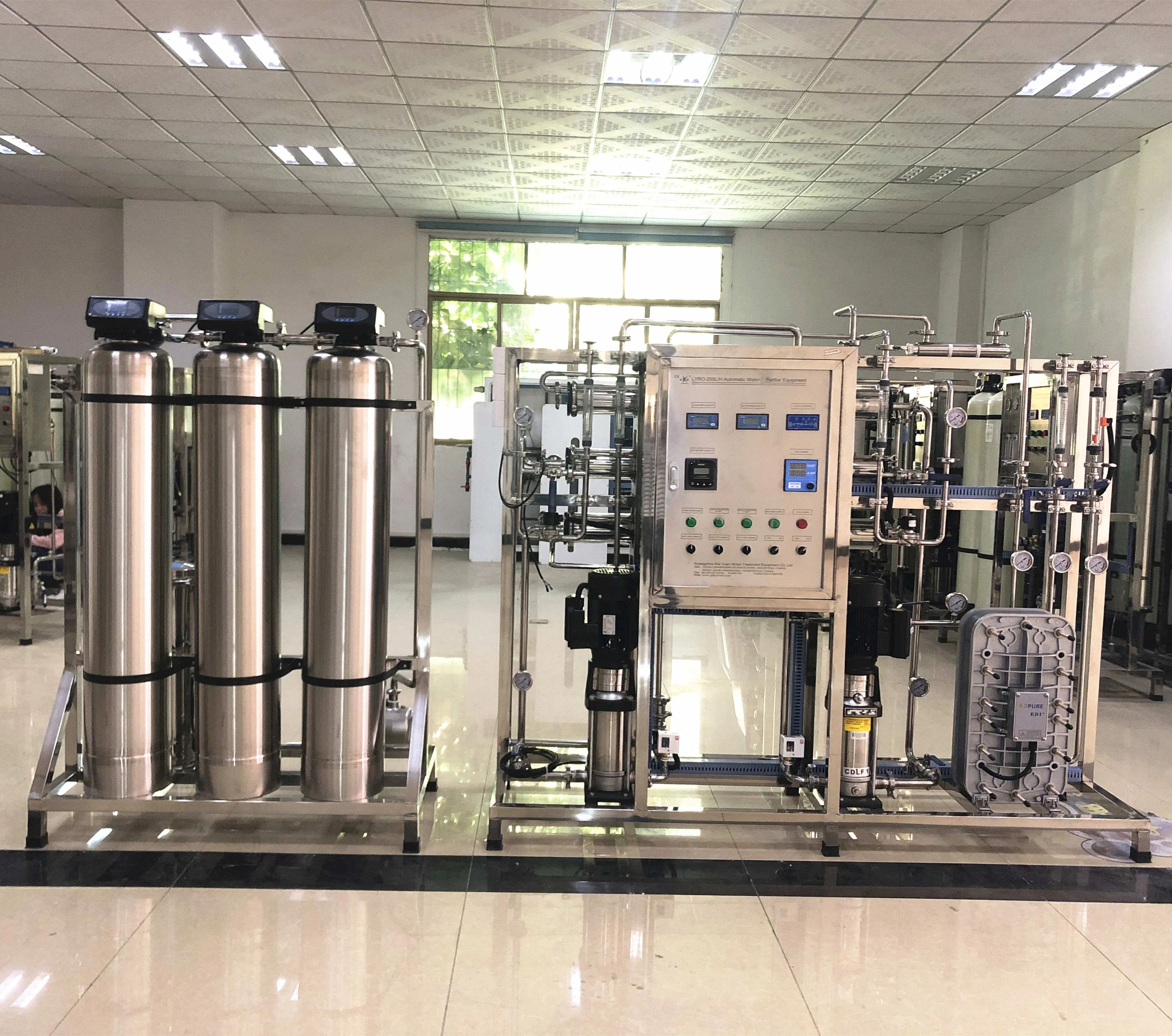

The follow machines are different design and material 250L/H Water treatment equipment
Other application water treatment system
Customers feedback
More machines,Please click on pictures and see more information.
10m3 per hour Auto reverse osmosis water treatment plant with stainless steel sand filter, carbon filter, CIP system and UV sterilizer
5m3 per hour borehole salty water purification with CIP system, dosing system and PLC touch screen control
Packing & Delivery
Packaging | ||
Size | 1900 (L) * 650 (W) * 1800 (D) | |
Weight | 300KGS | |
Packaging Details | The normal package is wooden box(Size: L*W*H). pack it according to customers special request. | |
Manual Operation | ||
Manual Operation and video | we will send the Manual operation and installation video together with machine.The machine is finished in our factory. You just install easily according to the video and Manual operation. | |
