PC Computer Industrial Rack Mount Server Chassis Case 3U

Product Overview

Description

Product Description

Model	NP-F355001
Form Factor	3U Rackmount Server case
Material	Metal material	SGCC
	Metal thickness	1.2mm
	Panel material	Metal
	Handle material	Metal
M/B support	microATX (9.6″ x 9.6″), CEB (12″ x 10.5″), ATX (12″ x 9.6″), Mini-ITX (6.7″ x 6.7″)
CPU support	DP Xeon(Intel)/DP Opteron(AMD)/Core(Intel)

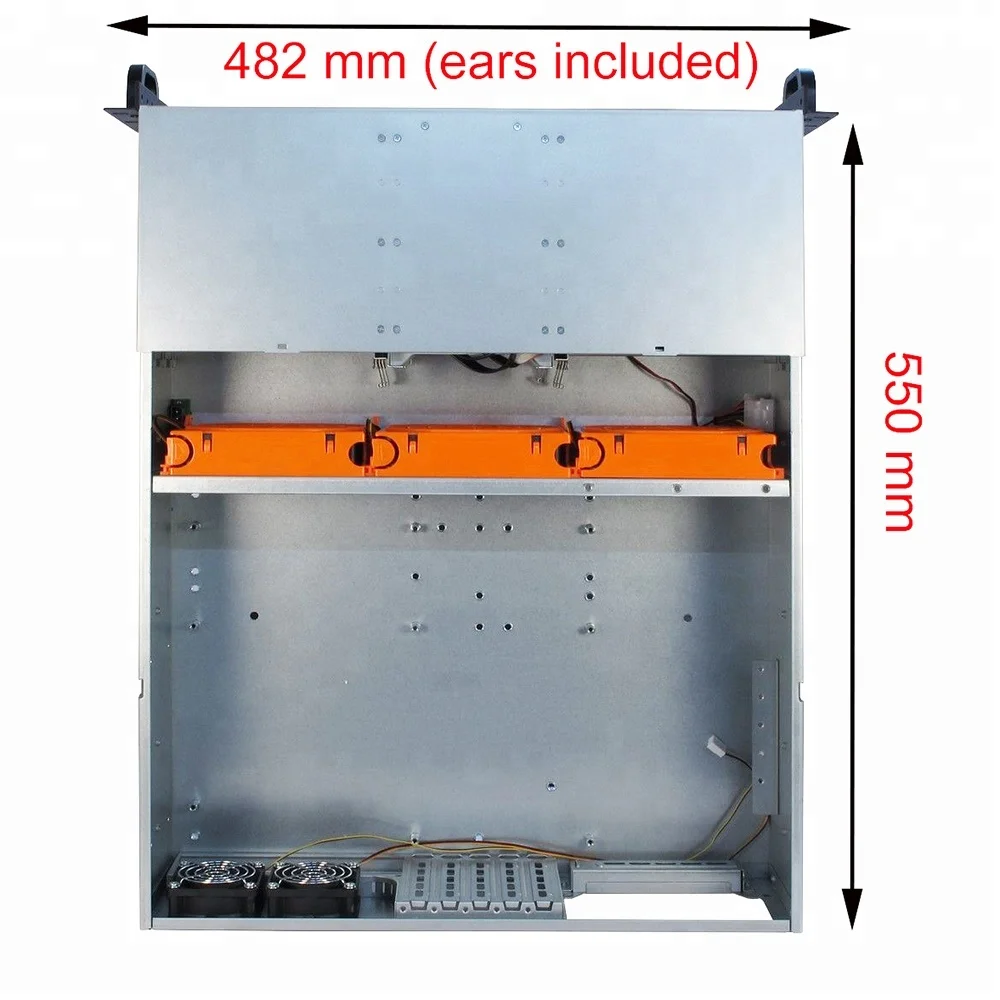

Size	D*W*H(mm)	550 x 482 x 132
	D*W*H(inch)	21.6 x 19 x 5.1

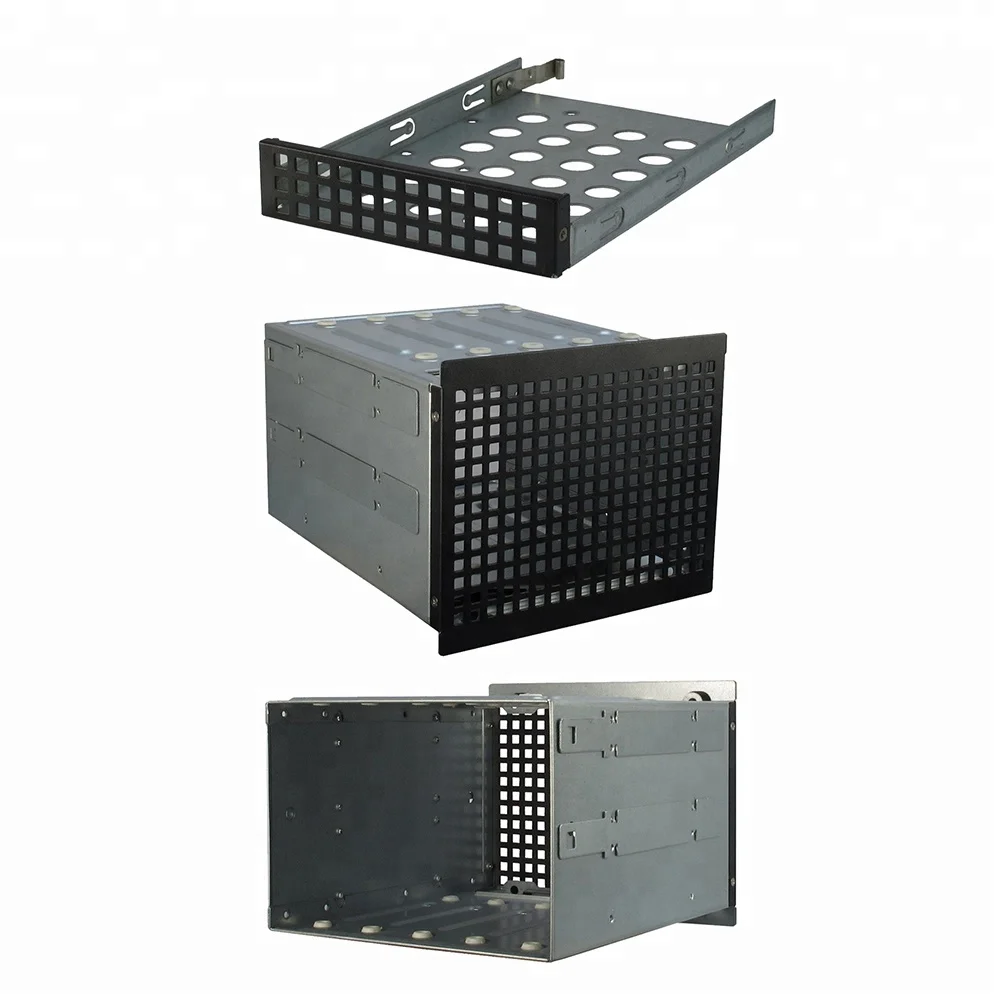

Drive Bay	External 5.25"  bays	6
	External 3.5" bays	4
	Internal 3.5"	14
	Internal 2.5"	4
Power Supply support	ATX Power supply
Front panel	Control button	Power ON/OFF x 1, system reset x 1
	Indicator	Power ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1
	Ports	USB 2.0 x 1 , USB3.0 x 1
Expansion	Riser Slot	6 (5 full-size + 1 full-size horizontal using a riser card)
Hot-swap Backplane	Mini SAS 6.0GB/s	NO
	SATA	NO

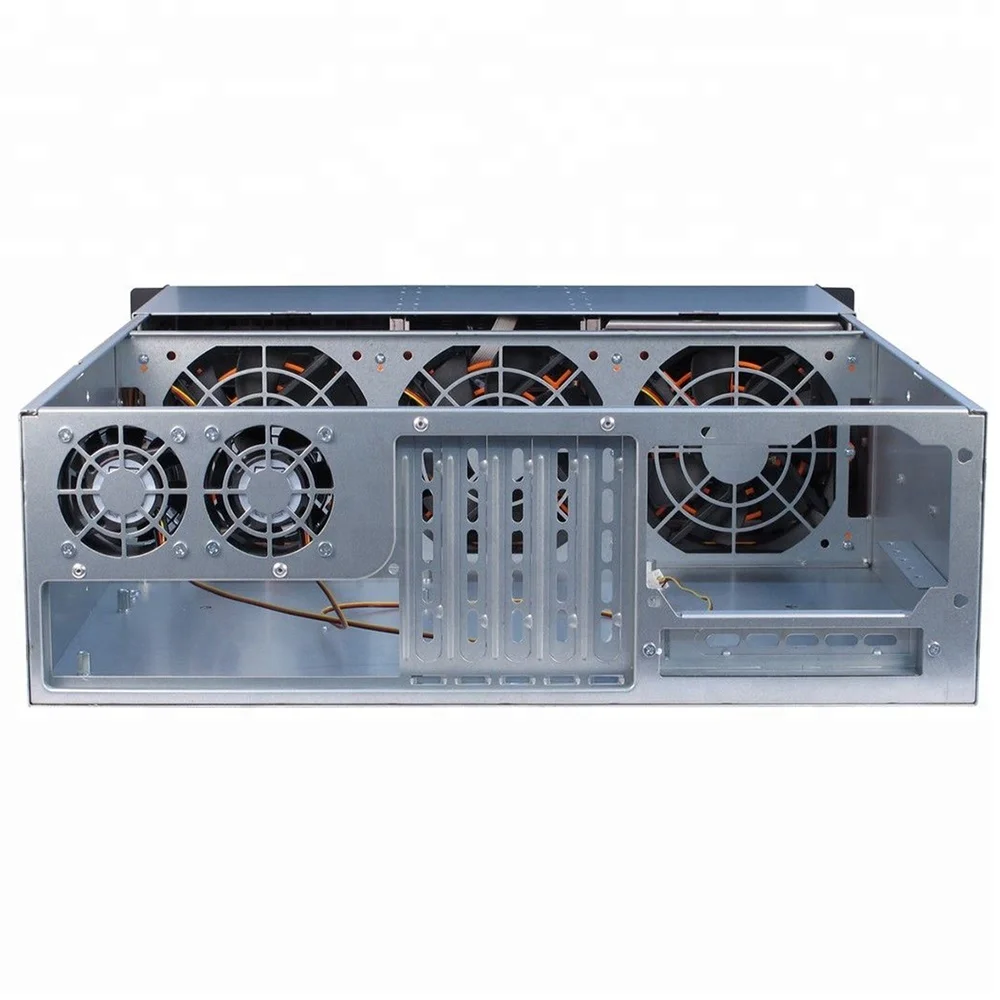

System cooling(optional)	Front	1x 120mm (standard) and 6x 40mm (optional in the 5.25 "drive bezels)

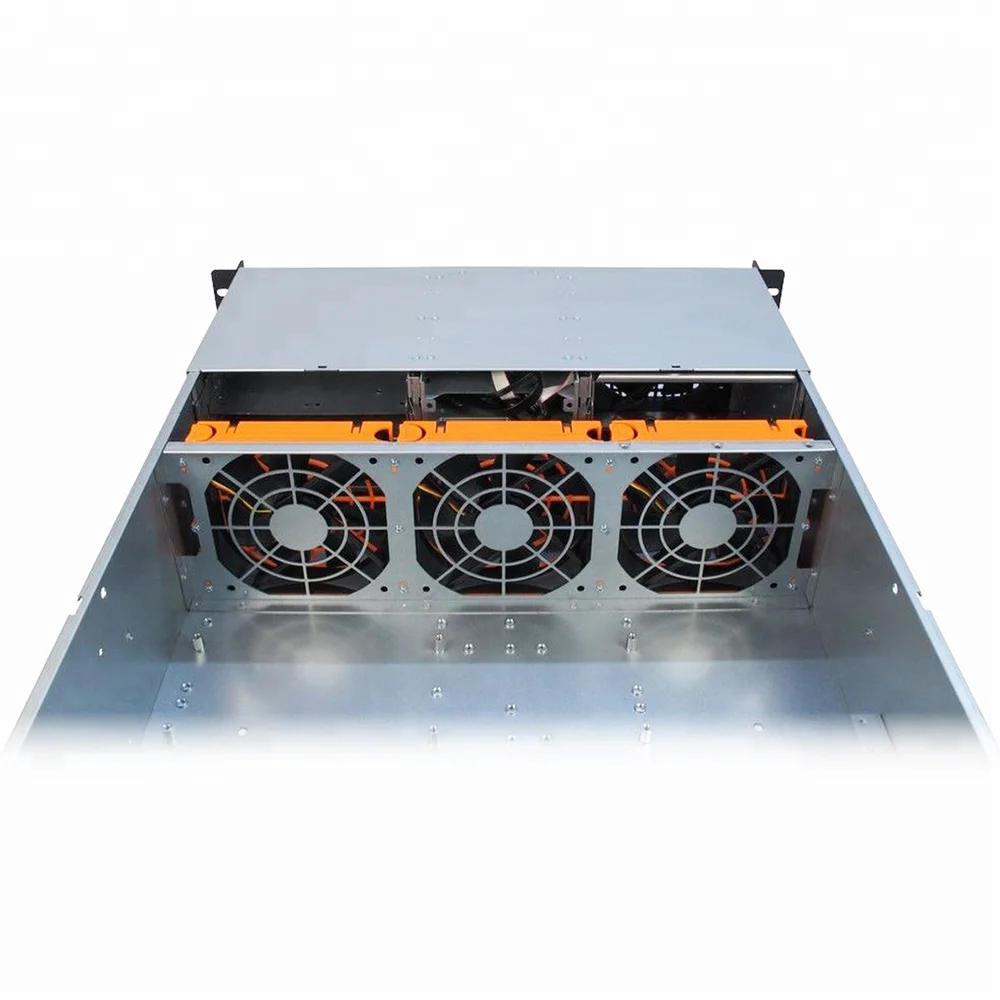

	Middel	3x 120mm ball bearing fans PWM (hot-pluggable)
	Rear	2x 60mm (standard)
Net weight	10.7kg
Gross weight	13kg
Packing size	D*W*H(mm)	740*550*195
	D*W*H(inch)	29.1*21.7*7.7
Packing Material	Polyfoam with carton box
Environment Temperature	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity	5% to 95%,non-condensing
Vibration ( 5-500 Hz )	1 Grms (Operating), 2 G (Non-Operating)
Shock	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
