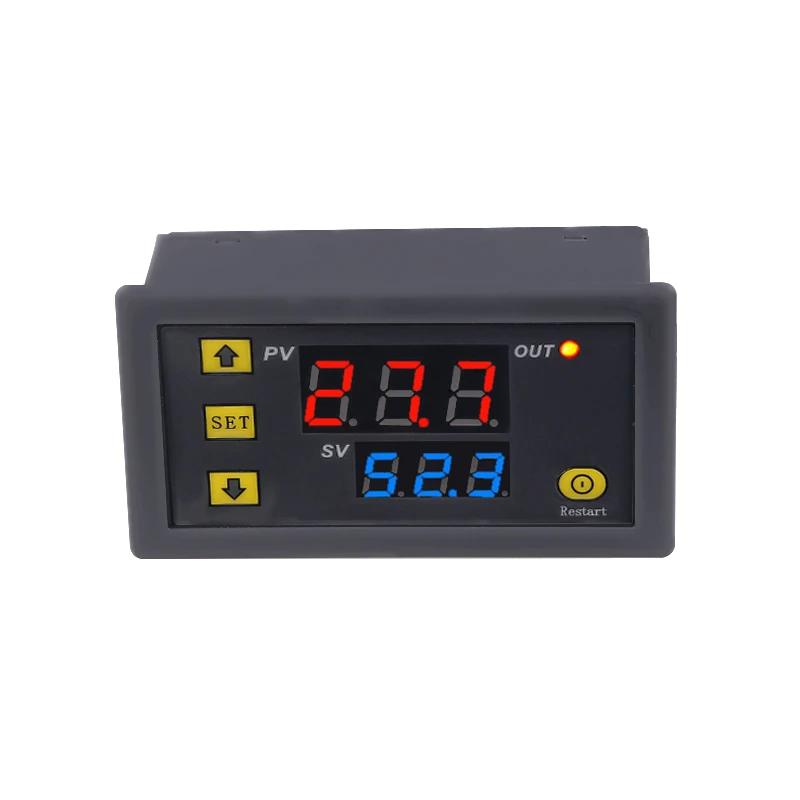

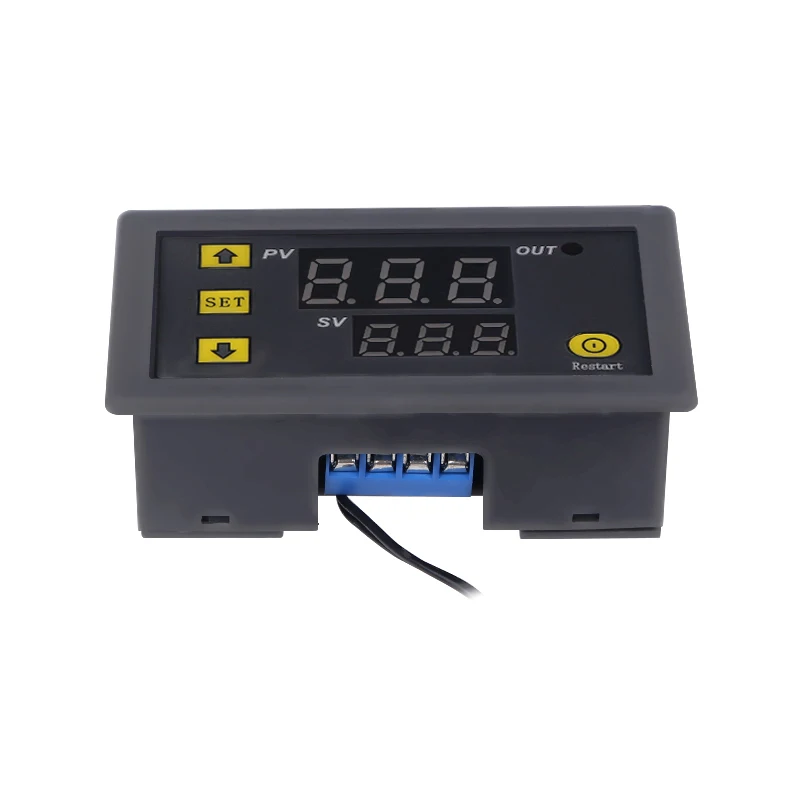

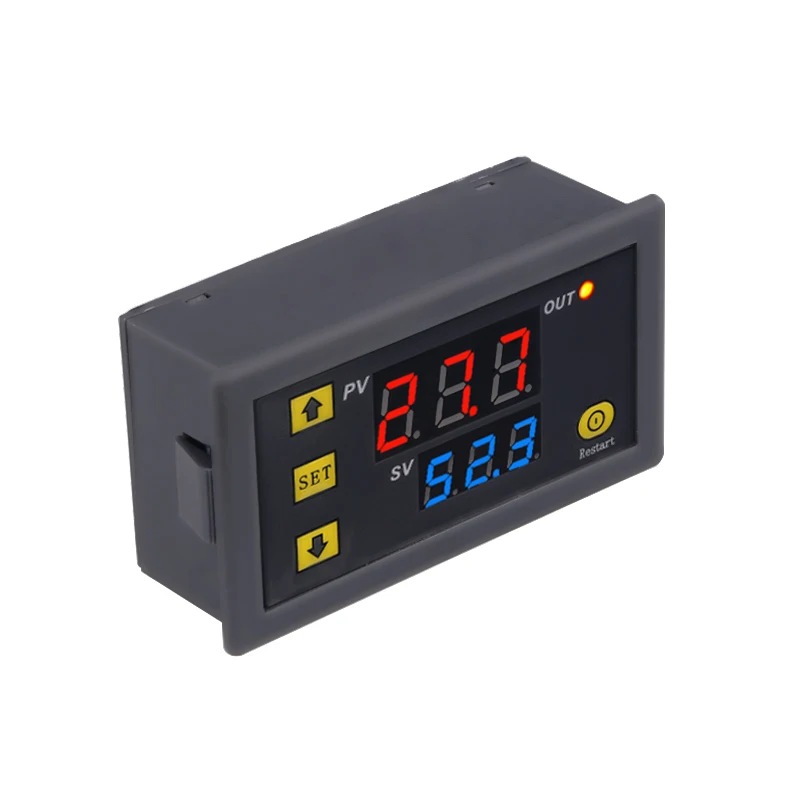

W3230 AC 110V 220V DC 12V Digital Thermostat Temperature Controller Regulator Heating Cooling Control Instruments LED Display
- Category: Temperature Instruments >>>
- Supplier: Yueqing Taixin Electric Co. Ltd.
Share on (60837487758):
Product Overview
Description
Parameters
Description:
- Mini temperature controller.
- With clear LED display for better readability.
- Wide temperature measuring range.
- Heating or cooling control.
- All parameters setting can be saved after short circuit.
- Relay output.
- High Control precision 0.1 centigrade
- Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other temperature-controlled system.
Specifications:
- Power Supply:12VDC/110V-220VAC
- Temperature Control Range:-55℃-120℃
- Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)
- Color of Displaying: red/blue
- Measurement accuracy: ±0.1°C
- Control accuracy: 0.1°C
- Sensor: NTC10K Waterproof sensor
- Output: Relay Contact Capacity 10A 220V / 20A 12V
- Environmental requirements: -10-60°C , humidity 20%-85%RH

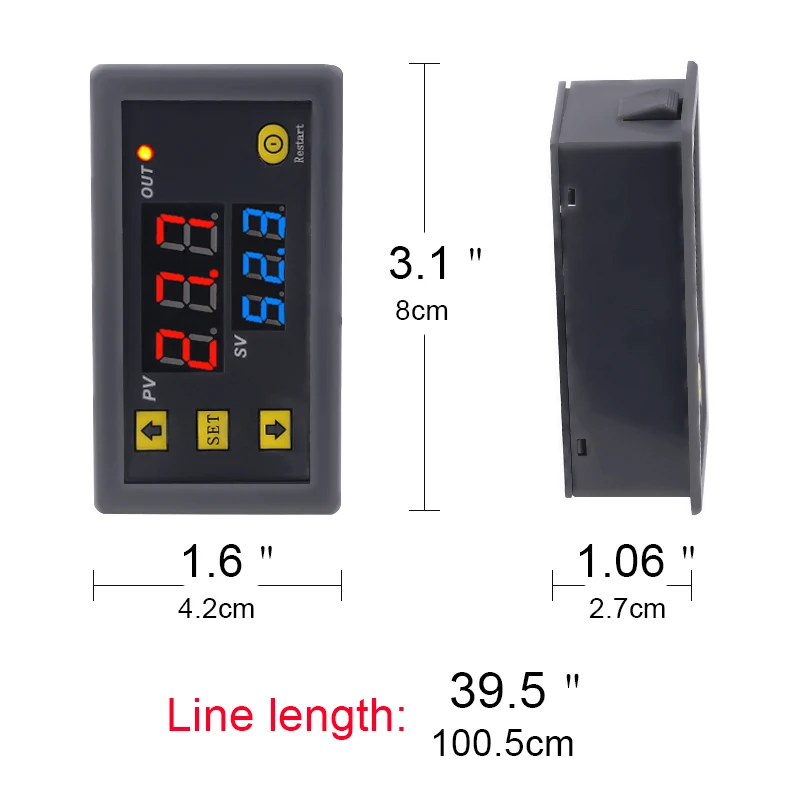

- Dimension:79mm *43mm*26mm
- Cutting Size:73mm*39mm
Code table:
Code | Function | Set Range | Default |
P0 | Heating/Cooling | H/C | C |
P1 | Return Difference | 0.1-30 | 2 |
P2 | Setting limits to the manimum | 120 | 120 |
P3 | Setting limits to the minimum | -55 | -55 |
P4 | Temp. Correction | -20 | 0 |
P5 | Delay Start | 0-10min | 0 |
P6 | Alarm Temp | -175 | OFF |
P7 | Data locked | ON/OFF | OFF |
P8 | Restore factory settings | ON/OFF | OFF |
Wiring Diagram:
