Измеритель температуры/уровня с креплением на панели

Input

Input signals

Current

Voltage

Resistance

Thermocouple

Input Impedance

≤250Ω

≥500KΩ

Maximum input current

≤30mA

Maximum input

voltage

≤6V

Output

Output signals

Current

Voltage

Relay

24V distribution or feeder

Output load capability

≤500Ω

≥250 KΩ

(Note: Please replace the module for higher  load capacity)

AC220V/0.6(small)

DC24V/0.6A(small)

AC220V/3A(big)

DC24V/3A(big)

According to Remarks

≤30mA

Comprehensive parameter

Accuracy

0.2%FS±1 bit

Setting model

Panel touch key ;parameter setting values locking; ;store the setting values permanently

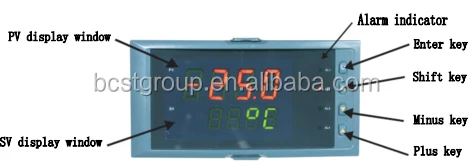

Display style

-1999 ~ 9999 display range;0 ~ 100% measured value lightness bargraph display;

LBD display for working state

Working environment

Ambient temperature: 0 ~ 50 ℃; Relative humidity: ≤ 85% RH;Far from strong corrosive gas

Power supply

AC 100 ~ 240V, (50/60HZ); DC 20 ~ 29V

Power

≤5W

Frame

Standard snap-on

Communication

Standard MODBUS communication protocol, ;RS-485, communication distance up to 1 km,

RS-232 ,communication distance up to 15 meters

Code

width*height*depth

Code

Indexing type (measuring range)

A

B

C

D

E

F

H

K

L

M

160*80*110mm(Horizontal)

80*160*110mm(Vertical)

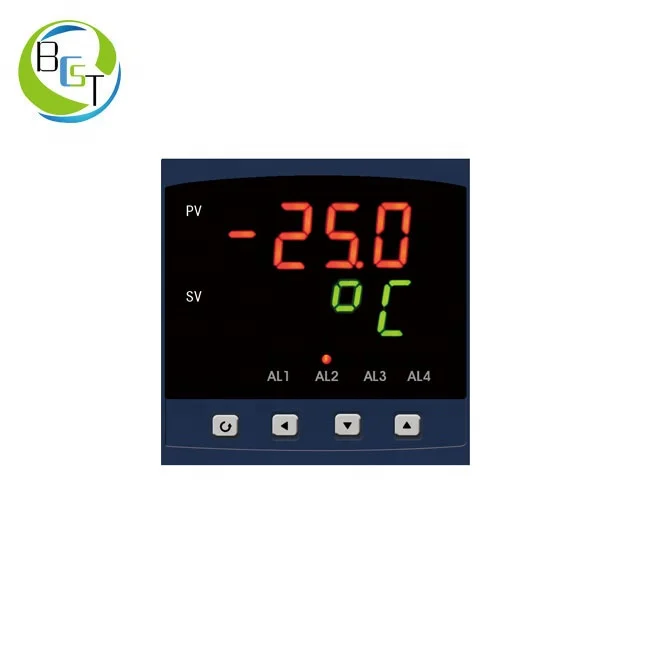

96*96*110mm(Quadrate)

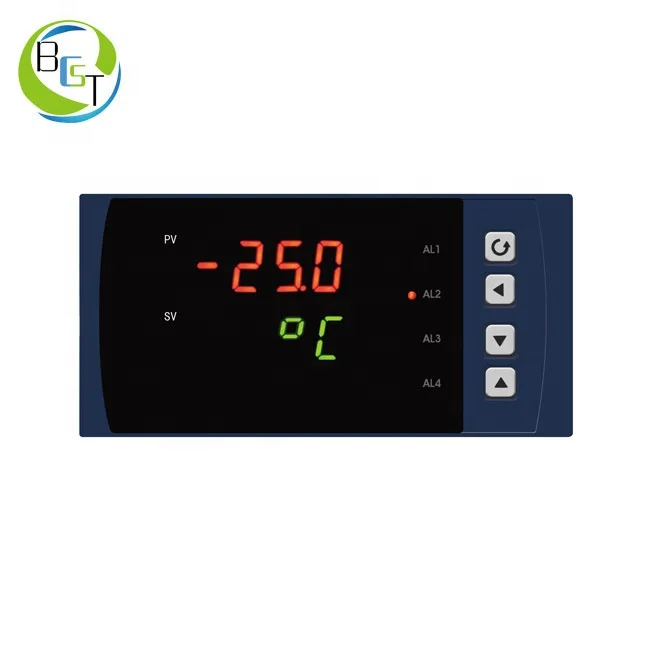

96*48*110mm(Horizontal)

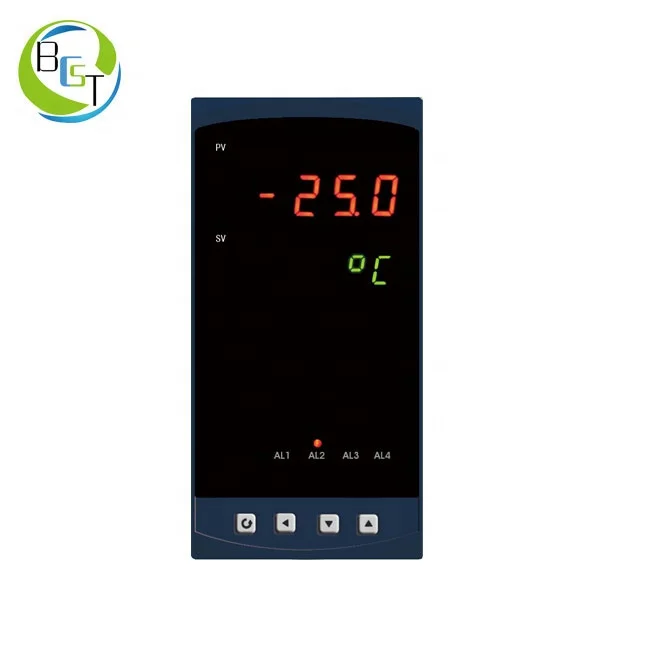

48*96*110mm(Vertical)

72*72*110mm(Quadrate)

48*48*110mm(Quadrate)

160*80*110mm

(Horizontal / light beam)

80*160*110mm

(Vertical / light beam)

96*96*110mm

(Quadrate / light beam)

00

01

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

55

56

Thermocouple B (400~1800℃)

Thermocouple S (0~1600℃)

Thermocouple K (0~1300℃)

Thermocouple E indexing numbe (0~1000℃)

Thermocouple T indexing numbe (-200.0~400.0℃)

Thermocouple J indexing numbe (0~1200℃)

Thermocouple R indexing numbe (0~1600℃)

Thermocouple N indexing numbe (0~1300℃)

Thermocouple F2 indexing numbe (700~2000℃)

Thermocouple Wre3-25 indexing numbe (0~2300℃)

Thermocouple Wre5-26 indexing numbe (0~2300℃)

RTD Cu50 (-50.0~150.0℃)

RTD Cu53 (-50.0~150.0℃)

RTD Cu100 (-50.0~150.0℃)

RTD Pt100 (-200.0~600.0℃)

RTD BA1 (-200.0~600.0℃)

RTD BA2 (-200.0~600.0℃)

Linear resistance 0~400Ω (-1999~9999)

Remote Resistance 0~350Ω (-1999~9999)

Remote Resistance 30~350Ω (-1999~9999)

0~20mV (-1999~9999)

0~40mV (-1999~9999)

0~100mV (-1999~9999)

-20~20mV (-1999~9999)

-100~100mV (-1999~9999)

0~20mA (-1999~9999)

0~10mA (-1999~9999)

4~20mA (-1999~9999)

0~5V (-1999~9999)

1~5V (-1999~9999)

-5~5V (-1999~9999)

0~10V (-1999~9999)

0~10mA square (-1999~9999)

4~20mA square (-1999~9999)

0~5V square (-1999~9999)

1~5V square (-1999~9999)

Full switch

Special specifications

3Transmission output 1(OUT1)

Code

output type (Load resistance RL)

X

0

1

2

3

4

5

No

4~20mA (RL≤600Ω)

1~5V (RL≥250KΩ)

0~10mA (RL≤1.2KΩ)

0~5V (RL≥250KΩ)

0~20mA (RL≤600Ω)

0~10V (RL≥4KΩ)

4Transmission output 2 (OUT2)

Code

output type (Load resistance RL)

X

0

1

2

3

4

5

NO

4~20mA (RL≤600Ω)

1~5V (RL≥250KΩ)

0~10mA (RL≤1.2KΩ)

0~5V (RL≥250KΩ)

0~20mA (RL≤600Ω)

0~10V (RL≥4KΩ)

5Alarm output (relay contact output)

Code

The number of alarm limits

X

1

2

3

4

No

1 alarm limit

2 alarm limits

3 alarm limits

4 alarm limits

6Communication output

Code

Communication Interface /Communication protocol

X

D1

D2

D3

No

RS-485 communication Interface (Modbus)

RS-232 communication Interface (Modbus)

RS-232C printer interface

7Feeder output

Code

Feeder output (Output voltage)

X

1P

2P

No

Feeder of Loop 1

Feeder of Loop 2

For example: "2P (12/24)" means Loop 1 is 12V, Loop 2 feeder output is 24V.

8Power supply

Code

Voltage

A

D

AC/DC 100~240V (50/60Hz)

DC 20~29V

9Notes (ignore if no the function)
