High Quality Horizontal Drum Rotary Dryer Machine Drying Machinery in China

Rotary drum dryer can dry many different raw materials contain moisture, such as sawdust, coal, coal slurry, slag, fertilizer, sand, chicken manure, cassawa and sugar bagasse, etc. They are widely used in building materials, metallurgy, and chemical industry.

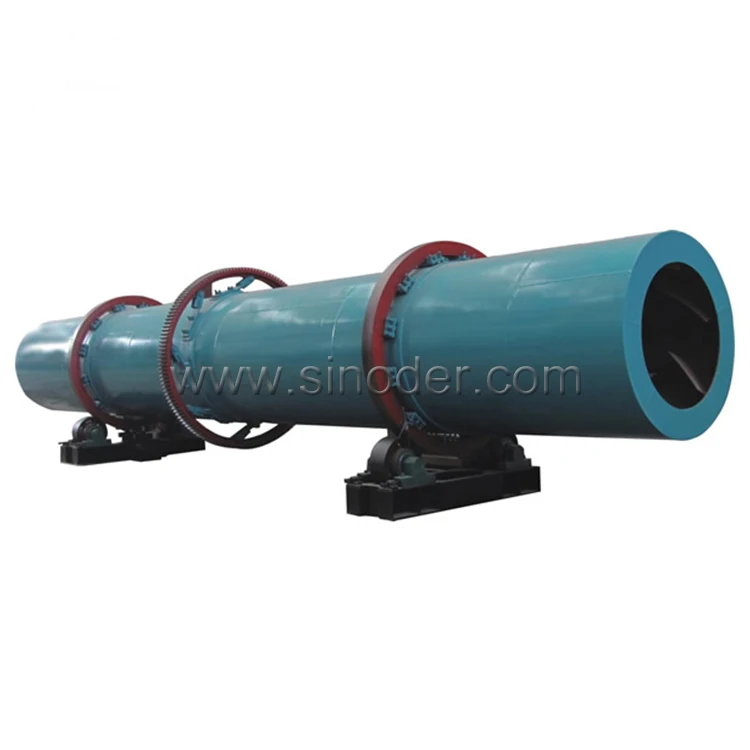

Rotary drum dryer cosists of rotary body, lifting blade, driving device, supporting device, sealing ring. Heating source can be coal, charcoal, wood, gas, electricity, oil, wind power, etc.

Working principle

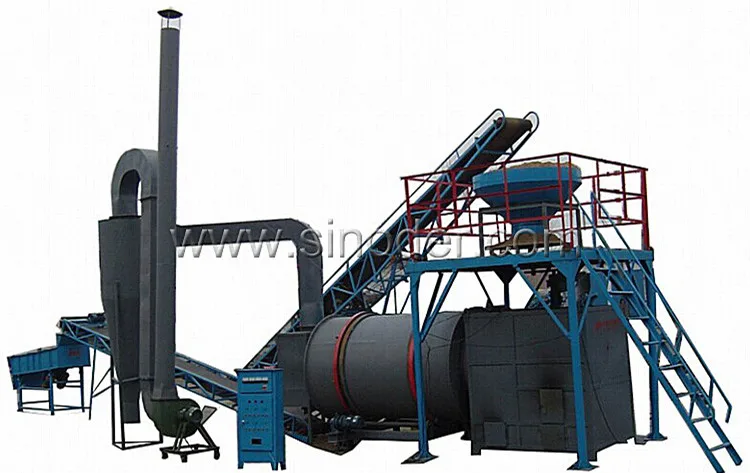

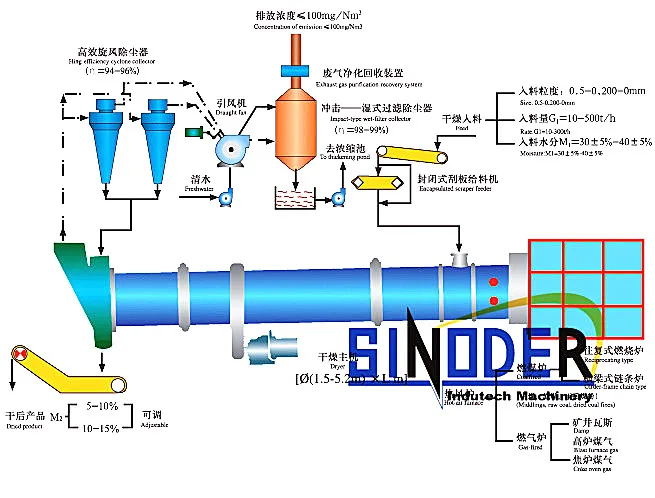

Wet materials are sent to dryer by conveyor belt or elevator, or in order to feed materials continuously and smoothly, you can add a feeder. When installation, the drum need have a 3-5º inclination, to ensure the materials move from the upper part to lower part smoothly. In upper part, we can build up a brick heating stove or coal-gas producer, make the hot air enter into dryer, and materials and hot airs are contacted completely, due to constantly raised and shed materials, then wet materials are dried.

Main technical parameter

Model (mm)	Rotation speed (r/min)	Feeding temperature (degree)	Power (kw)	Capacity(t/h)	Weight (t)
600x6000	3-8	<=700	3	0.5-1.5	2.9
800x8000	3-8	<=700	4	0.8-2.0	3.5
800x10000	3-8	<=700	4	0.8-2.5	4.5
1000x10000	3-8	<=700	5.5	1.0-3.5	5.6
1200x10000	3-8	<=700	7.5	1.8-5	14.5
1200x12000	3-8	<=700	11	2-6	14.8
1500x12000	2-6	<=800	15	3.5-9	17.8
1800x12000	2-6	<=800	18	5-12	25
2200x12000	1.5-6	<=800	18.5	6-15	33
2200x18000	1.5-6	<=800	22	10-18	53.8
2200x20000	1.5-6	<=800	30	12-20	56
2400x20000	1.5-5	<=800	37	18-30	60
3000x20000	1.5-5	<=800	55	25-35	78
3000x25000	1.5-5	<=800	75	32-40	104.9

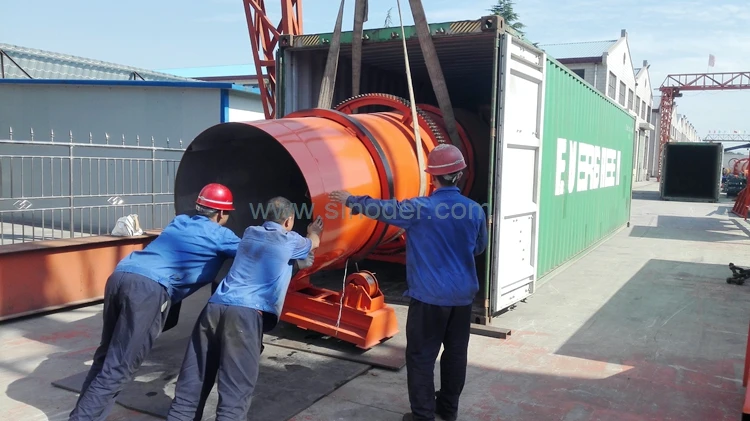

Paking and shipping
