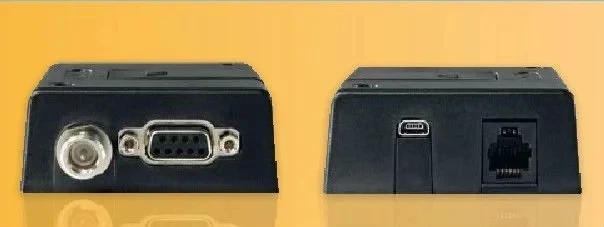

Telit GSM & GPRS Modem GT864, Mini USB, RJ11, RS232, FME Male Connector

Quad Band Module with Internet, GPIO

The GT864 is capable of communicating through all traditional data services provided by GSM/GPRS networks. Offering extended operating temperature, integrated TCP/IP stack, direct control by standard serial RS-232 interface and with a broad supply voltage range (5–36V DC), and the GT864 terminal is a complete standalone solution for m2m applications.

Quad Band GSM/GPRS
GSM 850/900 Power class 4 (33dBm)
GSM 1800/1900 Power class 1 (30dBm)
Mobile Class B
Extended Measurement Reporting
Compliant with 3GPP Release 99 Protocol Stack
4 x digital inputs (USB mini connector)
1 x analogue input (RJ11 connector)
1 x digital output (RJ11 connector)
RS-232 9pin DSub
Power: +5 to +36VDC (RJ11)
Antenna: 50Ohm (FME male)
SIM card reader: +1.8V/3V interface with SIM detection
Control by AT commands (GSM 27.005, 27.007 plus proprietary commands)
