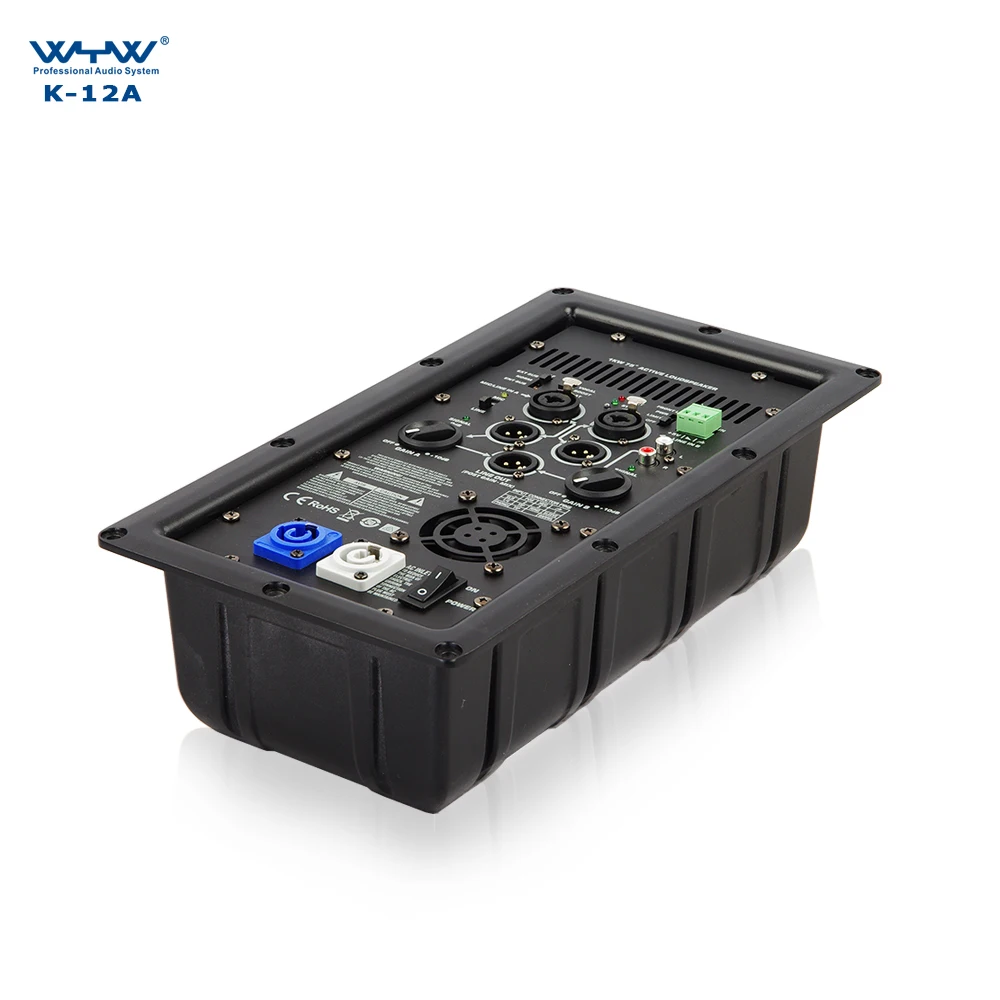

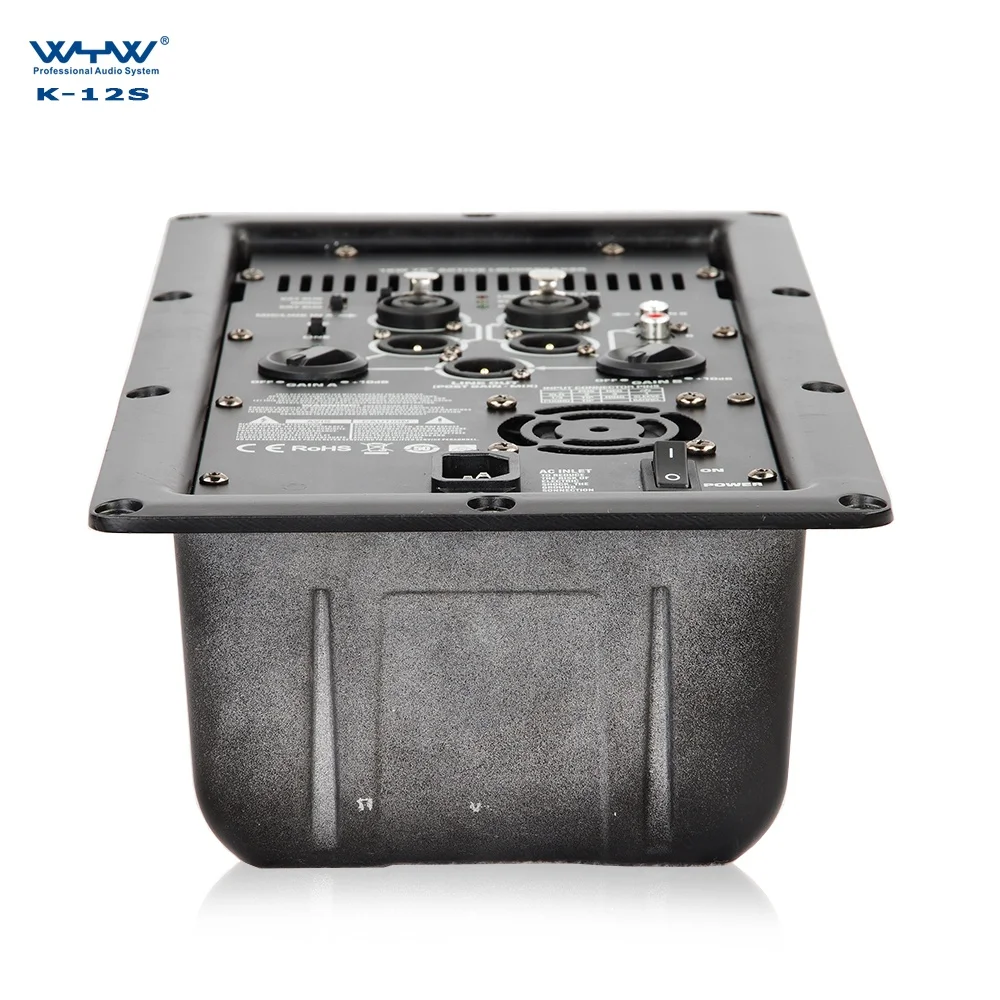

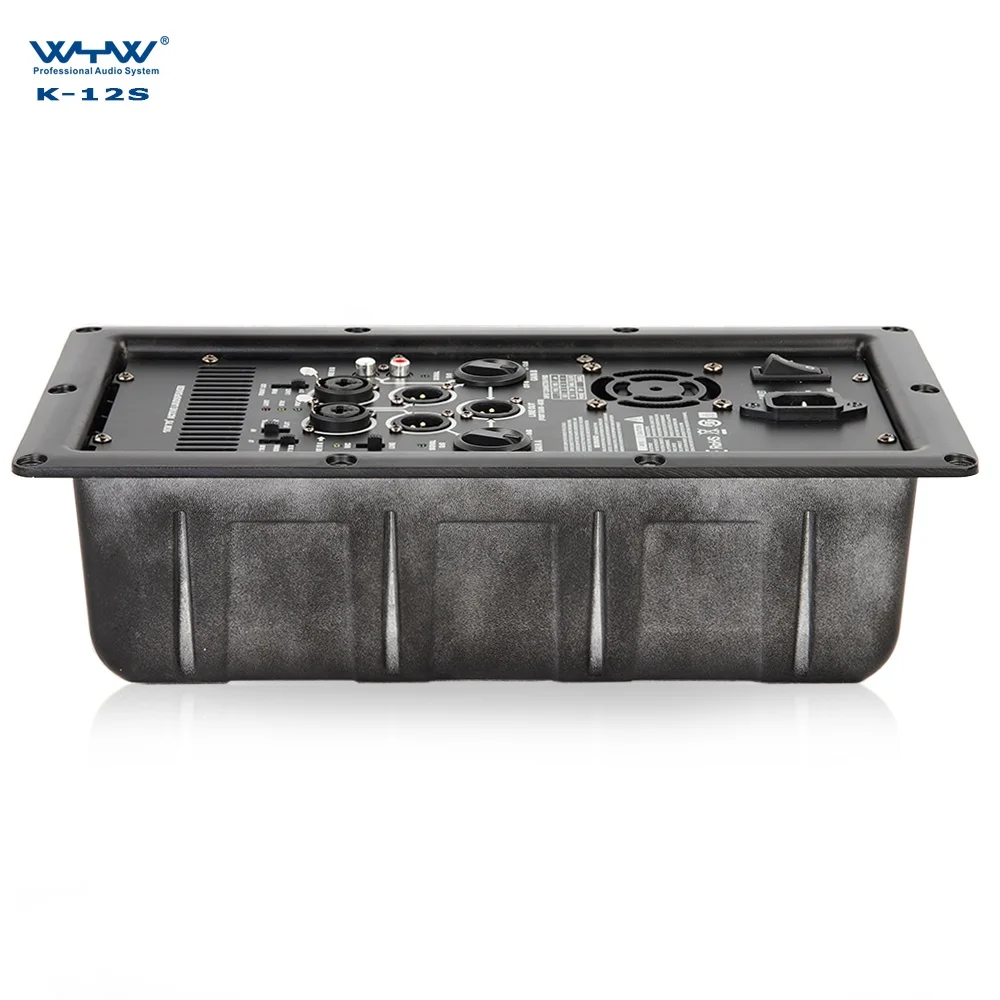

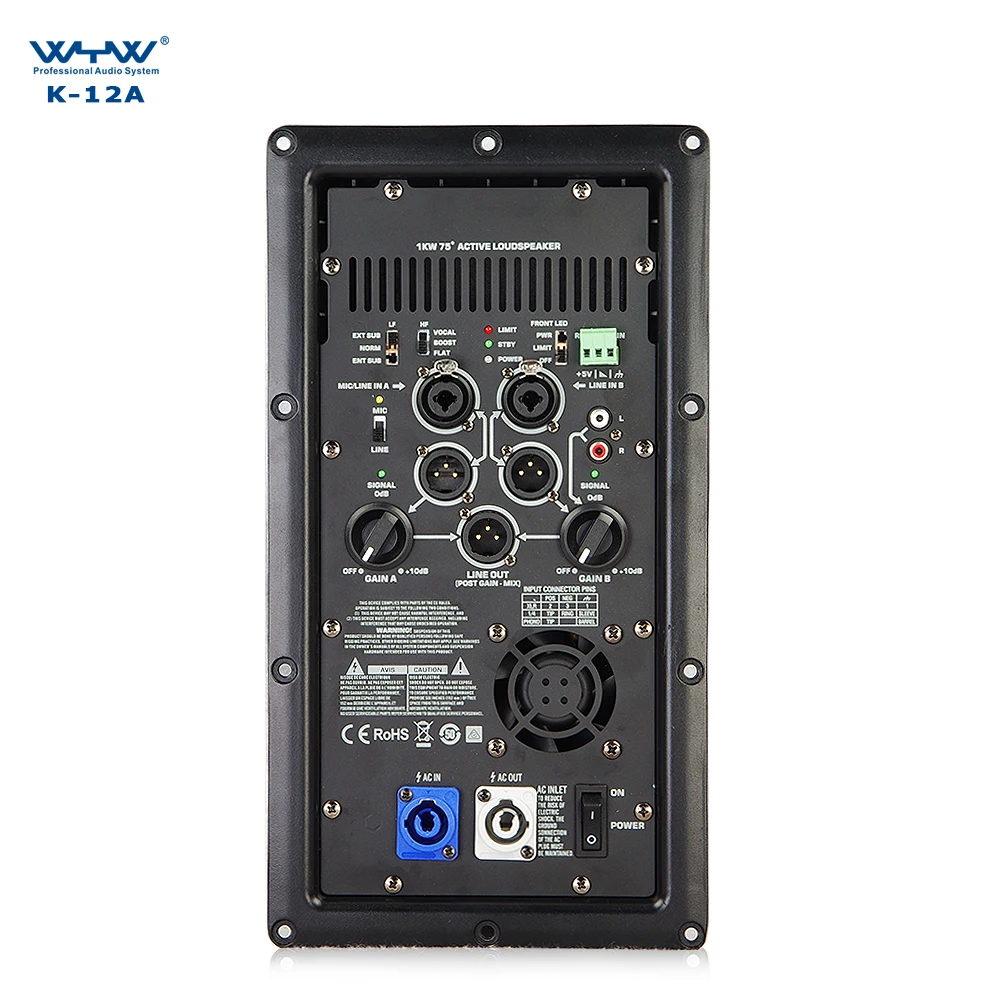

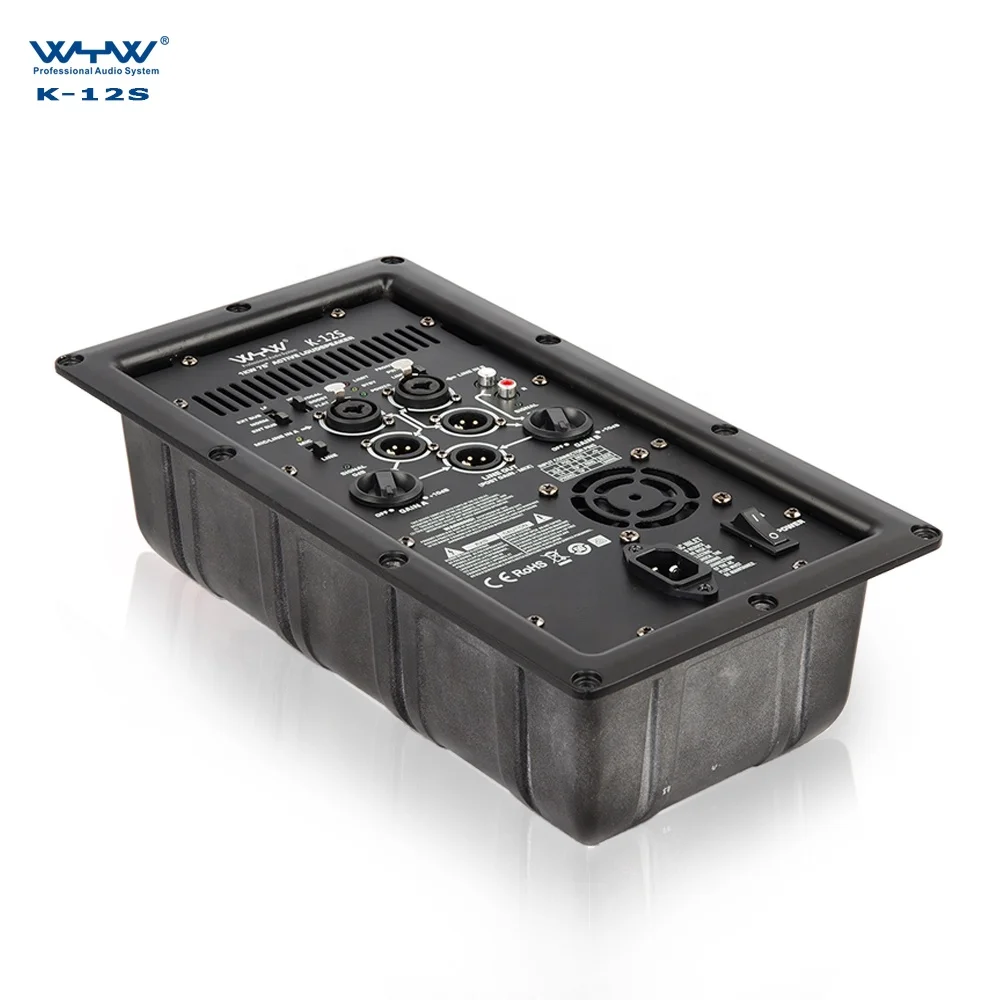

Модуль питания активного динамика 12 дюймов
- Category: Sound Equipment\/Amplifiers\/Speaker >>>
- Supplier: Enping City Kehua Electronics Co. Ltd.
Share on (60838727218):
Product Overview
Description

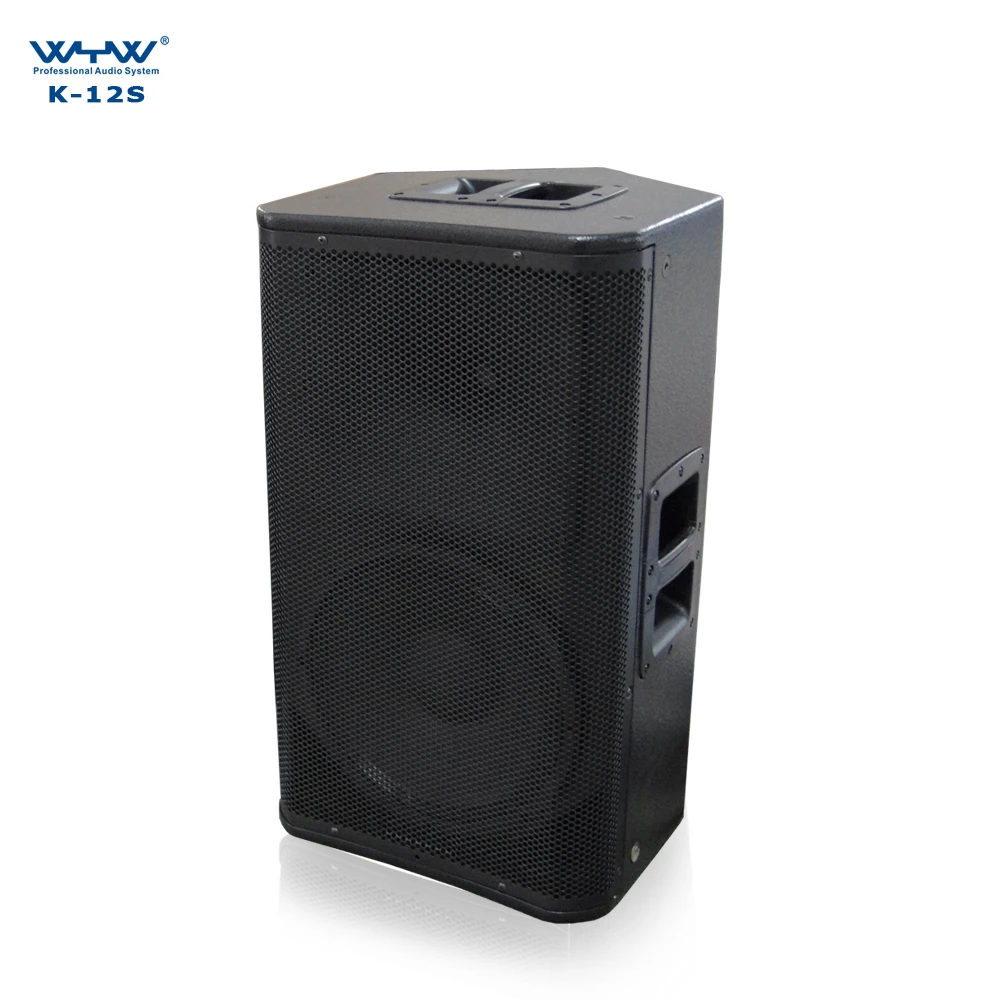

- 12'' woofer. 1.75''
- 75° conical DMT coverage
- Maximum SPL 131 dB peak
- Attractive and professional appearance
- Rugged ABS enclosures
- 16-gauge powder coated steel grille
- Functions as a monitor wedge
- Comfortable ergonomic handles
- 35 mm pole sockets with Tilt-Direct™
- M10 rigging points
- Eyebolt and yoke mount accessories available
| Configuration | Multipurpose 2-way |
| Transducers | 12" cone transducer 1.75" diaphragm compression driver |
| High Frequency | |
| Low Frequency | |
| Frequency Response (-6 dB) | 52 Hz - 18 kHz |
| Frequency Range (-10 dB) | 48 Hz - 20 kHz |
| Nominal Coverage | 75° conical DMT |
| Maximum SPL (1 meter) | 131 dB peak |
Amplifiers
Power Output | 1000 W Class D continuous |
| Input Impedance | XLR: 40 kΩ balanced / 20 kΩ unbalanced |
| Controls | Power, Attenuation, LF Mode (Normal/DEEP), Polarity (Normal/Reverse), Front LED (Pwr/Limit/Off) |
| Indicators | Power, Signal, Standby, Limit |
| Connectors | Balanced female XLR line level input, Balanced male XLR full range line level out, Remote attenuation control, Locking powerCON power connector AC In, Locking powerCON® power connector AC Out |
| Cooling | On demand, 50 mm variable speed fan |
| Amplifier Protection | Thermal limiting, output overcurrent, overtemperature muting, GuardRail™ |
| Transducer Protection | Thermal limiting, excursion limiting |
| AC Power Input | Universal power supply 100–240 VAC, 50 to 60 Hz |
| AC Power Consumption | 100 VAC, 2.3 A |
| (1/8 Power) | 120 VAC, 2.01 A |
| 230 VAC, 1.13 A | |
| Enclosure | |
| Material | Impact resistant ABS |
| Finish | Black paint |
| Grille | Rugged powder-coated steel |
| Dimensions (HWD) inches | 23.7 × 14 × 14 |
| Dimensions (HWD) mm | 603 x 356 x 356 |
| Net Weight | 41 lb / 18.6 kg |
