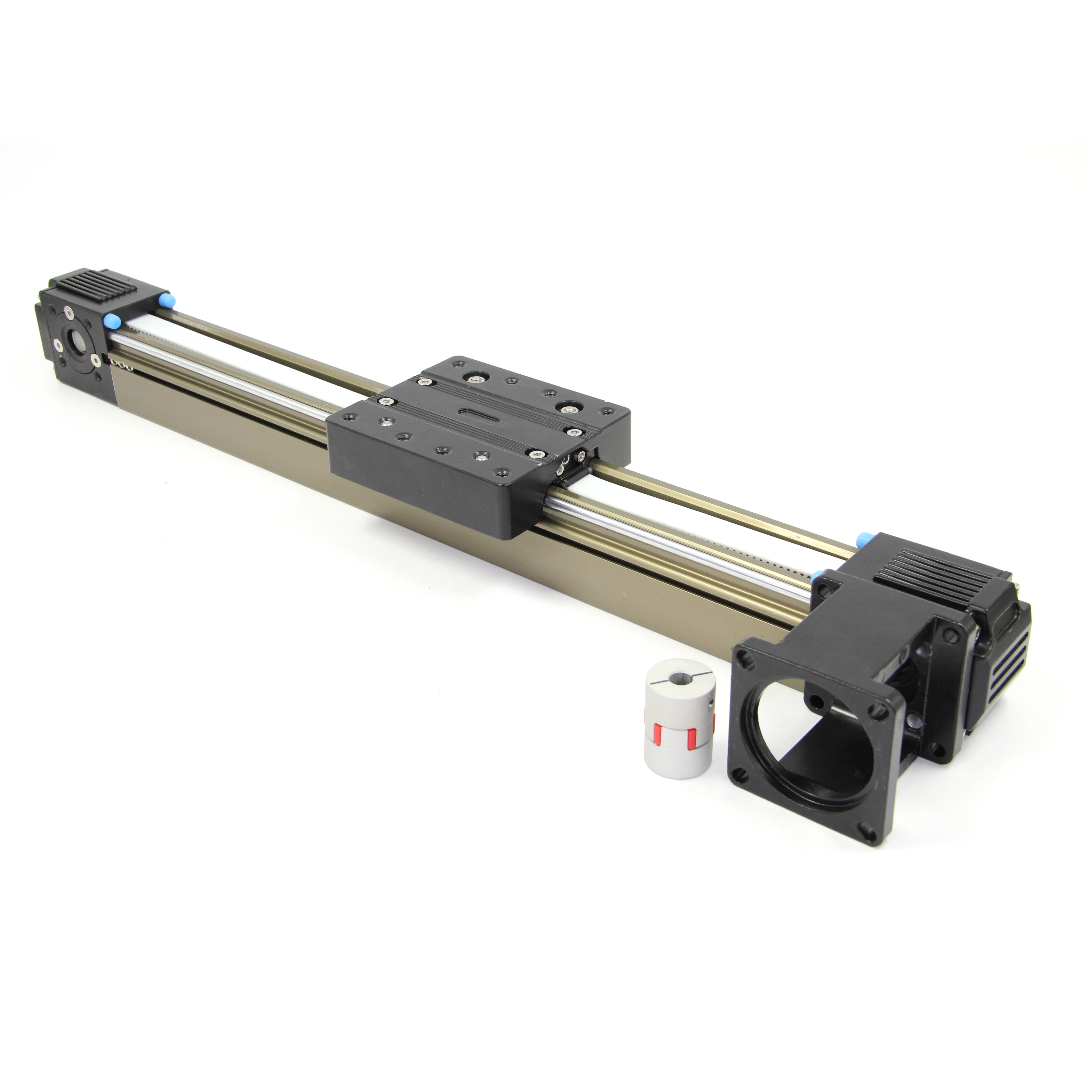

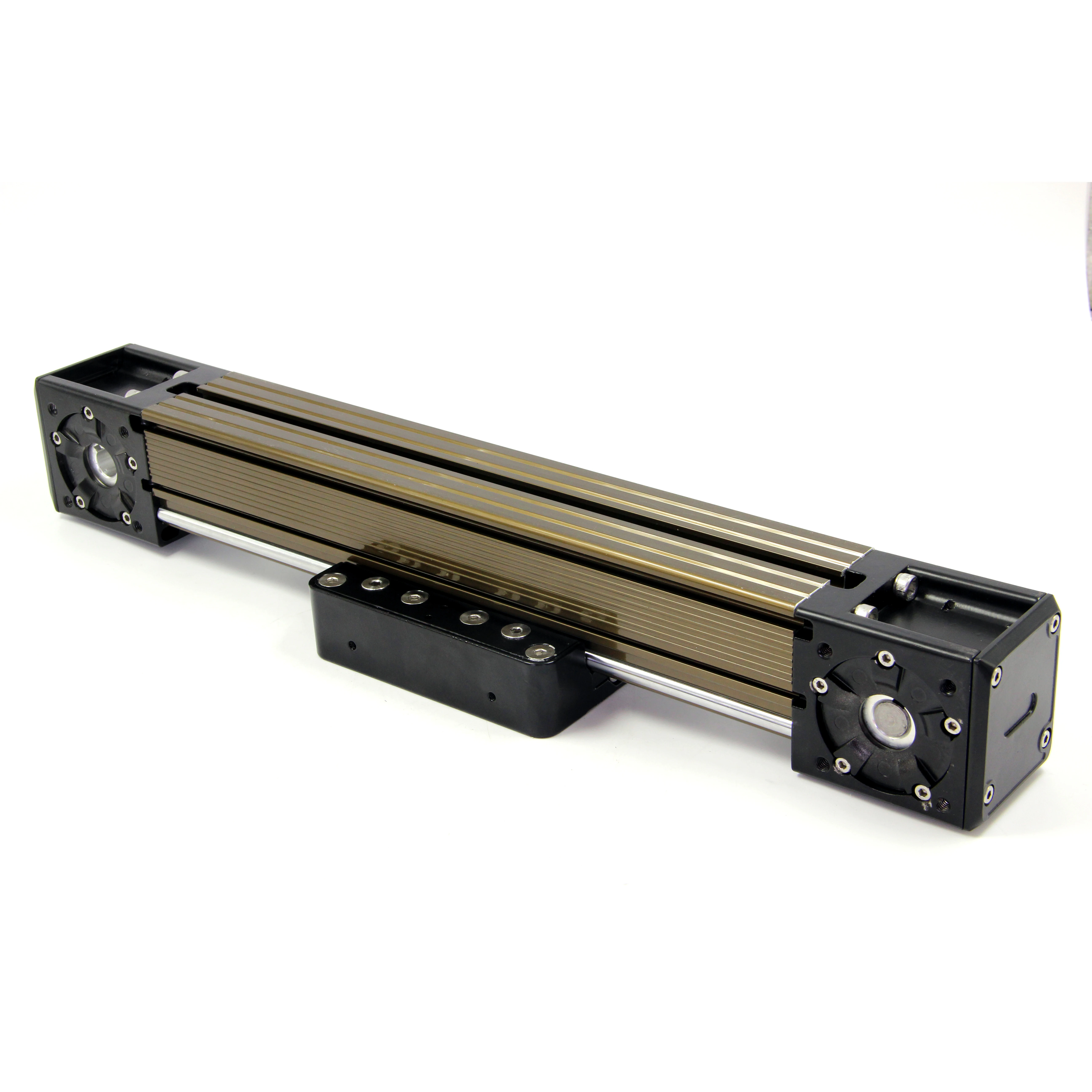

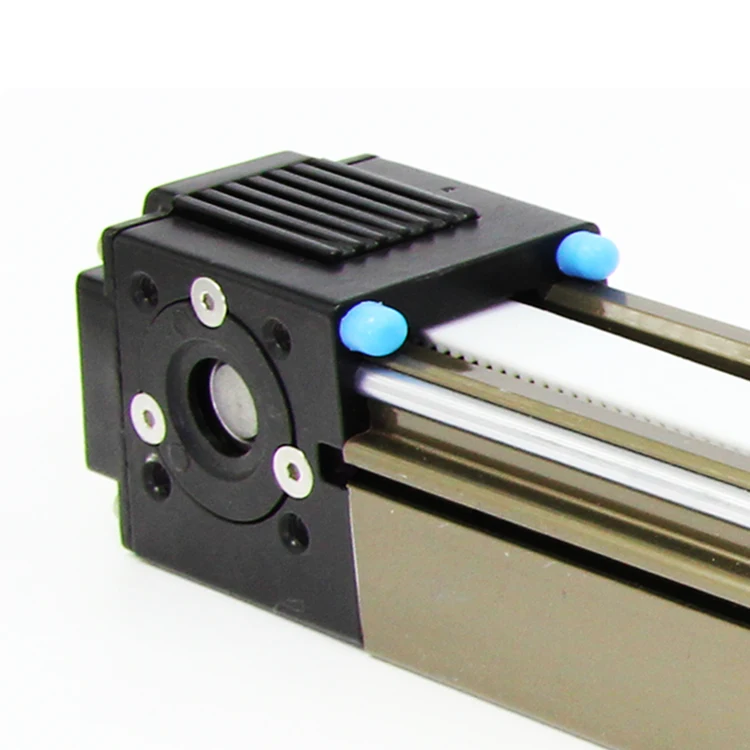

DS60 100 to 1000mm travel length more economic Belt Driven linear guide rail for cutting printing drilling stage

Share on:


Price:$183.00 - $188.00
Price in USD:Details

Quantity:


Product Overview

Description


DS60 100 to 1000mm travel length more economic Belt Driven  linear guide rail  for cutting printing drilling stage



Specifications

DS60M125C belt driven guide rail series, rail profiles 60 mm wide, motor moving one revolution of the125 mm

The synchronous belt adopts high rigidity aluminum alloy as the body.Fast running speed, up to 3m/s;With large effective stroke, it can be assembled freely and receive non-standard customization.High grade mechanical efficiency;Low friction coefficient, low noise, less maintenance.Sealing design, automatic painting machine, welding machine equipment commonly used.

Prices within 500 mm are the same,Arbitrary Customization of Travel Length



Profile

60mmx60mm (2.36inx2. 36in)Velocity0~2000mm/s
MaterialAnodized Aluminum Housingwith a Chrome Steel GCr15Loading Capacity300N
shaftCarriage Size130*115mmLinear Travel Per Shaft Revolution  125mm
Profile Length ≤4000mmToothed BeltPU + Steel Cord
Straightness/Distortion0.1mm/300mmHTD3M,Width15mm
Positional Repeatability/M0.1mmPulley Teeth25 Teeth

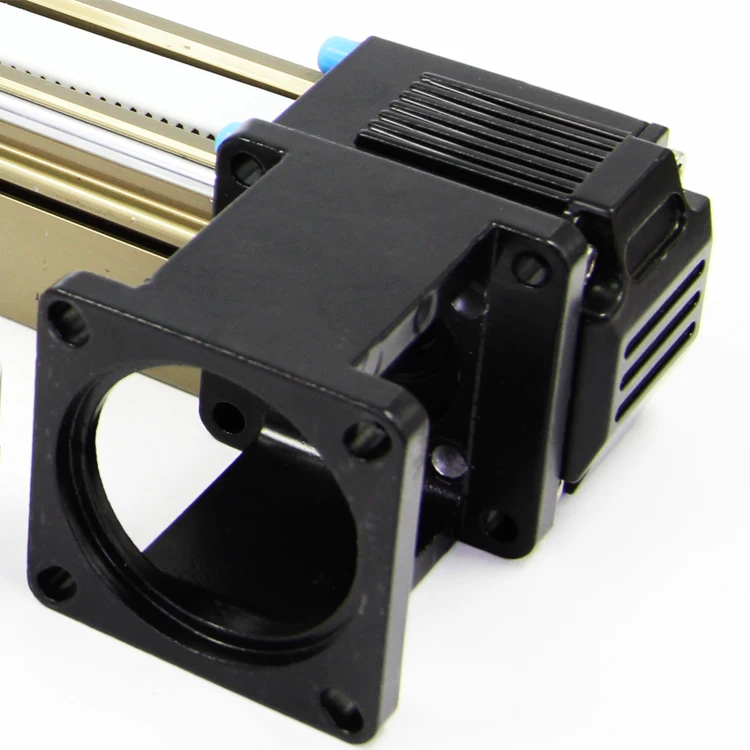

Applicable Torque0~30N.mApplicable Motor Type (Without Motor)Nema34/400W-1kW Servo Motor

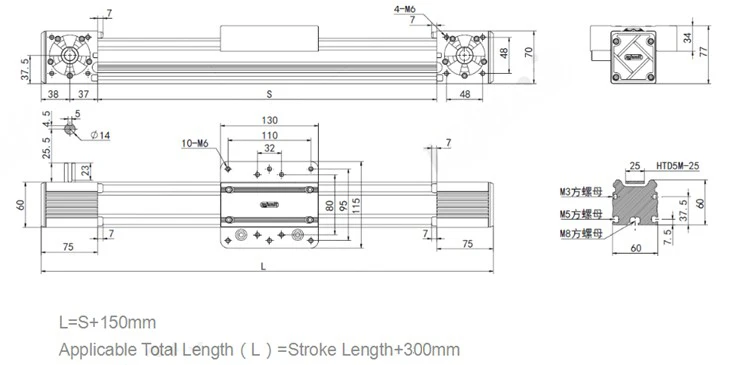

size modle.jpg
