Portable Veterinary Ultrasound Equipment Cow /Horse /Goat /Pig Pregnancy Ultrasound Scanner Echograph Machine

Product Overview

Description

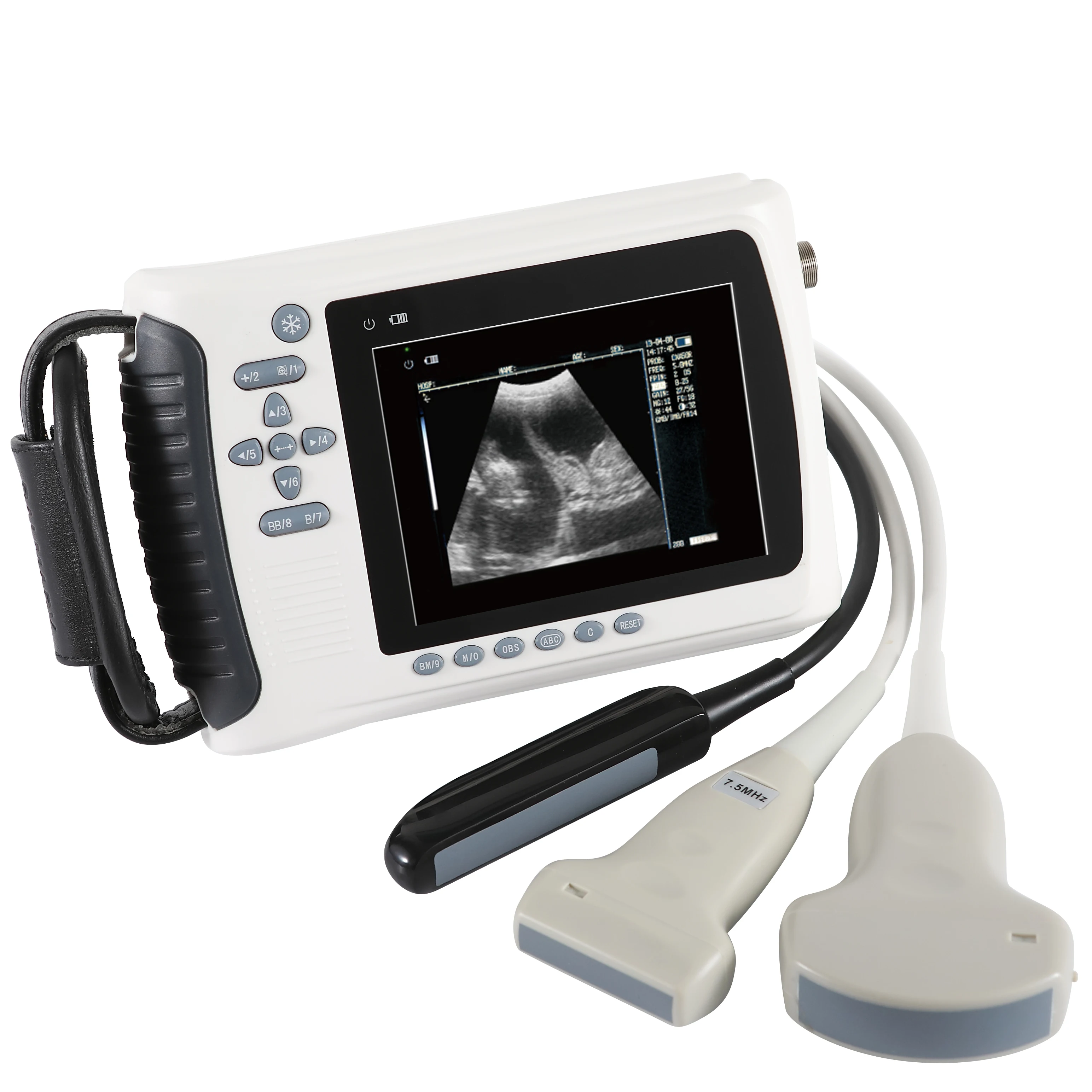

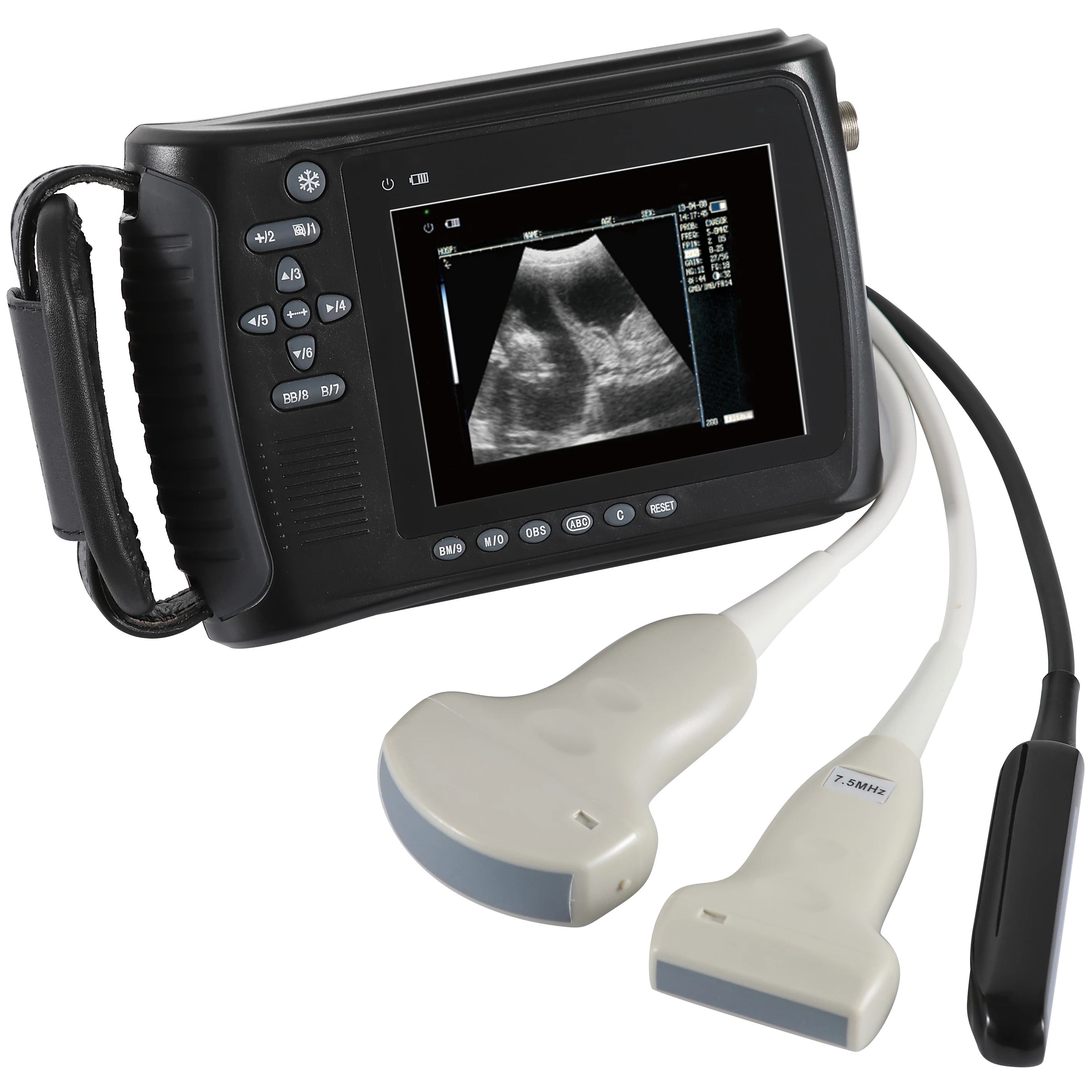

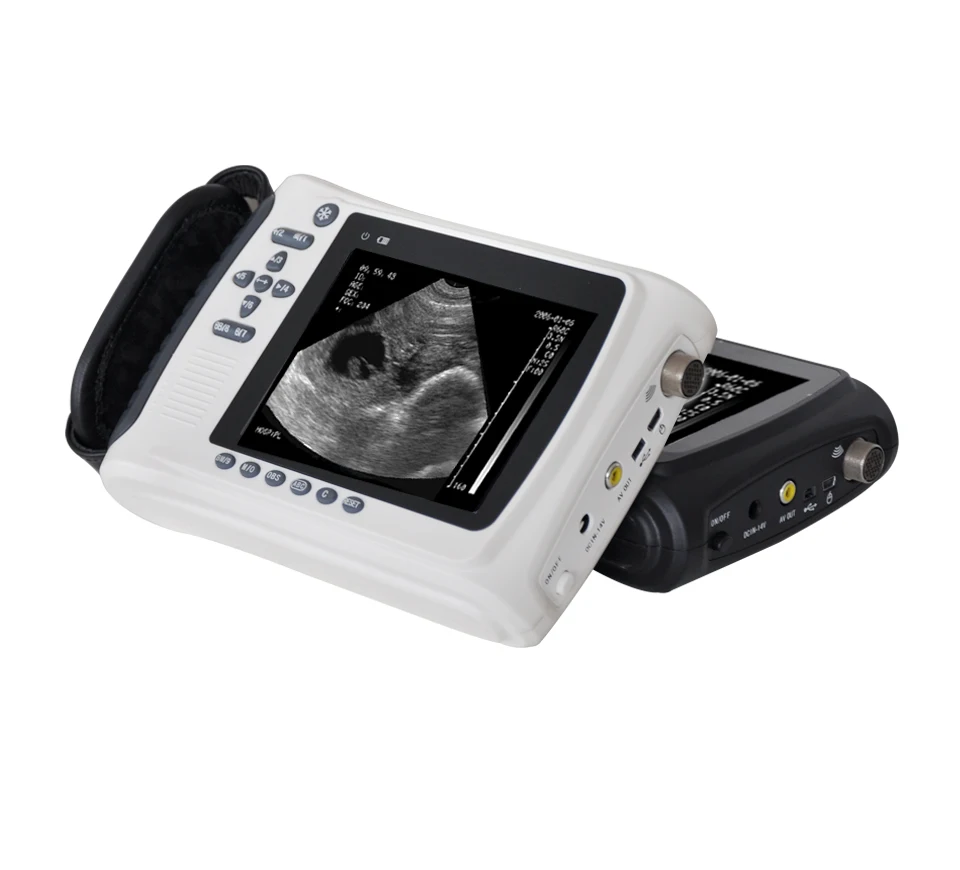

Portable Veterinary Ultrasound Equipment Cow /Horse /Goat /Pig Pregnancy Ultrasound Scanner Echograph Machine

Applications:
Ovine, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.

Features:

5" TFT-LCD, wide visual, high brightness, high contrast, image clear and exquisite.
Hand-held design, smart and light, easy to carry, convenient for detection.

OB measurement: EDD and GA for Bovine, equine, swine, alpaca, ovine, goat, canine, feline, rabbit.

128 frames permanent storage, 256 frames cine loop.

Adopted AC and DC to supply power, lithium battery capacity 2600mA which can make machine work more than 180 minutes.

Specifications:

Detect Depth(mm): ≥140

Blind zone(mm): ≤3

Monitor size: 5 inch TFT-LCD

Display mode: B, B+B, B+M, M, 4B

Image gray scale: 256

Image storage: 128

Cine loop: ≥400 frame

Scan depth: 120mm-220mm

Image flip: up/down, left/right

Focus position: Adjustable

Posture mark: 15

Image process: Histogram, color encode, gama, image smooth

Probe frequency: Adjustable ( 3 point each probe )

Frame correction: Adjustable

Measurement: distance, circumference, heart rate, EDD, area, volume, GA and etc.

Notation: date, time, name, sex, age, full screen words edit and etc.

Output report: regular

Output: USB2.0, VIDEO( PALD, NTSC)

Charging method: adapter, battery

Adapter rating: 100-240V~, 50-60Hz, 70VA

Battery: 2600mAh, continuous work: ≥3 hours

Machine dimension: 230mm(L)x120mm(W)x38mm(H)

Net weight: 700g



Standard Configuration:

- Scanner Body: 1pc
- Li-ion Battery: 1pc
- 3.5MHz Convex Probe: 1pc

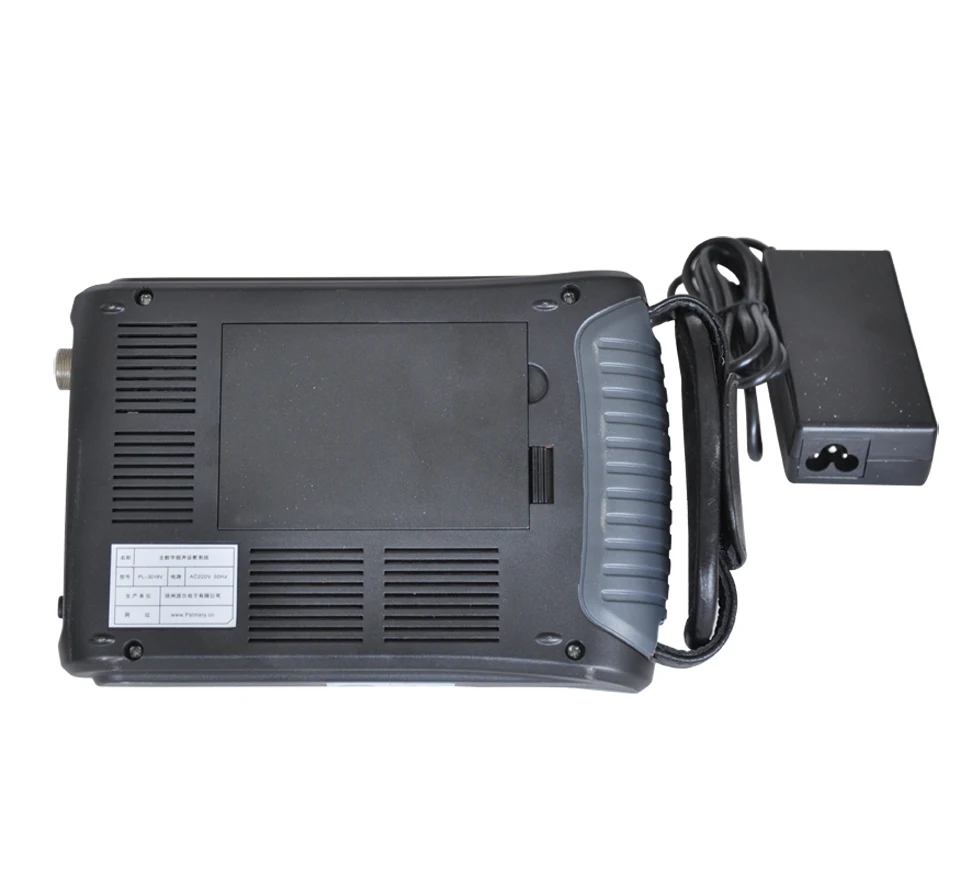

- Charger with a Set of Wires: 1set

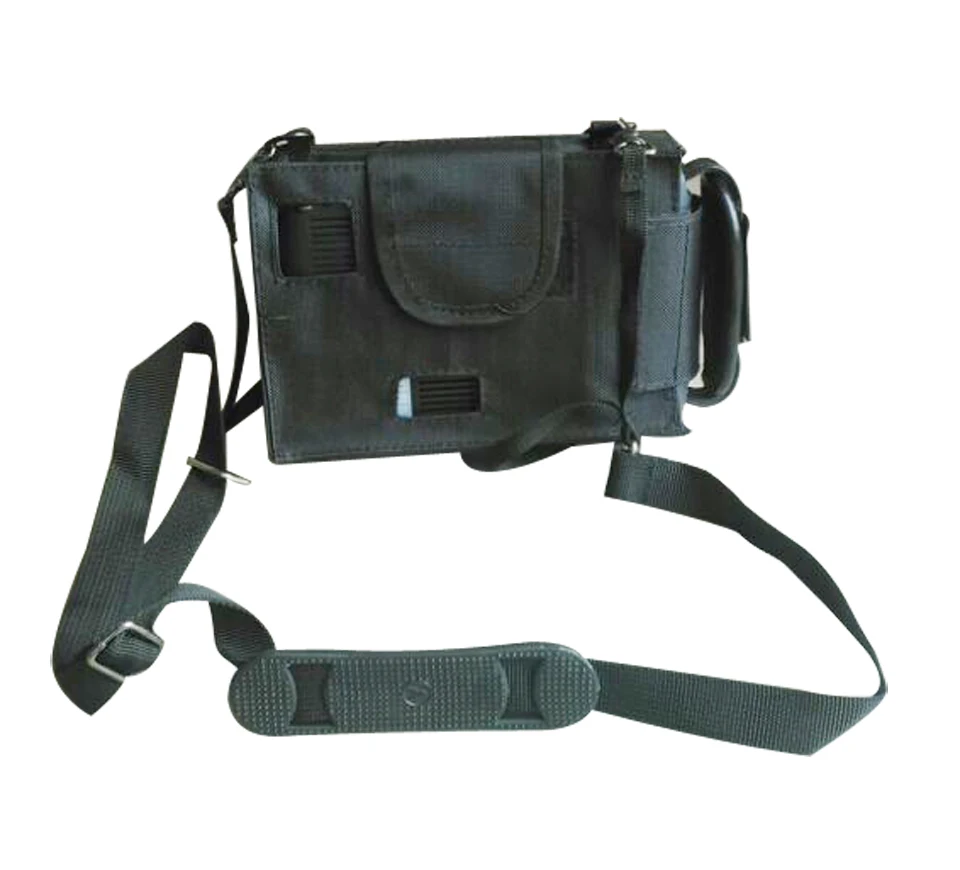

- Wrap Bag: 1pc

- CD: 1pc

- Bottle of USG gel: 1pc

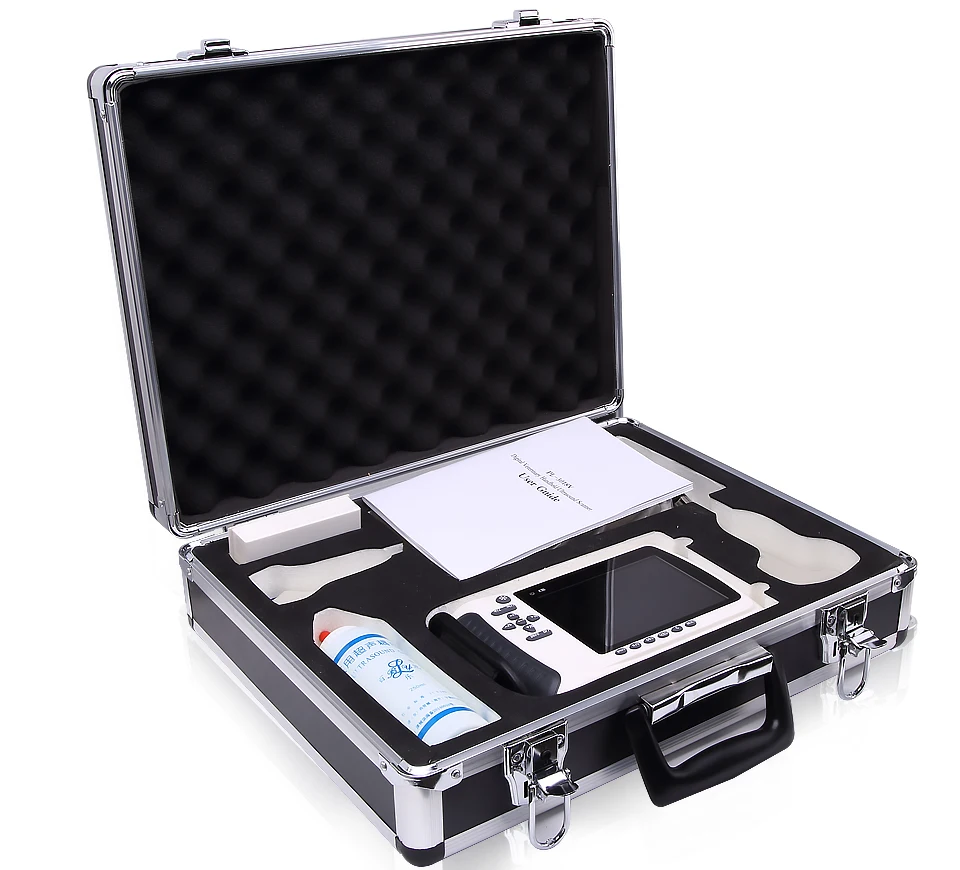

- Transportation Case: 1pc
- User Manual: 1pc

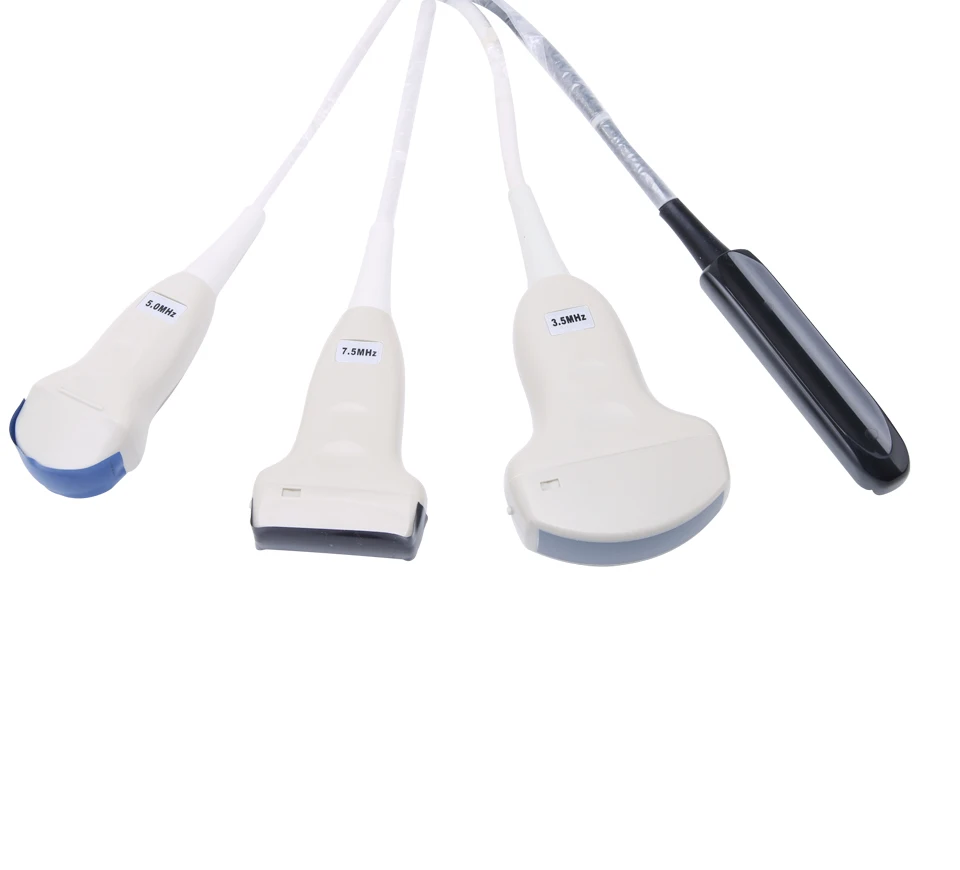

Optional:

- 5.0MHz Micro-convex Probe
- 6.5MHz Rectal Probe

- 6.5Mhz Rectal Probe with Rod
- 7.5MHz Linear Probe

- Goggle
- Li-ion Battery

- Rod of Rectal Probe
- Car Charger

- Charging Adaptation Wire ( containing power cord )
