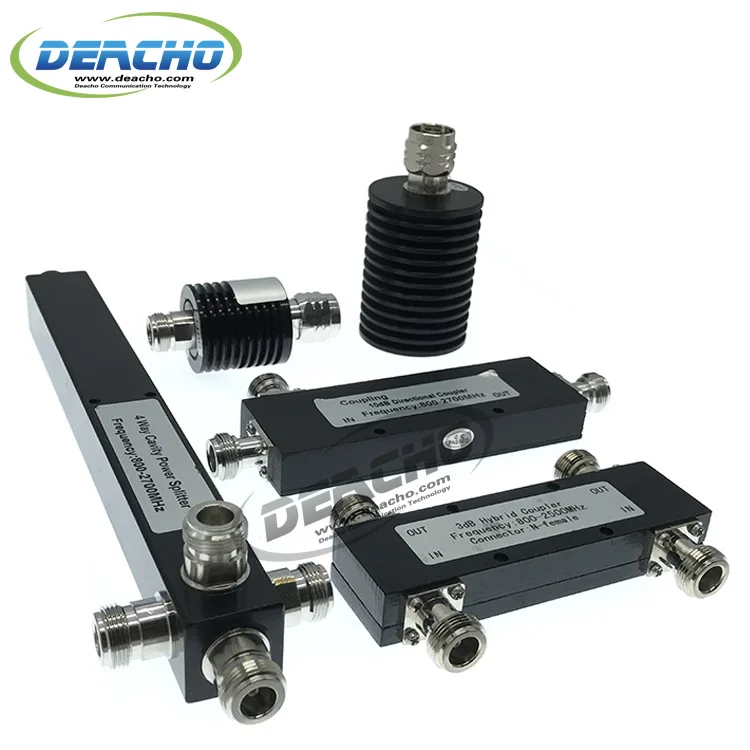

Low PIM 698-2700 RF cavity directional coupler power coupler with N female connector

Description.

RF Directional Coupler is a four-port passive devices for isolating, separating and combining signals, accepts an input RF signal and divides it into 2 output signals. They provide a simple way of sampling microwave signals and also can make accurate attenuator measurements since reflections are eliminated.


Features & Benefits
  • Ultra wide-band, multi-section design
  • Minimal RF Insertion Loss
  • Rugged, high Reliability
  • Low Passive Intermodulation (PIM3)
  • Cavity type, can meet High power range.

         _____________________________________   TECHNICAL SPECIFICATIONS   ______________________________________

\t
Model No.
\t
DC-F1NF-5
\t
DC-F1NF-6
\t
DC-F1NF-7
\t
DC-F1NF-10
\t
DC-F1NF-15
\t
DC-F1NF-20
\t
DC-F1NF-30
\t
DC-F1NF-40
\t
Frequency
\t
698-2700 (MHz)
\t
Insertion Loss
\t
≦2.0
\t
≦1.75
\t
≦1.45
\t
≦0.8
\t
≦0.45
\t
≦0.4
\t
≦0.35
\t
≦0.30
\t
Coupling
\t
5
\t
6
\t
7
\t
10
\t
15
\t
20
\t
30
\t
40
\t
Accuracy
\t
±0.8
\t
±0.8
\t
±0.8
\t
±1.0
\t
±1.0
\t
±1.2
\t
±1.5
\t
±2.0
\t
Isolation (dB)
\t
≧25
\t
≧26
\t
≧27
\t
≧28
\t
≧32
\t
≧35
\t
≧45
\t
≧55
\t
VSWR
\t
≦1.25:1
\t
Power
\t
200W
\t
Impedance
\t
50 Ohm
\t
Connector
\t
N-Female
\t
Color
\t
Black-plated
\t
Temperature
\t
-40~+75 ℃
\t
Application
\t
Indoor (IP 60)
