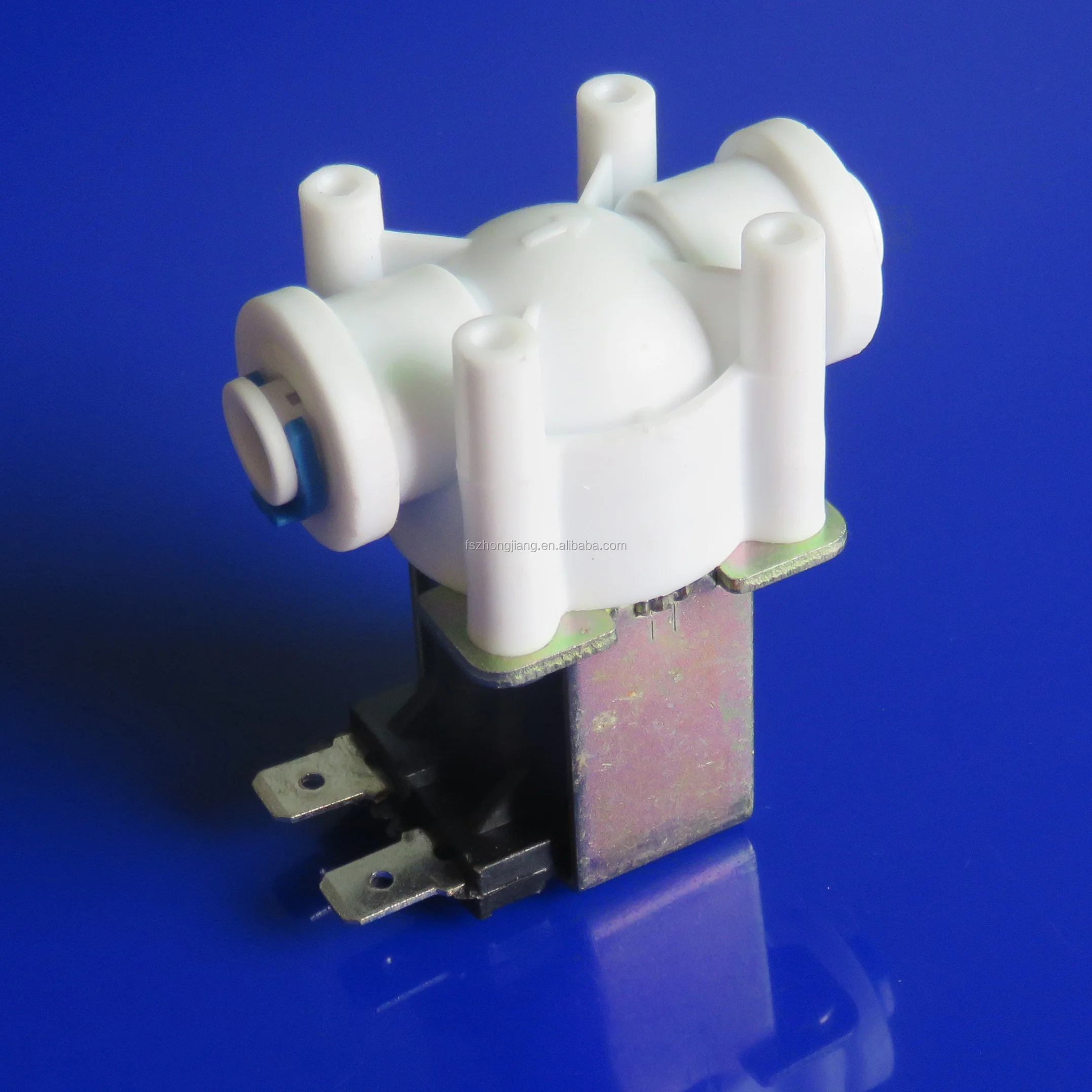

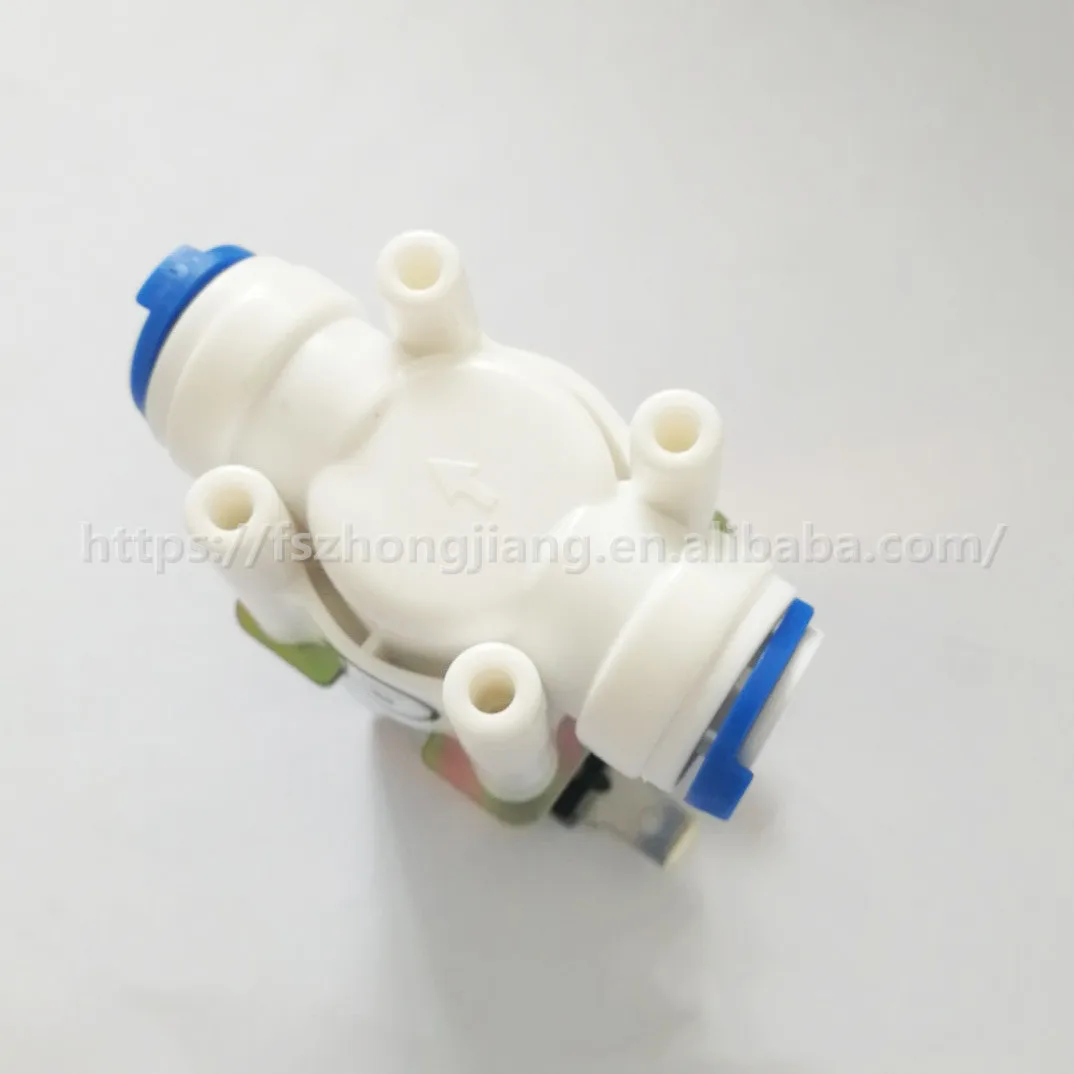

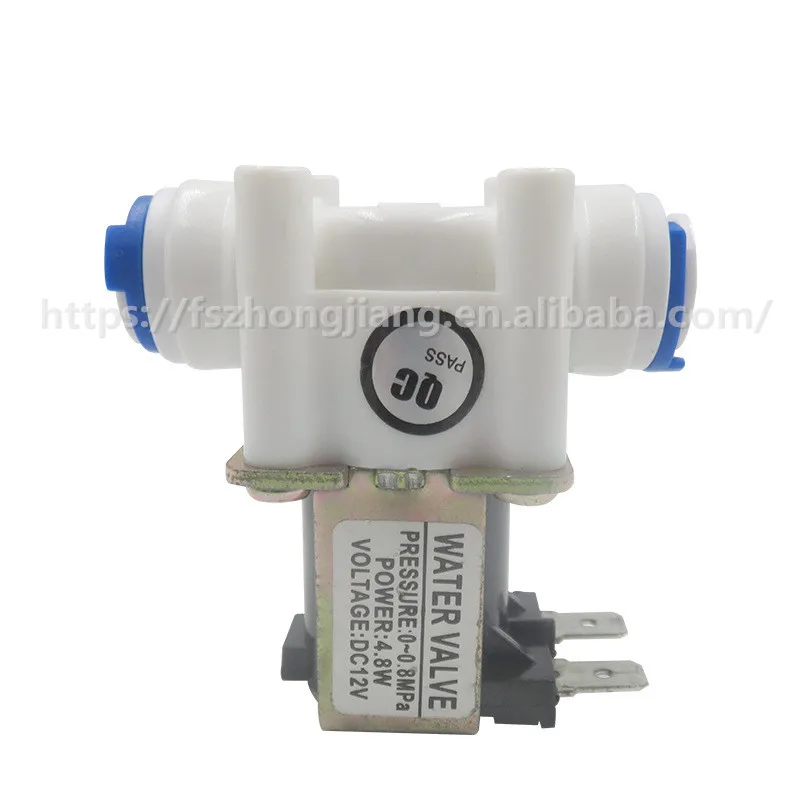

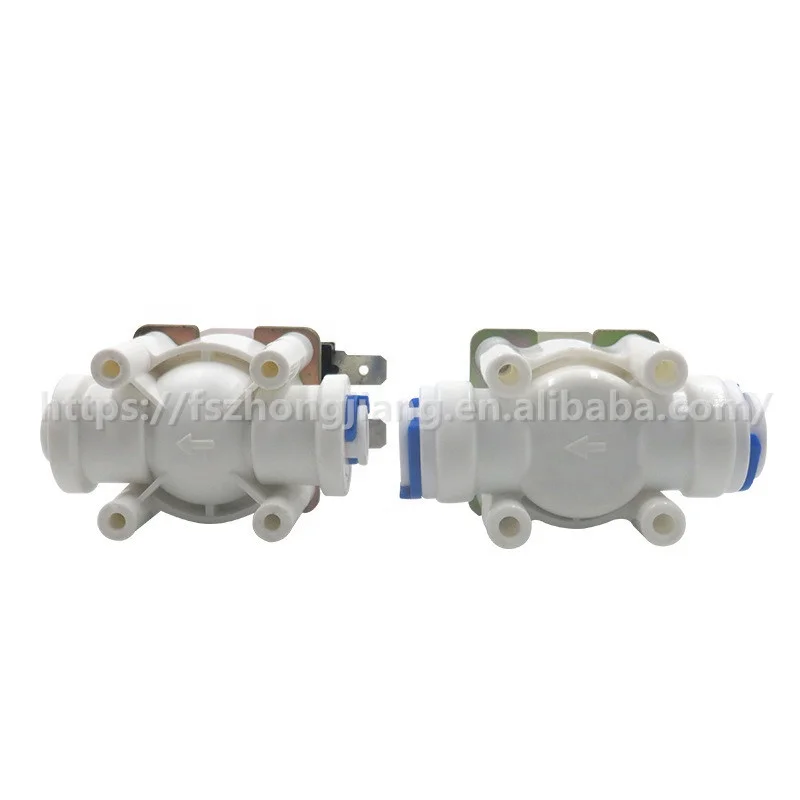

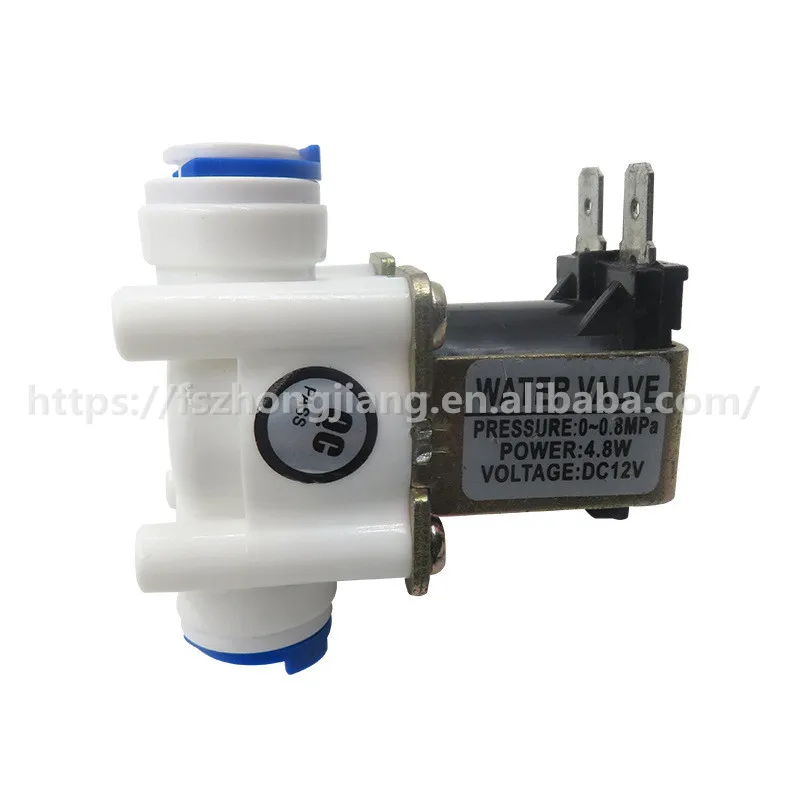

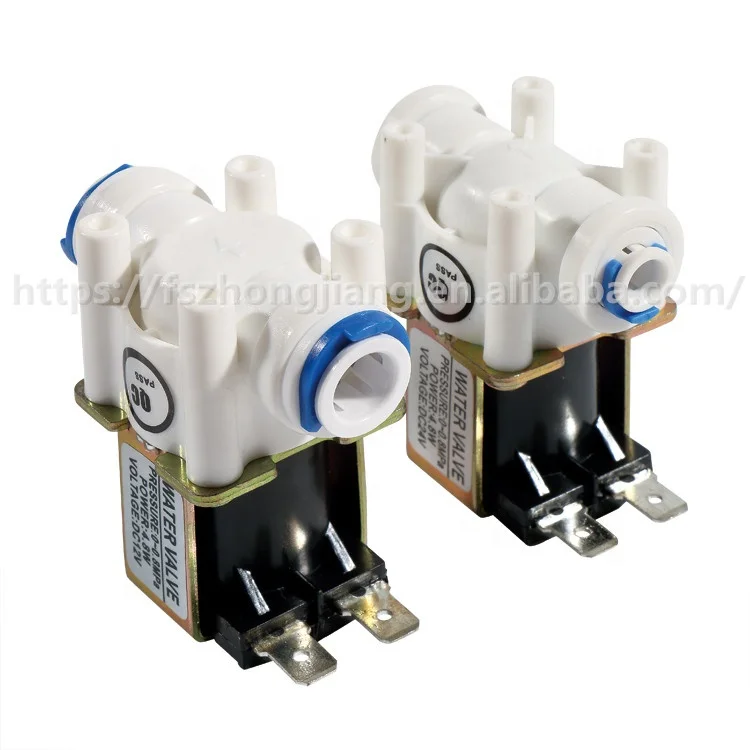

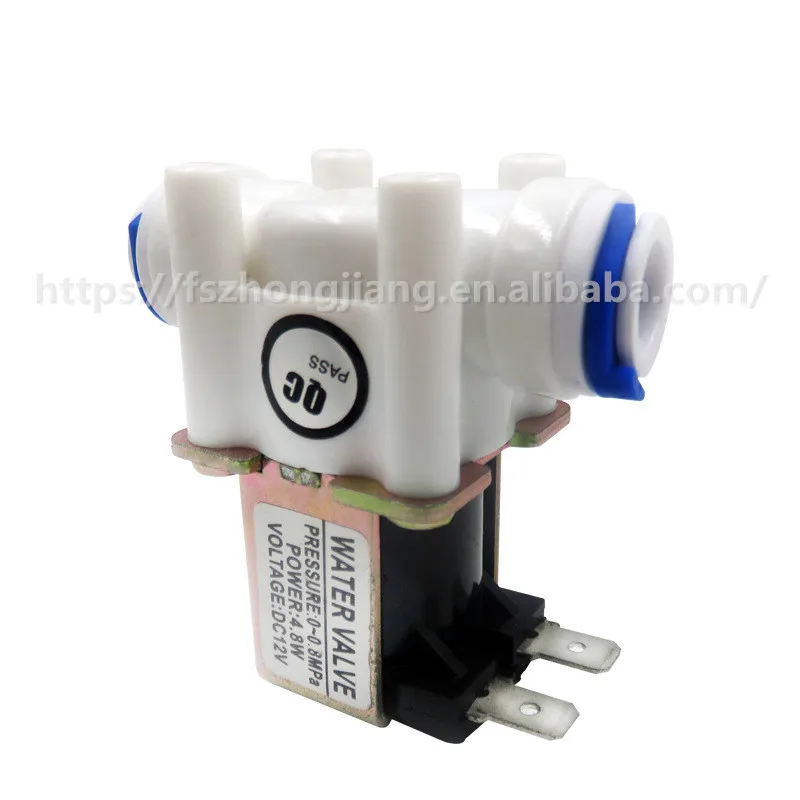

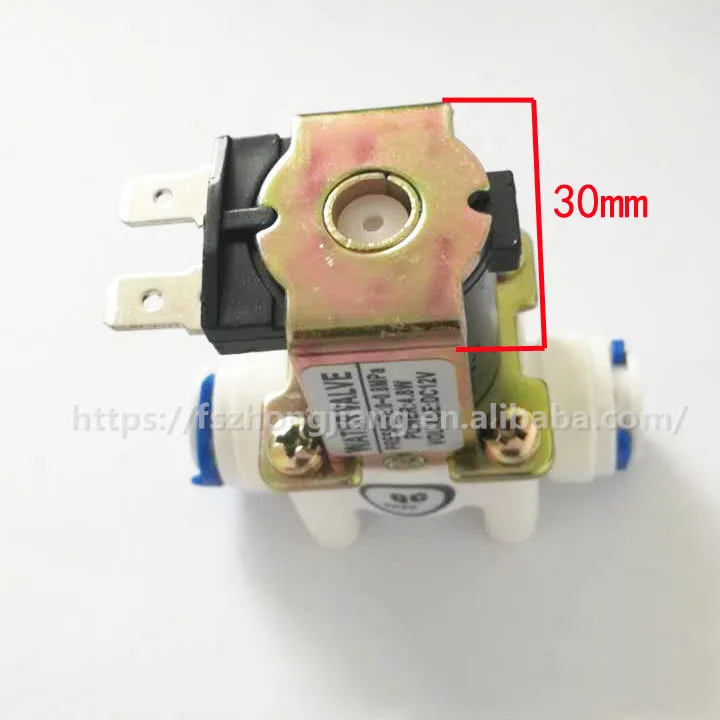

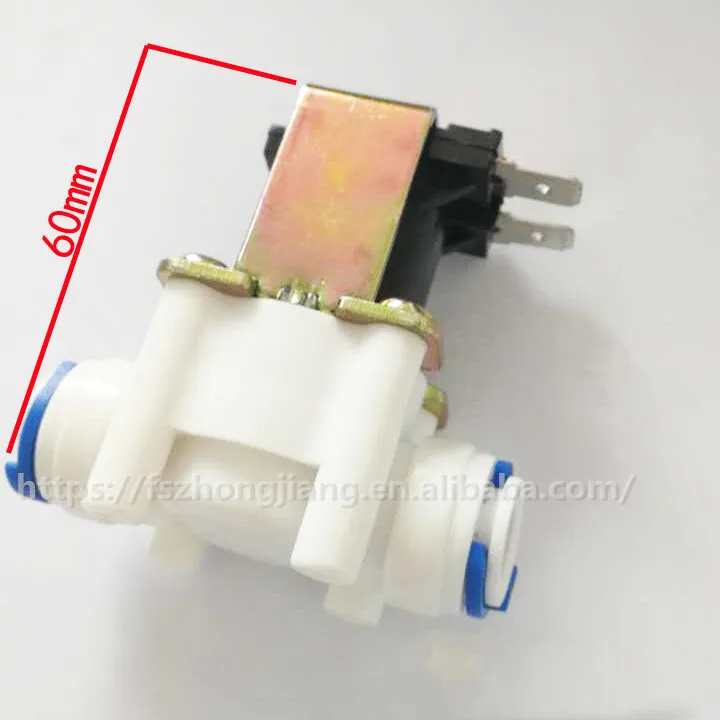

SEA ZJFPDJ 07 Plastic Solenoid Valve DC12V Normal Closed 3/8 Hose Pipe Quick Connection RO Water Dispenser Inlet Valve

Product Overview

Description

SEA ZJFPDJ-07 Plastic Solenoid Valve DC12V  Normal Closed 3/8 Hose Pipe Quick Connection RO Water Dispenser Inlet Valve



Application : Water control switch valve



Main Technical Parameter

∗ The operating environment is not more than 2500 meters above sea level;

∗ Medium Temperature: 0~100℃ : Degree Celsius (Nitrite Rubber O℃~+60℃ ; Silicone Rubber O℃~+100℃)

∗ Environment temperature: +1℃~+45℃; Water temperature: 0℃~ +60℃; leve Storage and transportation temperature: -30℃~ +60℃

∗ Applicable Medium: Water , Gas , Oil

∗ Protection level IP00; Relative humidity is <95%



Operating Parameter

A.    Rated Operating Voltage

Direct Current: DC6V,DC9V,DC12V,DC24V;

Alternating current:AC6V,AC9V,AC12V,AC24V,AC36V,AC110V,AC220V…;

Power Level:4W,5W,6W,7W,8W…;

B.    Operating Current

C.    Operating Pressure: 0.02-0.8MPa = 0.2-8KG; Withstand static pressure no less than 2.0MPa.

No.	Rated Voltage(v)	Rated Current(A)	DC Resistance(20℃)(Ω)	No.	Rated Voltage(v)	Rated Current(A)	DC Resistance(20℃)(Ω)
	Rated Power(w)				Rated Power(w)
1	DC12V 5W	0.42A	27.7+0.6	2	AC12V 5W	0.43A	15.5+0.5
3	DC24V 4.5W	0.19A	119+2.4	4	AC220V 4.5W	0.02A	4.6+0.2

D.    Flow Range / Characteristic

0.02Mpa>2L/min;
0.10Mpa>10L/min;
0.30Mpa>16L/min;
0.80Mpa>28L/min

E.    Operating Mode: Normally closed inlet valve



This solenoid valve is suitable for water appliance such as pure water machine, water purifier, water dispenser, straight water dispenser, electric tea pot etc.



Product Package

1 x Solenoid Valve



Subdivision of Solenoid valve

1. Normally Open: Close the valve when it is energized.

2. Normally Close: Open the valve when it is energized.

3. Inlet Valve: Used in an environment with water pressure of 0.02-0.8MPa.

4. Drain Valve: Used in an environment without water pressure, and It refers to the water column working pressure <400mm.

5. Installation: Parallel (180) ; Angle (90)

6. Interface connection: G1/4’’ / G1/2’’ / G3/4’’ (Thread) ; 6mm / 8mm / 10mm / 12mm (tube fast connect)

 7. Voltage: DC3V, DC6V, DC12V, DC24V, AC220V



We have variety models of solenoid valve , please feel free to contact with the sales if there any interests.

Different prices due to different pipe diameter & voltage, please feel free to contact with the sales before you placing the order.



Product Information





















1/4 fast connection inlet valve DC12V
