New automatically hot sale paper straw making machine

Product Overview

Description

Product Application

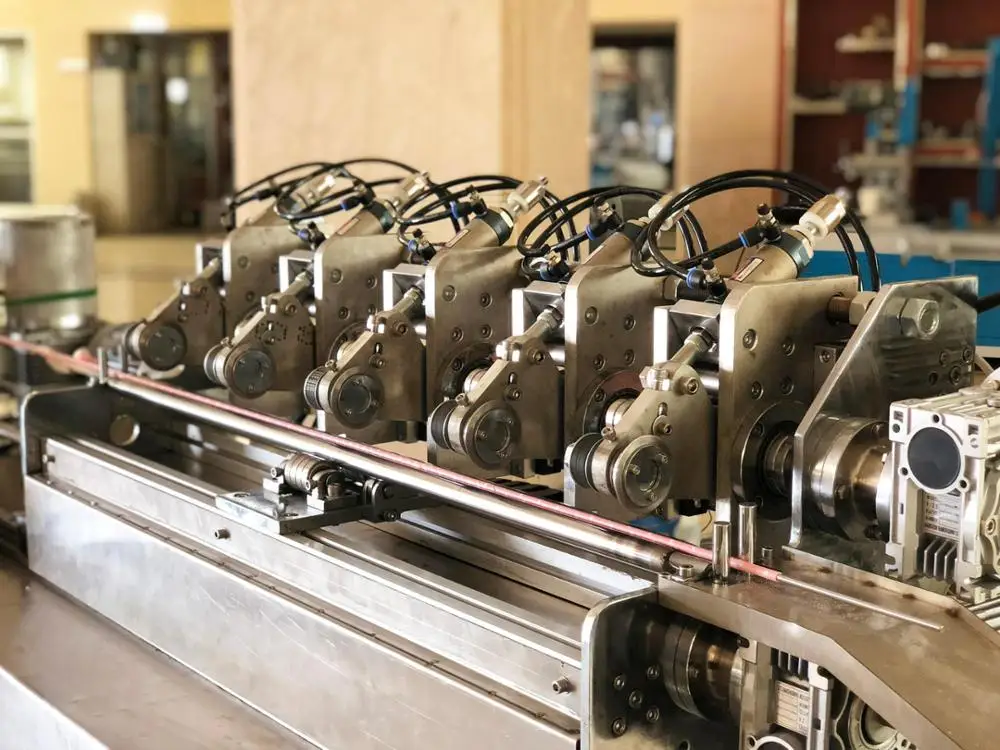

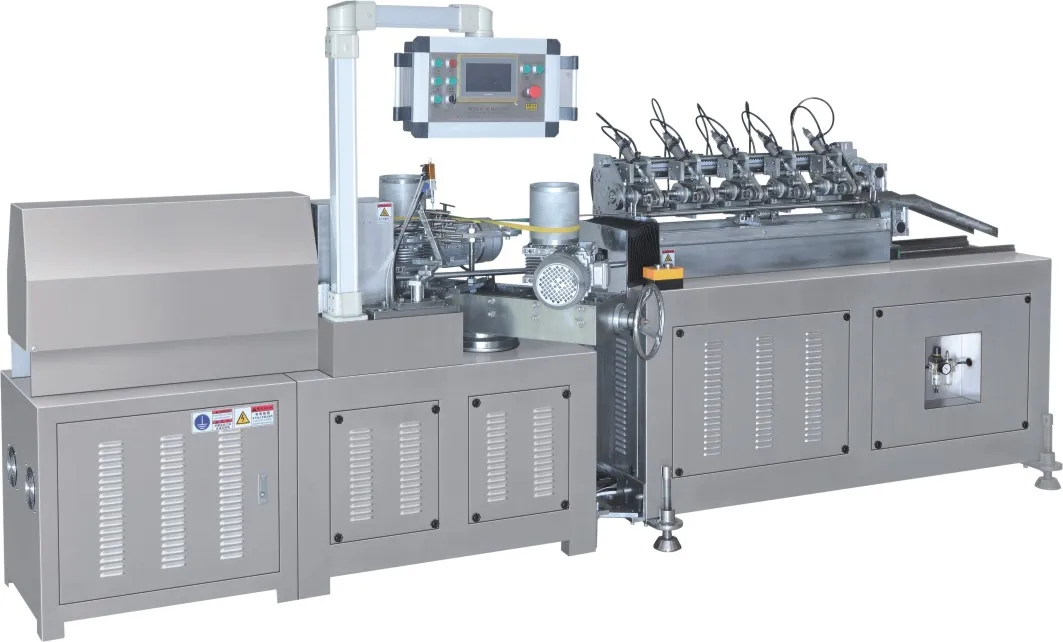

This machine, commonly known as the paper tube machine, processes paper into circular cylinders and is suitable for many applications. Can be used in the food industry, such as paper suction pipe; industrial, film paper tube; process industry, for example, paper packaging and so on.

SPECIFICATIONS FOR D230 TYPE MACHINE
	number of sheets	layers	2-6
	reel diameter	mm	5-25
	roll chickness	mm	0.3-2.5
Main performance parameters	fixed length way		photoelectric+computer length
	for the glue system		automatic glue supply
	roll speed	m/min	3-30
	number of operators	person	1
	total size	mm	3200*1200*1700
	total weight	KG	1000





Main Features

1) Photoelectric+computer length,cutting length percision

2) Low noise drive design.

3) Automatic take over,servo motor synchronous cutting,paper tube pap uniform.

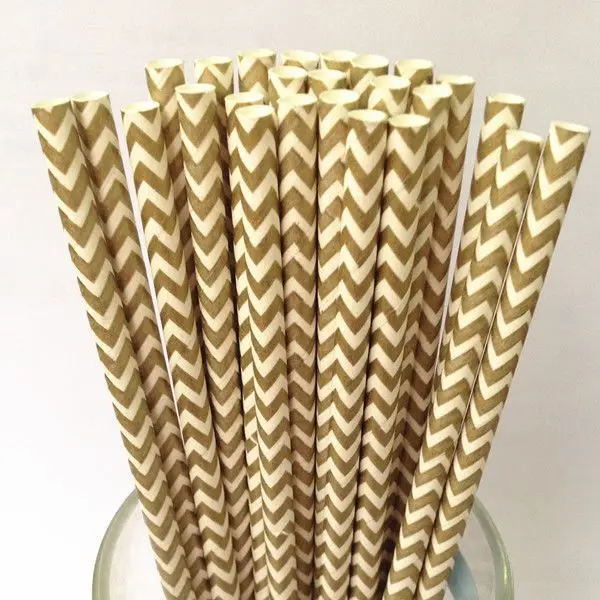

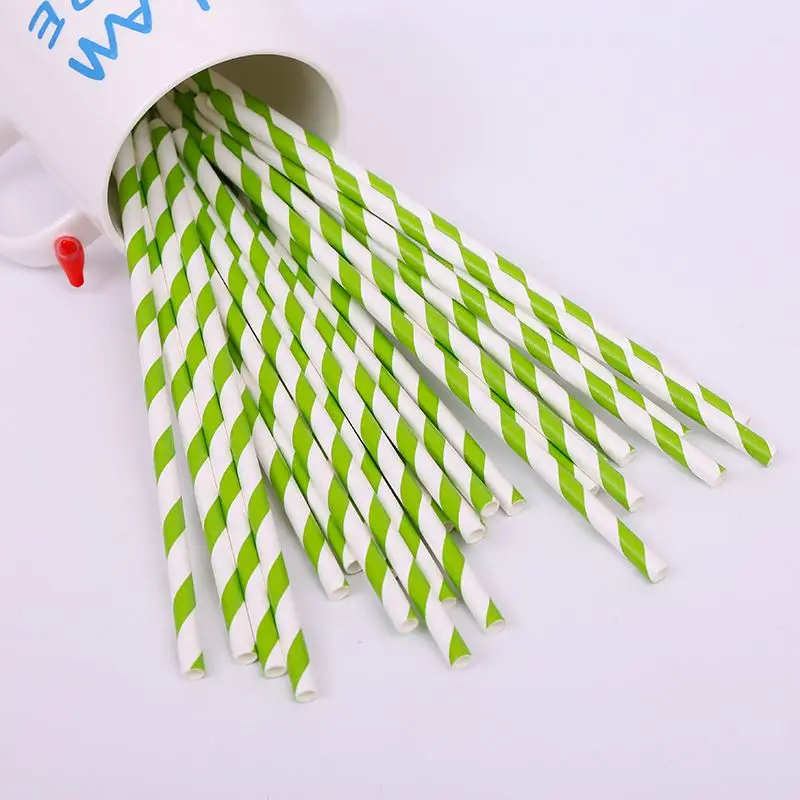

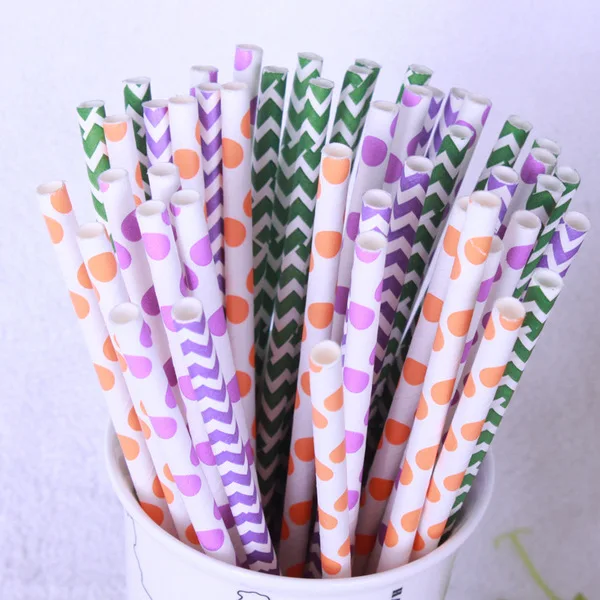

.This machine is the tiny paper tube (diameter 5-25mm)production,such as paper straw,wire tube ,ball-piont pen set,yarn tube and so on.
