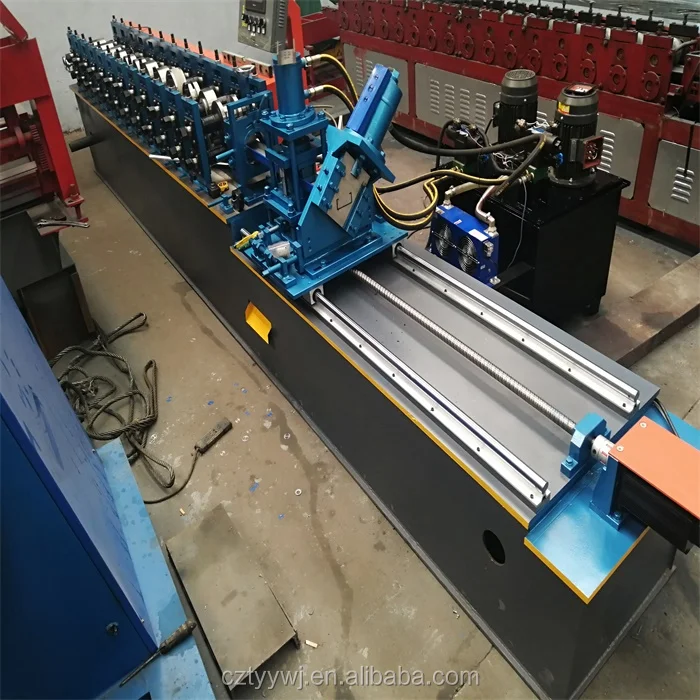

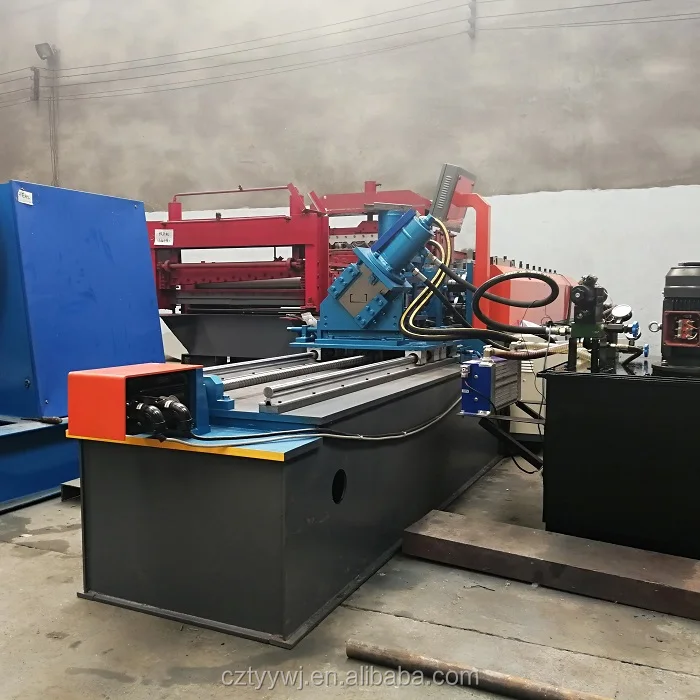

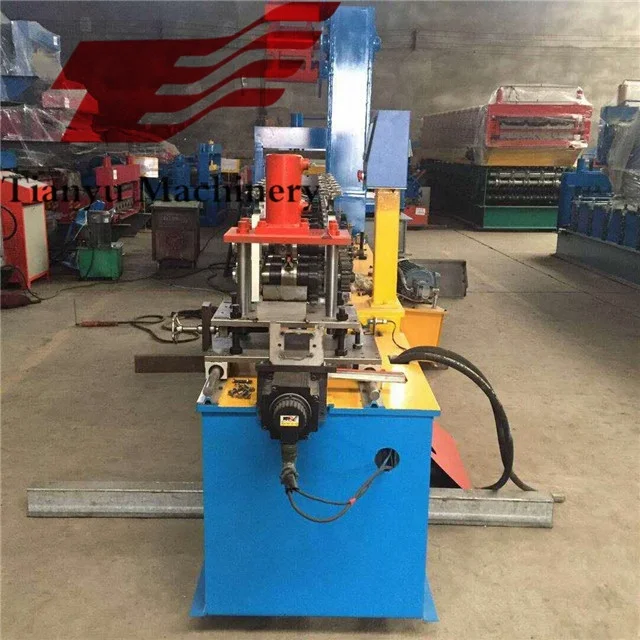

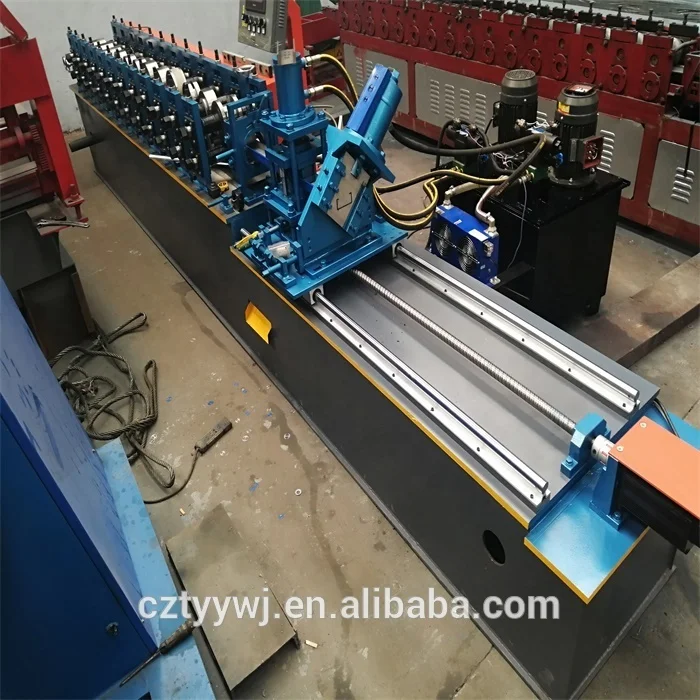

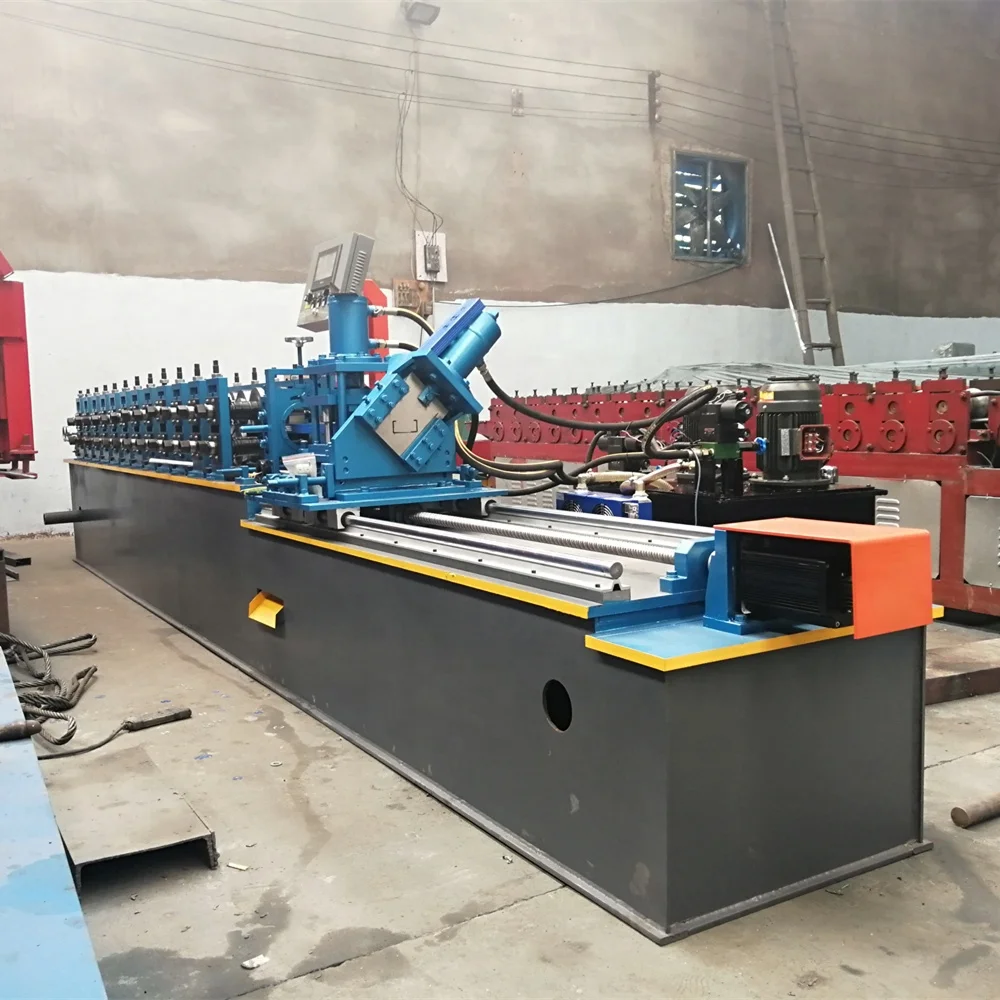

metal dry wall stud track roll forming machine
- Category: Steel Frame & Purlin Machines >>>
- Supplier: Cangzhou City Tianyu Machinery Manufacture Co. Ltd.
Share on (60840727372):
Product Overview
Description
metal dry wall stud track roll forming machine
1. specification of the roll forming machine
NO. | TYPE | SPECIFICATION | |
1 |
Raw material | Type | BI,GI,GL |
Thickness | Furring 0.3-0.6mm C-channel 0.6-1.0mm | ||
2 | Uncoiler | Operation | Manual |
Inner diameter of coil | 480-550mm | ||
Weight capacity | 3 ton | ||
3 | Forming machine | Usual speed | 25m/min |
Shafts Dia | 50mm | ||

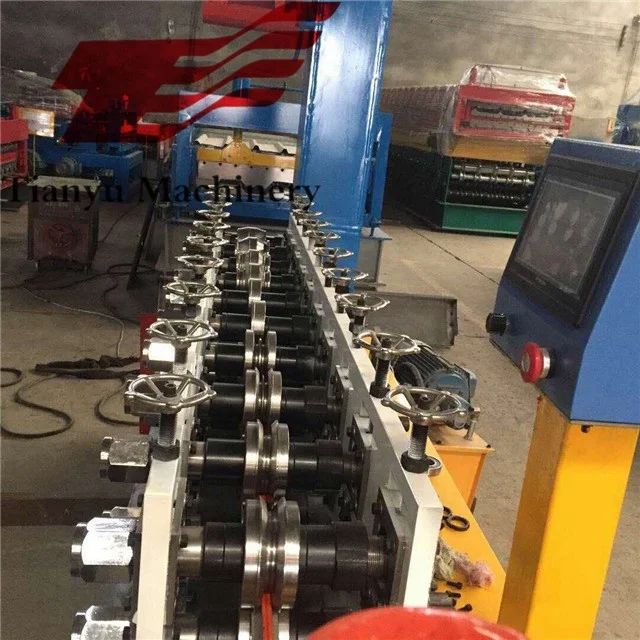

Roller station | 12 rows( 45# steel) | ||
Roller material | Cr12 | ||
Main motor | 4KW+4KW | ||
Voltage | 220V,60HZ,3phase | ||
Wall thickness | 30mm | ||
Sizes of main machine | 5500*1000*1300mm | ||

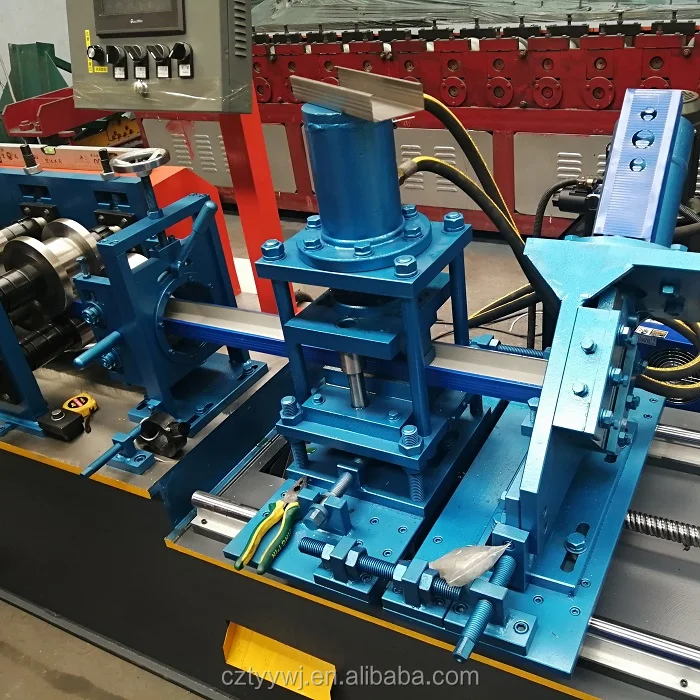

4 | Cutter | Material | CR12 |
Operation | Automatic | ||
6 | Production platform | Length | 2m |
7 | Automatic control system | PLC | Delta |
Frequency | Delta | ||
Language | Chinese,English | ||
8 | Hydraulic pump | power | 4KW |
Packaging & Shipping

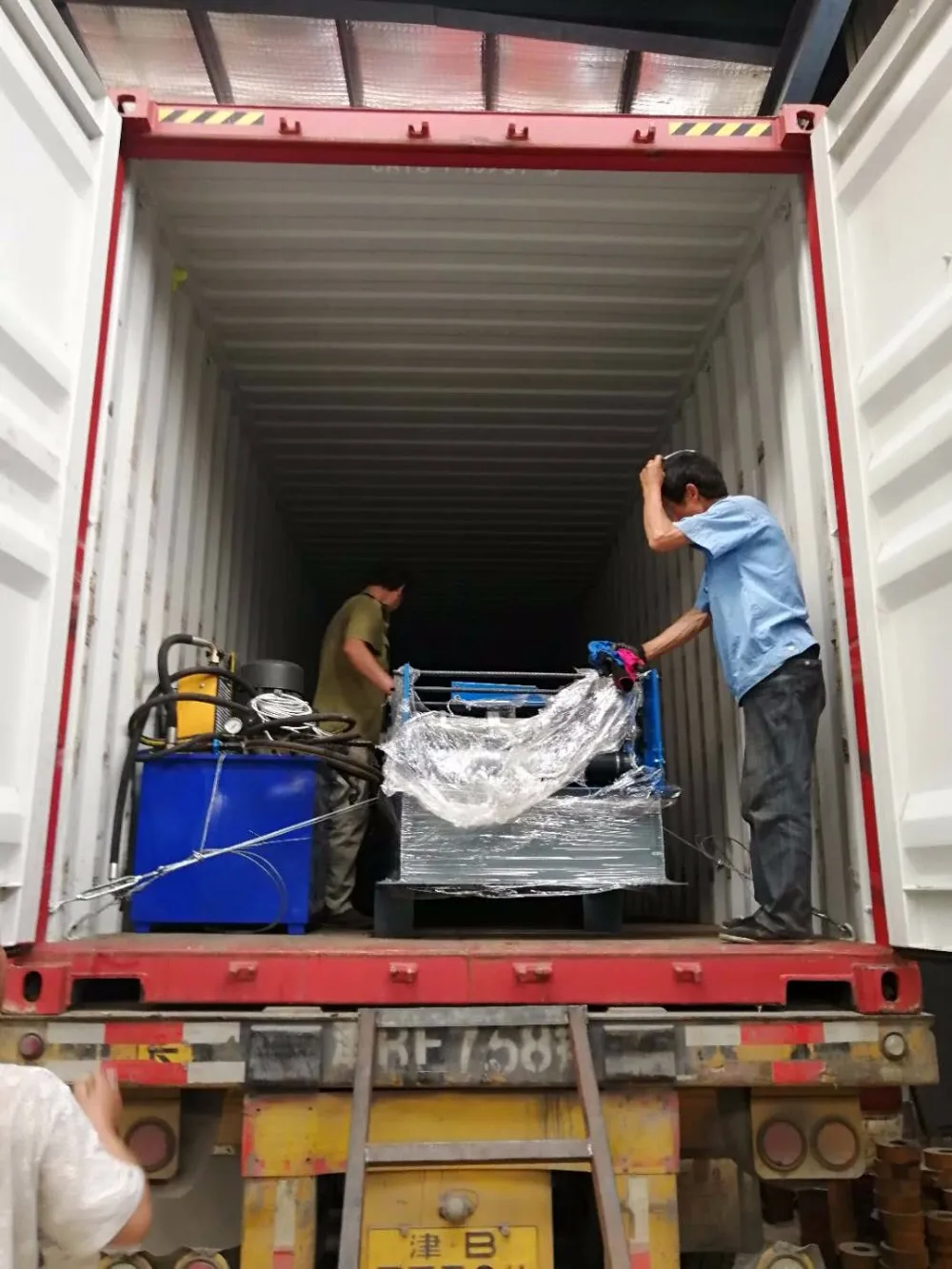

4.Packing and delivery
The machine is bare packing. Usually one machine can be put into one 20-40 feet container.
We use steel wire to fix the machine in the container.
Our Services
With the policy of client-oriented business at Tianyu Machinery Factory,We put highly emphasis on not only outstanding quality but also excellent and efficient after sales
service with specialfocus on a wide range of roofing roll forming machines.In addition to
installation,operation training, regular maintenance and spear parts provided, we will keep
offering our best service even overdue the period of guarantee. Always we sincerely welcome
suggestions and feedbacks from our customers regardless of good or even negative on comments
so as to keep on improving and innovating our production line.Sticking to the principle to
provide all clients with an excellent after sales service, we satisfy customers' needs in
compliance their requirements at all costs. Over the past 18 years, therefore, we have grown
our business on roll formers gradually, which we believe firmly it's just the proven of our good
performance on QC, after sales service and machines manufacturing.The more you learn about
us, the more you will understand that we are reliable and trustworthy. Just give a try to send
your inquiry to us and you'll see!
5.Payment terms
T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery )
6.Our guest for roll forming machine
Welcome to Botou City Tianyu Roll Forming Machinery Equipment Factory!
| Main Markets: | South Asia |
| Total Annual Sales Volume: | US$1 Million - US$2.5 Million |
| Export Percentage: | 31% - 40% |
Company Information
ABOUT US
| Factory Size (Sq.meters): | 10,000-30,000 square meters |
| Factory Location: | (West of the 104 National Road Bodong Fuzhuang Development Zone, Nanpi County)Fuzhuang Village, Liubali Township , Nanpi County, Cangzhou City, Hebei Province, China |
| Number of Production Lines: | 2 |
| Number of R&D Staff: | Less than 5 People |
| Number of QC Staff: | Less than 5 People |
| Contract Manufacturing: | OEM Service Offered |
We are the manufacturers all kinds of roll forming machine, which can provide overseas after-sales service .
Our company has found for over 1 7 years since 1 9 9 6.

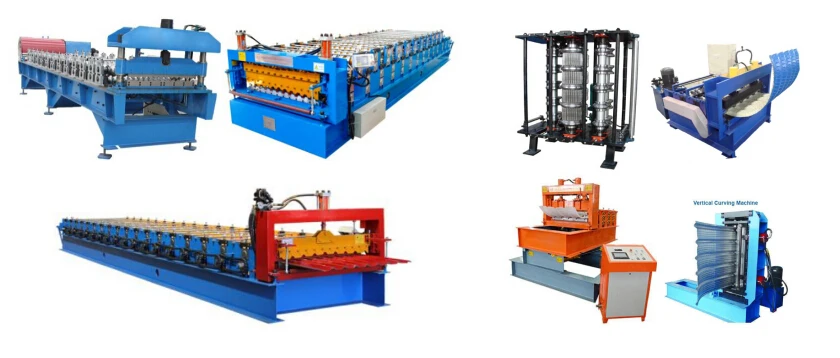

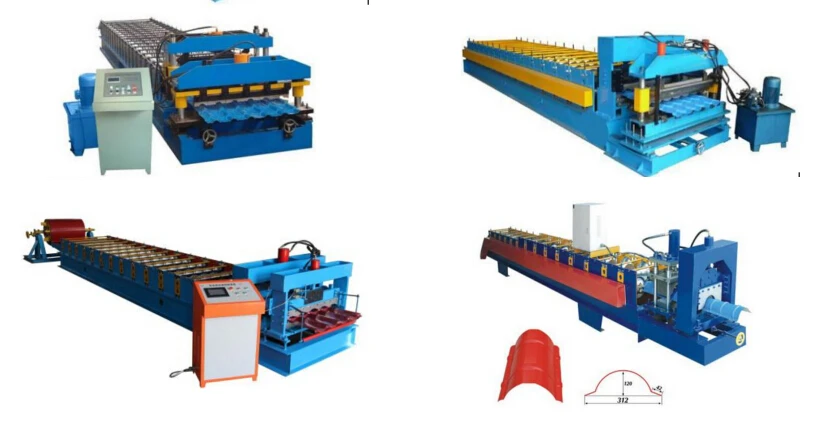

We are the professional manufacture to produce different kinds of roll forming machine
roof and wall panel roll forming machine
c/z purlin roll forming machine
sandwich panel production line
floor deck roll forming machine
light steel keel roll forming machine
container board roll forming machine

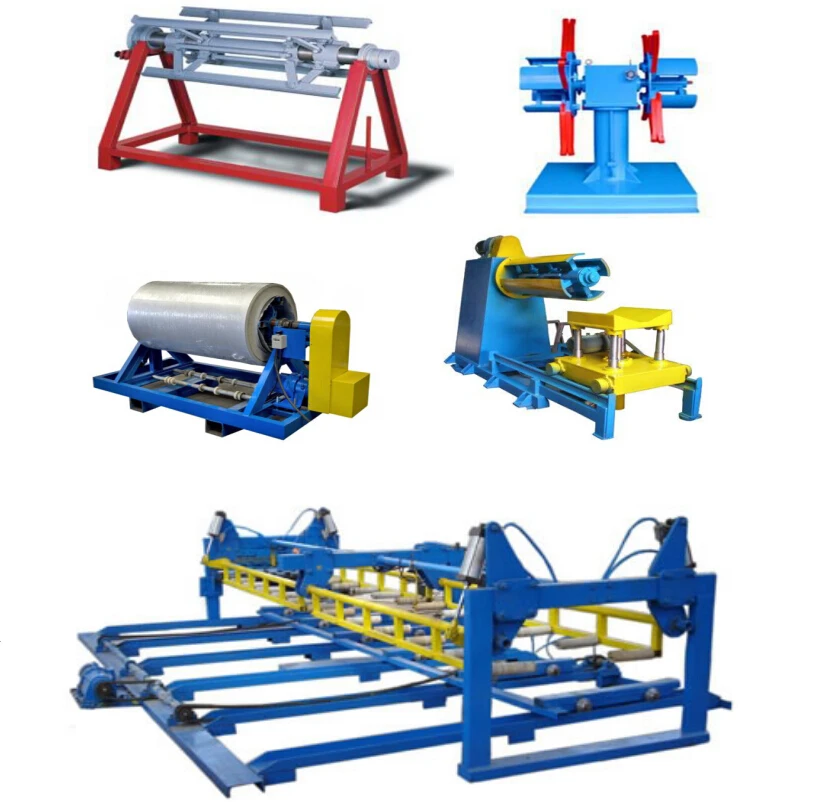

bending machine,cutting machine and automatic un-coiler
Trapezoidal steel roof panel roll forming machine for sale
All the parameters are only for reference, we can Joint-Hidden Roofing Sheet Roll Forming Machine as per your profile drawings.
We have professional team to make different kinds of roll forming machines for
our customers, from designing, processing,assembling, debugging, delivery.
We can send our technicians to customer's factory for installation,
and teach customer's workers how to use the machines.
If there is any problems happened to the machine, we will provide solution at once.
Hope we could establish win-win business relations in the soon future!
FAQ
FAQ:
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,
replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,
if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.
if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
Q:Mr.Alan,can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
Q:How many workers operate this machine to manufacture?
A:Only 1-2 worker.
Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
