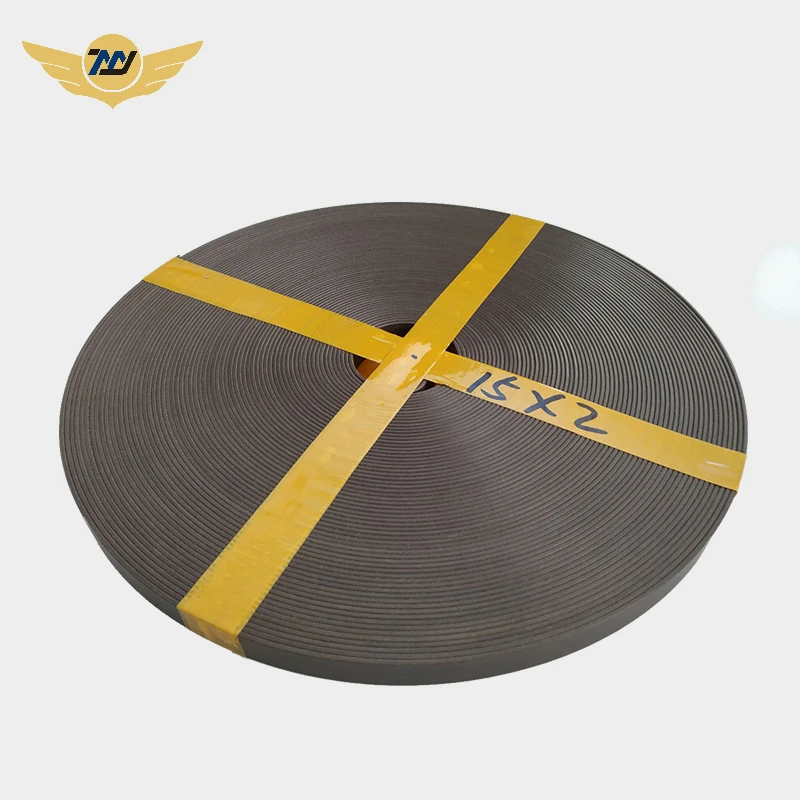

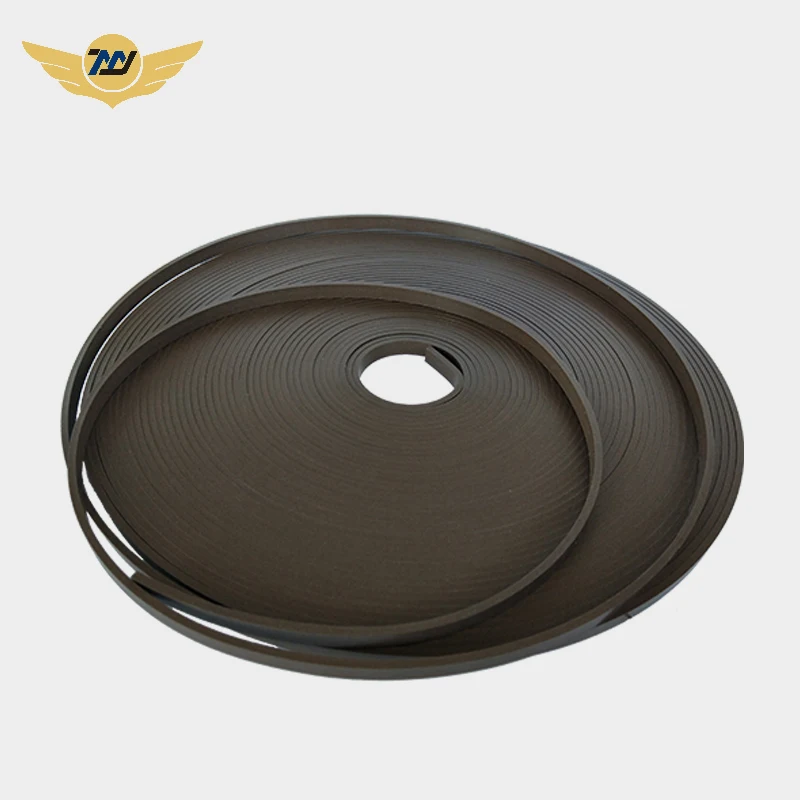

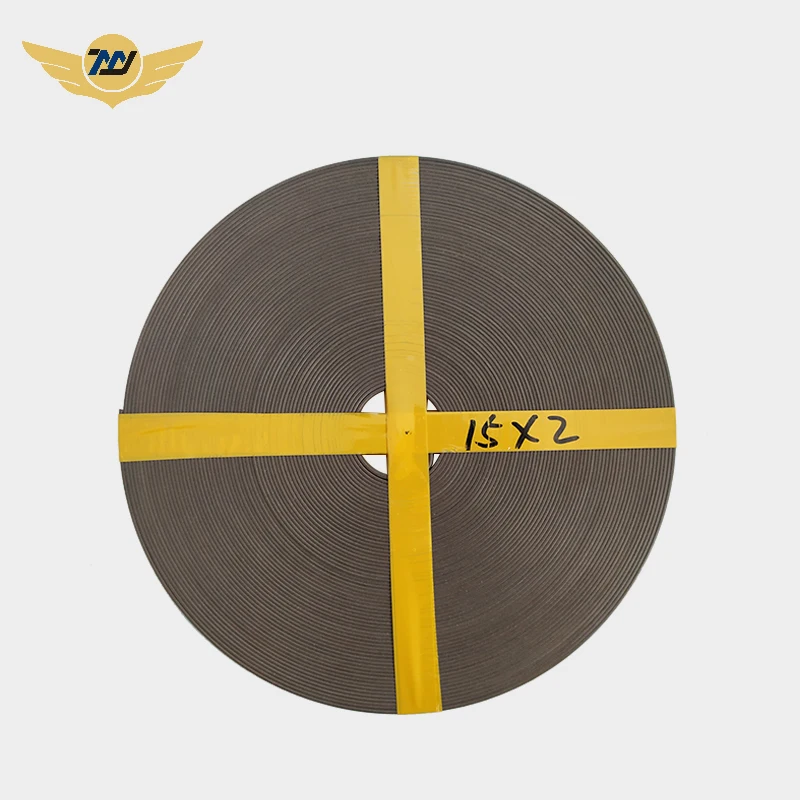

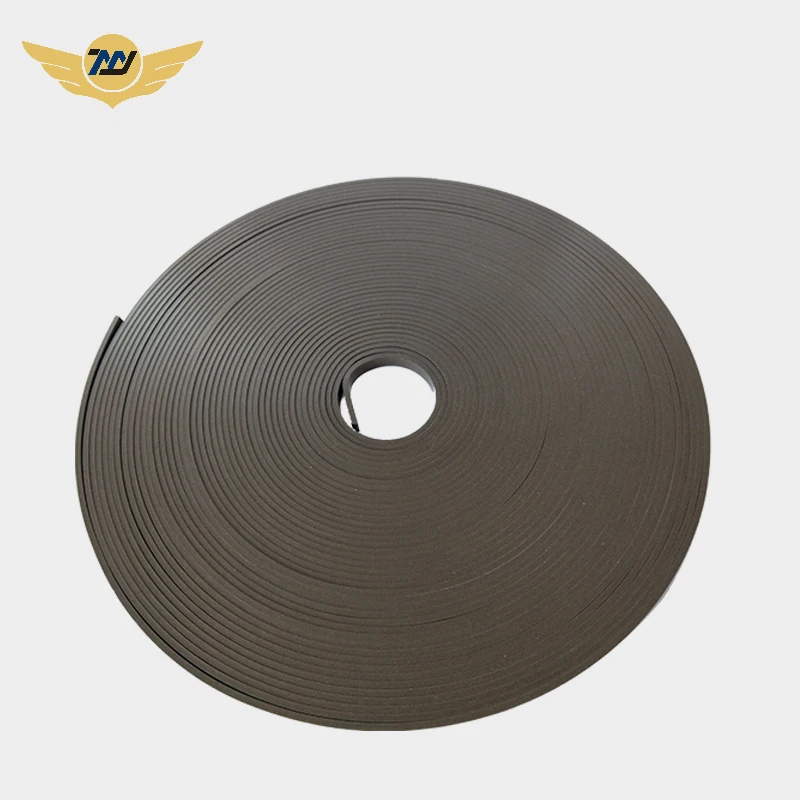

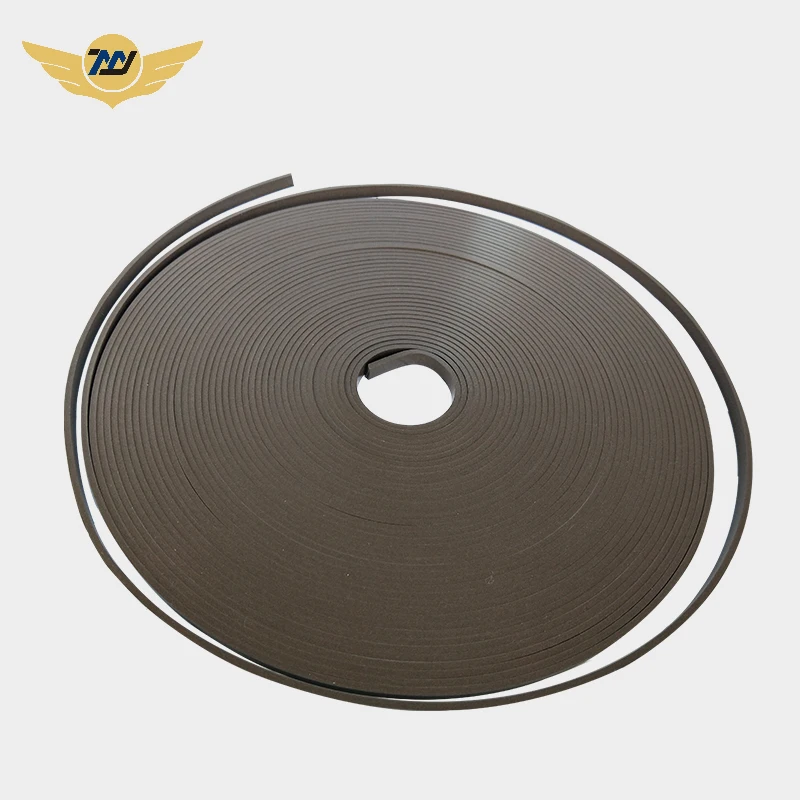

Brown Color GST Bronze Filled PTFE Guide Tape Hydraulic Seals Wear Ring Chamfer PTFE Guide Strip
- Category: >>>
- Supplier: Shenyang Zhongye Seals Factory
Share on (60840840713):
Product Overview
Description
Product Description
| Purpose | PTFE Guide Strip is an important component in a hydraulic cylinder where it stabilizes and reduces vertical movements of the rod. The arising side loads that the PTFE Guide Strip has to withstand can be significant, but the deformation of the Guide Strip is not permanent. |
| Material | PTFE + Bronze |
| Density | 2.1 - 2.3 g/cm³ |
| Working Temperature | -180 ~ +250℃ |
| Working Pressure | ≤63Mpa |
| Working Medium | Hydraulic Oil,Compressed Air |
| PTFE + Bronze Guide Strip | Phenolic Resin Guide Strip | ||||||||
| Length | 68m | 46m | 34m | 27m | 23m | 16m | 13m | 10m | |
Width*Thickness (mm) | 5*1 | 5*1.5 | 5*2 | 5*2.5 | 5*3 | 6*2 | 25*3 | ||
| 6*1 | 6*1.5 | 6*2 | 6*2.5 | 6*3 | 6*2.5 | 25*4 | |||
| 8*1 | 8*1.5 | 8*2 | 8*2.5 | 8*3 | 8*4 | 10*2 | 30*2.5 | ||
| 10*1 | 10*1.5 | 10*2 | 10*2.5 | 10*3 | 10*4 | 10*5 | 10*2.5 | 30*3 | |
| 12*1 | 12*1.5 | 12*2 | 12*2.5 | 12*3 | 12*4 | 12*5 | 15*2 | 30*4 | |
| 15*1 | 15*1.5 | 15*2 | 15*2.5 | 15*3 | 15*4 | 15*5 | 15*2.5 | 35*3 | |
| 20*1 | 20*1.5 | 20*2 | 20*2.5 | 20*3 | 20*4 | 20*5 | 15*3 | 35*4 | |
| 25*1 | 25*1.5 | 25*2 | 25*2.5 | 25*3 | 25*4 | 25*5 | 20*2 | 40*2.5 | |
| 30*1 | 30*1.5 | 30*2 | 30*2.5 | 30*3 | 30*4 | 30*5 | 20*2.5 | 40*3 | |
| 35*1 | 35*1.5 | 35*2 | 35*2.5 | 35*3 | 35*4 | 35*5 | 20*3 | 40*4 | |
| 40*1 | 40*1.5 | 40*2 | 40*2.5 | 40*3 | 40*4 | 40*5 | 20*4 | ||
| 45*1 | 45*1.5 | 45*2 | 45*2.5 | 45*3 | 45*4 | 45*5 | 25*2 | ||
| 50*1 | 50*1.5 | 50*2 | 50*2.5 | 50*3 | 50*4 | 50*4 | 25*2.5 | ||
