Product Overview
Description
Products Description
Poduct Parameters:
Body Weight | 15KG | ||
Vertical Stroke | 834.7mm | ||
Horizontal Stroke | 886.7mm | ||
Voltage | 110V/220V | ||
Power | 360W | ||
Max Working Radius | 482.3mm | ||
Specified Load | 1KG | ||
Repeat Positioning Accuracy | ±0.5mm | ||
Application | Welding, Polishing, assembly, picking | ||
Working Range | Axis 1 | ±180° | |
Axis 2 | ±115° | ||
Axis 3 | ±130° | ||
Axis 4 | ±180° | ||
Axis 5 | ±165° | ||
Axis 6 | ±180° | ||
Max Speed | Axis 1 | 200°/s | |
Axis 2 | 200°/s | ||
Axis 3 | 200°/s | ||
Axis 4 | 200°/s | ||
Axis 5 | 200°/s | ||
Axis 6 | 200°/s | ||
Structure Type | Series Connection | ||
No. of aixs | 6 Axis | ||
Controller | Singel Chip | ||
Body Shell Material | Plastic | ||
Install To | Desktop | ||
Speed Reducer | Synchronous Belt Deceleration | ||
Motor | Stepping Motor | ||
Working Range：

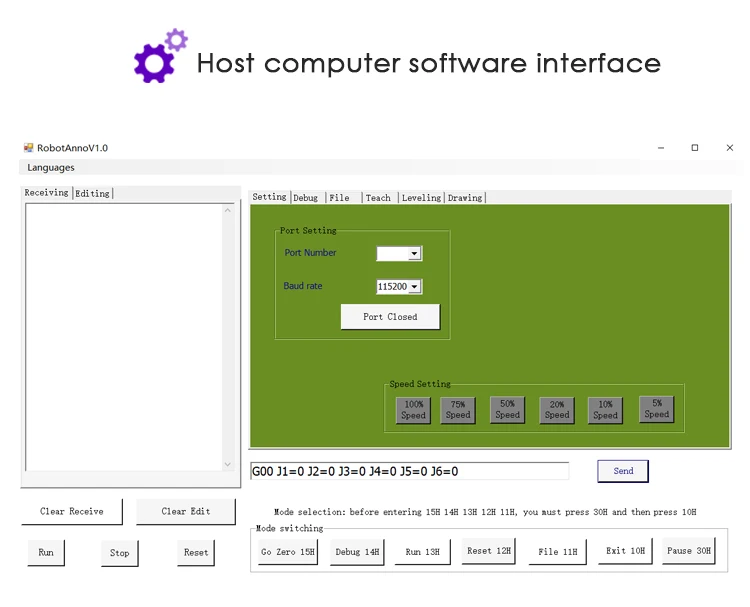

Controller System:
Features:
- 6 dof series joint manipulator control algorithm.
- In addition to general functions, provide control interface API description and sample, suitable for automatic production line integration and development of their own characteristics of the operating software users.
- Provide DLL function interface, facilitate secondary development, and provide routine source code.
- The control software is directly used to support G code operation.
- In addition to general functions, provide control interface API description and sample, suitable for automatic production line integration and development of their own characteristics of the operating software users.
- Provide DLL function interface, facilitate secondary development, and provide routine source code.
- The control software is directly used to support G code operation.
- It supports Window operating system.
Detailed Images
Plastic Shell
It is made by 3D painting technology, accelerate body processing speed and reduce costs
The Step Motor
Step Motor Driver
Power

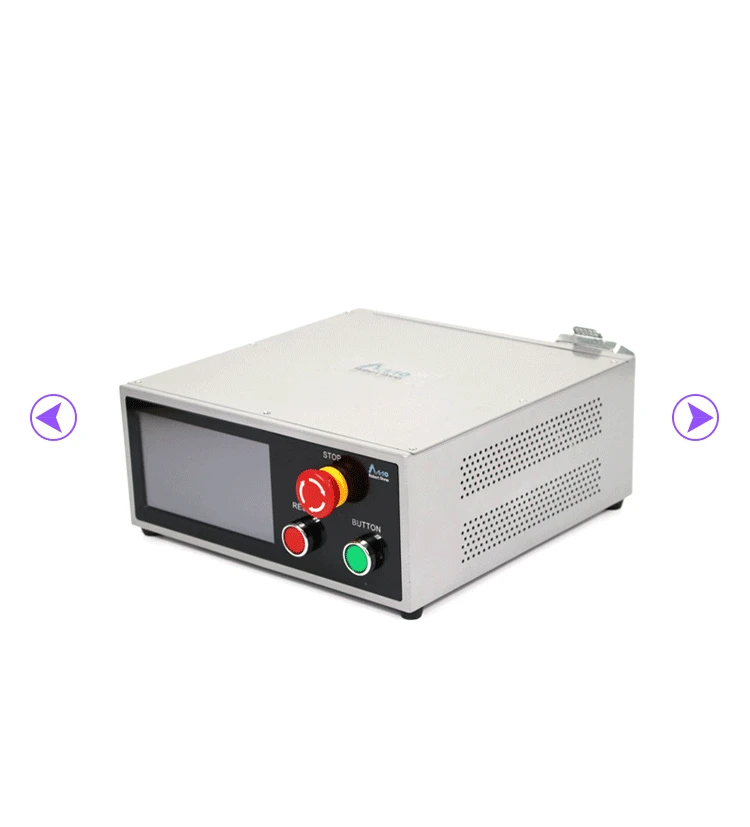

Controller Board
The input and output ports each have 15 sets of signal ports.
I00-i15: indicates that the input port 0-15 receives the signal input port, the default state of the input port is high, and if the state is to be changed, a low-level signal input is required;
O00-O15: indicates that the output port 0-15, that is, the signal transmission port, the signal transmission port defaults to a low level, and if it is to change its output high level, only the code is required to change its output state. It is also noted that the signal receiving terminal needs to co-operate with the control box at the same time, otherwise the signal cannot be identified.
I00-i15: indicates that the input port 0-15 receives the signal input port, the default state of the input port is high, and if the state is to be changed, a low-level signal input is required;
O00-O15: indicates that the output port 0-15, that is, the signal transmission port, the signal transmission port defaults to a low level, and if it is to change its output high level, only the code is required to change its output state. It is also noted that the signal receiving terminal needs to co-operate with the control box at the same time, otherwise the signal cannot be identified.
Main Applications
Product packaging
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Package Included:
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Specifications:
- Model: 6 Axis Robot Arm V6PLUS
- Outer Shell Material: Engineering Plastic
- Volume Weight: 24 kg
- Model: 6 Axis Robot Arm V6PLUS
- Outer Shell Material: Engineering Plastic
- Volume Weight: 24 kg
Package Included:
Carton Box 1 (43 cm*43 cm*53 cm, 15 kg):
- 1* Robotic Arm Body
Carton Box 2 (43 cm*43 cm *23 cm, 9 kg):
- 1* Robotic Controller
- 1* Power Cable
- 1* USB Cable
- 1* USB Disk( including the user manual and information)
- 1* Robotic Controller
- 1* Power Cable
- 1* USB Cable
- 1* USB Disk( including the user manual and information)
Company Information
RobotAnno (ShenZhen) Co., Ltd. is a professional R & D and manufacturer of desktop robotic arm solutions. Through continuous innovation, RobotAnno is committed to providing educational robots, light industrial robots and commercial robots with cost-effective, easy-to-operate, and experiential revolutionary desktop robotic products and solutions.
Aiming to provide high quality products and great service for buyer,we are strict on product quality control and offer instant communication service.Welcome to contact us!
