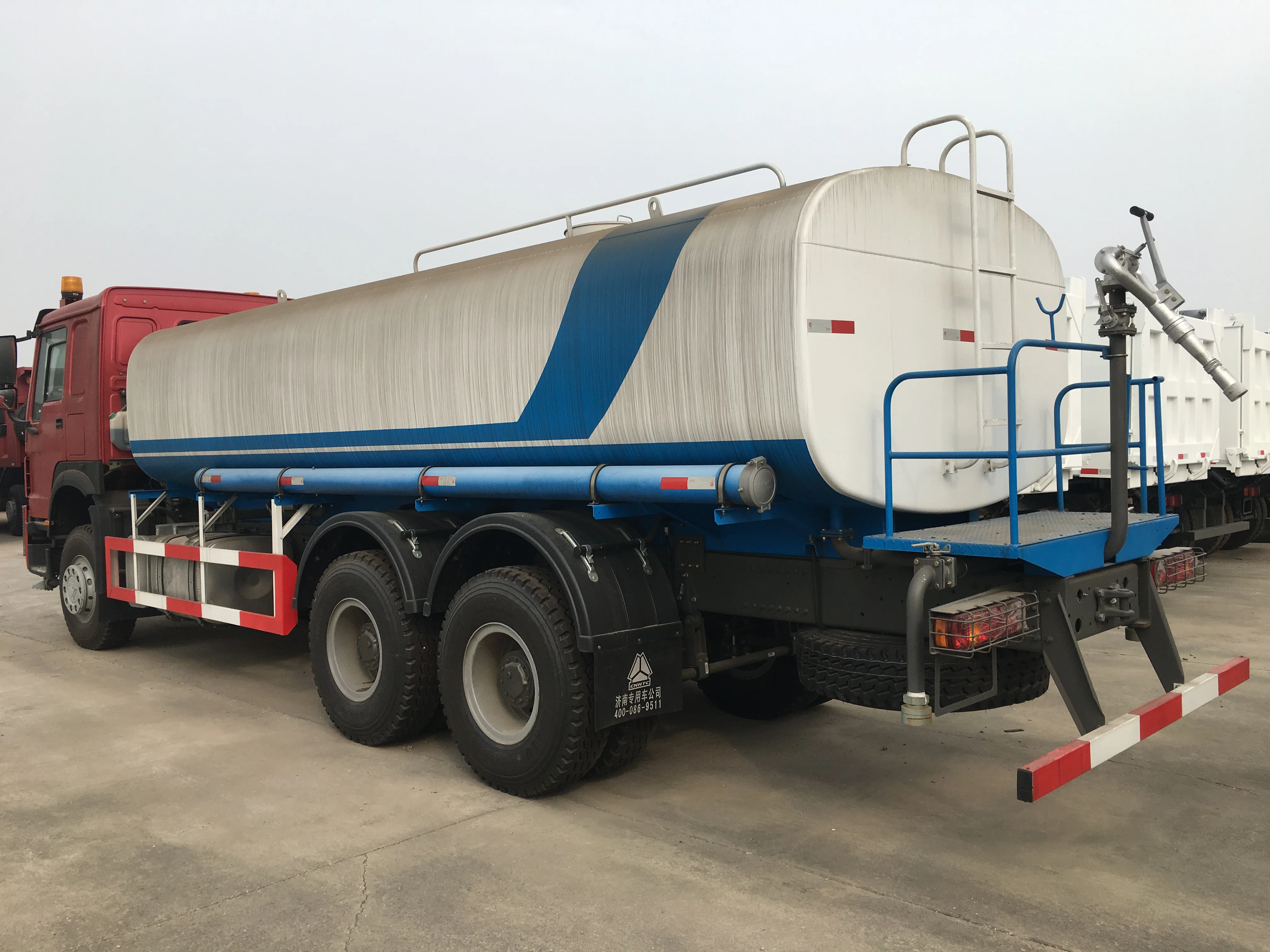

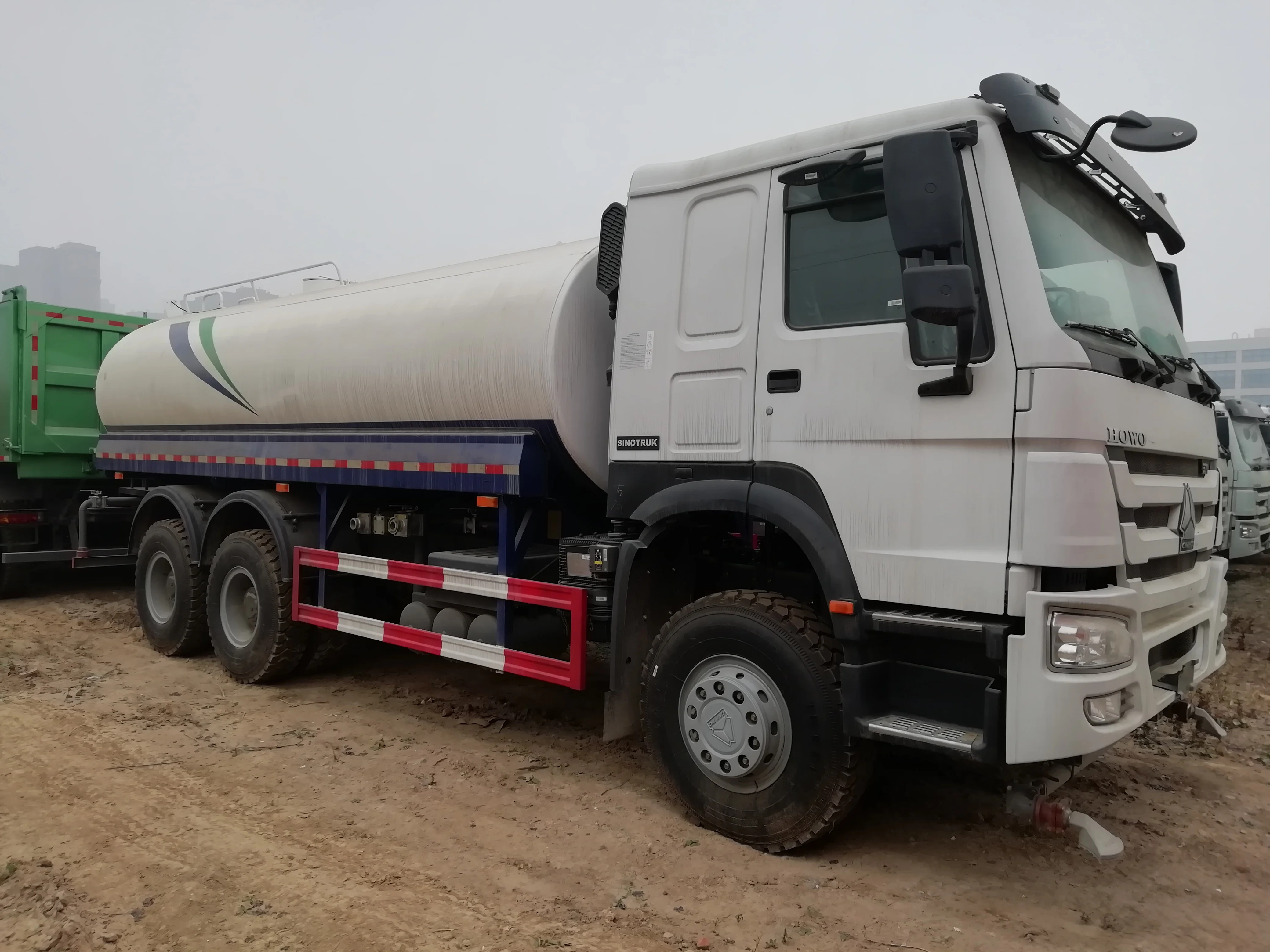

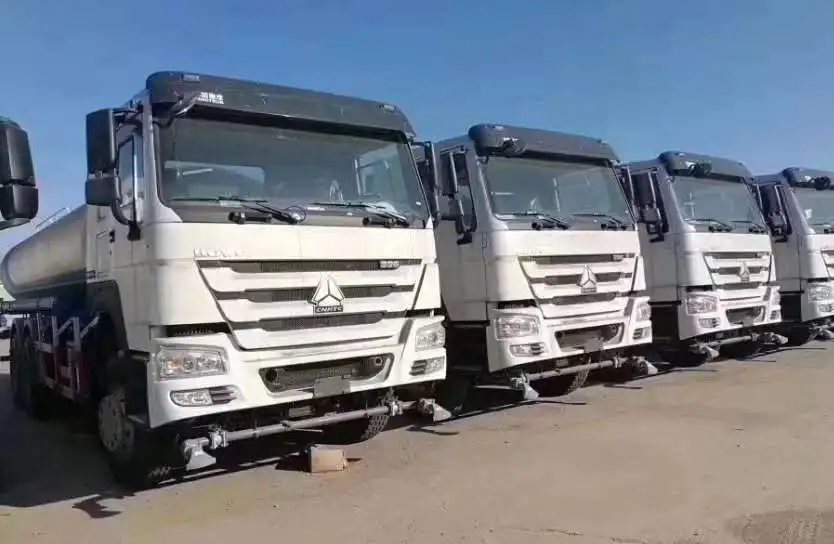

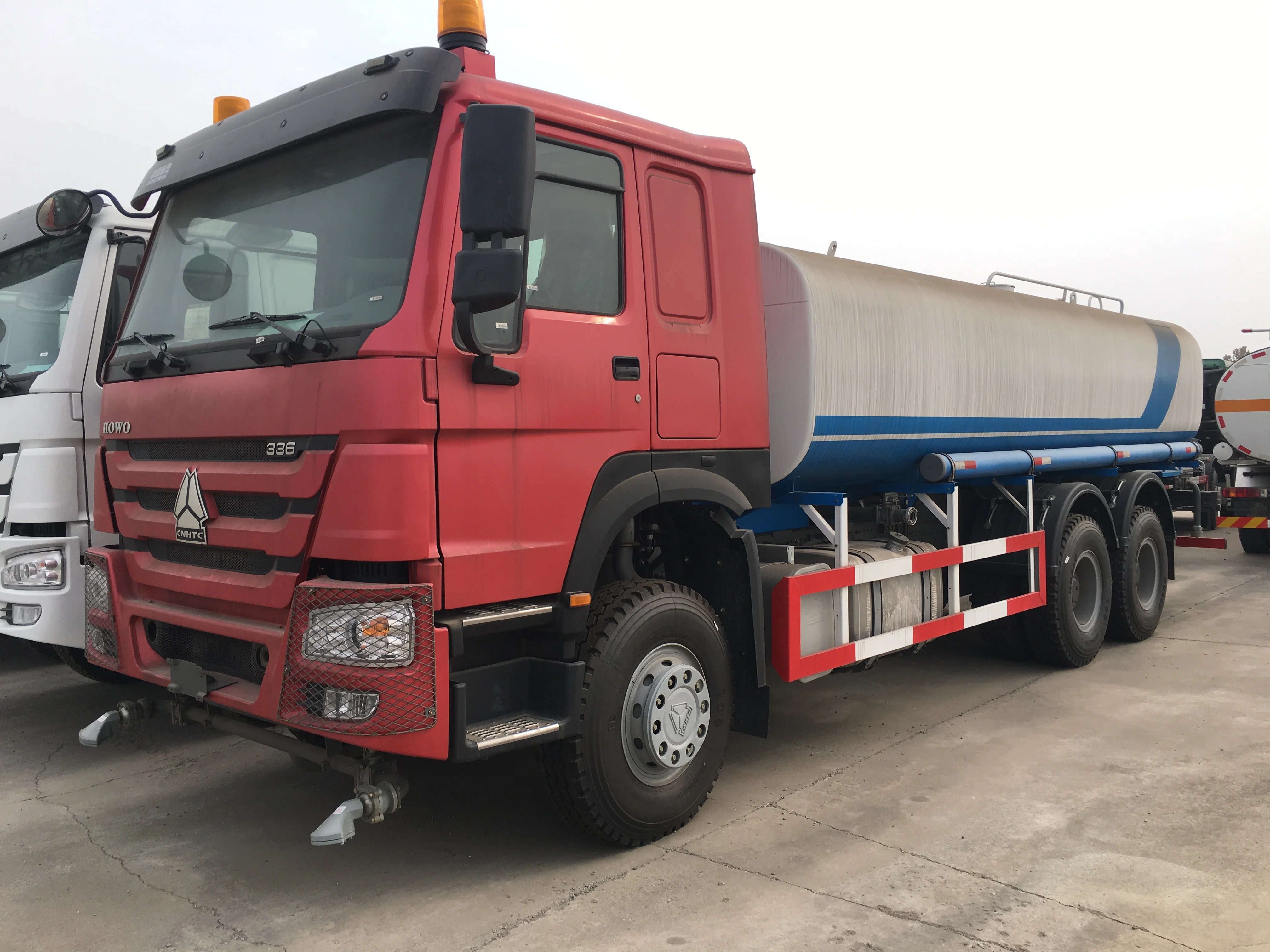

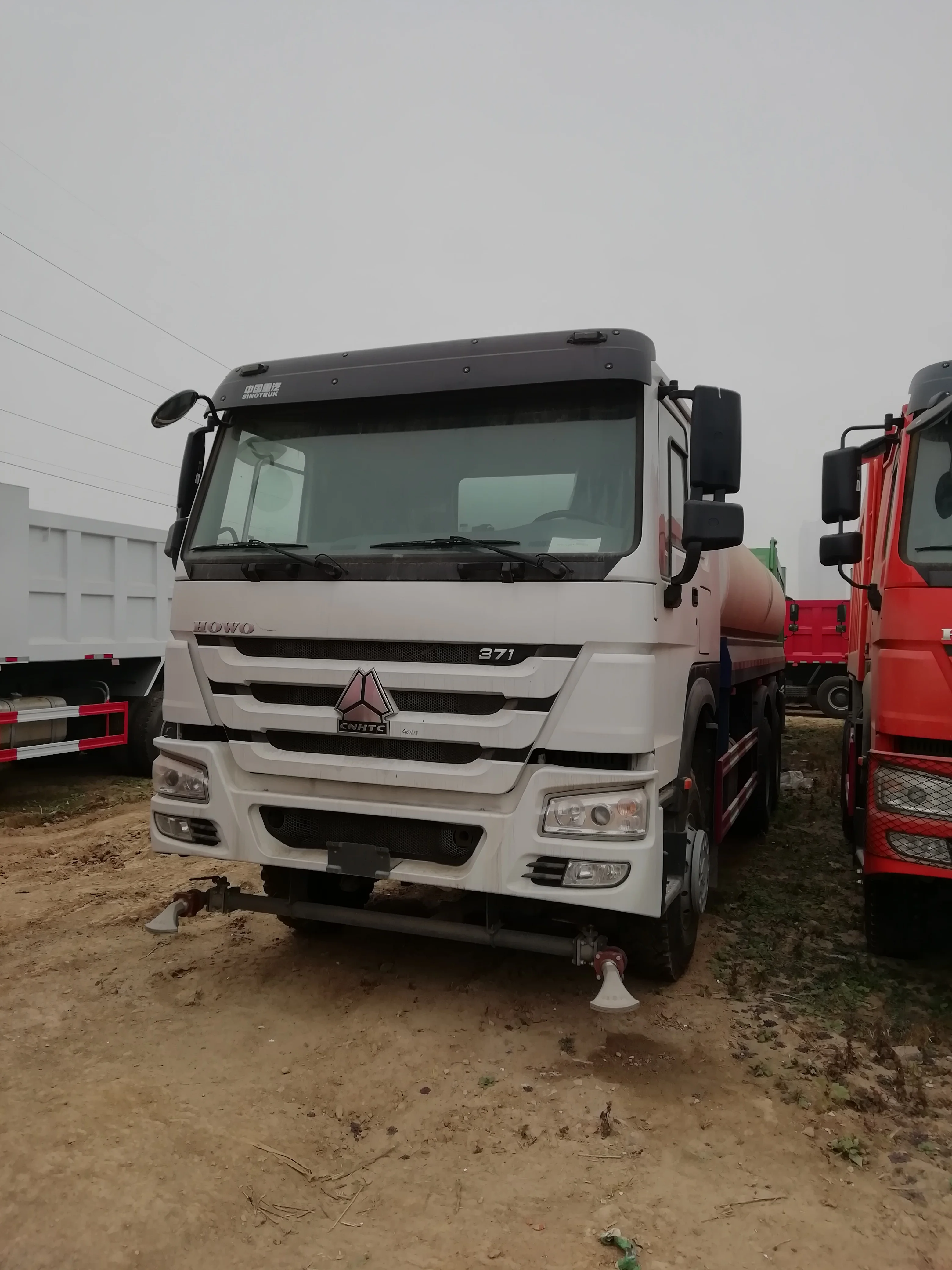

Kunda Sinotruk Howo Water Tanker Truck 25Cmb 6x4 371 336 290hp 20m3 water spray bowser tanker sprinkler tank truck

Weight

Permissible loading capacity(kg)

32000

Chassis dead weight(kg)

13400

Front axle loading weight(kg)

7000

Rear axle loading weight(kg)

13000x3

Dimension

12290x2516x3410

Chassis Performance

Model

ZZ1317N4667W

Steering

Left hand drive

Cab

HW76, with one sleeper and A/C

Steering

ZF8098, hydraulic steering with power assistance Ratio: 26.2

Tyre

295/80R22.5, 13 (with one spare tyre)

Gearbox

Manual ,HW19710

Front Axle

HF7, load 7ton,

Driving Axle

 HC16, double reduction

Electrics

24V, negative grounded; Batteries
2x12V, 165Ah

Brake

Dual circuit compressed air brake

Auxiliary brake

Engine exhaust brake

Wheel base(mm)

1800+4575+1400

Engine

Model

WD615.69, 336hp 247Kw/2200rpm

Specification

6-cylinder in-line water-cooling, turbo charging and intercooling

Emission

EUOR II

Number of cylinder

6

Displacement(L)

9.726

Water Body

Water Tank Capacity(M3)

20-24

Working Speed (Km/h)

5-10

Water Pump Flow Rating(M3/h)

60

Sprinkling Width (m)

≥14-18

Vetical Range (m)

≥26

Specification

Front spray and rear sprinkler, water gun, anticorrosive water tanker
