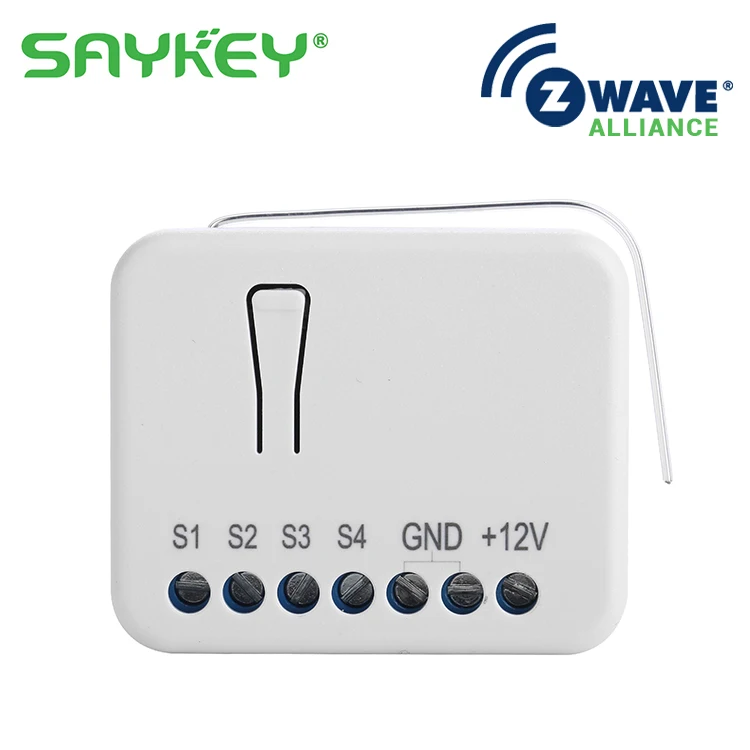

Z wave Four way Detection Input Module for Z wave Smart Home Security Home Automation
- Category: Repeater >>>
- Supplier: Shenzhen Saykey Technology Co. Ltd.
Share on (60841430365):
Product Overview
Description
Product Description
This product can be connected to a maximum of four dry contact input signals (such as wired security detectors),or ordinary switch, and can be set separately when the input signal changes or pulse
When changing, control the associated device switch of the corresponding channel.
This product can have a repeater function that can automatically forward the corresponding wireless as a relay command to improve the overall stability of the wireless network system.
Main parameters
1.Working voltage: 5~12V DC
2.Standby power consumption: <0.3W
3.Probe input
V INH >2.8V DC I INH < -0.01mA
V INL < 0.7V DC I INL > 0.3mA
4.working frequency
868.4 MHz – China/Europe
908.4 MHz – United States
921.4 MHz – Australia
869.2 MHz – Russia
5.Emission distance
Indoor straight line distance 30 meters
Outdoor straight line distance 50 meters
6.Working temperature -10 ° C ~ +50 ° C
7.Relative humidity ≤95%RH
8.Dimensions 48 (W) x 39 (L) x 16 (H) mm
