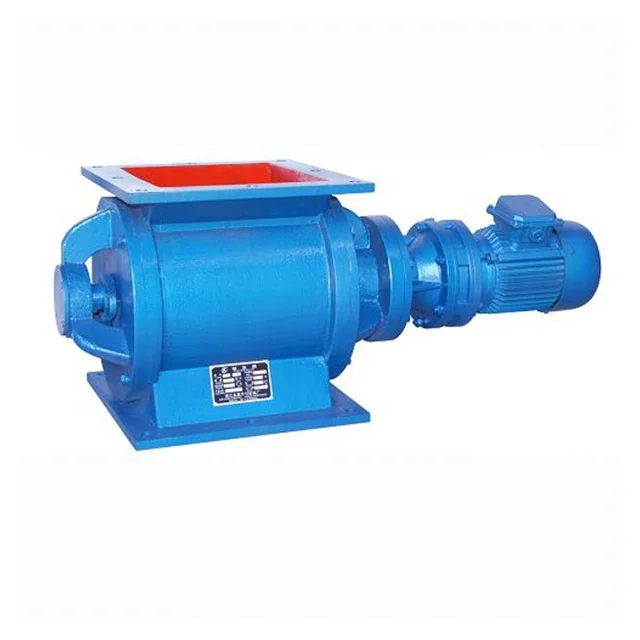

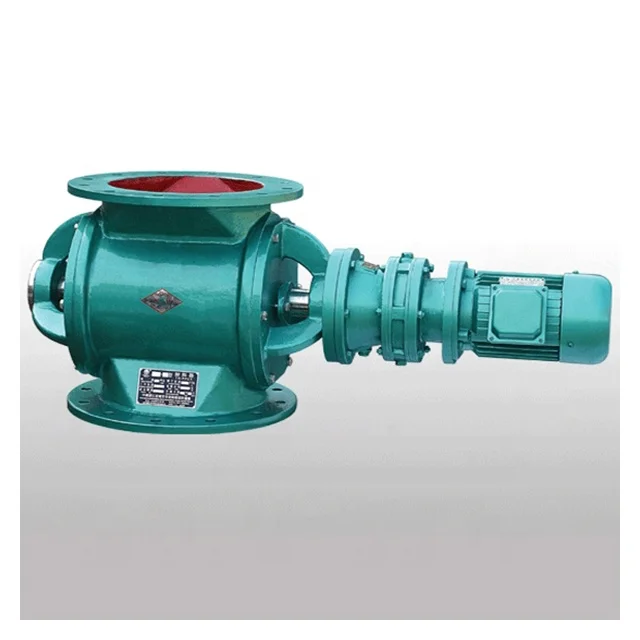

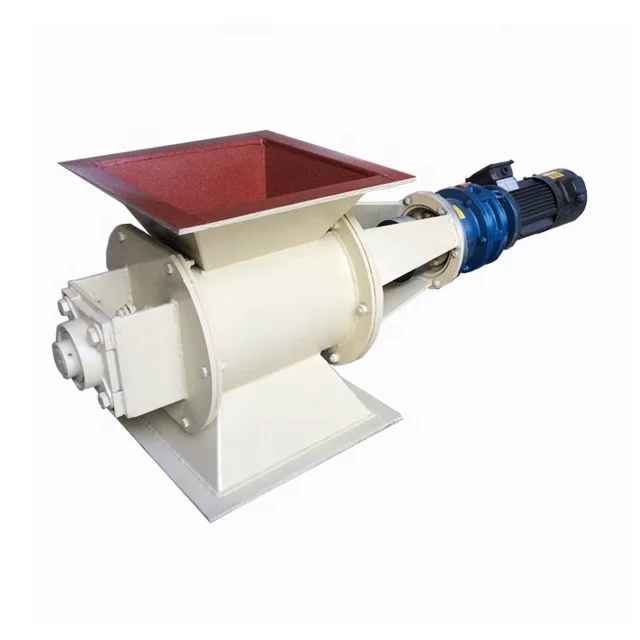

China Professional Rotary Rigid Impeller Feeder for Cement Plant

Product Overview

Description

China Professional Rotary Rigid Impeller Feeder for Cement Plant

Rigid impeller feeder description:

Rigid impeller feeder is specially designed as bulk material discharge device under dust-moving equipment, silo, storage bin, hopper etc. The main function of powder rotary valve is to control discharge bulk solids from silo, mixer, cyclone or hopper under gravity, pressure and vacuum



Application:

Rigid impeller feeder is widely used for nuts, almond, sunflower seed, cotton seed, grain cereals, chestnut, coffee, grain, sugar, spice, cement, calcite, glass powder, marble powder, plastic pellets, sawdust, coal etc.





Feature:

1. Material of silo discharge: stainless steel, carbon steel.

2. Round inlet and square inlet or based on the customer's needs.

3. Powder rotary valve equipped with general motor and variable speed motor, to achieve uniform discharge rate or variable speed discharge rate.

4. Good sealing performance, no blocking and no adherence.

5. Wide range of application.



Connection type for drive and the impeller rotor of rotary valve:

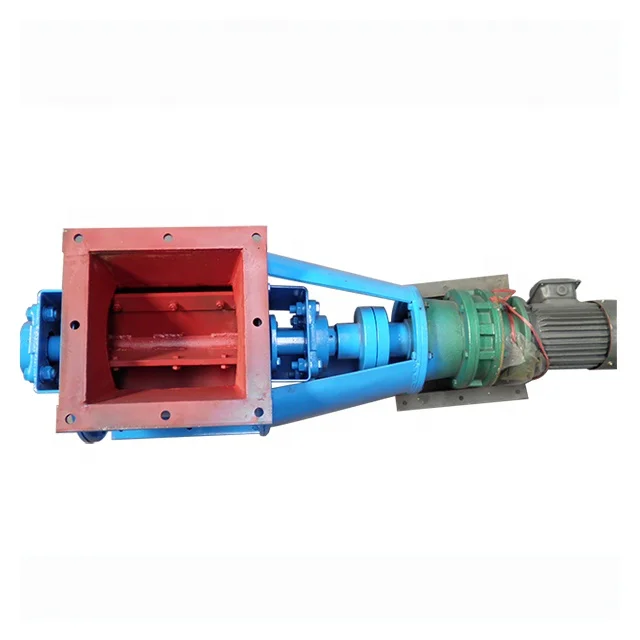

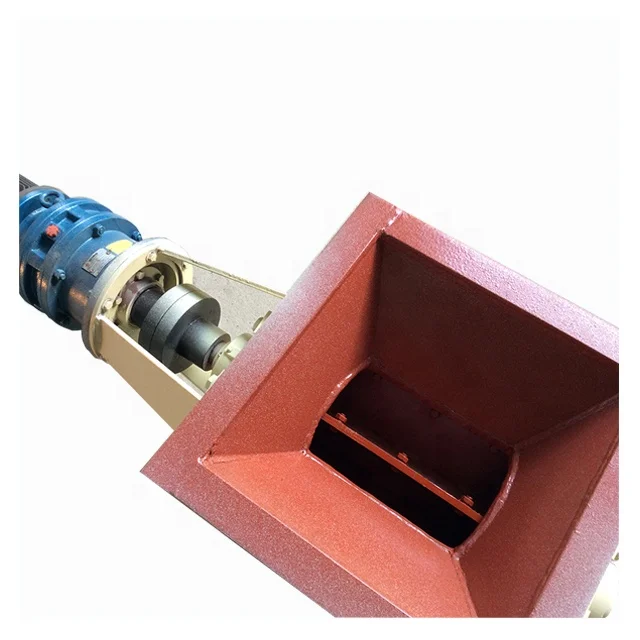

         Oldham coupling connection                                 Transmission chain connection



Working principle:

Rigid impeller feeder through the impeller rotor speed to control the discharge rate of the material, to achieve uniform discharge rate or variable speed discharge rate.



Model	JL200		JL300		JL400		JL500		JL630		JL1000
Impeller size(mm)	200×200		300×300		400×400		500×500		630×600		1000×1000
Capacity per revolution(m3/r·p·m)	0.005		0.018		0.045		0.05		0.09		0.11
Impeller speed(r·p·m)	10	19	19	25.5	25.5	35	25	35	20	28	20	28
Theory feeding capacity(m3/h)	3	6	20	27	68	90	75	105	108	126	154	192
Rated feed ability(m3/h)	2	4	15	20	60	80	70	90	98	110	132	160
motor power(kw)	0.75	0.75	1.5	2.2	3	4	4	4	5.5	5.5	7.5	7.5
Reducer Model	BW1		BW2		BW2		BW3		BW4		BW5
Max material size(mm)	30		45		50		60		75		110
