500kg Hydraulic Small Construction Elevator

Product Overview

Description

LIFPALIFT's 500kg hydraulic small construction elevator price is a simple and versatile hydraulic

floor lift with small platform for handling loads up to 500kg between floors in warehouses, retail stores

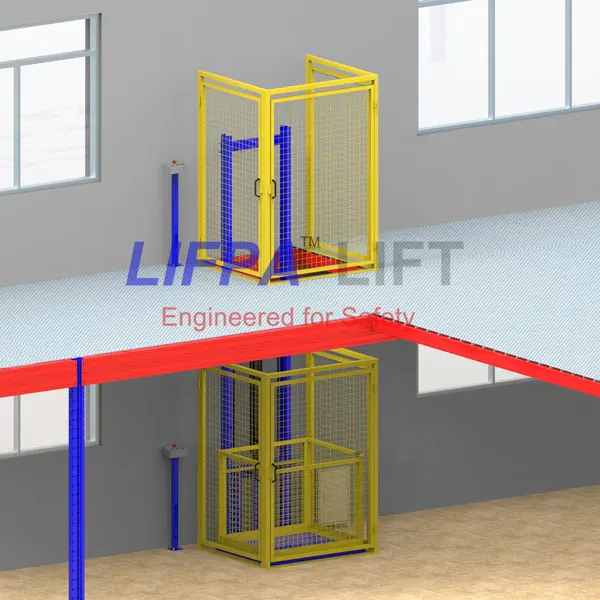

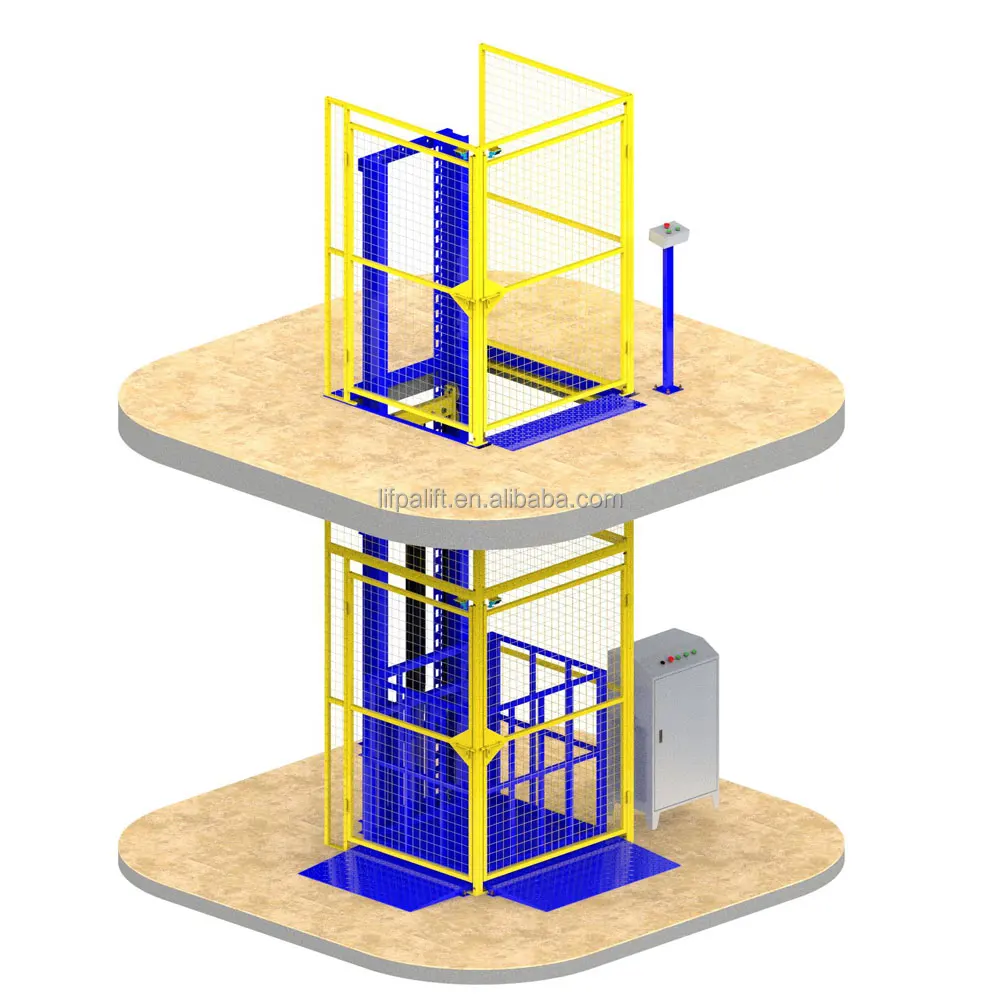

3D Sketches





Product Details



• Mesh filled Single swing doors on both platform and each floor.







• Self-supporting control with Emergency-stop button.







• Anti-rust plastic coated wire mesh enclosure.







• Power pack with Protection Cabinet.



Features & Benefits

• Designed for both goods and passenger applications

• 0° / 90° / 180° loading & unloading configuration

• High-Precision machining, easy to install

• Self-supporting push-button control station

• Manual platform lowering valve

• Compact design for limited worksites

• Emergency stop button fitted to all control stations

• Up to 7.00m travel height, 3-stops

• Anti-slip platform surface

• Floor mounted, no pit required

• AC 110/220/380/460V, 50-60Hz power supply

• Comprehensive Installation / O&M manual in English version



Standard Equipment

• 500kg maximum working load

• Self-supporting control station

• 2.00m high doors at each floor

• Safe doors fitted with mechanical interlocks

• 1.00m high single swing platform door

• 1.00m high fixed platform guardrails on non-loading sides

• Manual platform lowering valve

• 0° / 90° / 180° Loading configuration

• Comprehensive Installation / O&M manual



Optional Equipment

• Bespoke platform sizes

• Increased guardrail height

• LCD display control panel

• Working flashing alarm beacon

• Access steel ramp

• American/UK/European standard power input



Main Parameters

Model		GL-33-B	GL-70-B
capacity	kg	500	500
no. of stops		2	3
travel height	mm	3300	7000
lowered height	mm	80	80
power input	V	AC 220 / 380	AC 220 / 380
lift motor	kW	2.20	2.20
lift speed - w. o. load	mm/s	90	90
lowered speed - w. o. load	mm/s	85	85
loading & unloading side		0° / 90° / 180°	0° / 90° / 180°
standard platform guarding	mm	1000	1000
usable platform size - W x L	mm	1200 x 1000	1200 x 1000
