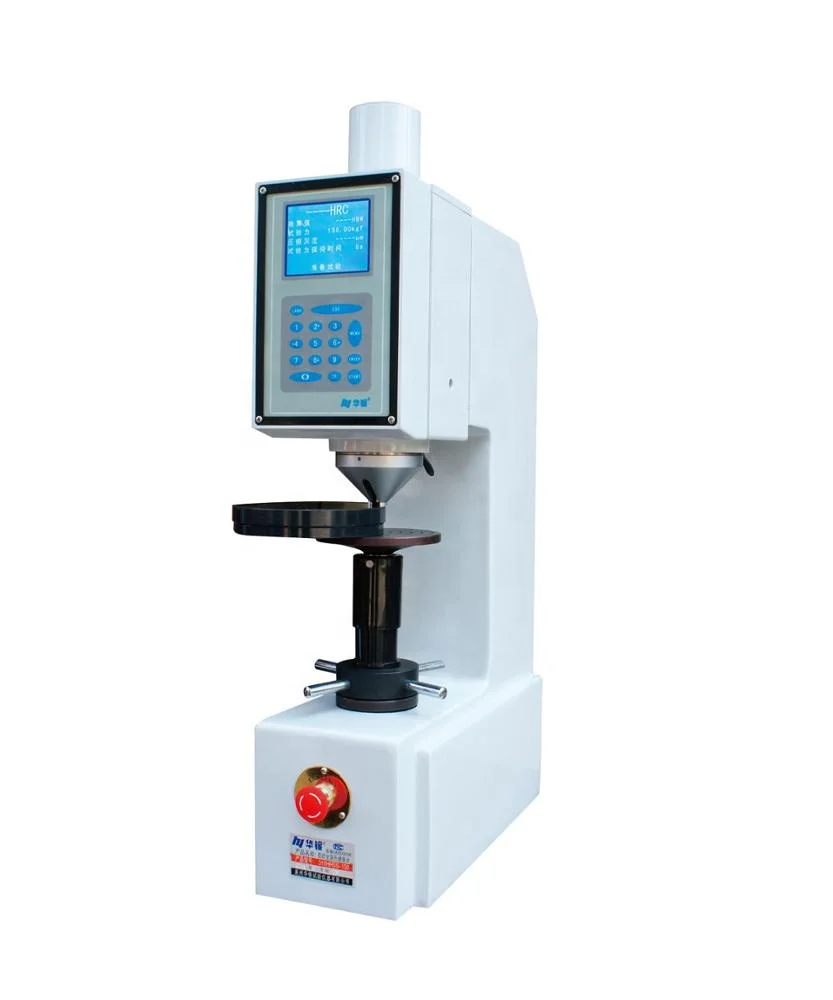

310HRSS 150 AUTOMATIC FULL SCALE ROCKWELL HARDNESS TESTER

Product Overview

Description

MODEL 310HRSS-150

AUTOMATIC FULL SCALE ROCKWELL HARDNESS TESTER

Feature & Use

l  Automatic tracking and testing, no test error caused by deformation of frame and workpiece

l  The first test is effective

l  RS232 data interface

     It's suitable to determine the Rockwell & Superficial Rockwell hardness of ferrous metals, alloy steel and hard alloy, as well as treated layers of metal surface, such as carburized layer, nitrided layer and electroplated coating, etc. It's especially suitable to determine heterotypic workpiece.



Specifications

   Test force: Rockwell 588.4, 980.7, 1471N (60, 100, 150kgf)

                   Superficial Rockwell 147.1, 294.2, 441.3N (15, 30, 45kgf)

   Measuring scale: HRA, HRB, HRC, HRD, HRN, HRT

                            (Scales of E, F, G, H, K are optional)

   Unit of display: 0.1HR

   Moving range of measuring head: 50mm

   Output: built-in RS232 interface

   Max. height of test piece: 170mm

   Depth of throat: 150mm

   Dimensions:  535 x 220 x 910 mm

   Power supply: 220V AC or 110V AC, 50 or 60Hz

   Weight: approx. 100kg



Standard accessories

   Large flat anvil: 1 pc.

   Small flat anvil: 1 pc.

   V-notch anvil: 1 pc.

  Diamond cone penetrator: 1 pc.

  1/16" steel ball penetrator: 1 pc.

  Rockwell standardized block: 5 pcs.

   Superficial Rockwell standardized block: 6 pcs.
