large format open frame touch screen TFT LCD monitor 75 inch 86 inch 98 inch 3840x2160 4K resolution
Product Description

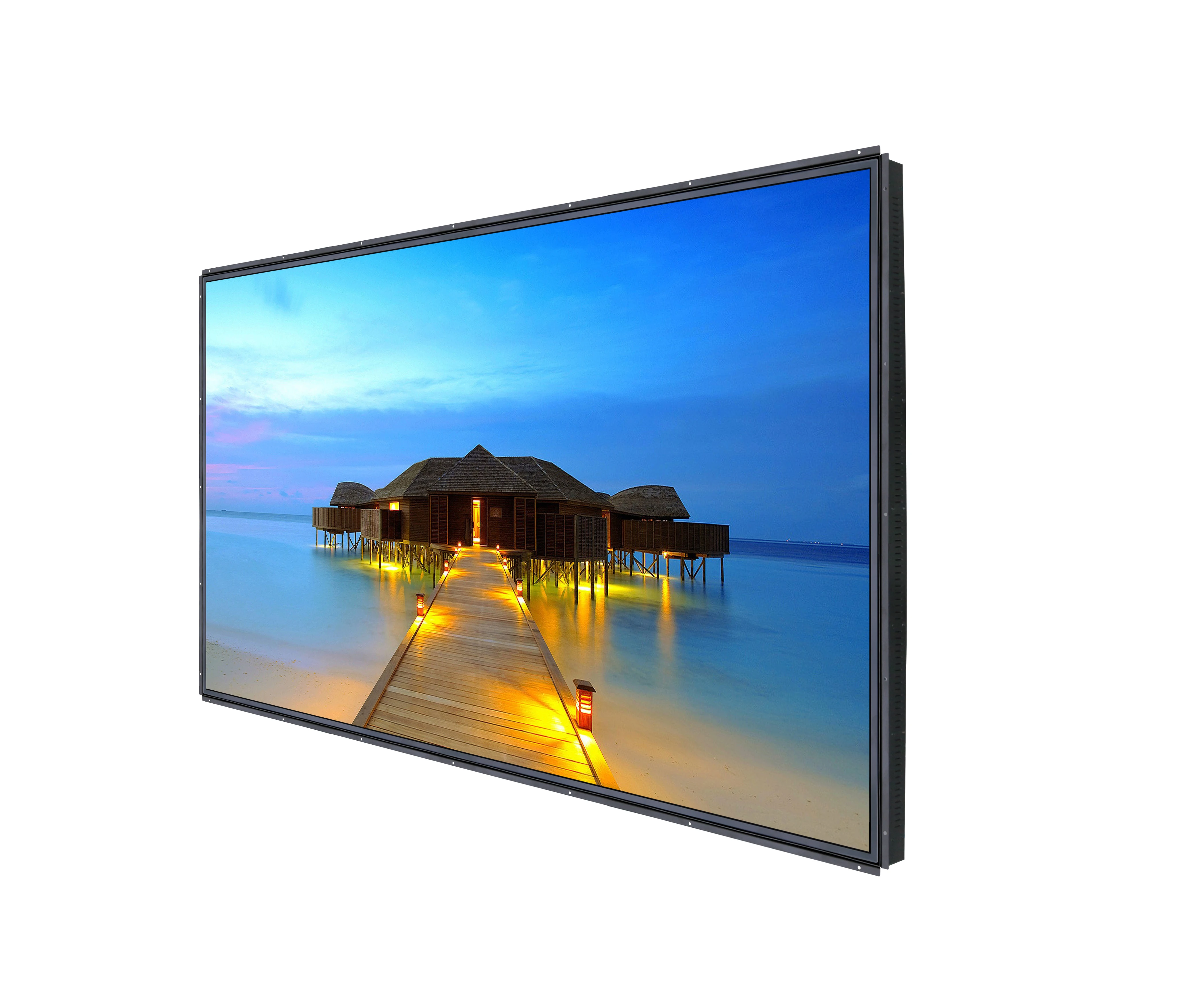

ITD 75” ITD75OFN1M1 UHD open frame LCD monitor with optional touch screen integrated provides industrial or commercial users with crystal clear picture quality. The all metal enclosure is rugged in design and fit perfectly into any enclosure. It is space saving for your compact environment cabinet.
Features
•High contrast color TFT LCD display supports resolution up to 3840 x 2160
•Supports DDC 1/2B for Plug & Play compatibility
•Advanced OSD control for picture quality adjustment
•All steel construction designed for harsh and industrial environments
•Easy-to-install console with open frame style
•75/100mm VESA mount and side brackets
•CE, FCC, RoHS Compliance
Optional
•AR/AG Tempered glass
•Sunlight Readable, light sensor
•Touch sensor technologies: IR, PCAP, SLW
•Video Signal input: AV, S-Video
Specification
Panel | Cell Type/Glass Surface | TFT |
Aspect Ratio/Size | 75” 16:9 | |
Active Area | 1649.66(W) x 927.936(H)mm | |
Pixel Pitch | 0.4296(H)x0.4296(V)mm | |
Native Resolution/Colors | 3840 x 2160 /16.7M | |
Brightness | 400nits | |
Contrast | 1200:1 | |
Response Time | 8ms | |
Viewing Angle(Typical) | 178(H)/178(V) | |
Light Source | LED Backlight with 50000Hours’Lifetime | |

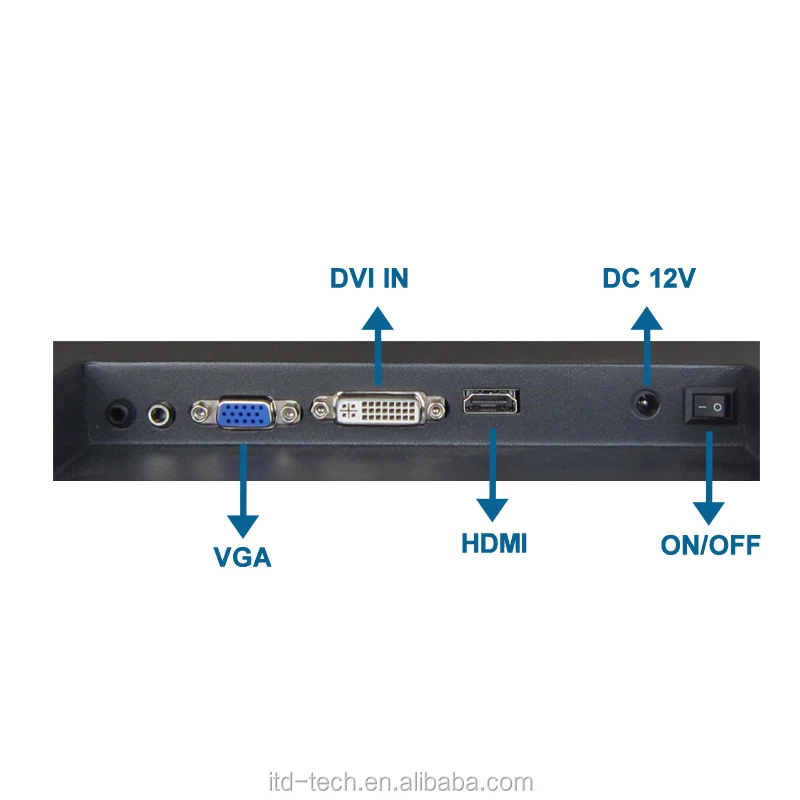

Input Signals | VGA, DVI, HDMI | |
Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | |
Power | Internal power supply with universal/Auto-Sensing, AC 100V~240V | |
Power Consumption | Operation/Power Saving | Bellow 280W |
Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |
Order Information | 75”Open frame LCD monitor with IR touch/ITD75OFT2M1 | |
75”Open frame LCD monitor with SLW multi touch/ITD75OFT6M1 | ||
75”Open frame LCD monitor with tempered glass/ITD75OFG1M1 | ||
Cell Type/Glass Surface | TFT | |

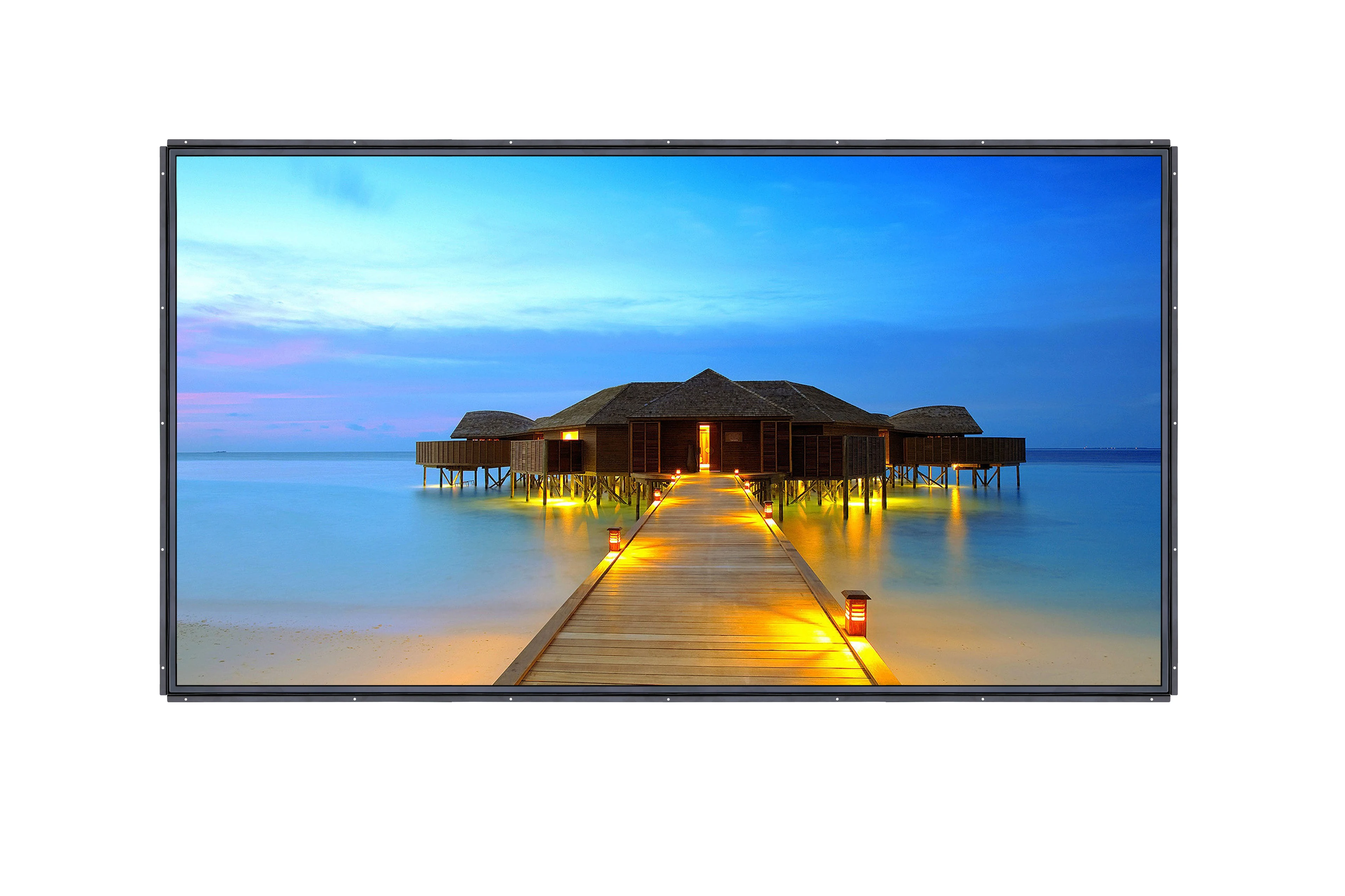

Aspect Ratio/Size | 86” 16:9 | |
Active Area | 1895.04(W) x 1065.96(H)mm | |
Pixel Pitch | 0.4935(H)x0.4935(V)mm | |
Native Resolution/Colors | 3840 x 2160 /16.7M/1.07B | |
Brightness | 410nits | |
Contrast | 1200:1 | |
Response Time | 8ms | |
Viewing Angle(Typical) | 178(H)/178(V) | |
Light Source | LED Backlight with 50000Hours’Lifetime | |
Input Signals | VGA, DVI, HDMI | |
Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | |
Power | Internal power supply with universal/Auto-Sensing, AC 100V~240V | |
Power Consumption | Operation/Power Saving | Bellow 380W |
Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |
Order Information | 86”Open frame LCD monitor with IR touch/ITD86OFT2M1 | |
86”Open frame LCD monitor with PCAP touch/ITD86OFT5M1 | ||
86”Open frame LCD monitor with tempered glass/ITD86OFG1M1 | ||

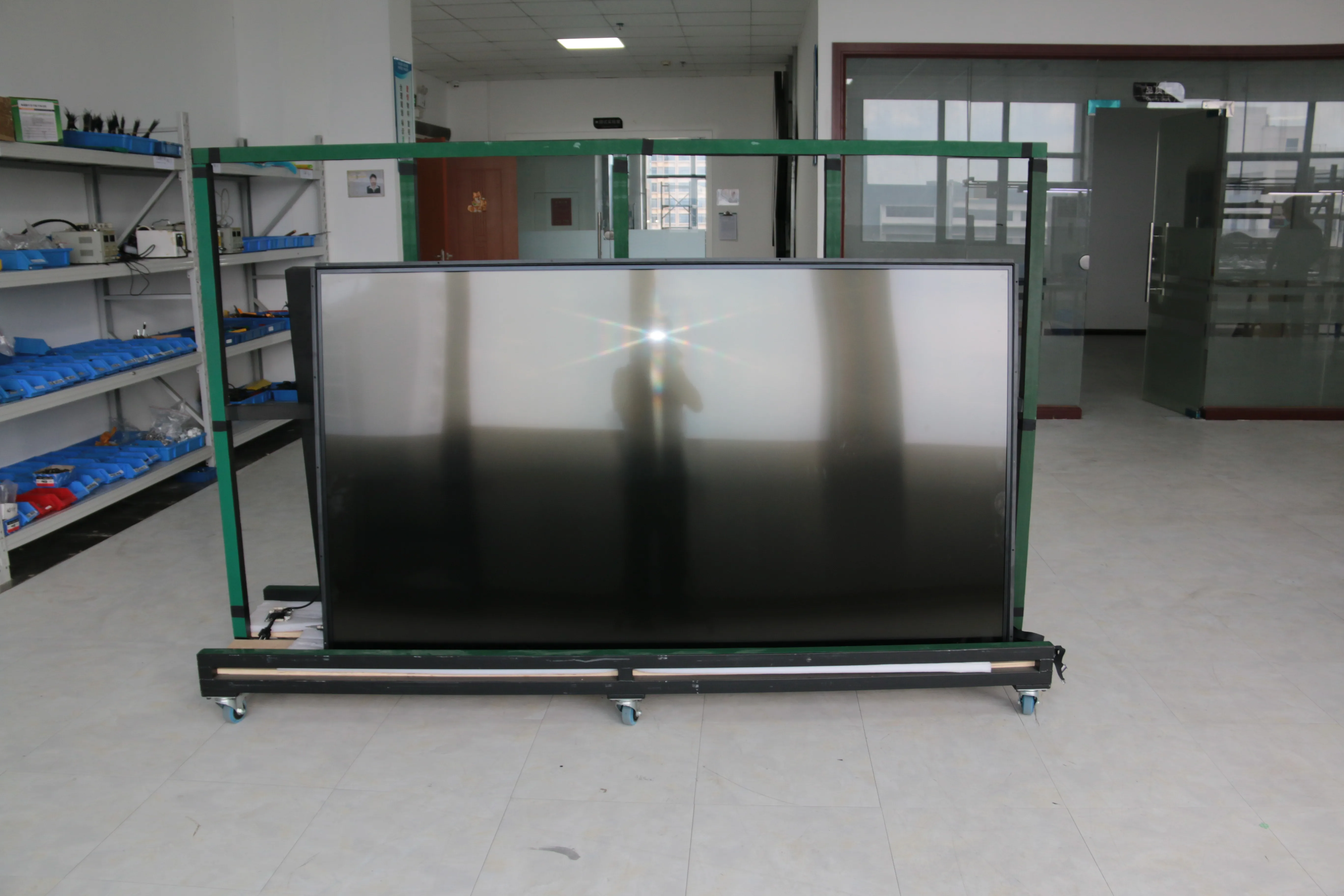

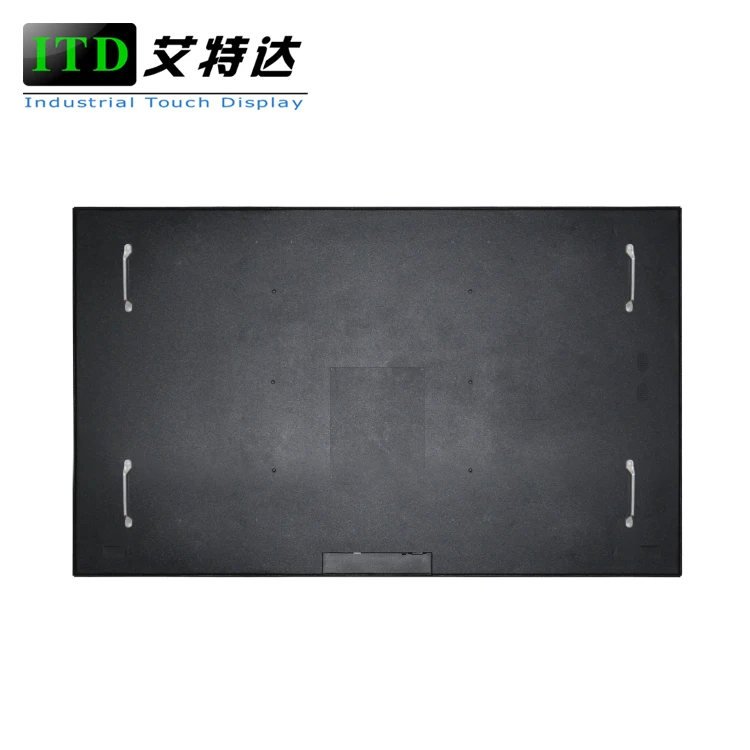

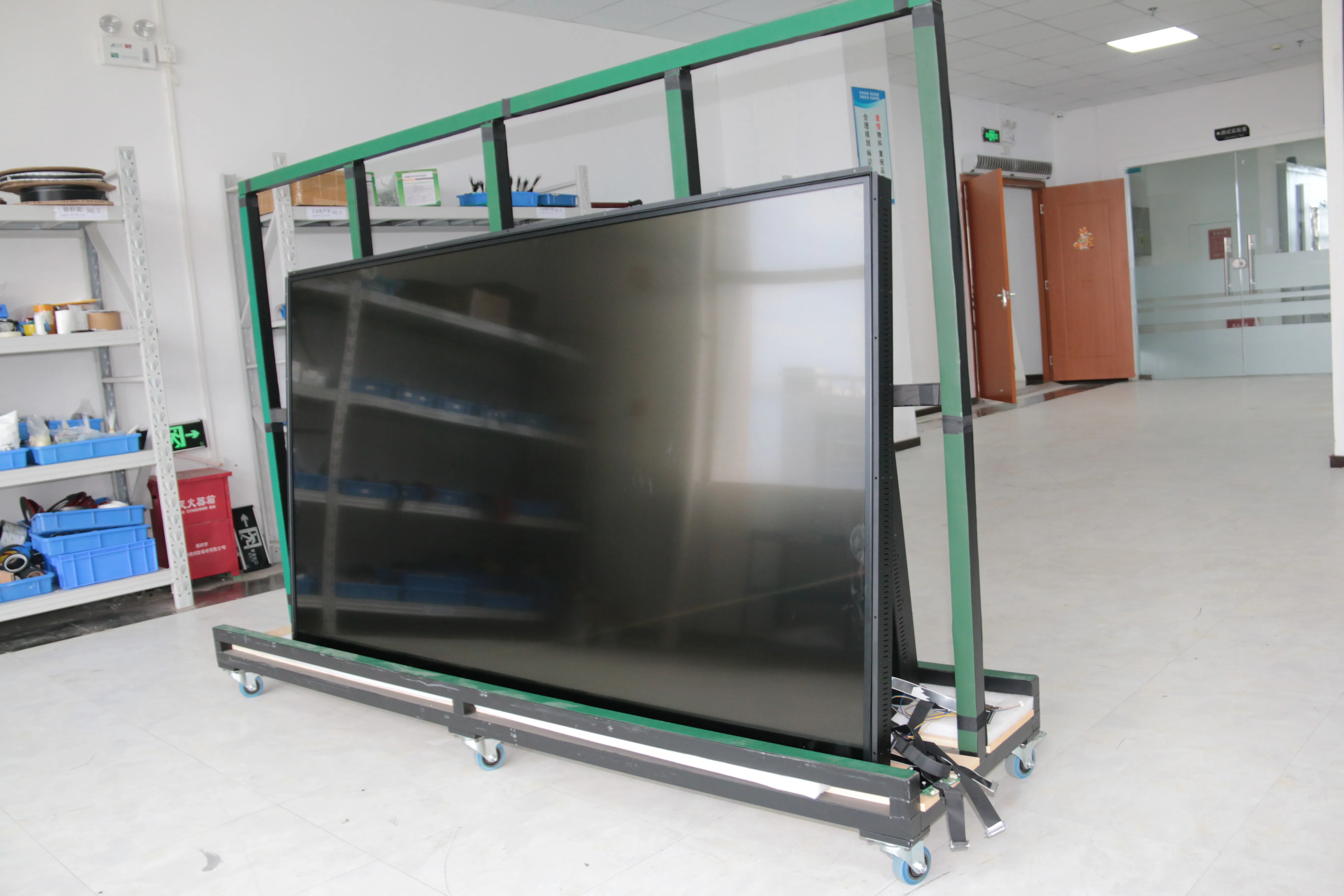

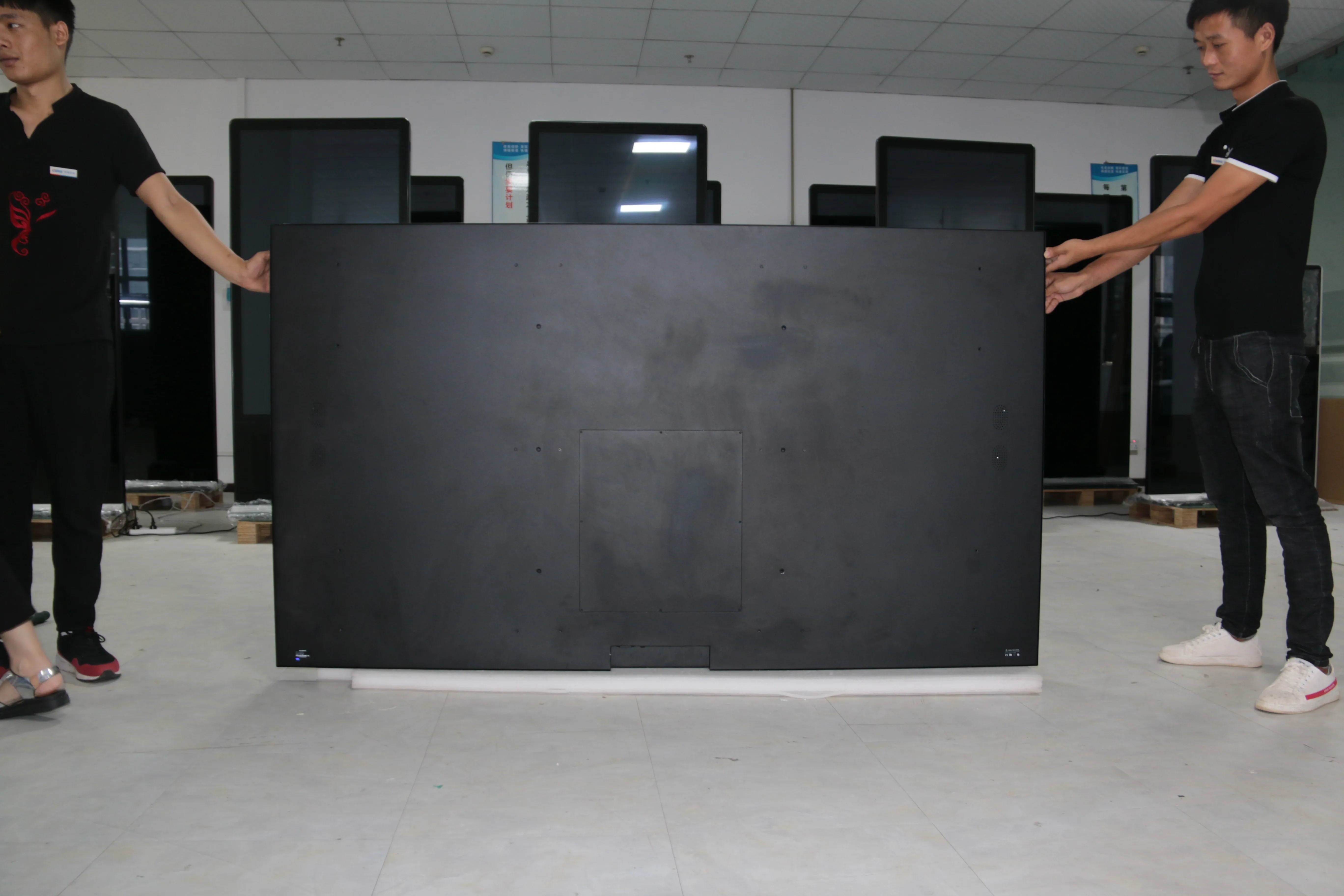

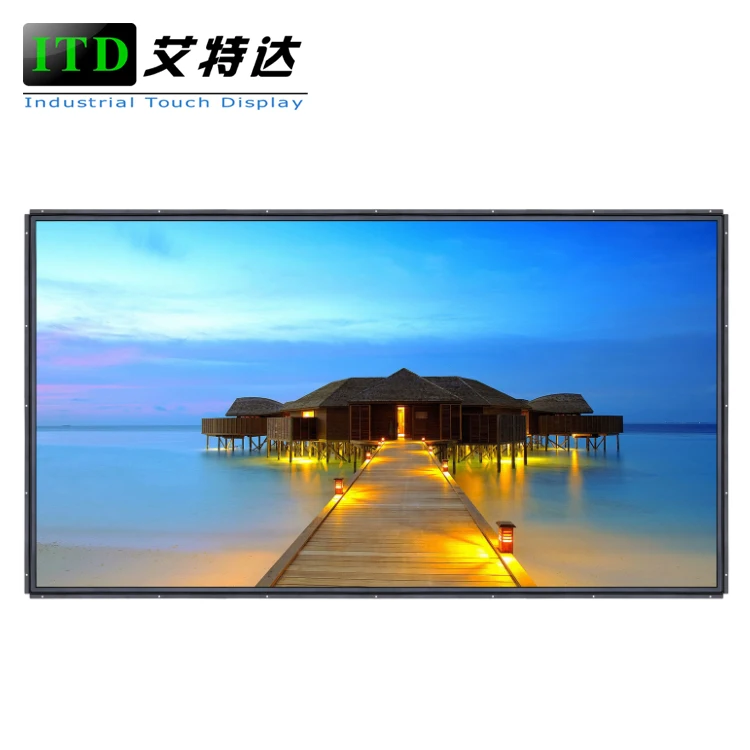

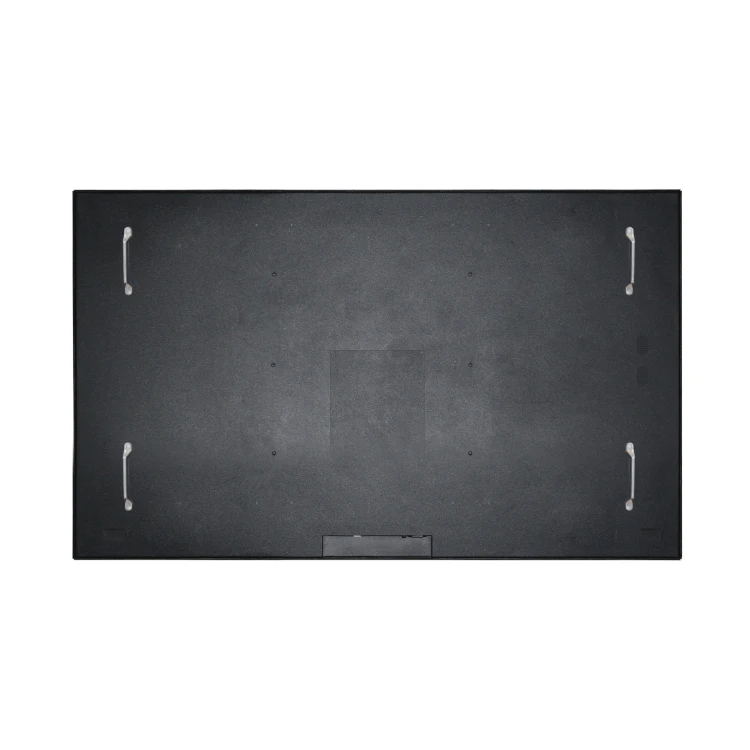

Product Display

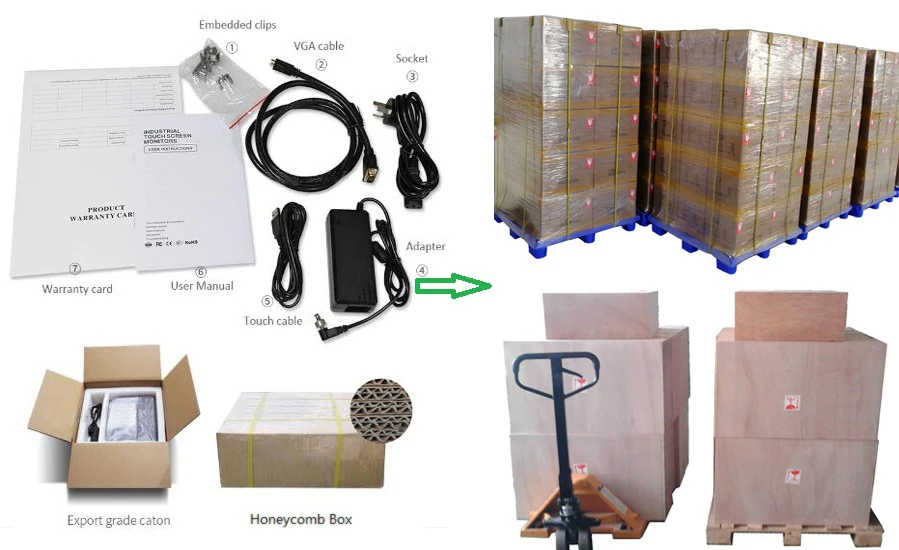

Packaging & Shipping
Firm, safe, standard cartons with foams
Wooden Shelf or Case for big sizes and big quanity
