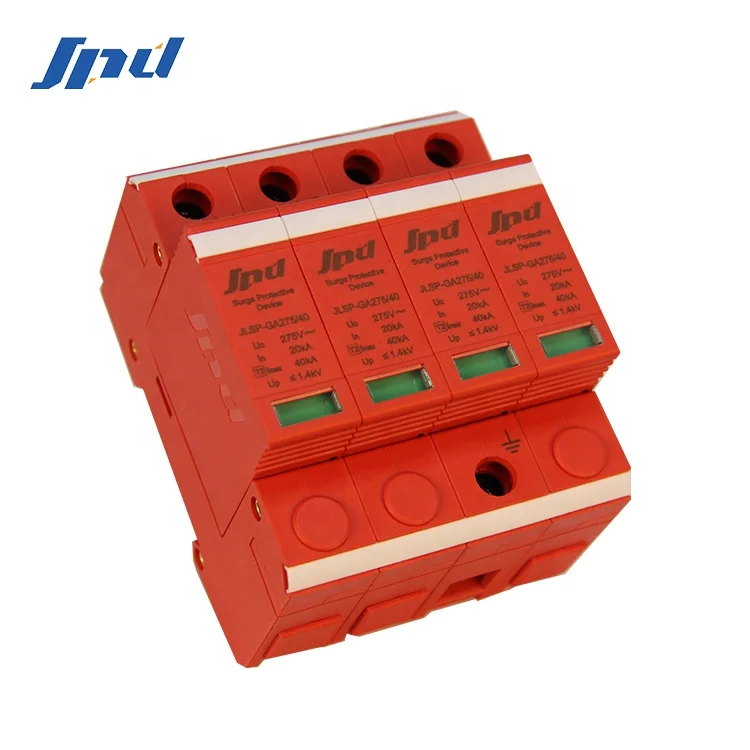

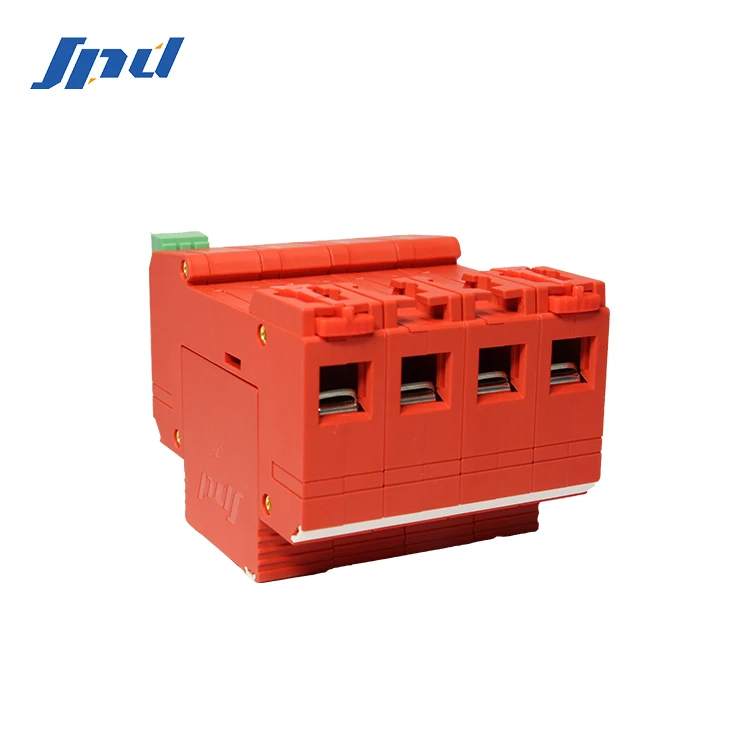

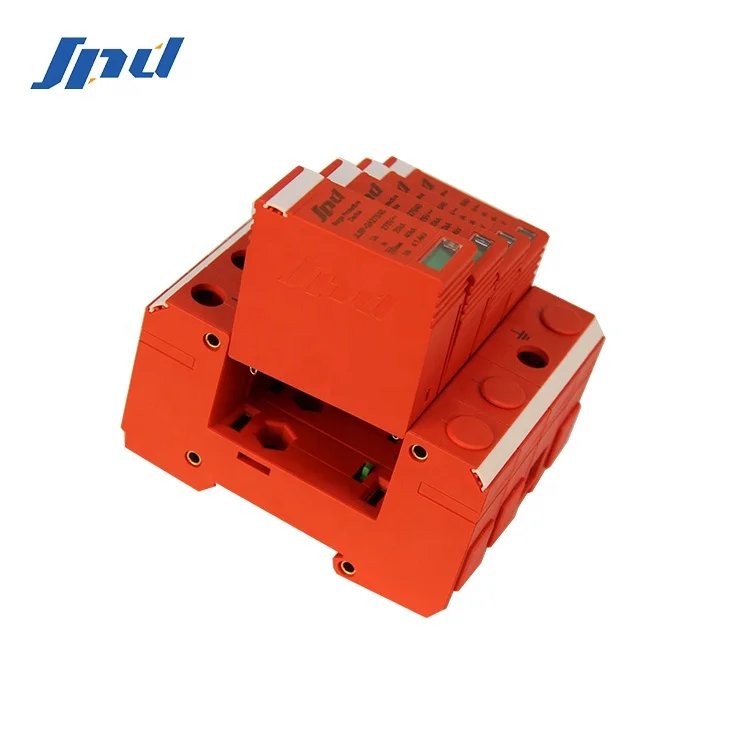

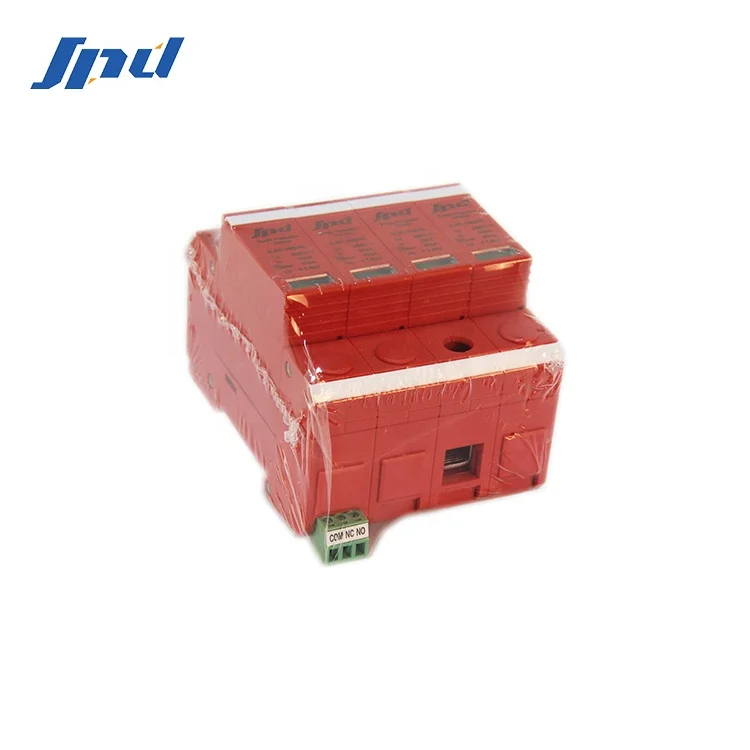

JINLI 275V 40kA 3 phase power surge protector AC surge protection device
JINLI 275V 40kA 3 phase power surge protector AC surge protection device
JINLI 275V 40kA 3 phase power surge protector AC surge protection device
JINLI 275V 40kA 3 phase power surge protector AC surge protection device
JINLI 275V 40kA 3 phase power surge protector AC surge protection device
JINLI 275V 40kA 3 phase power surge protector AC surge protection device
JINLI 275V 40kA 3 phase power surge protector AC surge protection device

JINLI 275V 40kA 3 phase power surge protector AC surge protection device

Share on (60843018872):


Price:$13.71 - $14.41

Quantity:


Product Overview

Description






Company Information


-_01_02_03_04





Detailed Parameter





























































































ModelJLSP-GA275/40
IEC ClassClass II
AC Network Un(50/60Hz)(V)202,230, 120/208 (TN/TT/IT)
Max.continuous operating voltage Uc (V)275
Nominal discharge current (8/20μs) In (kA)20
Max. discharge current (8/20μs) Imax (kA)40
Voltage protection level Up (kV)≤1.4
Max. backup fuse(A)100(gG)
Response time tA≤25ns
Capacity of withstand short circuit25kA
Operating temperature-40℃~+85℃
Relative humidity≤95%(25℃)
Max.cross-sectional area25mm2  multi-strand cord



Dimensions (1P) (W×L×H)(mm)		18×90×62
MountingDIN Rail 35mm
Protection ratingIP 20
Housing materialPBT
Flame retardant ratingUL94 V-0
Capacity of remote signaling contact250VAC/0.5A   30VDC/3A
Max.cross-sectional area of wire for remote signaling contact


1.5mm²multi-strand cord / single cord
Status indicatorNormal:green / malfunction:red
Standards complianceEN61643-11,IEC61643-11,GB/T 18802.11




More products


-_08-_09





Laboratory


-_10-_11





Exhibition


-_12

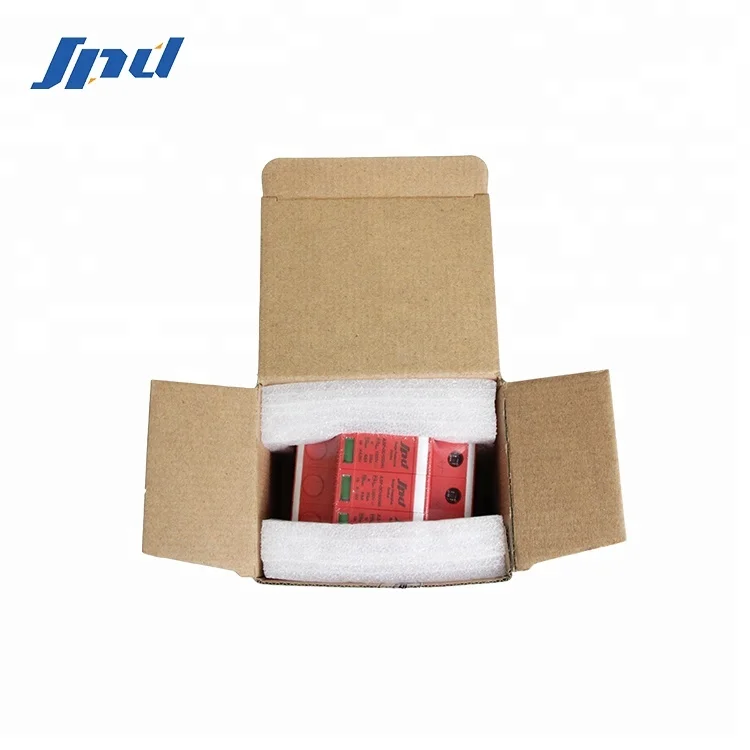

Packaging & Shipping
