Electronic Jacquard Machine Wme

Product Overview

Description

• ELECTRONIC JACQUARD OF WME SERIES
  • PRODUCT INTRODUCTION---------------------------------------------------------
  • Type: WME1344, WME1408, WME1536, WME2688
  • Speed: Upto 300RPM
  • Selection Method:  drive circuit board +Solenoid board+ Sheet Steel+ Lifting knife
  • Shedding Form:  positive double-lift, fully-open shedding mechanism
  • Shedding Height: The front shedding width range is 55-97mm. Back shedding width range is 97-120mm with easy adjustment.

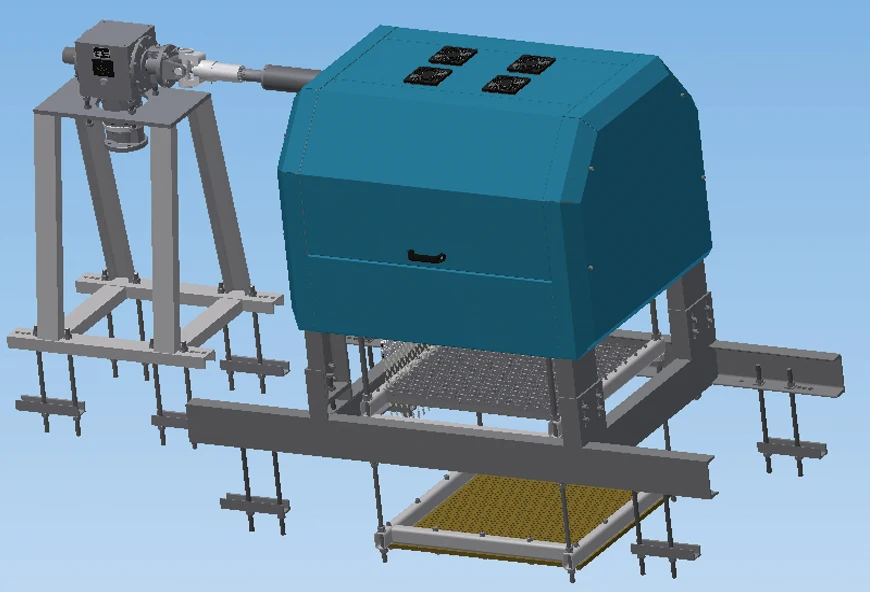

  • Driving Mode: vertical shaft+gear box
  • Note: Other specification can be made according to customer's requirement.


  • CHARACTERISTICS---------------------------------------------------------------------------------------
  • This series of high cost-effictive electronic jacquard machine is designed specailly for medium and low-speed rapier looms. The mechanism uses stable chain wheel to enhance the load ablility and decrease noise. Upper gear box and main body are assembly devided to adjust customer's workshop. Electric parts gets better anti-electromagnetic interference capability by using a variety of anti-jamming and circuit protection.


    RANGE OF APPLICATION---------------------------------------------------------------------------
    Matching with all kinds of overseas and domestic rapier looms, air jet looms, water jet looms and towel weaving looms. It is suitable for trademark, tie, garment fabric, decorative fabric, shawl, towel, tapestry etc.
    TECHNOLOGY PARAMETER--------------------------------------------------------

  Type	Length(mm)	Width(mm)	Height(mm)	Weight(kg)
  WME1536	2000	970	936	1200
  WME2688	2368	970	936	1500

•

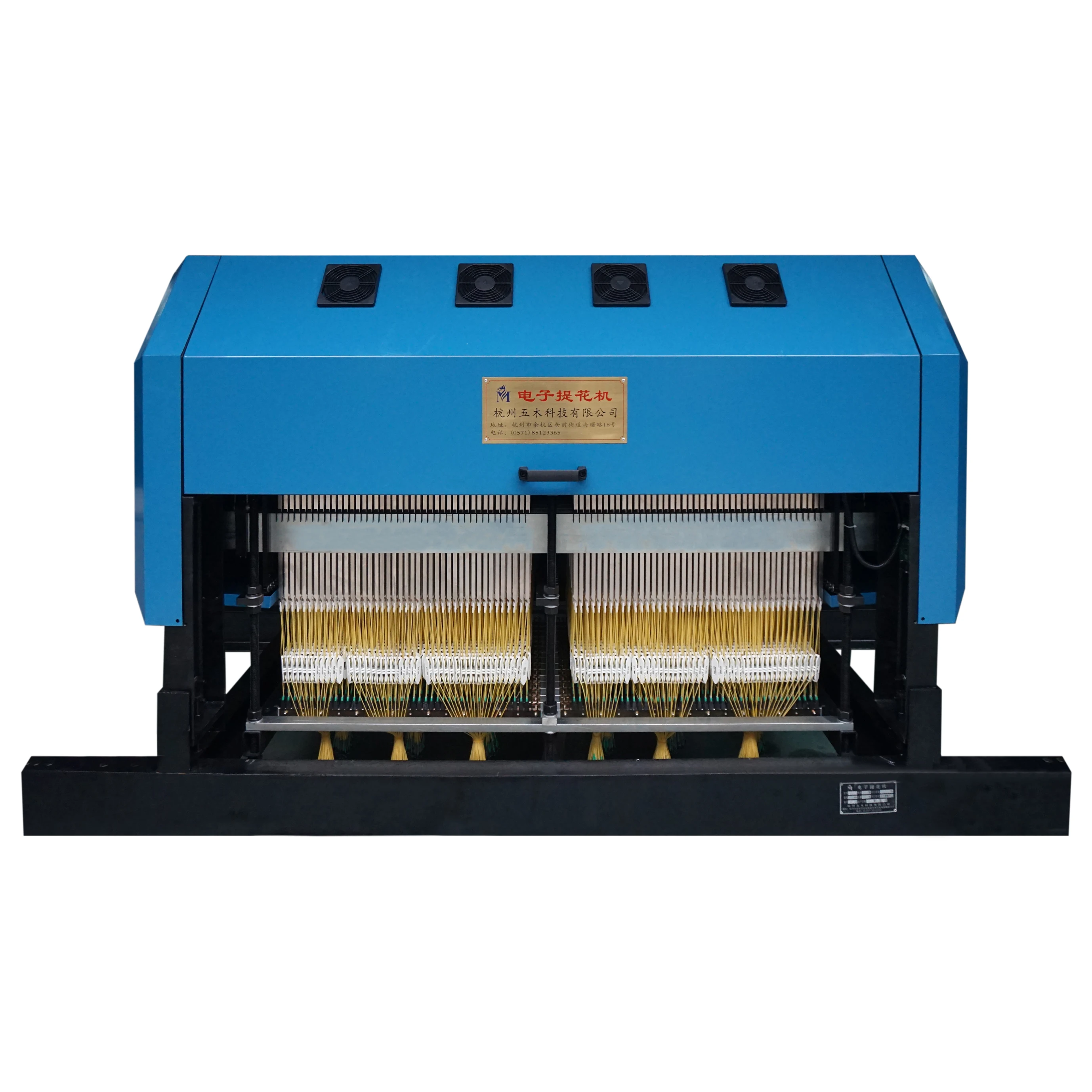

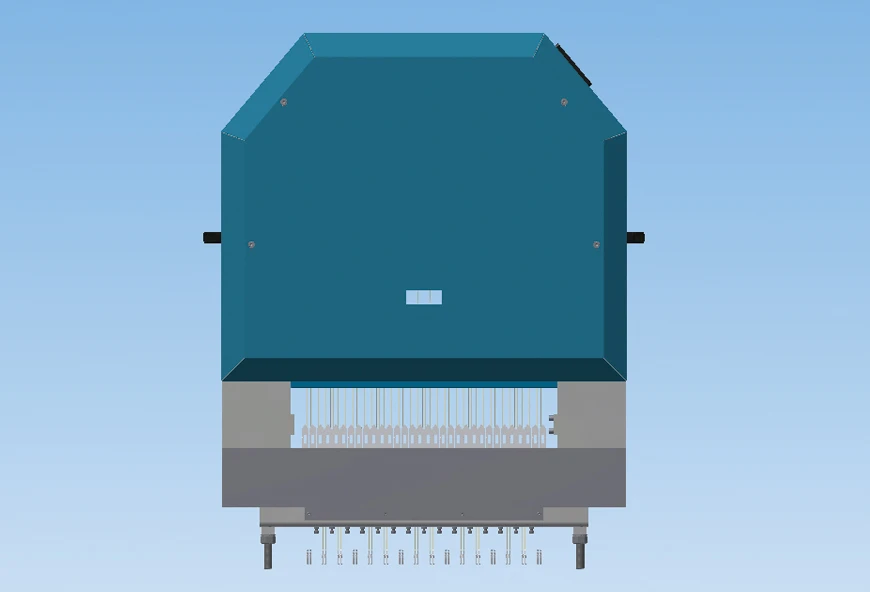

            Machine's Photo
