Recycling waste tires for rubber raw material machinery for sale

Share on (60843263493):


Price:$45,000.00 - $50,000.00

Quantity:


Product Overview

Description



\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t


  Recycling waste tires for rubber raw material machinery for sale

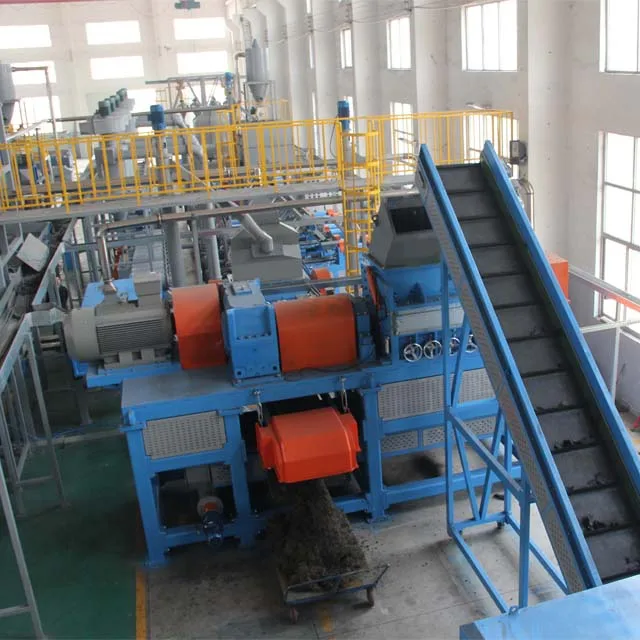

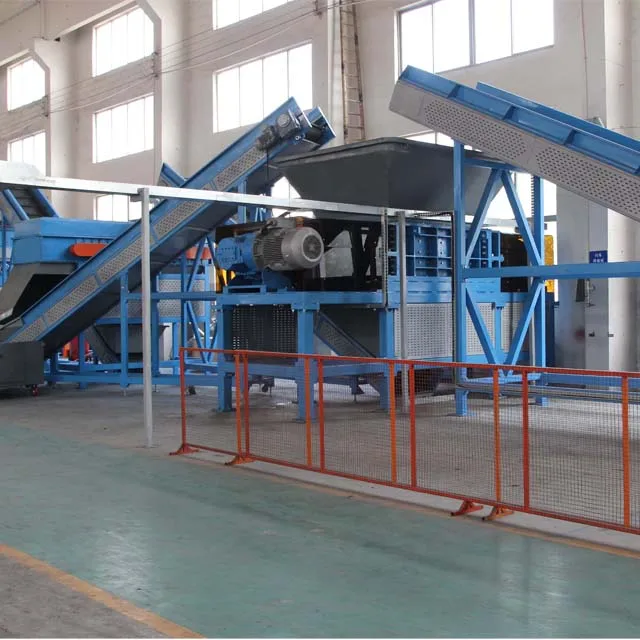

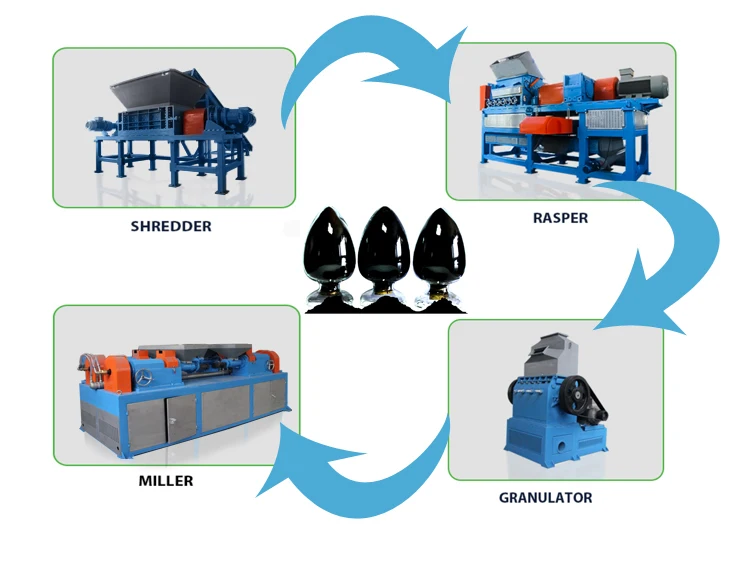

LIKE waste tire recycling production line made of different type heavy equipment,it can realize separate car tire,truck tire and engineering tire fully automatically.Based on client demand,make rubber material pelleting and grinding,this series tire recycling production line working under normal temperature,no need any chemical additive,won't cause secondary environment pollution.recycling within the range of tires 400-3000 mm diameter, strong applicability, the size of the output material can be controlled in the range of 5-100 mm, production can reach 200-10000 kg/h. Choosing the suitable model machine,we make the proposal closed to real production demand,let user control cost and get ultimate pay back by waste tire recycling machine.The whole tire recycling production line can effectively realize the automatic separation of rubber, steel wire, nylon fiber and other materials, the whole line adopts PLC control system, it is easy to operate and maintain, and has the characteristics of low energy consumption and long service life.





Tire shredder


The LIKE two-shaft tire crusher is specially designed for old tires with low speed and high torque to minimize noise and power consumption.The blade of the shredder is made of high quality steel and subjected to Bodycote heat treatment to achieve the best crushing performance.The thickness range of the crushing blade is 25mm-152mm according to the tire type,output and final product. The grinder can process OTR tires,big truck tires,car tires and so on at the speed of 1-30tons whithin 1 hour.



Model
Input size
Output size
Cappacity
Motor
Blades quantity
Dimensions
Weight
TS-800
800mm
50*50mm
1-2T/h
2*22kw
16pcs
4*2.6*3.2m
8T
TS-1200
1200mm
60*60mm
3-5T/h
2*37kw
20pcs
4.8*2.8*3.5m
14T
TS-1600
1600mm
50-150mm
6-8T/h
2*45kw
16-30pcs
5*2*3.4m
18T
TS-1800
1800mm
50-150mm
7-10T/h
2*55kw
20-24pcs
5.6*2*3.4m
23T
TS-2000
2000mm
75-200mm
10-15T/h
2*75kw
20-30pcs
6*2.4*4m
36T
TS-2400
2400mm
100-200mm
20-30T/h
2*110kw
16-24pcs
7.4*3.2*5.2m
56T

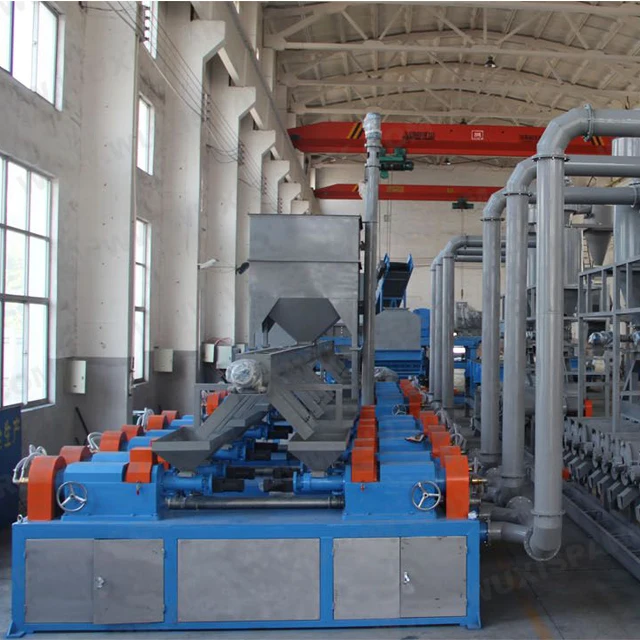

Miller


Rubber powder is the final result of ambient tire recycling.At this stage,crumb rubber is ground down into a clean powder form with virtually all steel and fiber removed.Rubber powder has numerous secondary uses from injection molding products,coatings,roofing materials and various asphaltapplications.

Rubber powder is typically found in 40-74 microns(0.40-0.74mm) in size.This micron size metarial has the advantage of being incorporated into new or existing formulations for various polymers and finished products.



Rubber powder
M2000
M1500
M1000
M500
Input product
Heavy duty truck tyres to bicycle tyres
Input size
Diameter 1800mm
Diameter 1800mm
Diameter 1800mm
Output size
shred to 30-120 mesh rubber powder
Capacity
1500kg/h
1000kg/h
500kg/h
Total Kw
680-760kw
516-556kw
347-372kw
170-190kw




\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t
