Xuedian portable manual hand lifting winch pole telescopic mast
- Category: Winches >>>
- Supplier: Nanjing Xuedian Lighting Co. Ltd. [Jiangsu China]Nanjing
Share on (60846895224):
Product Overview
Description
Product Description

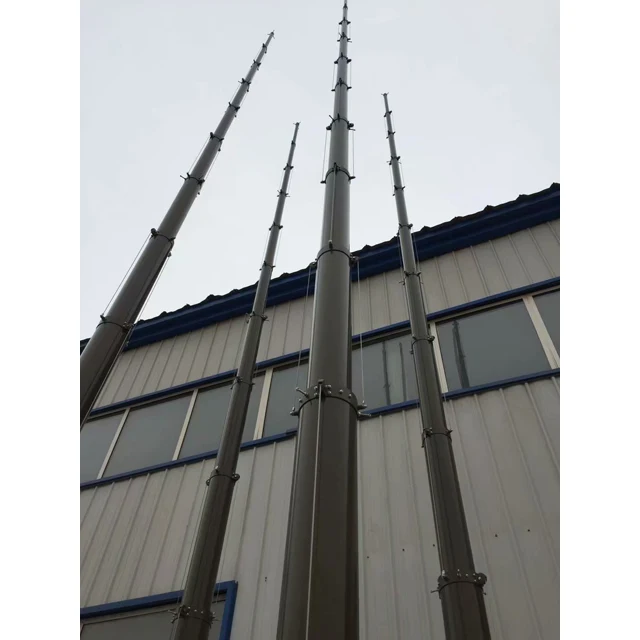

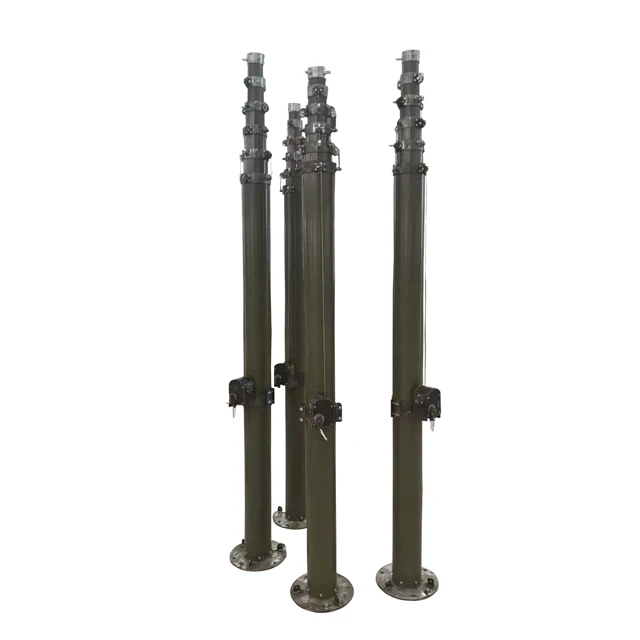

Xuedian portable manual hand lifting winch pole telescopic mast
About Xuedian Telescopic Mast
Telescopic masts ideal for fast deployment of telecommunication / surveillance / lighting devices to a certain height in the air (range from 2m to 30m), which offer an elevation solution with different payload capacity (range from 2kg -300kg).

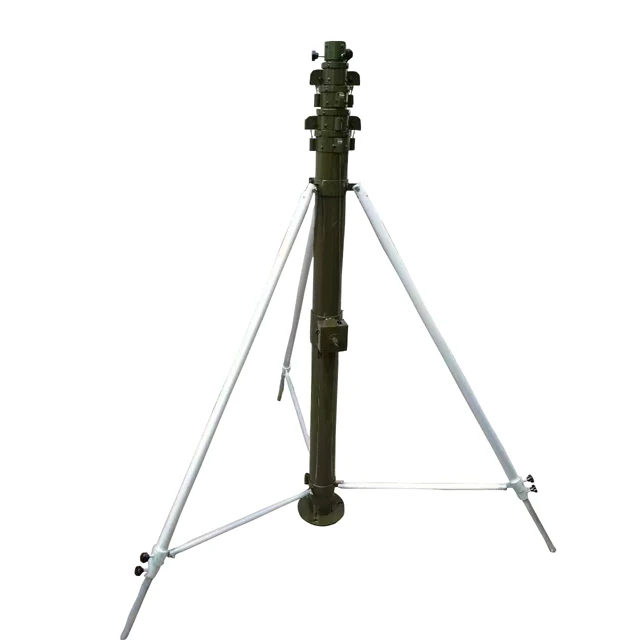

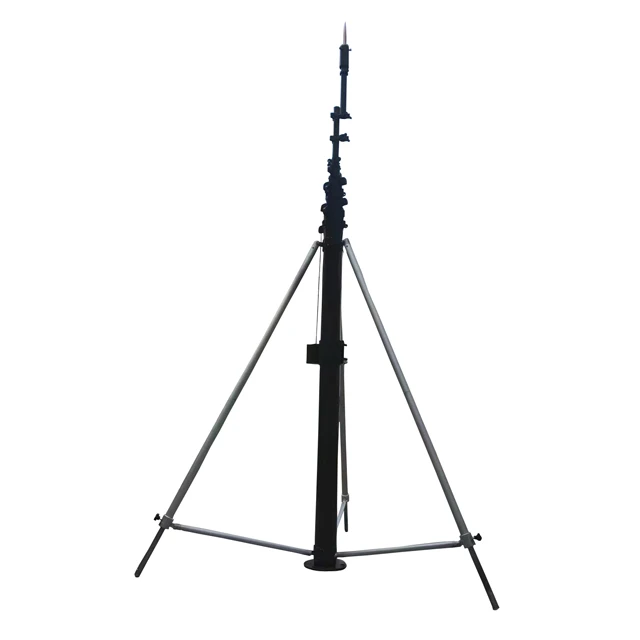

The lightweight and reliable telescoping masts can be mounted by tripod, trailer or on a vehicle. Telescopic masts with locking collars can keep the equipments at a fixed height for a long time even without air pressure.
The working power the telescopic mast can be manual winch, compressed air or electric motor.
Telescopic masts designed for multitude of purposes and that is capable of been deployed in a range of Activities including:
1. Events Wi-Fi
2. Temporary communications.
3. Emergency services (Lighting/surveillance)
4. Radio installation Surveying
5. Semi-permanent Installations for outdoor Events
Related Products
Besides
Xuedian portable manual hand lifting winch pole telescopic mast
you may also interested to know other related models below:
Model Number | SDSY6/20 | SDSY8/20 | XDSY10/20 | XDSY12/20 | XDSY4/50 | XDSY6/50 | XDSY8/50 | XDSY10/50 |
Extended Height (m) | 6 | 8 | 10 | 12 | 4 | 6 | 8 | 10 |
Closed height (m) | 1.8 | 1.96 | 2.1 | 2.22 | 1.56 | 1.82 | 1.98 | 2.1 |
Section | 4 | 5 | 6 | 7 | 3 | 4 | 5 | 6 |
Max. Payload (kg) | 20 | 20 | 20 | 20 | 50 | 50 | 50 | 50 |
Lift Time(min) | 2.5 | 2.5 | 4.5 | 4 | 2 | 2 | 4 | 4 |
Self-Weight (kg) | 30 | 45 | 70 | 90 | 25 | 40 | 65 | 85 |
Note: Customers' specific needs can be addressed.
Certifications
Xuedian portable manual hand lifting winch pole telescopic mast
Accessories
Accessories: middle backet, air pump, base flange, pull rope and ground nail, control box, top flange, air hose.
Packaging & Shipping
Xuedian portable manual hand lifting winch pole telescopic mast
Products are packed with foam to protect mast and in wooden cases.
Our Services
Our Services
Xuedian portable manual hand lifting winch pole telescopic mast

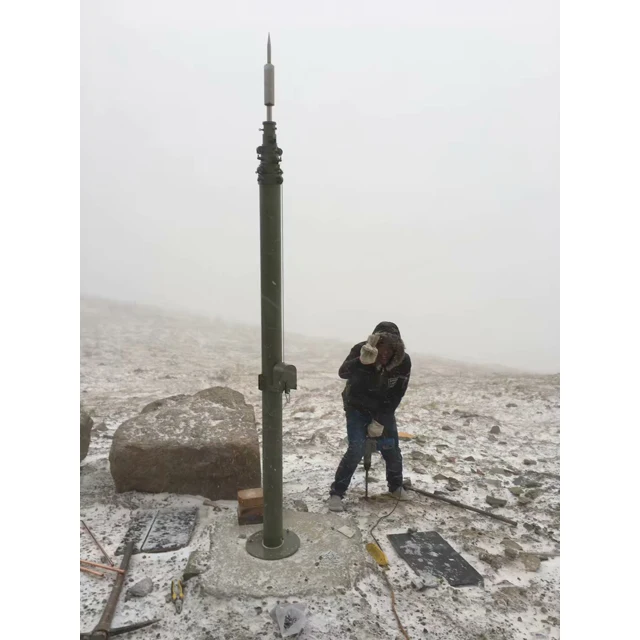

- Professional technical team to address customer's specific needs faster and more effectively.OEM/ODM service available.Complete quality control before delivery.Short lead time.One year warranty after delivery.FAQHow to install a telescopic mast?The telescopic mast can be mounted on the ground or mounted on the vehicle. Regardless of where it is installed, ensure that the mast is perpendicular to the ground when in use. if the mast if titled, it will affect the rise and fall of the mast; if the mast if severely tilted or tilted for a long time, it will also cause damage and danger the mast.The telescopic mast should be mounted on a fixed object, such as a wall, a car body, a foundation pile, and so on. There must be at least two mounting points, one of which is at the bottoms of hte telescopic mast, and the distance between the two points is greater than 2/3 of the initial height of the mast. the connection should be firm and reliable.
Why we should buy from Xuedian ?- Xuedian is manufactuer of telescopic mast instead of a trading company.Xuedian has 10 years manufacturing and exporting experience of telescopic mast products.Xuedian always use materials from famous material suppliers.
