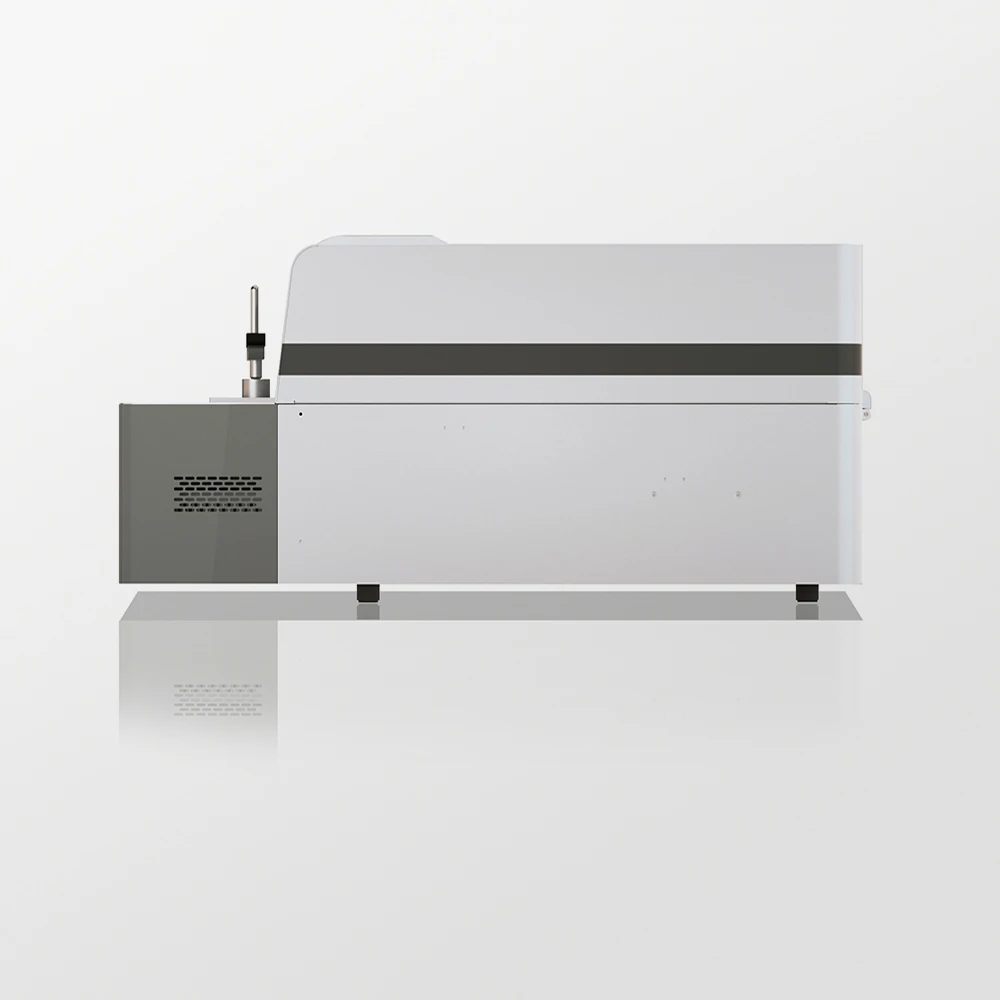

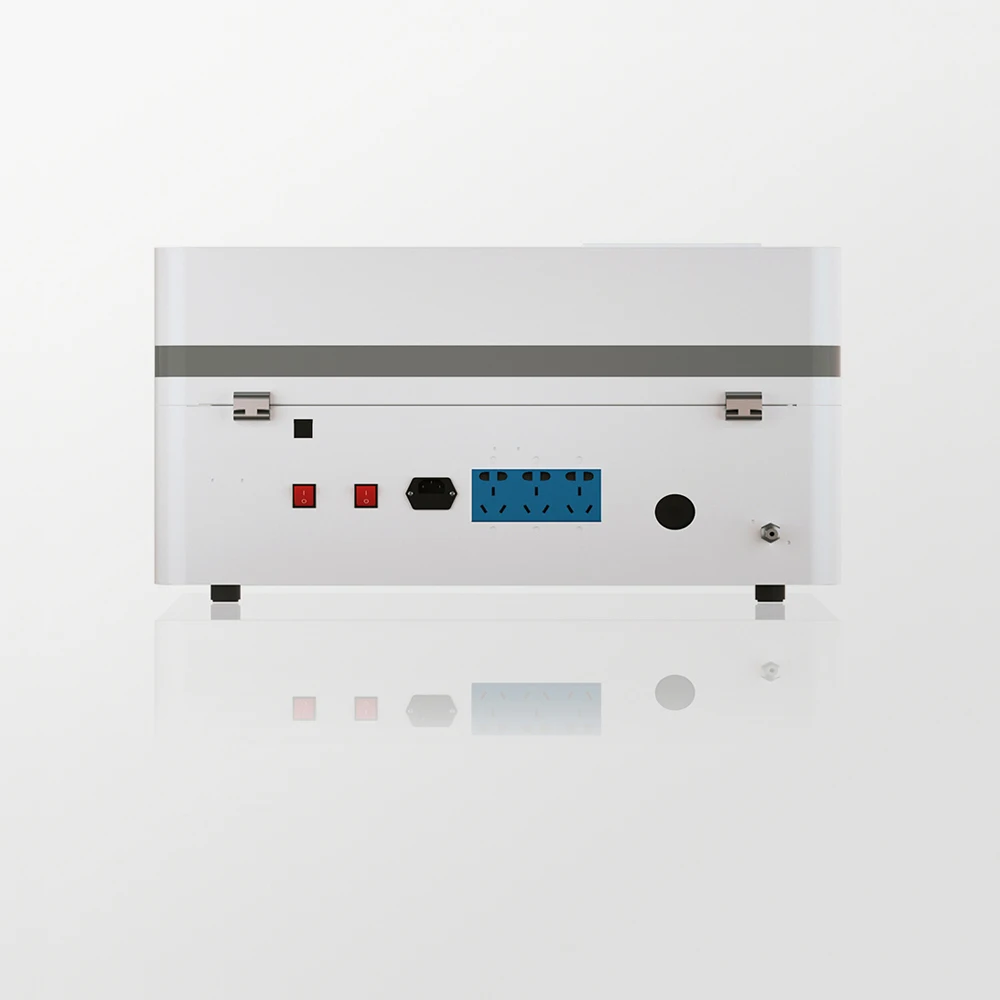

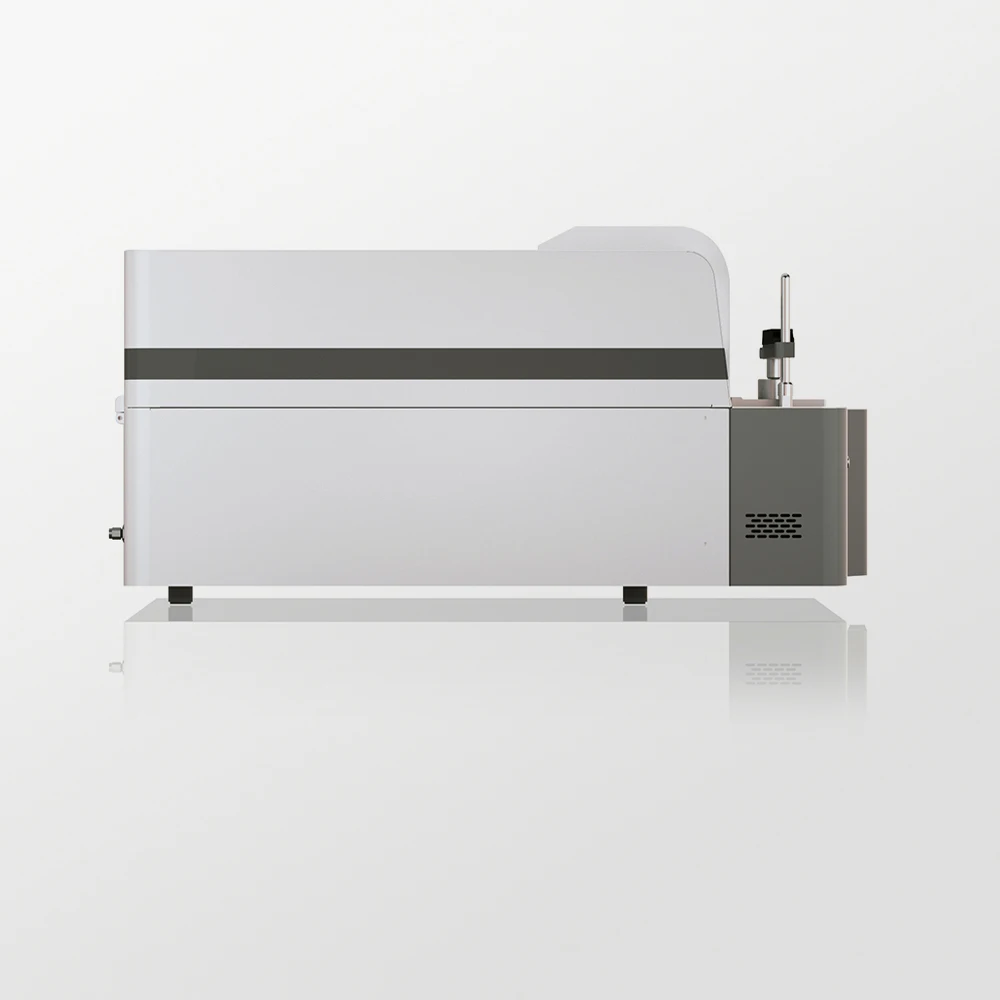

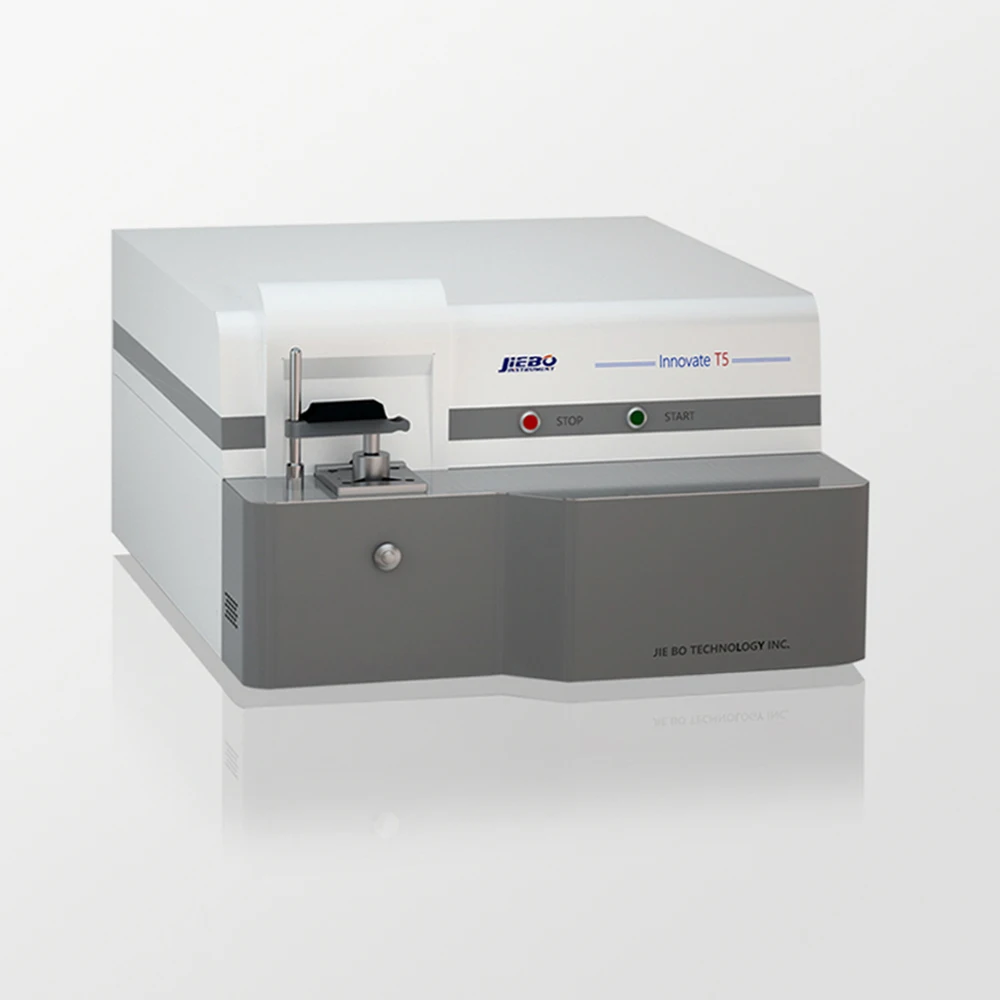

Best price High Speed and Accuracy CCD Spectrometer

Share on (60848703261):


Price:$18,000.00

Quantity:


Product Overview

Description






Product Description



High Performance Full Spectrum Analysis
*  High sensitivity and response speed
*  High UV sensitivity and accurate detection of short-wave elements in deep UV such as C, P, S, B, As, N
*  Adding matrix, material types and analytical elements without cost of adding hardware facilities
*  Vacuum chamber integration



Stable And Reliable Operating Capability
*  Interference subtraction technology
*  Drift correction technology
*  Easily to use



Intelligently Working Program
* Prefabricated work curve with different materials and grades
* Optimal test condition be automatically selected
* Scope of analysis be drawn or extended by user



Advanced Analytical Software
*  Fast analysis speed, takes 20s for one test
*  According to different analysis materials, setting proper preburning and measuring time to achieve best analyzing effect





Technical parameters

































Optical SystemPaschen-Runge system;
CMOS full spectrum detector;
Wavelength Range:140~680nm
ArgonGas Purity Requirement: 99.999%;
Gas Inlet Pressure: 0.5MPa;
Excitation flow rate 3.5L/min;
Maintain flow rate 0.4L/min;
Standby flow rate 0.1L/min
Spark TableFlexible sample clamp design;
Hole Diameter :13mm
Light SourceProgrammable pulse all digital light source;
Discharge Frequency: Max 1000 Hz;
Discharge Current: Max 400A;
Ignition Pulse:1~14kV;
Spark Excitation Pulse:20~230V
Weight78kg
DimensionL780mm*W585mm*H360mm
Working Power(220±20)V AC,(50±1)Hz

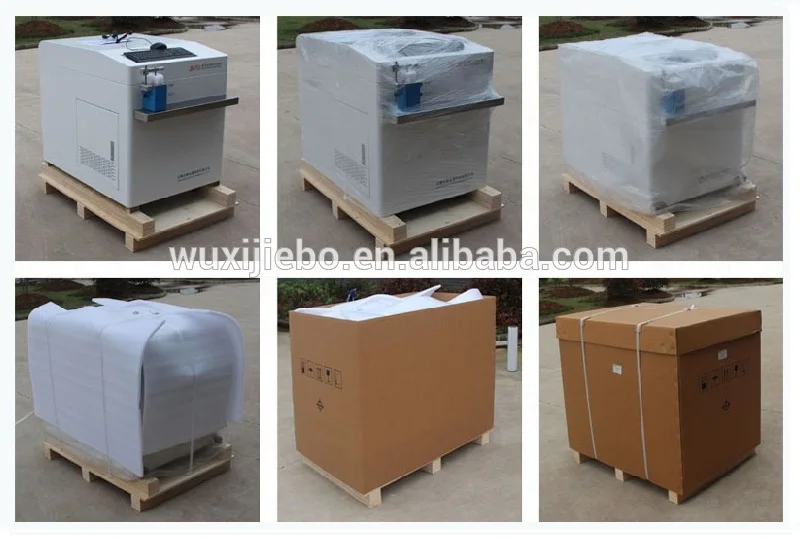

Packaging & Shipping


 OES package infos.jpgdelivery terms.jpg











Our Services













The exhibition

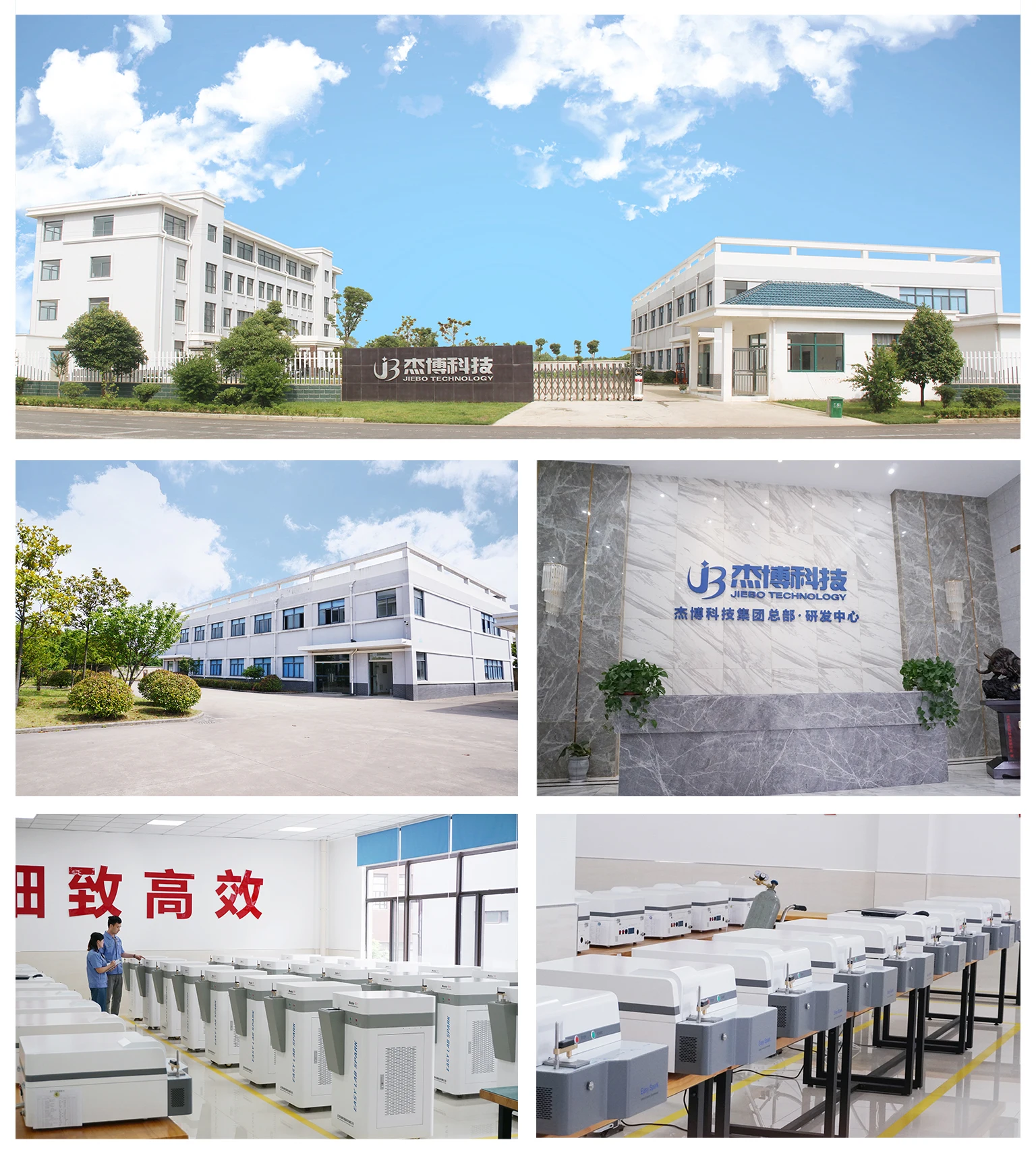

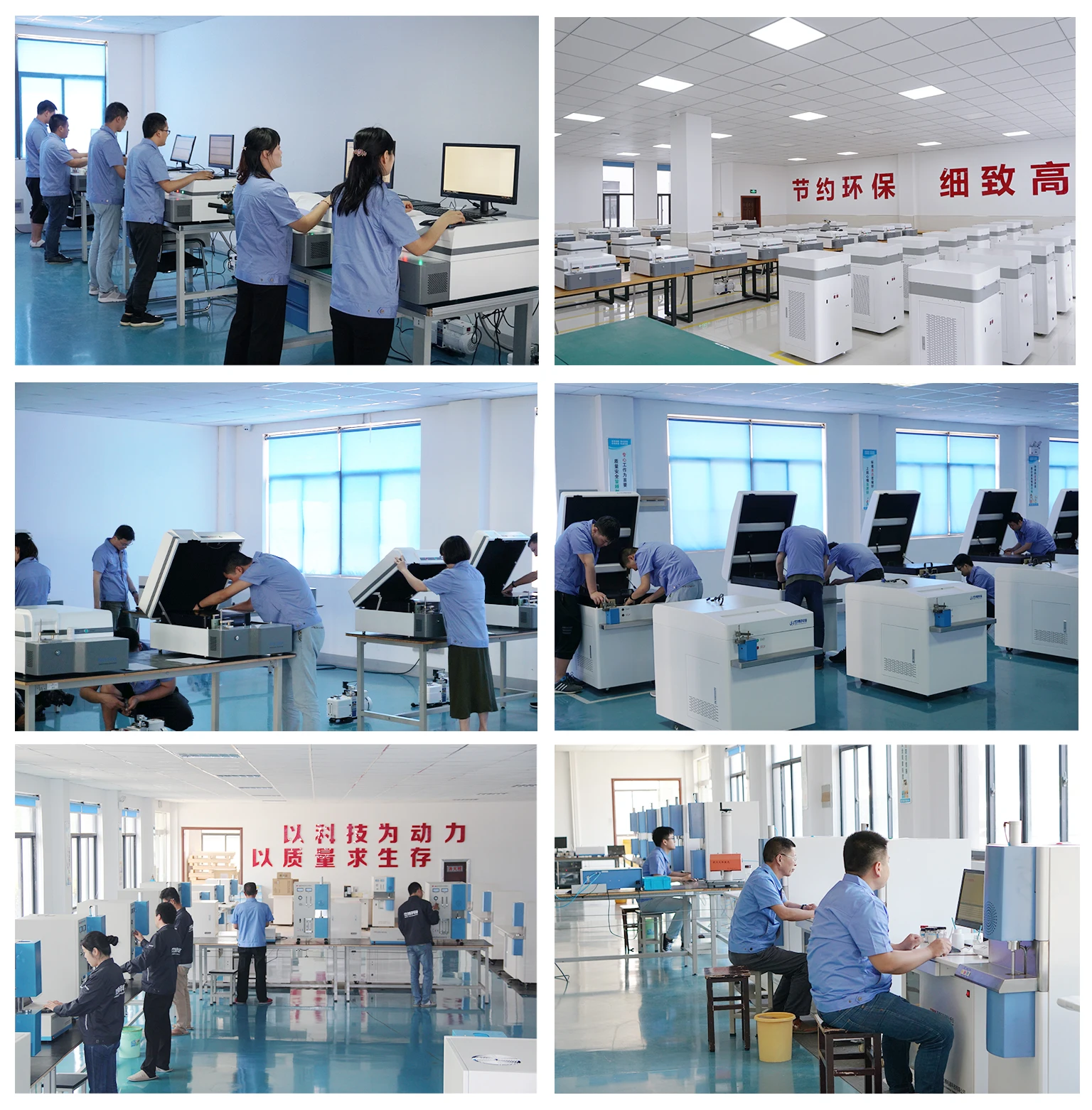

Company Information
