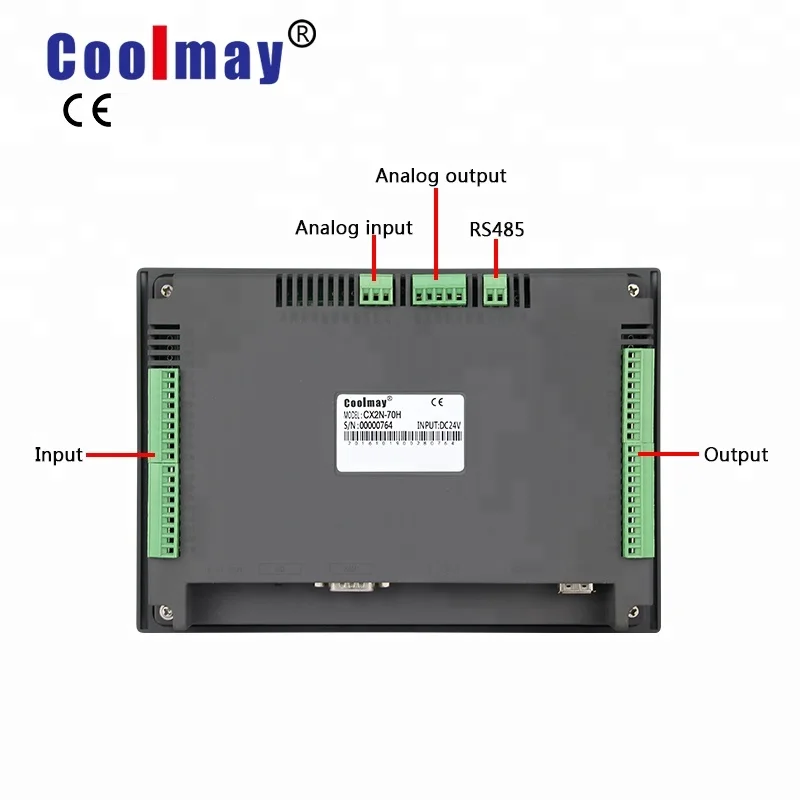

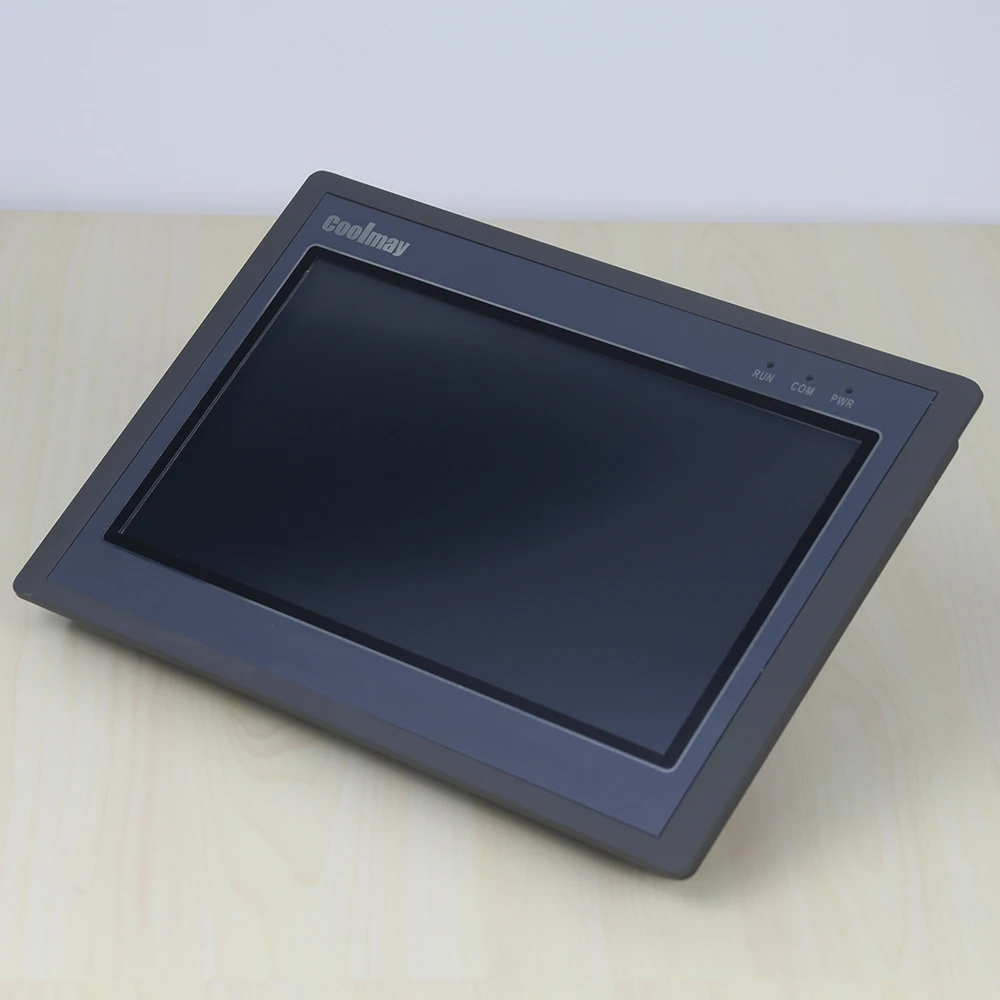

Coolmay plc controller programmable logic controller 24DI/20DO plc hmi all in one MX2N 70HB 44M
- Category: PLC >>>
- Supplier: Shenzhen Coolmay Technology Co. Ltd.
Share on (60848904091):
Product Overview
Description
Product Description
Model | MX2N-43HB-24M | MX2N-70HB-44M |
Dimension | 134*102*30mm | 212*148*40mm |
Cutout size | 120*94mm | 194*138mm |
HMI | ||
Display | 60K colors touch panel | |
Display size | 97*56mm | 154*87mm |
Resolution (pixels) | 480*272 | 800*480 |
RAM | 32MB | 64MB |
ROM | 128MB | |
Operation system | NULL | |
CPU | ARM9 216MHz | ARM9 288MHz |
Default COM | 1 touch panel download port, 1 USB port | |
Optional | 1 RS485 or 1 RS232 port | |
Software | ||
PLC | ||
I/O | 12DI/ 12DO | 24DI/ 20DO |
I/O level | Low level NPN, COM connect to negative | |
DO type | Relay (MR) or MOS (MT) | |
High-speed counting | Default as single phase 6 channels (X0-X5) 10KHz, or AB phase 2 channels (X0-X1/X3-X4) 10KHz Or customized as single phase 6 channels (4* 60KHz, 2* 10KHz), or AB phase 2 channels 60KHz | |
High-speed pulse | Default as 4 channels (Y0-Y3) 20KHz, Or customized as 2 channels 200KHz and 2 channels 100KHz | |
Analog I/O (optional) | 4AI/ 2AO | 8AI/ 2AO |
AI type (optional) | Type E/ K/ J thermocouple/ NTC10K/ NTC50K/ 0-5V/ 0-10V/ 0-20mA/ | |
AO type (optional) | 0-10V/ 0-5V/ 0-20mA/ Mixed | |
Weighting function (optional) | NULL | 1 channel |
Default COM port | 1 RS232 | |
Optional | NULL | 1 RS485 (changed from default RS232) |
Software | ||
Suggested models: MX2N-43HB-24MR/24MT(-4AD2DA-232H) MX2N-70HB-44MR/44MT(-8AD2DA-485P/232H)
Details refer to COOLMAY MX2N HMI PLC All-in-one Programming Manual EX2N HMI PLC All-in-one User Manual | ||
| Powerful and highly integrated | Integrate HMI, digital, analog and temperature in a whole |
| Multiple sizes available | 4.3"/5"/7"/10" optional |
| Switching and analog | up to 30DI/30DO, 16AD/8DA |
| high speed counting input | 6 channel 60khz single phase /2 channel 60khz AB phase and 1 channel 10khz |
| high speed pulse output | Normally 8channels,Y0-Y3 is 100KHz,Y4-Y7 is 10KHz; 8 channels 10-100KHz can be customized. High speed counting and high speed pulse total can not exceed 480KHz. |

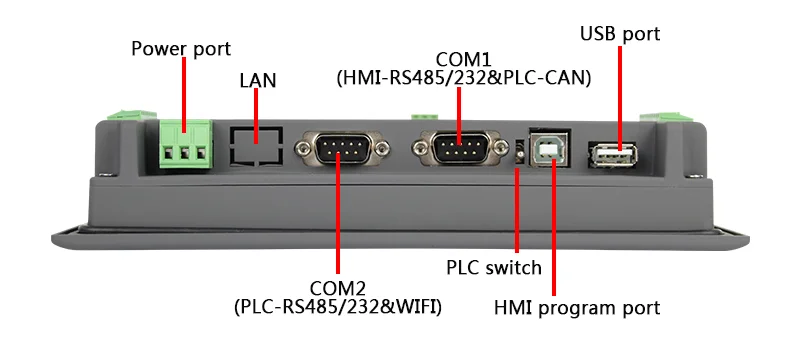

| COM port | Comes with MiniB type USB port AND RS232 port(Ethernet, audio, RS232, RS485 Canbus can be added) |
| Remote control | Network module can be added according to customer requirements for remote control |
Hot Sales
Our Services
Programming software
The coolmay-HMI programming software is completely free for users.
Download link: //www.coolmay.net/Download-159-36-41.html
Coolmay Technology will quickly and accurately provide you with high quality industrial control products at competitive prices. Without a small order, the products will be tested from our workshops to ensure the highest quality.
Company Information
Our client
Coolmay exports products to more than 100 countries and has initially established a global marketing and service network.
Application
(1) Power industry, elevator industry, parking lot, automobile and automobile supporting.
(2) Feed industry, aluminum smelting machinery, refrigeration industry.
(3) Steel industry, combustion control system, and non-ferrous metal smelting.
(4) Glass industry, engineering machinery, textile machinery, water treatment
Coolmay products are widely used in machinery, power, metallurgy, chemical, petroleum and other industries. They are favored by many foreign customers.
